Surface Mount RJ11 Modular Jack, 6P6C, 1 Port, Unshielded, Vertical, Tab-Up, No LED
Introduction:
This is a single port vertical surface mount RJ11 modular jack designed for compact printed circuit board layouts. It utilizes a black hi-temp thermoplastic housing that survive intense industrial reflow soldering processes without any structural deformation. The Gold plated Phosphor Bronze contacts ensure superior conductivity and a consistent 1.5A current rating for voice and data signals. Utilizing a Tab-Up configuration, this unshielded jack effectively saves vertical space while providing a high insulation resistance of 1000 mohms. Its durable construction handles dielectric withstanding voltages up to 1500 VDC safely across a temperature range of -40°C to +85°C. Technicians utilize this reliable SMT interface for standard telephone systems and industrial communication gear needing top-entry connectivity.
Key Features
- SMT Surface Mount: Facilitates efficient and automated high-speed PCB assembly.
- Vertical Mounting Design: Optimizes top-entry connectivity for specialized board layouts.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
- Hi-Temp Thermoplastic: Survives intense heat during industrial reflow soldering.
- 6P6C Modular Interface: Provides standard modular links for voice networking.
Main Specifications:
General Information:
| Product No.: | MTJ-64HX1-B | |
| Series: | MTJ | |
| Category: | Single Port RJ11 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 6P4C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC or 1500 VDC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | 40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

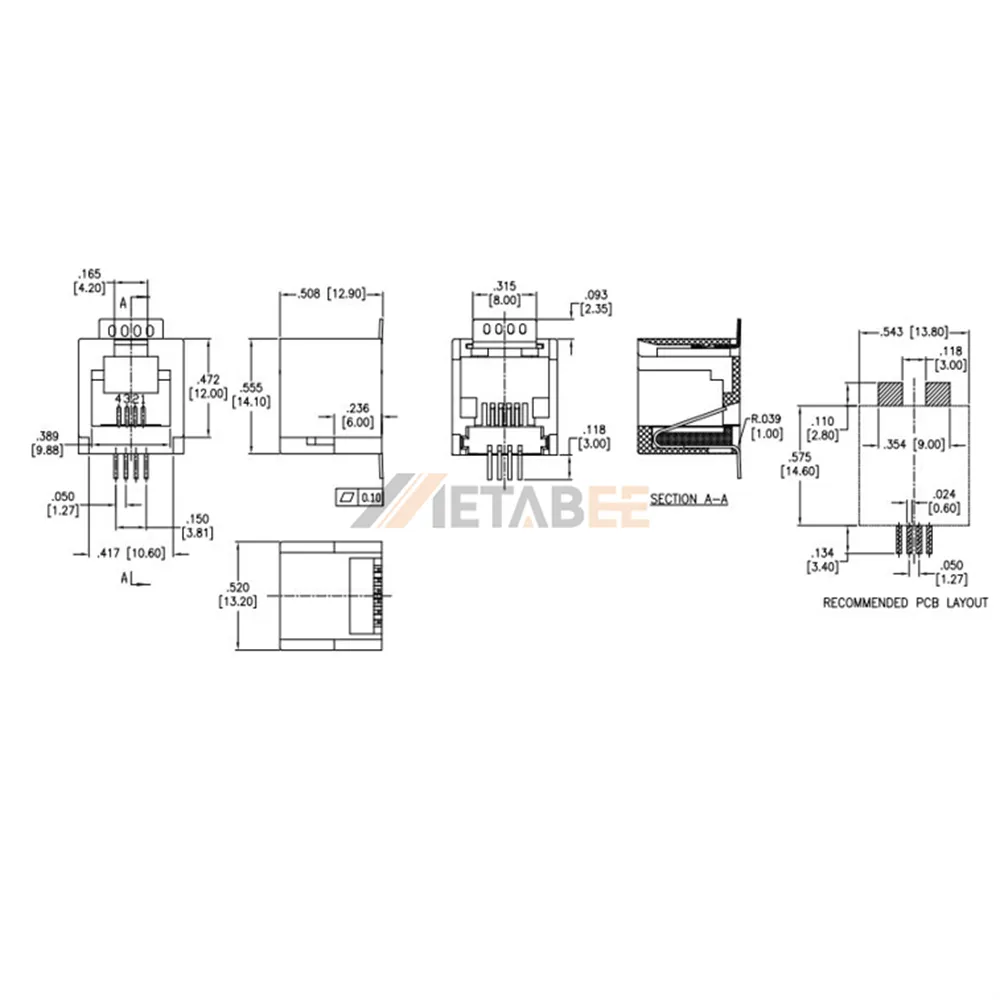

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
