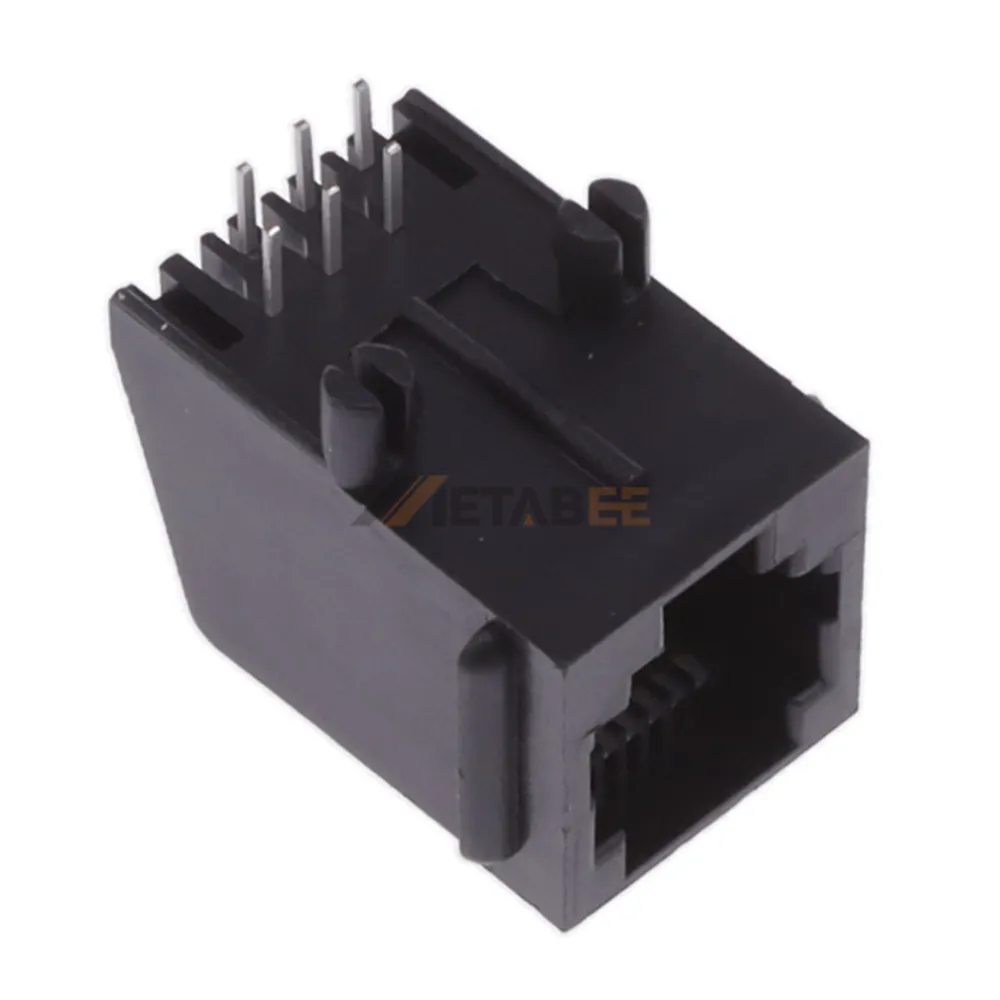

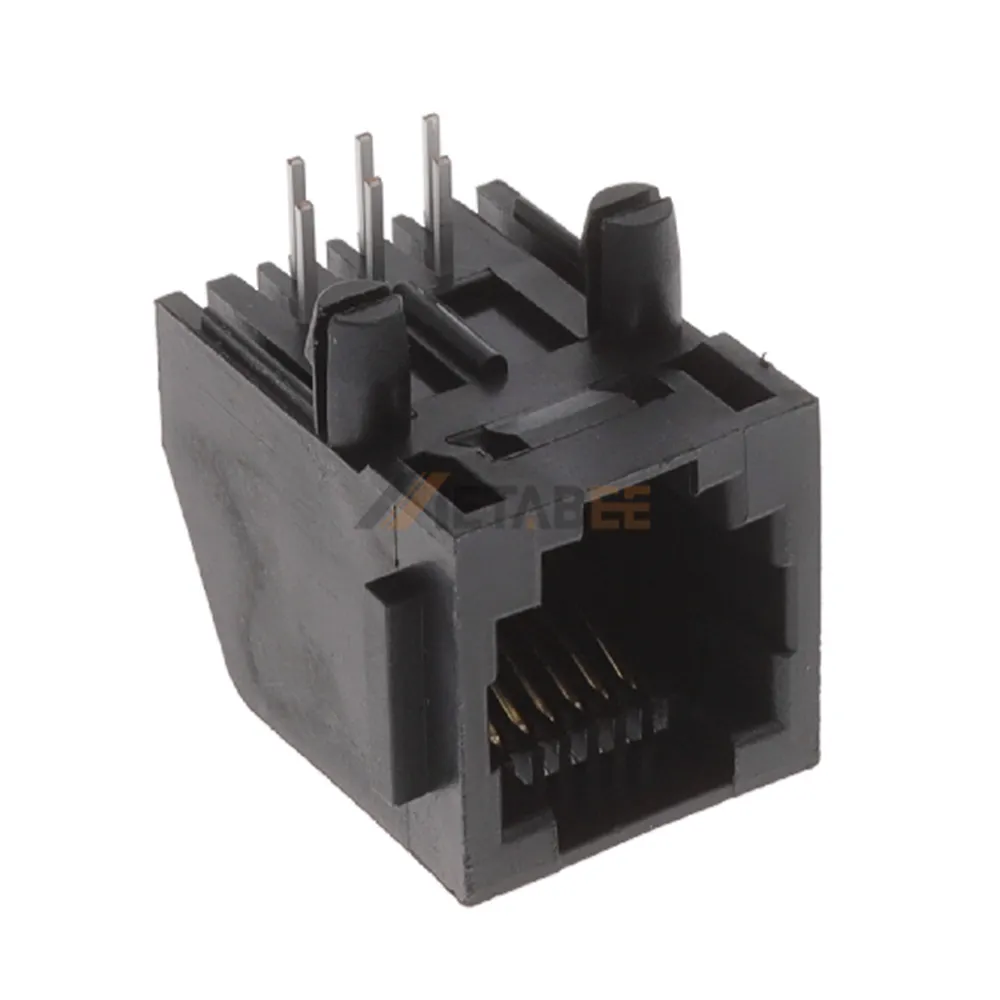

RJ12 6P6C Female PCB Mount Modular Jack, 1 Port, Unshielded, R/A, Tab-Down, No LED
Introduction:
This is a single port rj12 6p6c female pcb mount modular jack designed for stable right angle through hole attachment to networking circuit boards. It utilize a durable black PBT housing that ensures reliable performance and maintains a high insulation resistance of 1000 mohms. The 6P6C interface features Phosphor Bronze contacts with premium Gold plating to support a consistent 1.5A current rating for voice and data signals. Utilizing a Tab-Down right angle configuration, this unshielded component effectively saves vertical space while providing a secure mechanical bond to the PCB. Technicians utilize this modular interface for residential telephone lines and commercial telecommunication gear requiring dependable 6-pin connectivity across a wide -40°C to +85°C range.
Key Features
- 6P6C Modular Interface: Supports standard RJ11, RJ12, and RJ25 voice networking.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
- Tab-Down Orientation: Optimizes vertical space for specialized board layouts.
- High Insulation Resistance: Maintains 1000 mohms for enhanced electrical safety.
- Durable PBT Housing: Performs reliably between -40°C and +85°C.
Main Specifications:
General Information:
| Product No.: | MTJ-660X1, MTJ-661X1 | |
| Series: | MTJ | |
| Category: | Single Port RJ11 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 6P4C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC / 125V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC or 1500 VDC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic / Hi-temp Nylon | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | 40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
Factory pricing and exceptional product quality. OEM & ODM Services. Get a free quote now!
Metabee is a professional connector manufacturer from China. We can provide all kinds of modular jacks, plugs & couplers.
