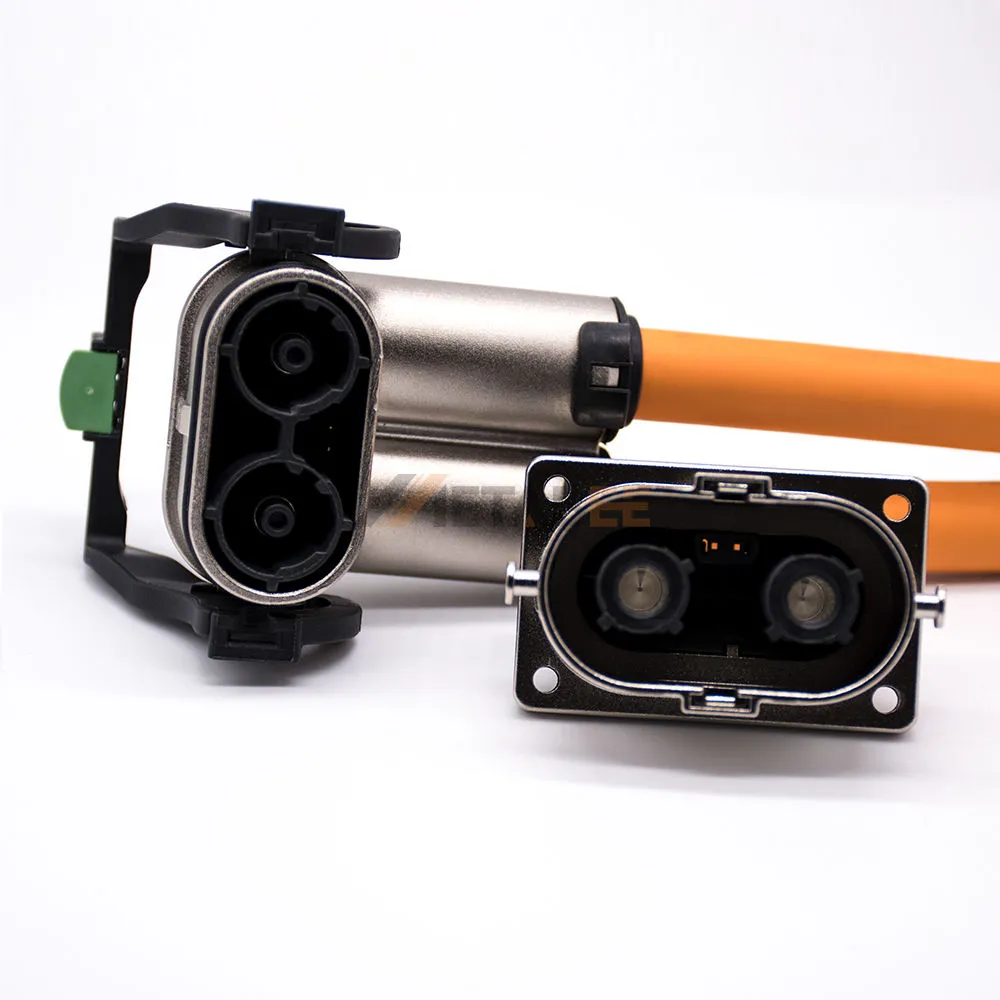

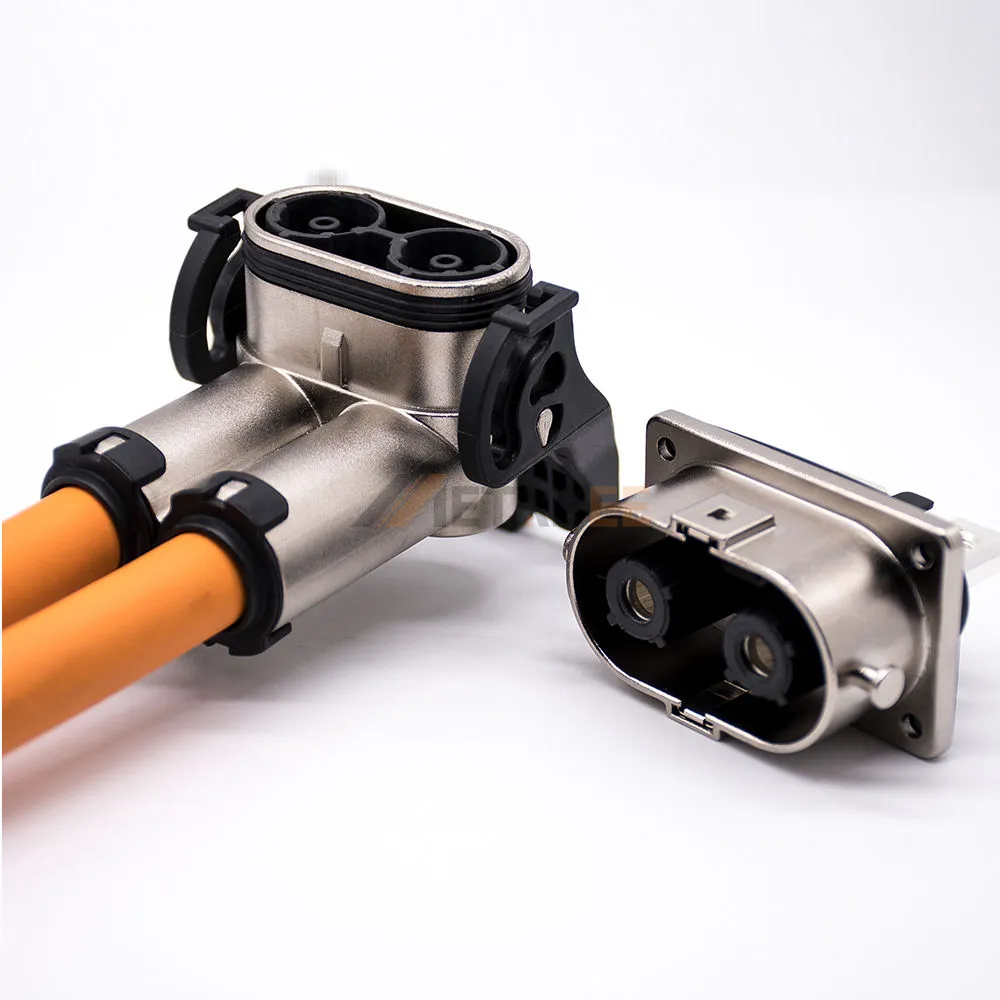

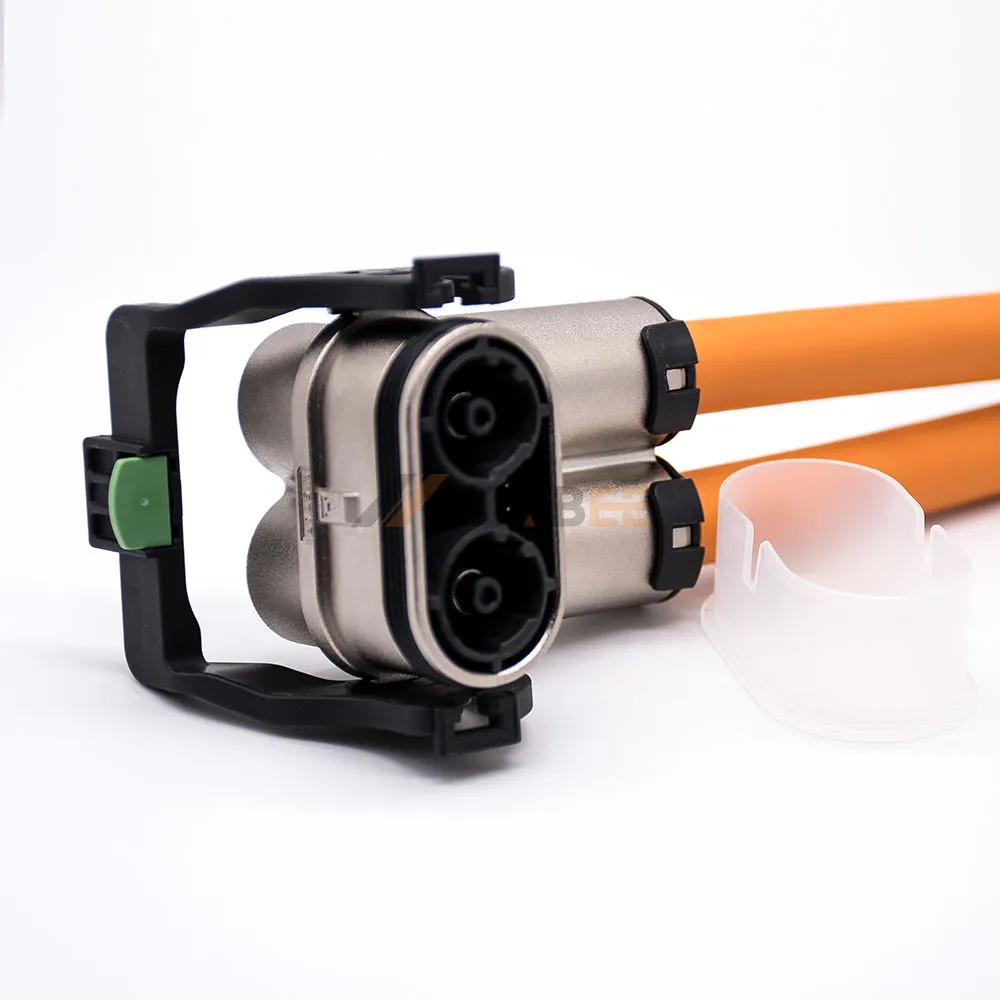

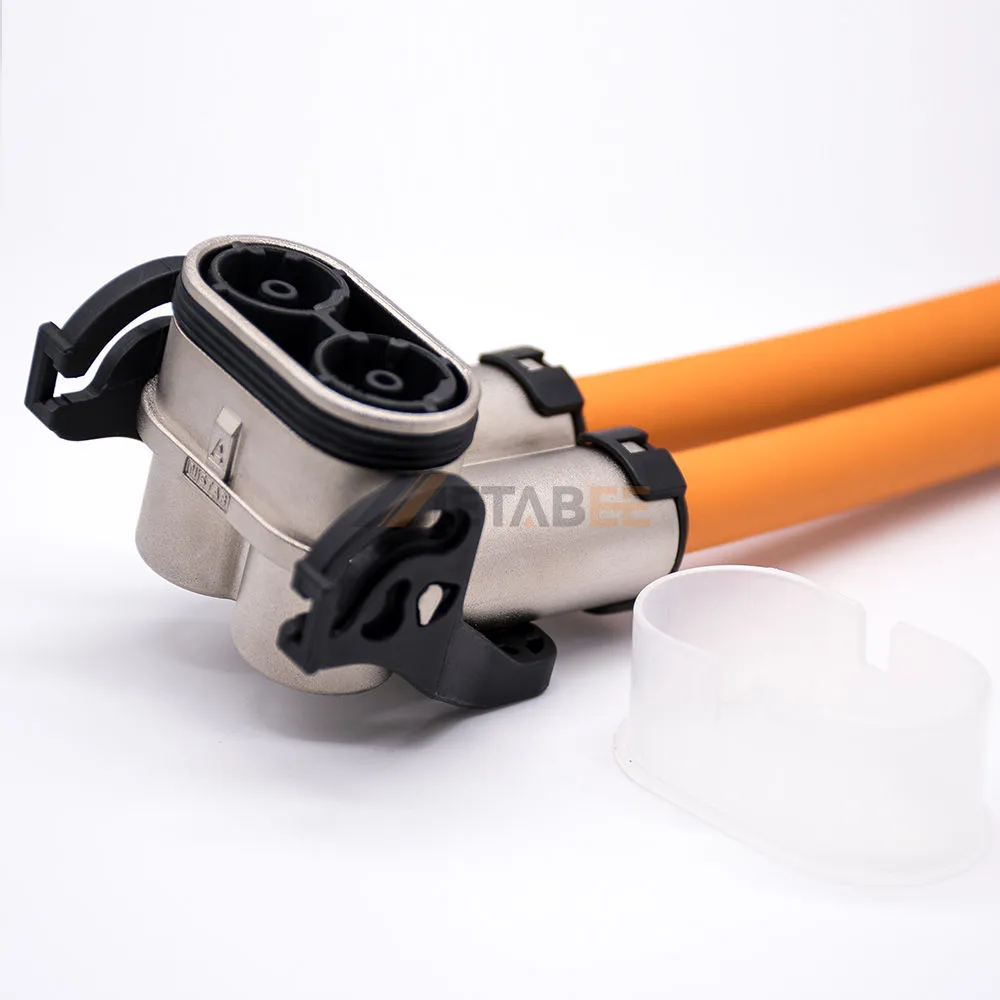

Right Angle 6mm High Voltage Interlock Loop HVIL Connector Cable, 2 Pin Plug, A Key, 25mm², 125A
Introduction
The Right Angle 6mm HVIL connector cable is designed for high-power electric vehicle and energy storage applications requiring secure and efficient interlock connections. Its right-angle plug structure allows optimized cable routing in compact installation spaces while maintaining excellent mechanical stability. With a 6mm terminal diameter and 25mm² wire gauge, this HVIL cable supports up to 125A at 1000V, delivering reliable performance for high-voltage systems.
Engineered with a zinc alloy housing and nickel-plated copper alloy contacts, the connector provides outstanding conductivity, durability, and corrosion resistance. The A-key design ensures accurate mating alignment and safety compliance in accordance with automotive interlock standards. It also meets IP67 protection for full waterproof and dustproof performance, while its UL94V-0 flame retardant rating enhances operational safety in extreme environments ranging from -40°C to +125°C.
Key Features:
- Rated 1000V/125A for high-voltage EV applications.
- Right-angle 2 Pin Plug with A Key ensures a secure and precise connection.
- Nickel-plated copper contacts for superior conductivity and corrosion resistance.
- IP67 protection for water and dust resistance.
- UL94V-0 flame retardant for enhanced safety.
- Reliable operation from -40°C to +125°C in harsh environments.
Main Specifications:
General Information:
| Part No.: | NI1-1-B060-2AYN-C08-L0.15 | |
| Product Series: | HVIL Cables | |
| Brand: | Metabee | |
| Gender: | Plug | |
| Orientation: | Right Angle | |
| Connector Coding: | A Key | |
| Number of Positions: | 2 Pin | |
| Shell Material: | Zinc Alloy | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Nickel-Plated | |
| Terminal Diameter: | 6mm | |
| Wire Gauge: | 25mm² | |
| Cable length: | 15cm | |
| Rated Voltage: | 1000 V | |
| Rated Current: | 125A | |
| IP Rating: | IP67 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +125°C | |
| Other Feature: | None |
Applications of this Right Angle 6mm High Voltage Interlock Loop HVIL Connector Cable:
HVIL (High Voltage Interlock Loop) cables and their associated systems are crucial safety mechanisms primarily used in high-voltage applications to prevent electric shock and damage from arcing.
Here are some main applications:
- Electric Vehicles (EVs) and Hybrid Electric Vehicles (HEVs);
- Inverter/motor drive interface;
- On-board charger (OBC) connection;
- Power distribution unit (PDU) / junction box systems;
- Stationary energy storage systems (ESS);
- Off-highway and heavy-duty electric equipment;
- DC fast-charging infrastructure;
- High-voltage thermal management systems.
Factory pricing and exceptional product quality. Get a free quote now!
