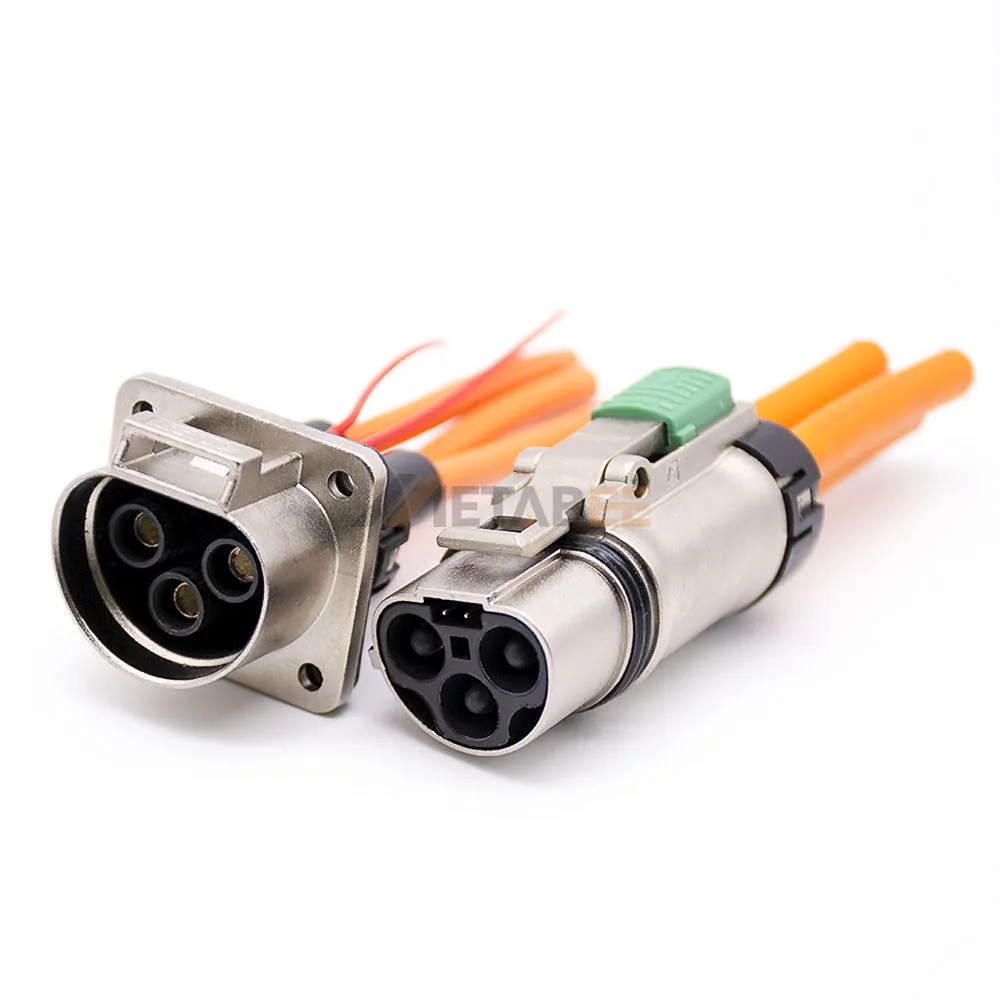

35A 3.6mm HVIL High Voltage Interlock Loop Cable, 3 Pin Plug, A Key, 6mm², Cable Type
Introduction
This premium HVIL cable is engineered to meet the stringent safety and performance demands of modern electric and hybrid vehicle applications. Featuring a robust, straight-orientation 3-Pin Plug with an A Key, this cable ensures reliable connectivity and crucial safety interlock functionality. The 6mm² wire gauge supports a substantial rated current of 35A and a rated voltage of 1000V, providing a dependable solution for power distribution and safety monitoring.
Built for durability, the connector utilizes a Zinc Alloy housing for maximum mechanical protection, while the contacts are made of Nickel-Plated Copper Alloy for excellent conductivity and corrosion resistance. With an IP67 ingress protection rating and UL94 V-0 flame retardant rating, this assembly withstands harsh environments, moisture, and extreme temperatures ranging from -40°C to 125°C. The compact 10cm cable length is ideal for tight space integration within critical vehicle systems.
Key Features:
- Safety Interlock Functionality: Integrated High Voltage Interlock Loop (HVIL) ensures automatic power cut-off upon disconnection, prioritizing personnel safety.
- High Power Rating: Supports 1000V rated voltage and 35A rated current with 6mm² wire gauge.
- Durable Construction: Robust Zinc Alloy housing and Nickel-Plated Copper Alloy contacts.
- Extreme Environmental Resilience: Wide operational temperature range of -40°C to 125°C.
- Superior Protection: Achieves IP67 waterproof/dustproof rating and UL94 V-0 flame retardant rating.
- Reliable Connection: Straight, 3-Pin Plug, A Key configuration with 3.6mm terminal diameter.
Main Specifications:
General Information:
| Part No.: | NI1-1-S036-3AYN-C05-L0.1 | |
| Product Series: | HVIL Cables | |
| Brand: | Metabee | |
| Gender: | Plug | |
| Orientation: | Straight | |
| Connector Coding: | A Key | |
| Number of Positions: | 3 Pin | |
| Shell Material: | PA66+GF | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Nickel-Plated | |
| Terminal Diameter: | 3.6mm | |
| Wire Gauge: | 6mm² | |
| Cable length: | 10cm | |
| Rated Voltage: | 1000 V | |
| Rated Current: | 35A | |
| IP Rating: | IP67 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +125°C | |
| Other Feature: | None |
Applications of this 35A 3.6mm HVIL High Voltage Interlock Loop Cable:
HVIL (High Voltage Interlock Loop) cables and their associated systems are crucial safety mechanisms primarily used in high-voltage applications to prevent electric shock and damage from arcing.
Here are some main applications:
- Electric Vehicles (EVs) and Hybrid Electric Vehicles (HEVs);
- Inverter/motor drive interface;
- On-board charger (OBC) connection;
- Power distribution unit (PDU) / junction box systems;
- Stationary energy storage systems (ESS);
- Off-highway and heavy-duty electric equipment;
- DC fast-charging infrastructure;
- High-voltage thermal management systems.
Factory pricing and exceptional product quality. Get a free quote now!
