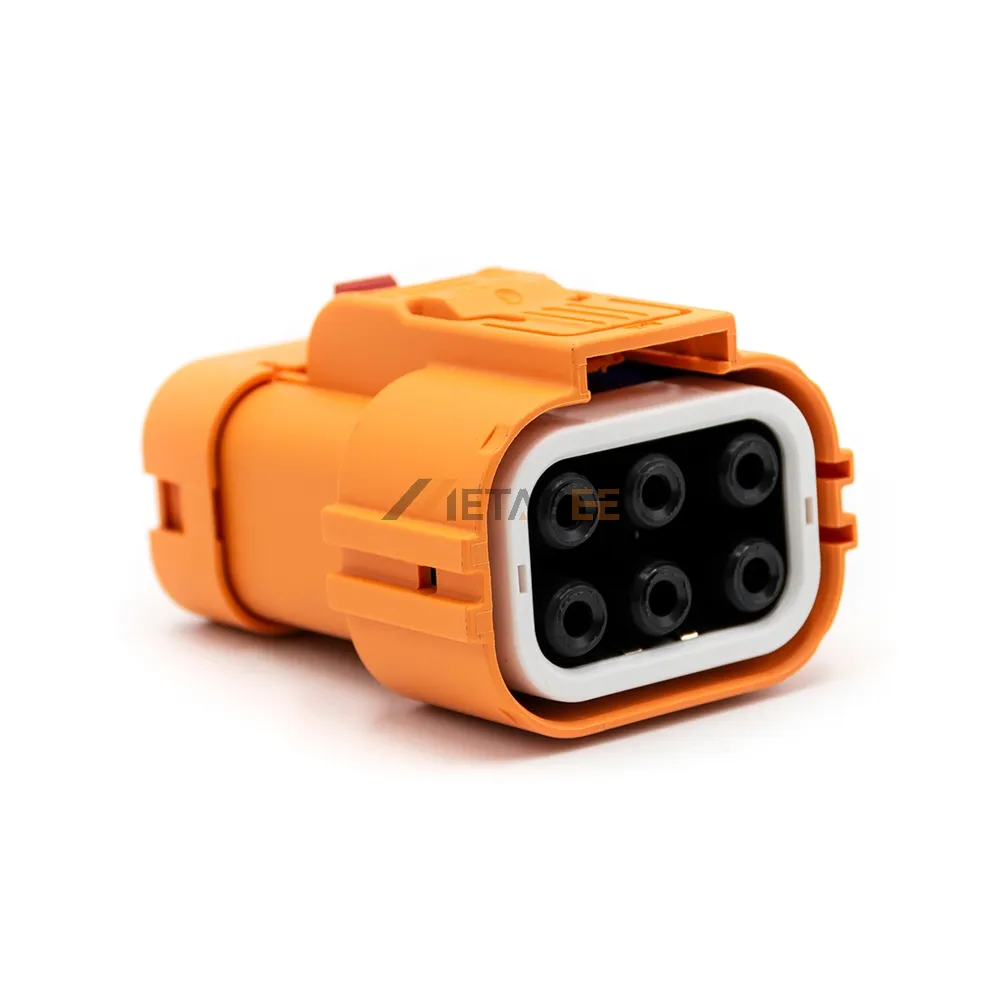

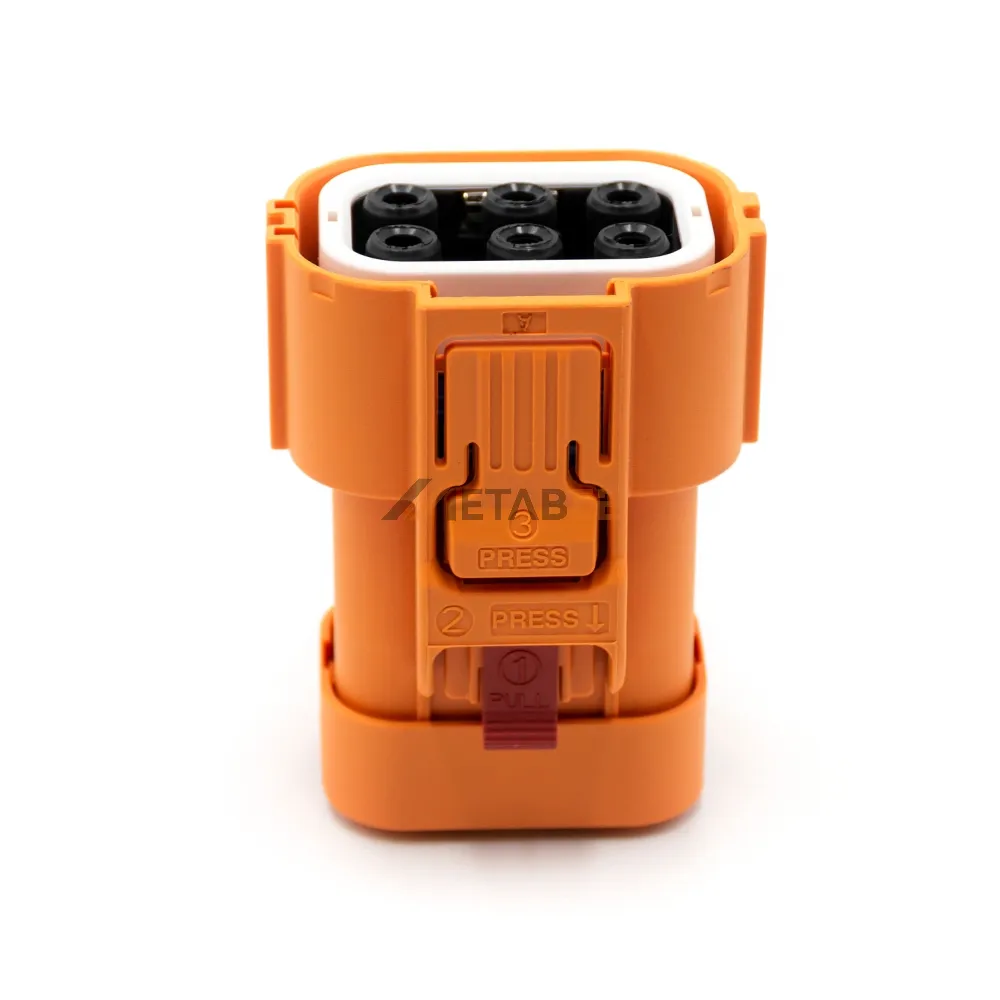

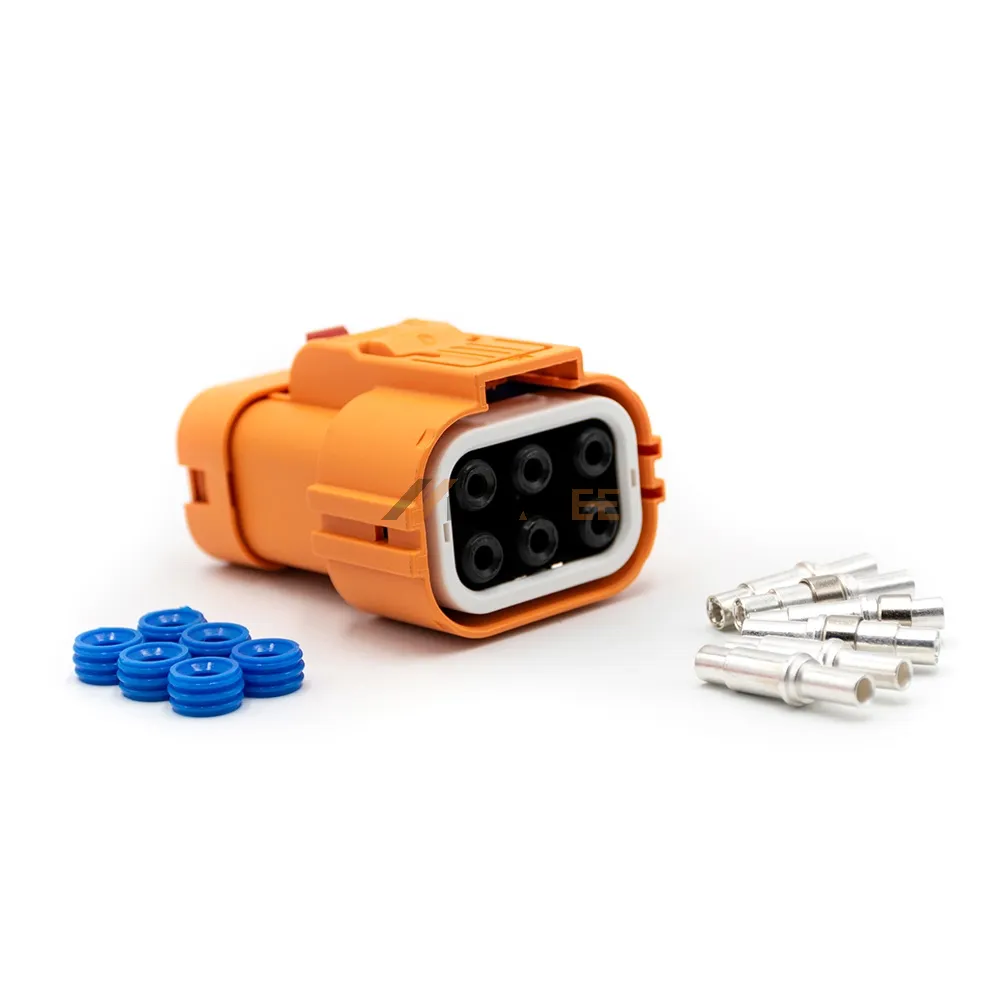

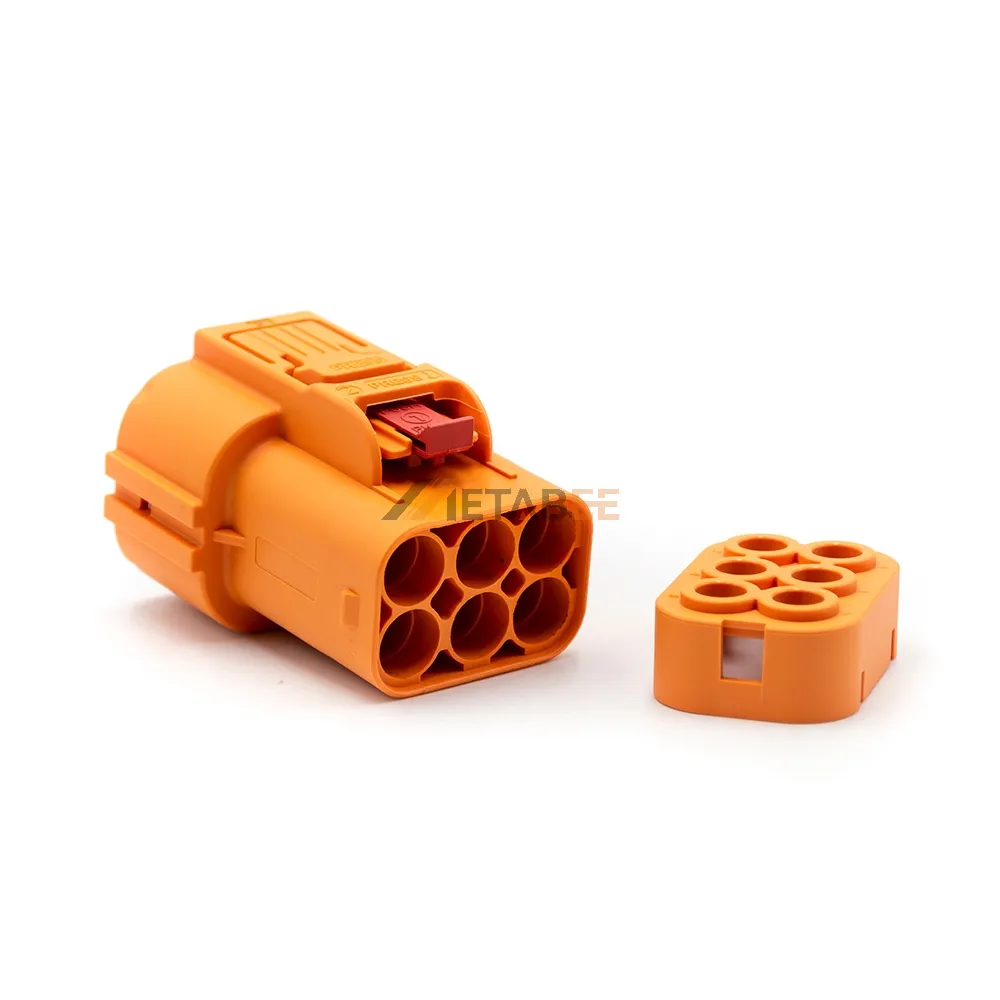

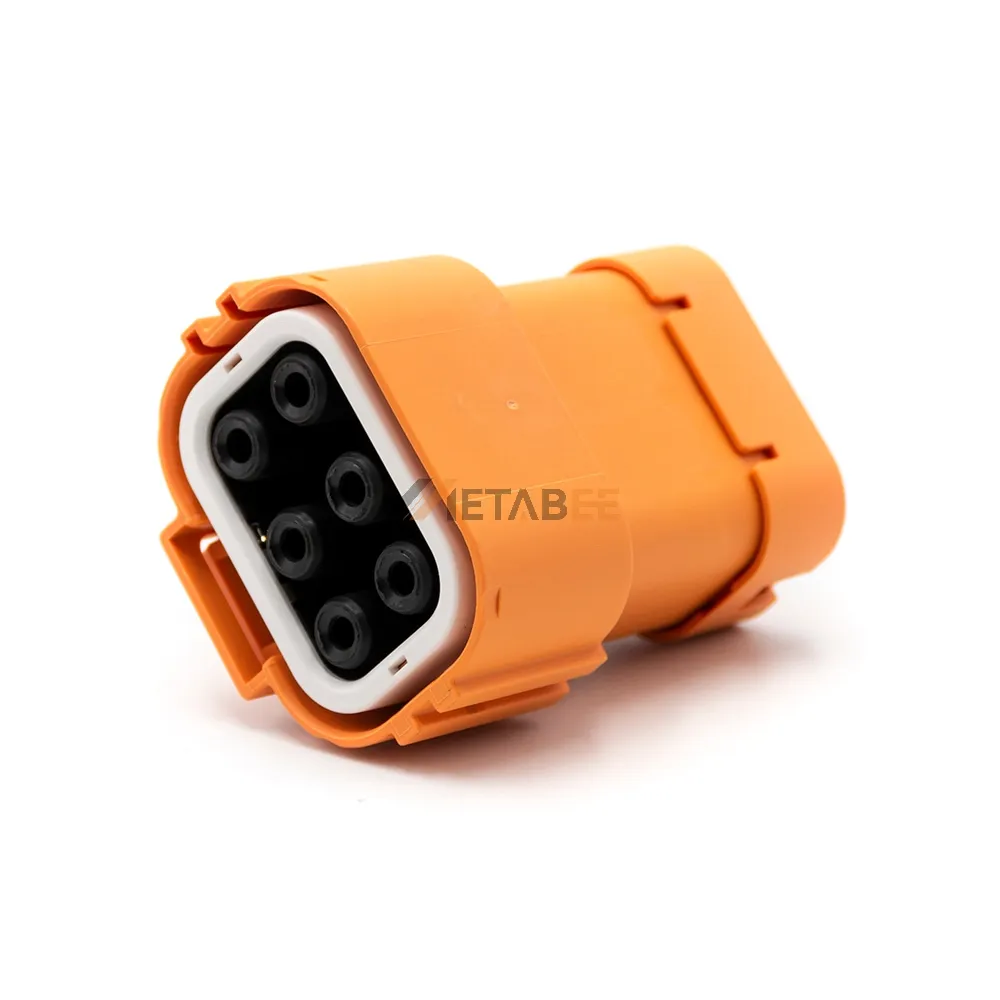

High Voltage HVIL Series Connector, 6 Pin, Plug, A Key, 6mm², 40A
Introduction
The High Voltage HVIL Series Connector, 6 Pin, Plug, A Key, 6mm², 40A is engineered for high-voltage applications in electric vehicles, energy storage systems, and industrial equipment. Its straight orientation and A Key configuration ensure precise mating and safe electrical connections under demanding conditions.
Built with a PA66-GF housing and tin-plated copper alloy contacts, the connector delivers excellent conductivity, corrosion resistance, and mechanical durability. Rated at 800V DC and 40A, it provides stable, shielded power transmission with enhanced protection against electromagnetic interference. With an IP67 sealing rating, UL94V-0 flame retardancy, and an operating temperature range of -40°C to +125°C, this connector ensures long-term reliability and safety in harsh environments.
Key Features:
- Rated voltage: 800V DC
- Rated current: 40A
- 6-pin, A Key design
- Wire gauge: 6mm²
- Tin-plated copper alloy contacts
- IP67 waterproof and dustproof protection
- UL94V-0 flame-retardant PA66-GF housing
Main Specifications:
General Information:
| Part No.: | ST535000-A-6 | |
| Product Series: | HVIL Connectors | |
| Brand: | Metabee | |
| Gender: | Plug | |
| Orientation: | Straight | |
| Connector Coding: | A Key | |
| Number of Positions: | 6 Pin | |
| Wire Gauge: | 6mm² | |
| Shielding: | Shielded | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | PA66-GF | |
| Shell Plating: | Not Applicable | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Tin-Plated |
Electrical Performance:
| Rated Voltage: | 800V DC | |
| Rated Current: | 40A | |
| Insulation Resistance: | > 200MΩ | |
| Withstanding Voltage: | 3000V AC | |
| Durability (Mating): | < 500 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +125°C |
Applications of this High Voltage HVIL Series Connector:
HVIL (High Voltage Interlock Loop) connectors are critical safety-centric components designed to ensure that a high-voltage system is automatically and safely de-energized before a connection is fully broken..
Here are some main applications:
- Battery Pack Module Interconnects in Electric Vehicles;
- High-Voltage Cable Harness Termination Points;
- Inverter / Motor Controller Interfaces;
- Electric / Hybrid Vehicle Accessories (HV Loads);
- Power Distribution Units / Junction Boxes in EVs;
- On-board Chargers / DC Fast Charger Interfaces.
