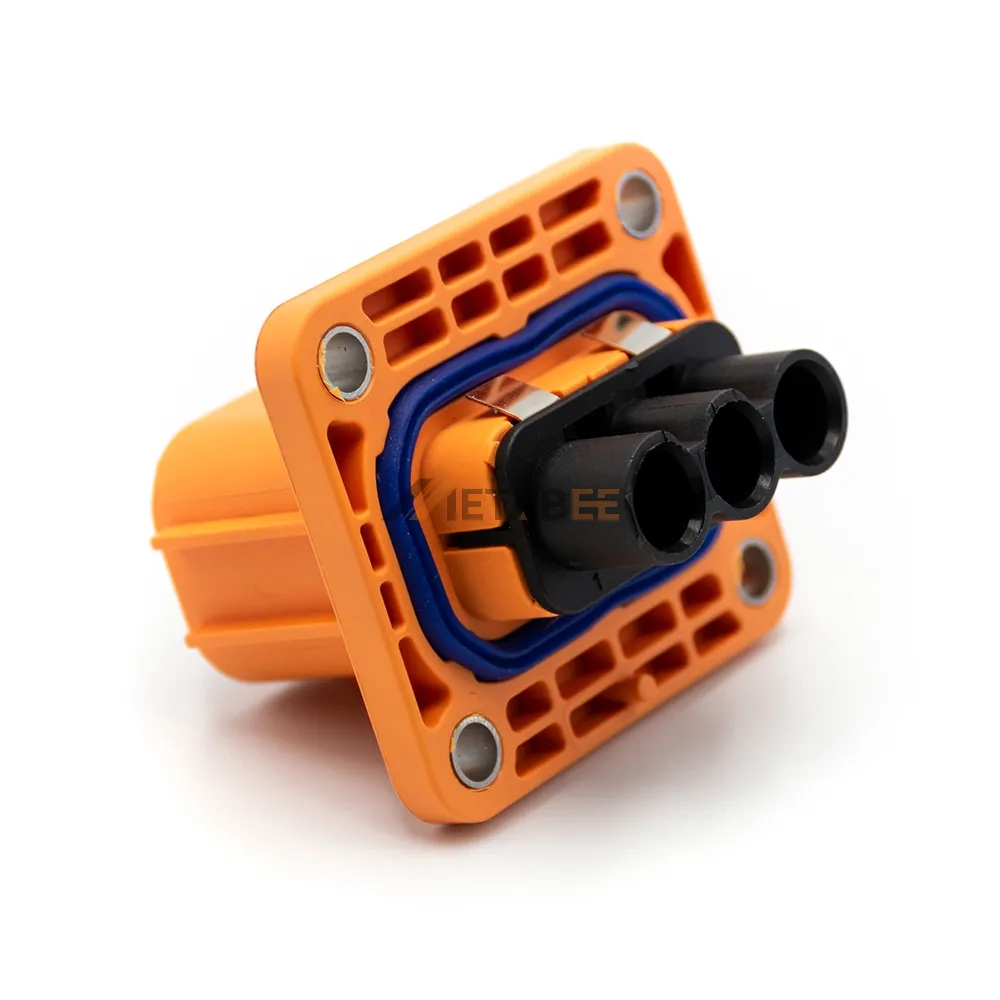

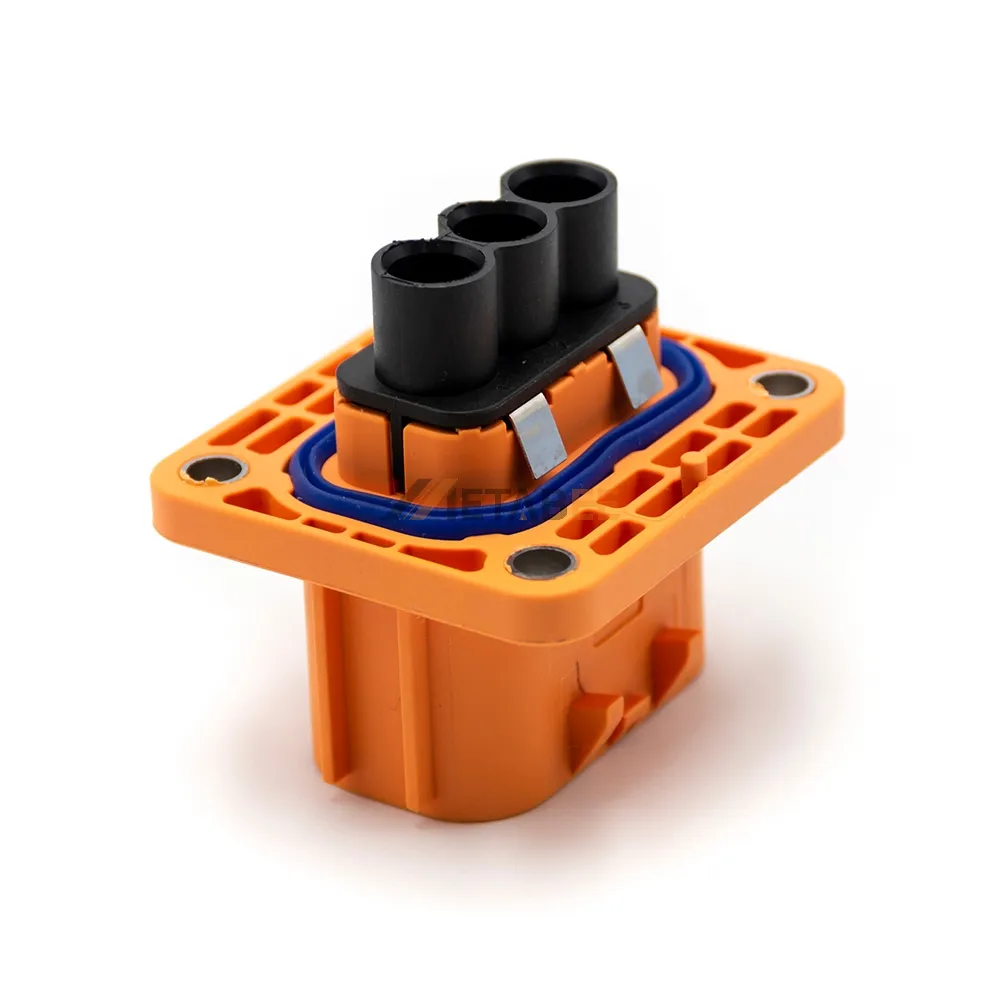

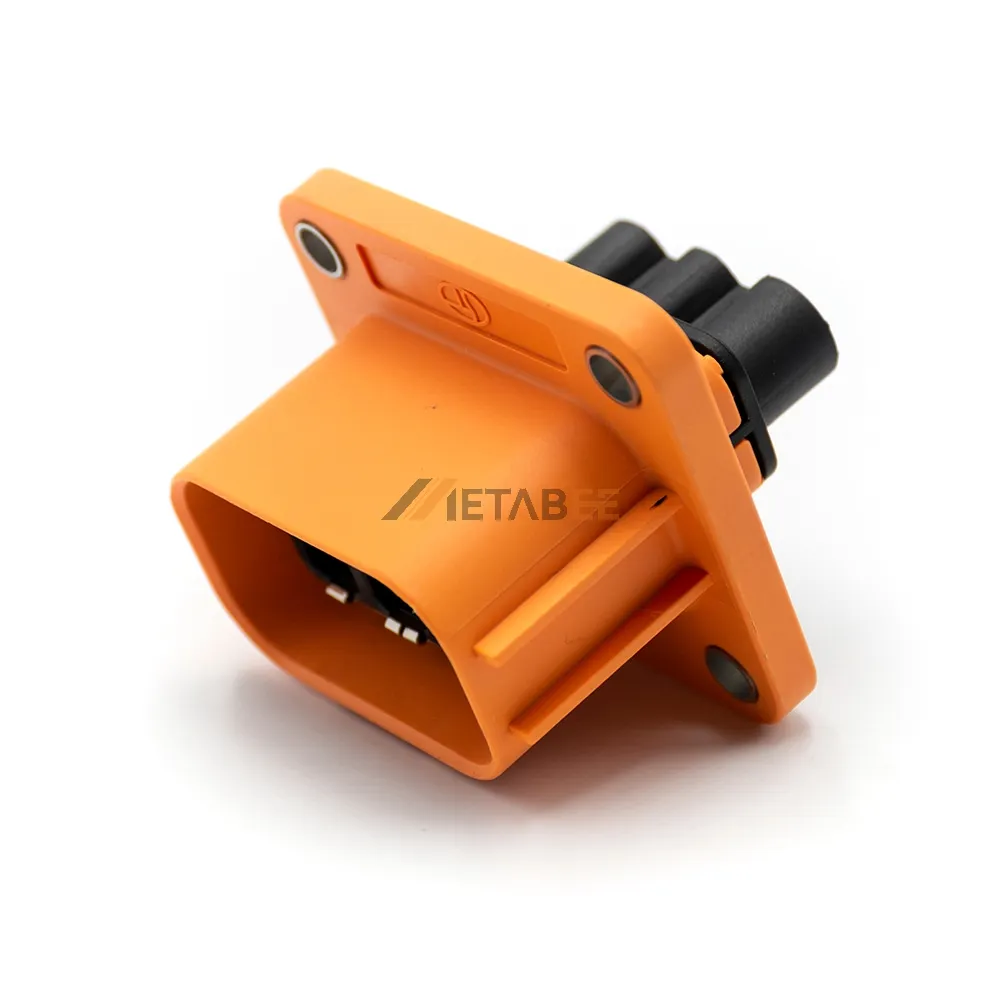

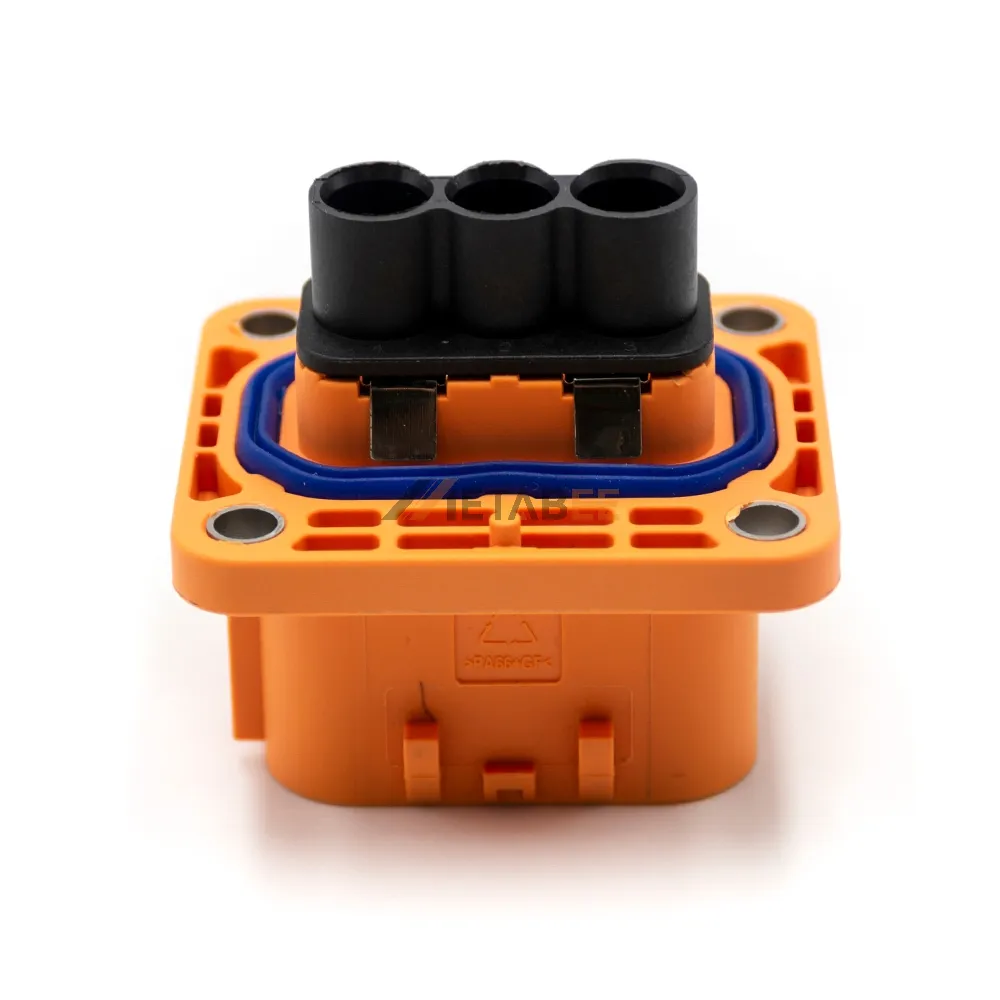

HVIL High Voltage Interlock Loop 3 Pin Connector, Socket, A Key, 6mm², 40A
Introduction
The HVIL High Voltage Interlock Loop 3 Pin Connector, Socket, A Key, 6mm², 40A is designed for electric vehicle and high-voltage power systems requiring superior safety and reliability. With a straight structure and A Key design, it ensures accurate mating and secure interlock protection in demanding environments.
Constructed from PA66-GF housing and tin-plated copper alloy contacts, this connector provides excellent conductivity, mechanical strength, and corrosion resistance. Rated at 800V DC and 40A, it supports stable current transmission with shielding for effective EMI protection. Engineered to meet IP67 waterproofing and UL94V-0 flame-retardant standards, this connector operates efficiently in extreme conditions from -40°C to +125°C, ensuring long-term durability and performance.
Key Features:
- Rated voltage: 800V DC
- Rated current: 40A
- 3-pin, A Key design
- Wire gauge: 6mm²
- Shielded for EMI protection
- IP67 waterproof and dustproof
- UL94V-0 flame-retardant PA66-GF housing
Main Specifications:
General Information:
| Part No.: | ST536000-A | |
| Product Series: | HVIL Connectors | |
| Brand: | Metabee | |
| Gender: | Socket | |
| Orientation: | Straight | |
| Connector Coding: | A Key | |
| Number of Positions: | 3 Pin | |
| Wire Gauge: | 6mm² | |
| Shielding: | Shielded | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | PA66-GF | |
| Shell Plating: | Not Applicable | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Tin-Plated |
Electrical Performance:
| Rated Voltage: | 800V DC | |
| Rated Current: | 40A | |
| Insulation Resistance: | > 200MΩ | |
| Withstanding Voltage: | 3000V AC | |
| Durability (Mating): | < 500 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +125°C |
Applications of this HVIL High Voltage Interlock Loop 3 Pin Connector:
HVIL (High Voltage Interlock Loop) connectors are critical safety-centric components designed to ensure that a high-voltage system is automatically and safely de-energized before a connection is fully broken..
Here are some main applications:
- Battery Pack Module Interconnects in Electric Vehicles;
- High-Voltage Cable Harness Termination Points;
- Inverter / Motor Controller Interfaces;
- Electric / Hybrid Vehicle Accessories (HV Loads);
- Power Distribution Units / Junction Boxes in EVs;
- On-board Chargers / DC Fast Charger Interfaces.
