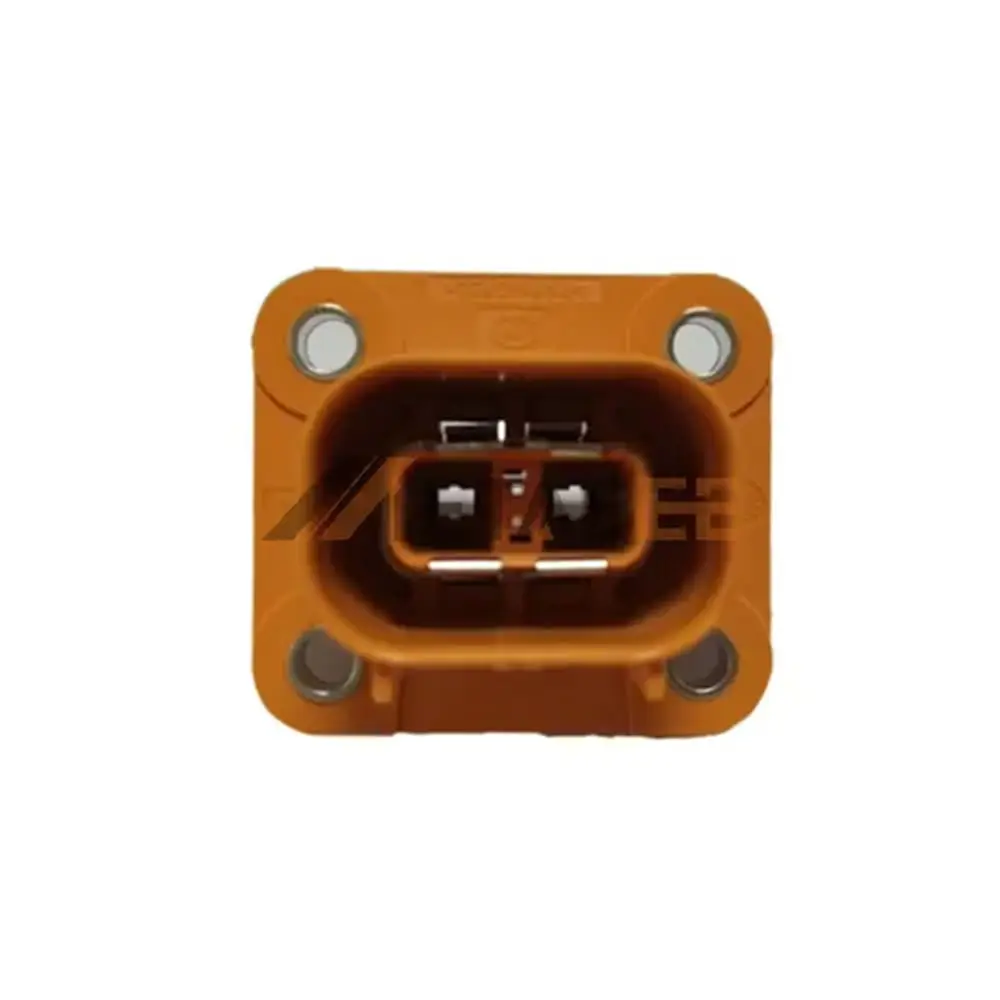

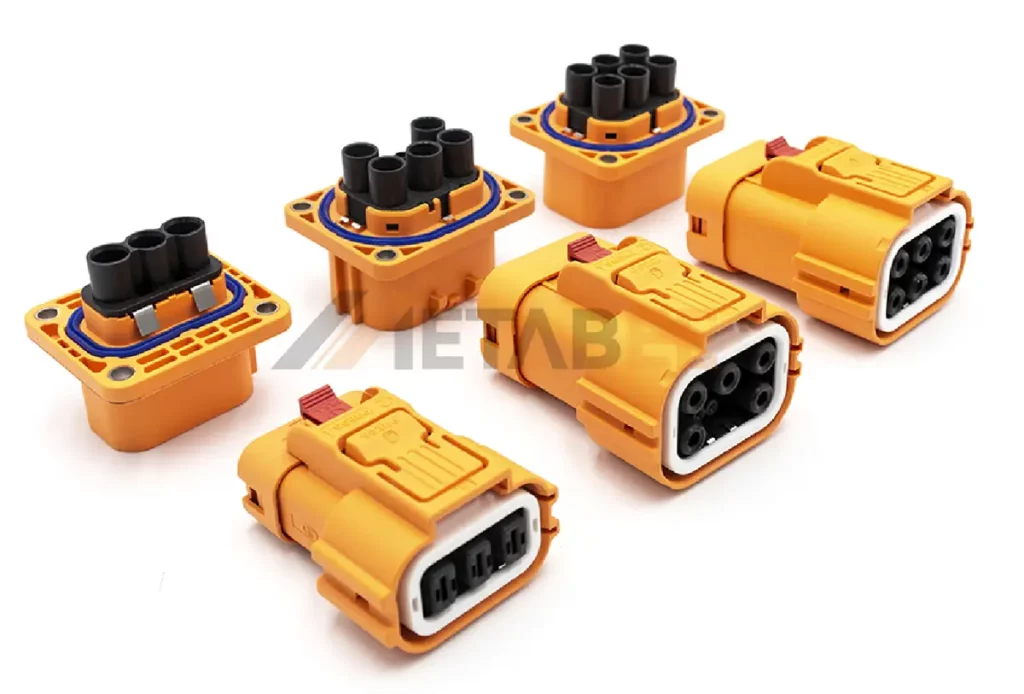

16A HVIL High Voltage Interlock Loop 2 Pin Connector, Socket, A Key, Crimp Termination, 2.5mm²
Introduction
Ensure the safety and reliability of your electric vehicle’s high-voltage system with this 2-pin HVIL connector. It features a straight socket design with A-key polarization for secure mating and a crimp termination for a robust connection with 2.5mm² shielded cable. The connector is built for durability, with a PA66-GF housing rated UL94V-0 for flame resistance.
Engineered for demanding automotive environments, this connector boasts an IP67 rating for complete protection against dust and water immersion. It operates reliably in extreme temperatures from -40°C to +125°C. The tin-plated copper alloy contacts provide excellent conductivity and corrosion resistance, supporting a rating of 800V DC and 16A to meet the core power and safety requirements of HVIL applications.
Key Features:
- 2-Pin Socket, A Key, Straight
- Rated 800V DC / 16A
- IP67 Protection Level
- -40°C to +125°C Operating Temperature
- 2.5mm² Wire Gauge with Shield
- UL94V-0 Flame-Retardant Housing (PA66-GF)
- Tin-Plated Copper Alloy Contacts
Main Specifications:
General Information:
| Part No.: | ST550000-A | |
| Product Series: | HVIL Connectors | |
| Brand: | Metabee | |
| Gender: | Socket | |
| Orientation: | Straight | |
| Connector Coding: | A Key | |
| Number of Positions: | 1 Pin | |
| Wire Gauge: | 2.5mm² | |
| Shielding: | Shielded | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | PA66-GF | |
| Shell Plating: | Not Applicable | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Tin-Plated |
Electrical Performance:
| Rated Voltage: | 800V DC | |
| Rated Current: | 16A | |
| Insulation Resistance: | > 200MΩ | |
| Withstanding Voltage: | 3000V AC | |
| Durability (Mating): | < 500 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +125°C |
Applications of this 16A HVIL High Voltage Interlock Loop 2 Pin Connector:
HVIL (High Voltage Interlock Loop) connectors are critical safety-centric components designed to ensure that a high-voltage system is automatically and safely de-energized before a connection is fully broken..
Here are some main applications:
- Battery Pack Module Interconnects in Electric Vehicles;
- High-Voltage Cable Harness Termination Points;
- Inverter / Motor Controller Interfaces;
- Electric / Hybrid Vehicle Accessories (HV Loads);
- Power Distribution Units / Junction Boxes in EVs;
- On-board Chargers / DC Fast Charger Interfaces.
