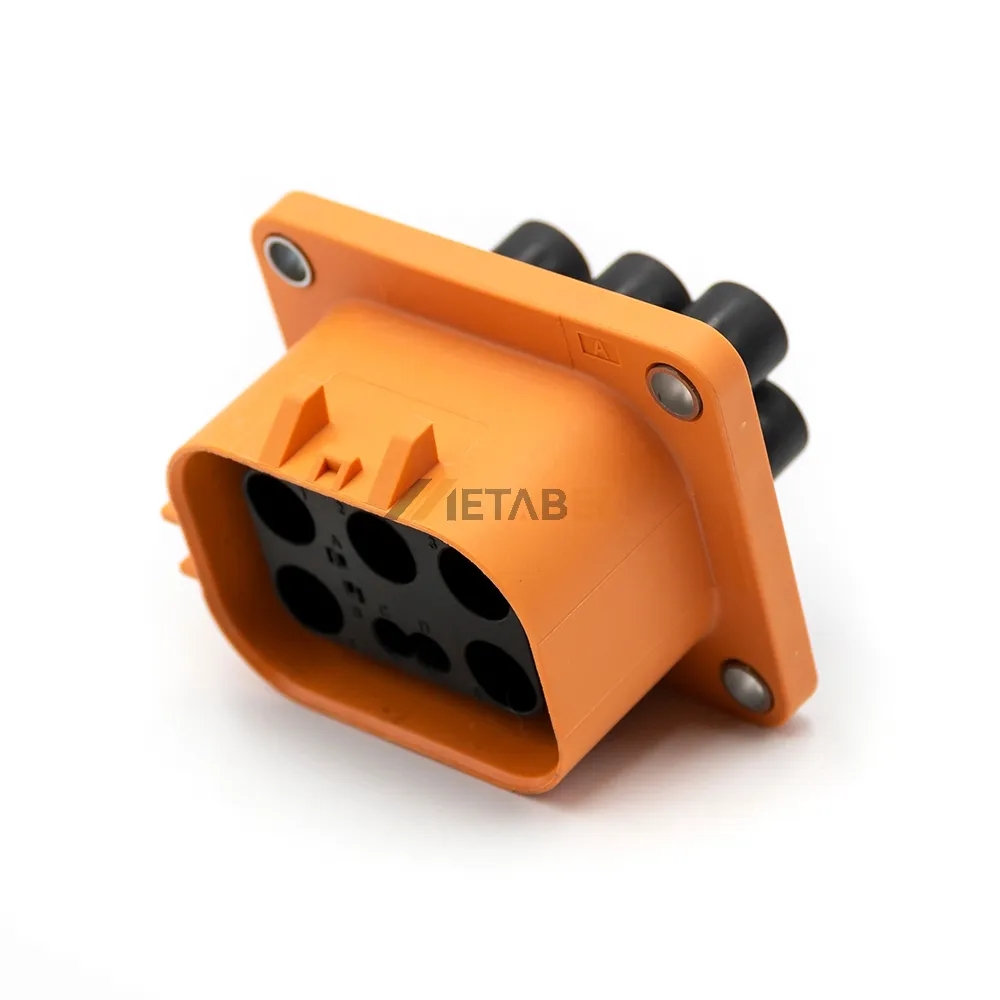

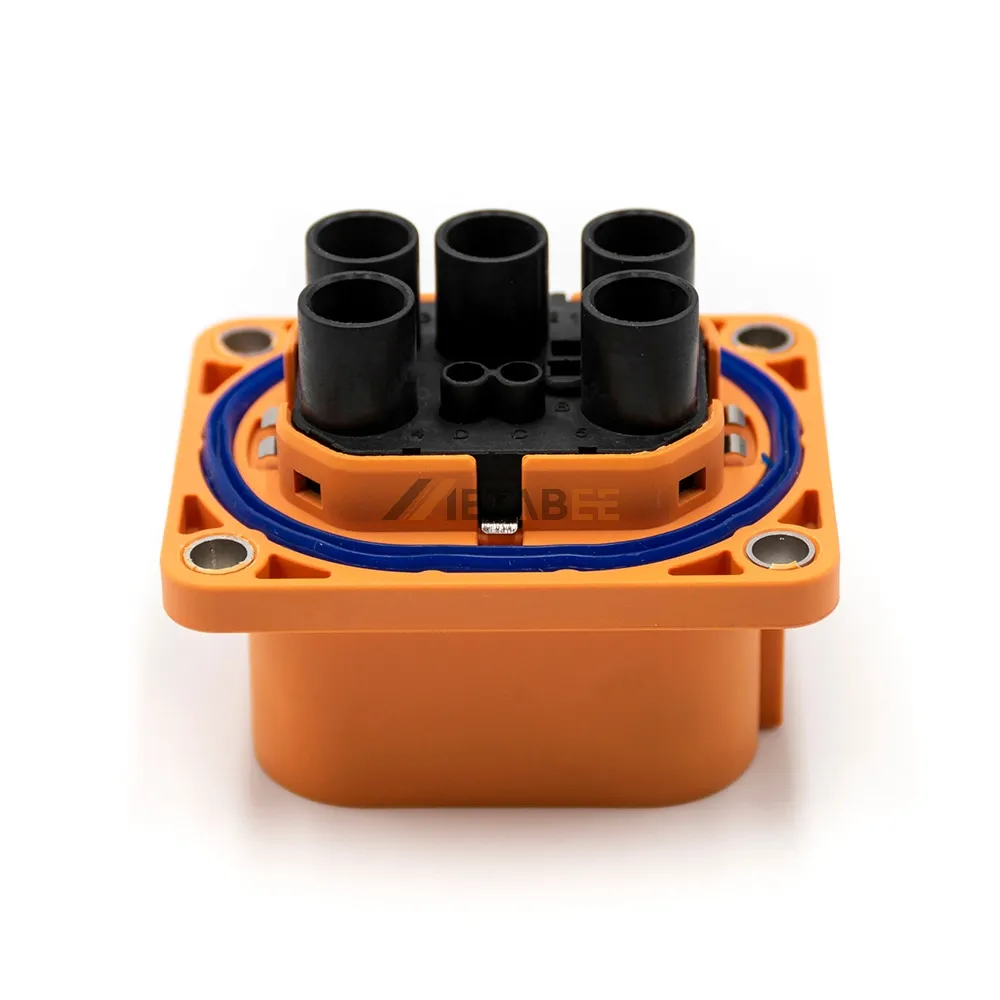

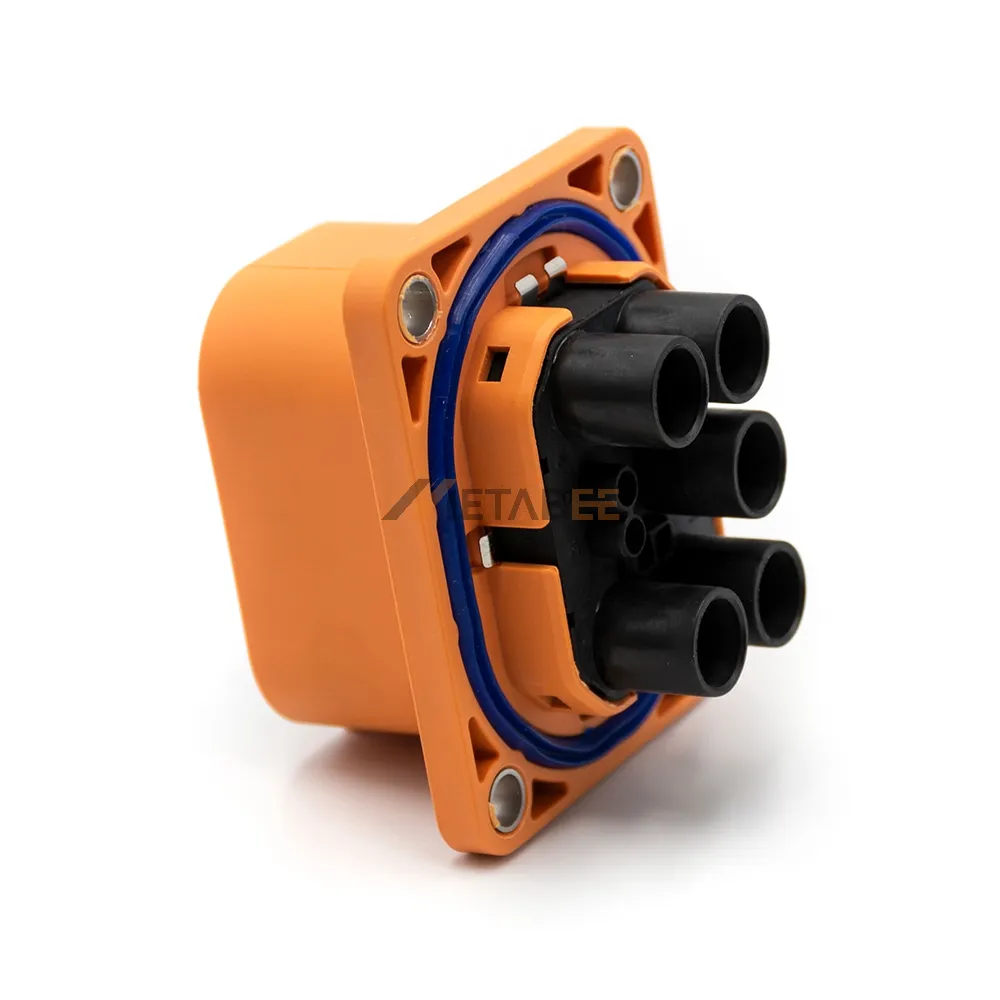

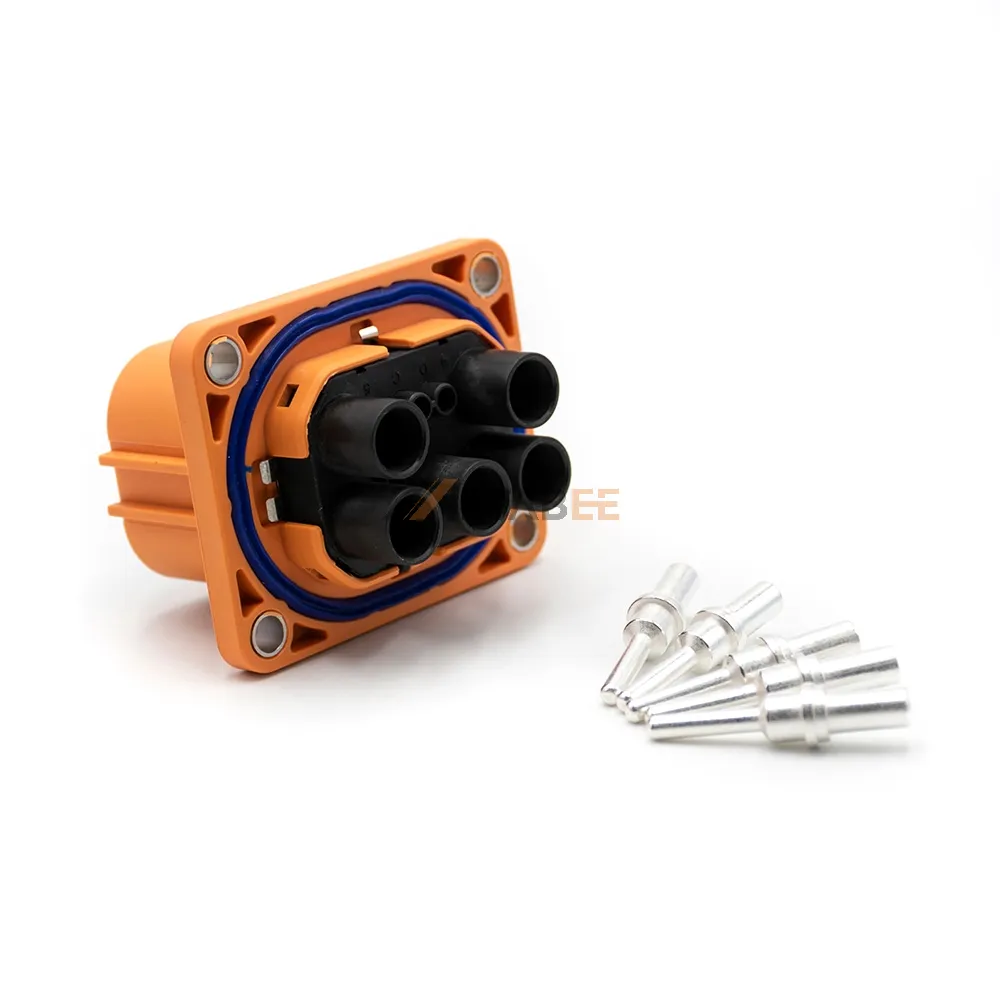

800V High Voltage Interlock Loop HVIL DC Connector, 6 Pin Socket, A Key, 6mm², 40A
Introduction
The 800V High Voltage Interlock Loop (HVIL) DC Connector, 6 Pin Socket, A Key, 6mm², 40A is a high-performance solution for electric vehicles and energy storage systems. Designed with a straight orientation and A Key configuration, it ensures secure and accurate mating while providing reliable interlock protection for high-voltage circuits.
Manufactured with a PA66-GF housing and tin-plated copper alloy contacts, this connector offers superior electrical conductivity, corrosion resistance, and mechanical durability. Rated at 800V DC and 40A, it supports stable current transmission and enhanced shielding performance for electromagnetic interference protection. Built for harsh environments, the connector features IP67 sealing, UL94V-0 flame retardancy, and an operating temperature range of -40°C to +125°C, ensuring consistent performance under extreme conditions.
Key Features:
- Rated voltage: 800V DC
- Rated current: 40A
- 6-pin, A Key configuration
- Wire gauge: 6mm²
- Shielded for EMI protection
- IP67 waterproof and dustproof design
- UL94V-0 flame-retardant PA66-GF housing
Main Specifications:
General Information:
| Part No.: | ST534000-A-6 | |
| Product Series: | HVIL Connectors | |
| Brand: | Metabee | |
| Gender: | Socket | |
| Orientation: | Straight | |
| Connector Coding: | A Key | |
| Number of Positions: | 6 Pin | |
| Wire Gauge: | 6mm² | |
| Shielding: | Shielded | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | PA66-GF | |
| Shell Plating: | Not Applicable | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Tin-Plated |
Electrical Performance:
| Rated Voltage: | 800V DC | |
| Rated Current: | 40A | |
| Insulation Resistance: | > 200MΩ | |
| Withstanding Voltage: | 3000V AC | |
| Durability (Mating): | < 500 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +125°C |
Applications of this 800V High Voltage Interlock Loop HVIL DC Connector:
HVIL (High Voltage Interlock Loop) connectors are critical safety-centric components designed to ensure that a high-voltage system is automatically and safely de-energized before a connection is fully broken..
Here are some main applications:
- Battery Pack Module Interconnects in Electric Vehicles;
- High-Voltage Cable Harness Termination Points;
- Inverter / Motor Controller Interfaces;
- Electric / Hybrid Vehicle Accessories (HV Loads);
- Power Distribution Units / Junction Boxes in EVs;
- On-board Chargers / DC Fast Charger Interfaces.
