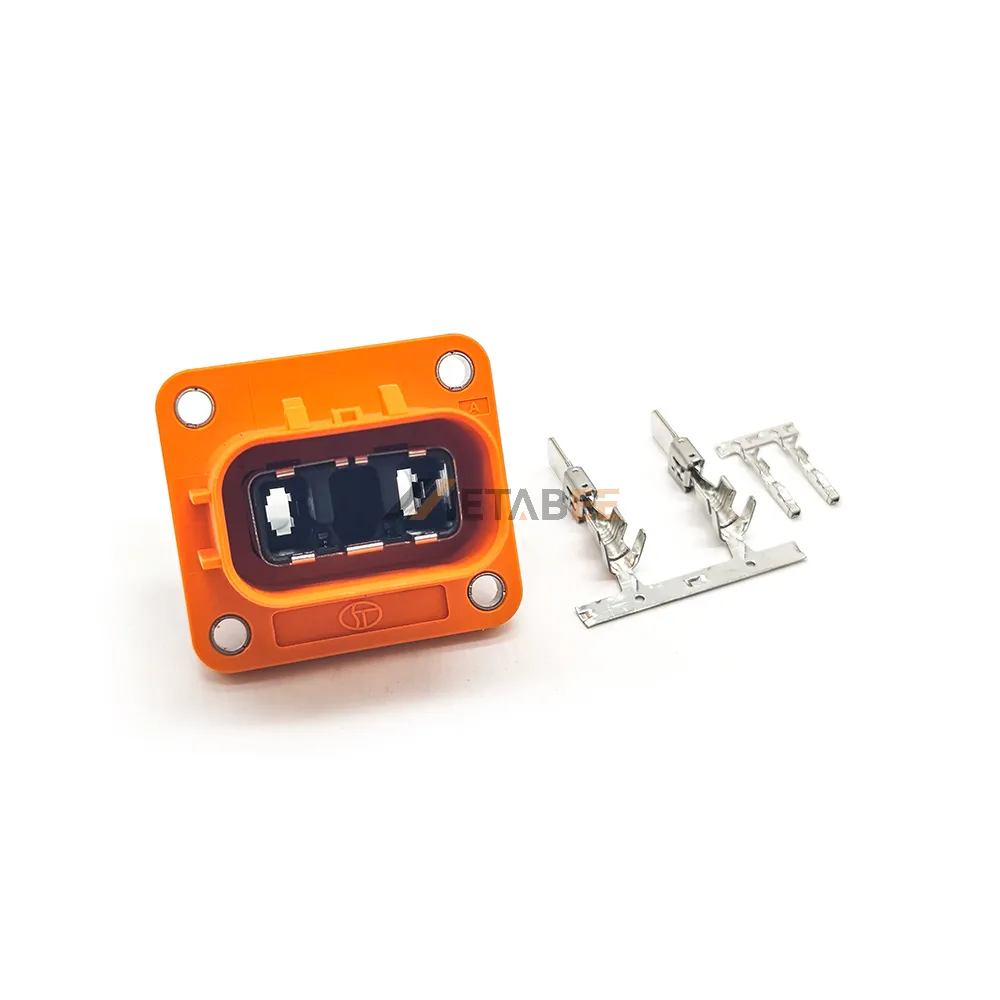

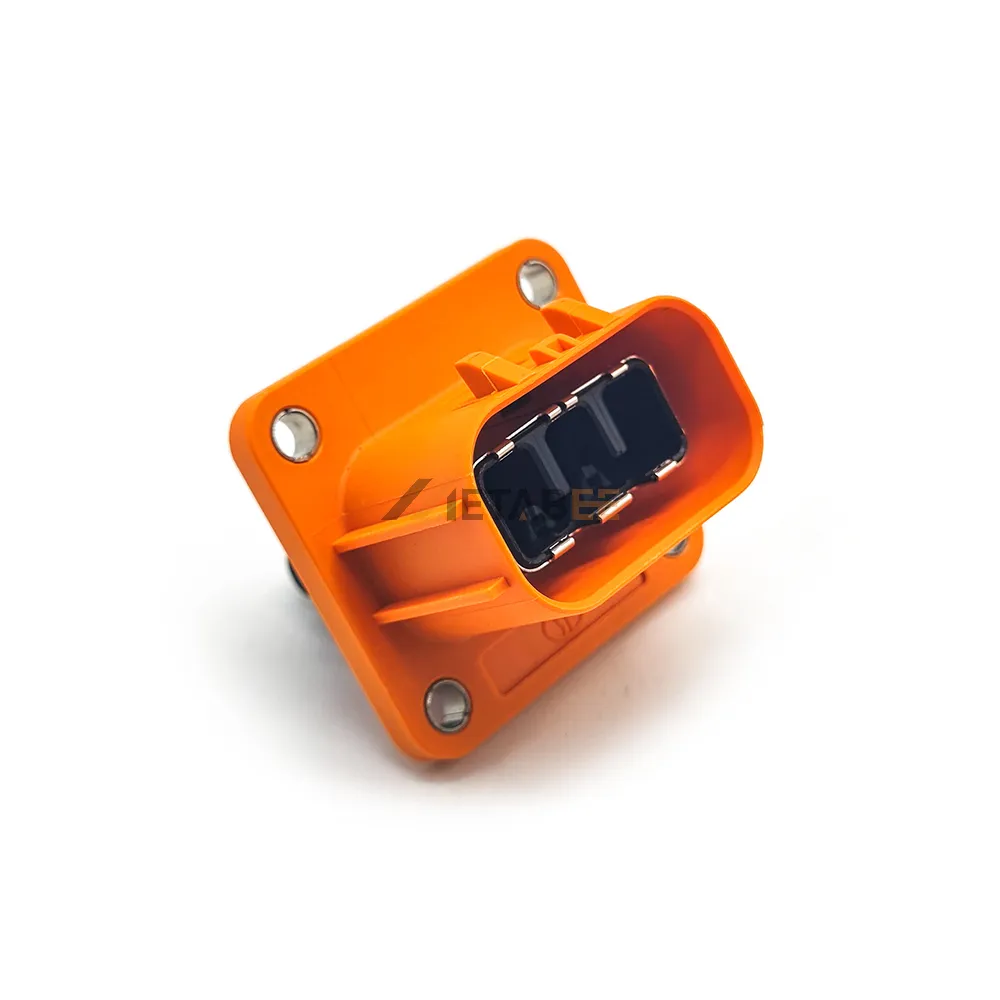

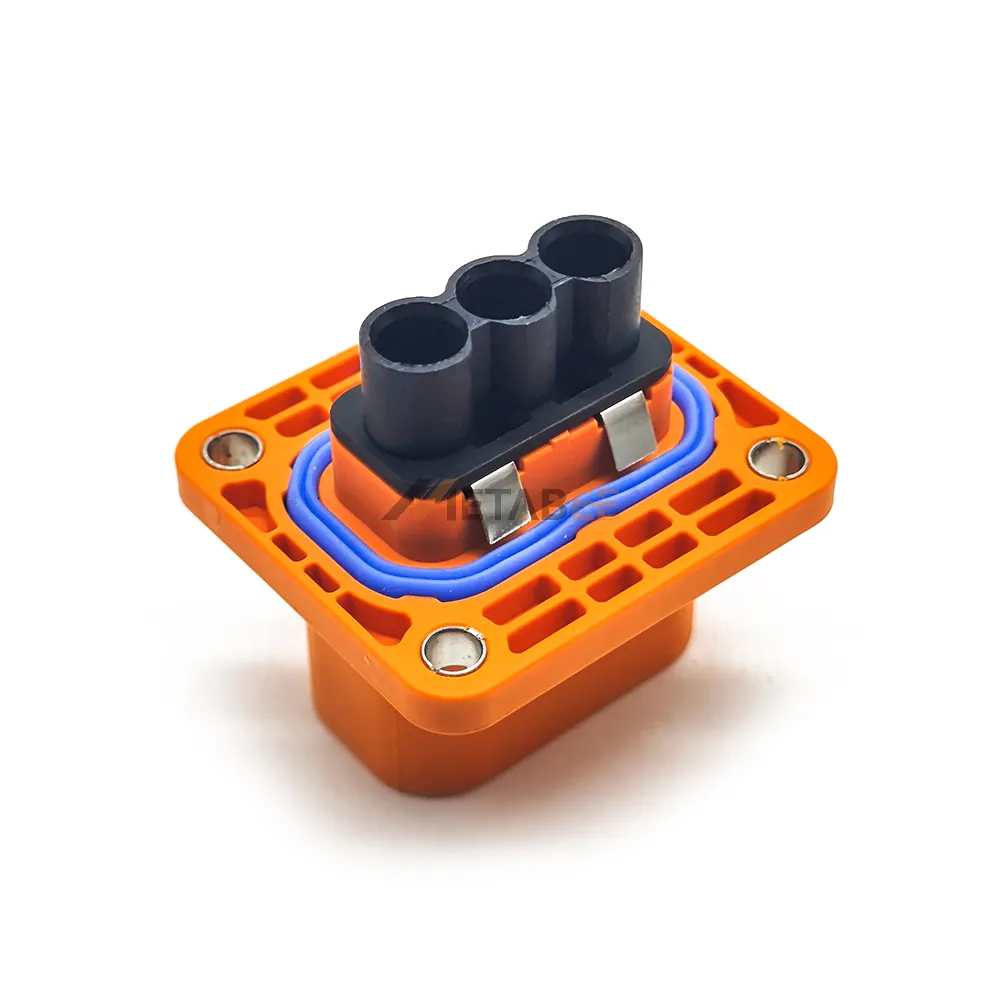

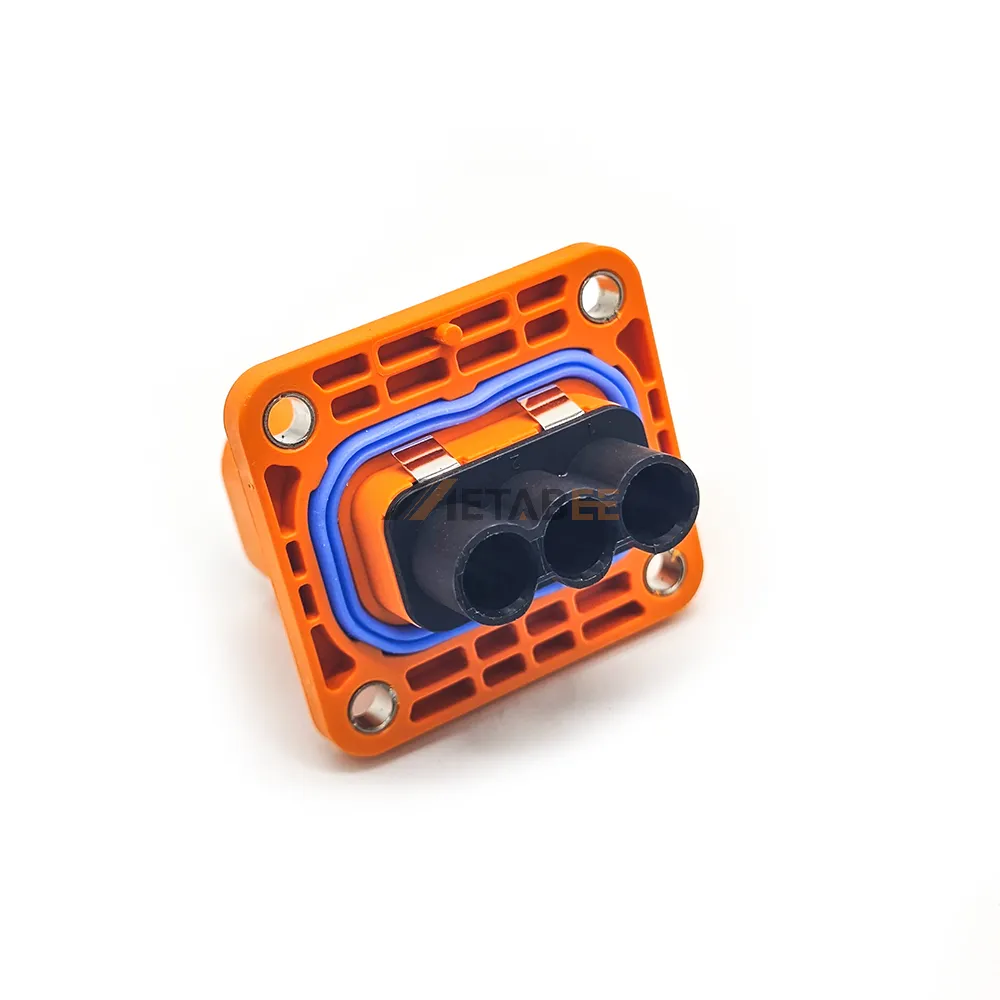

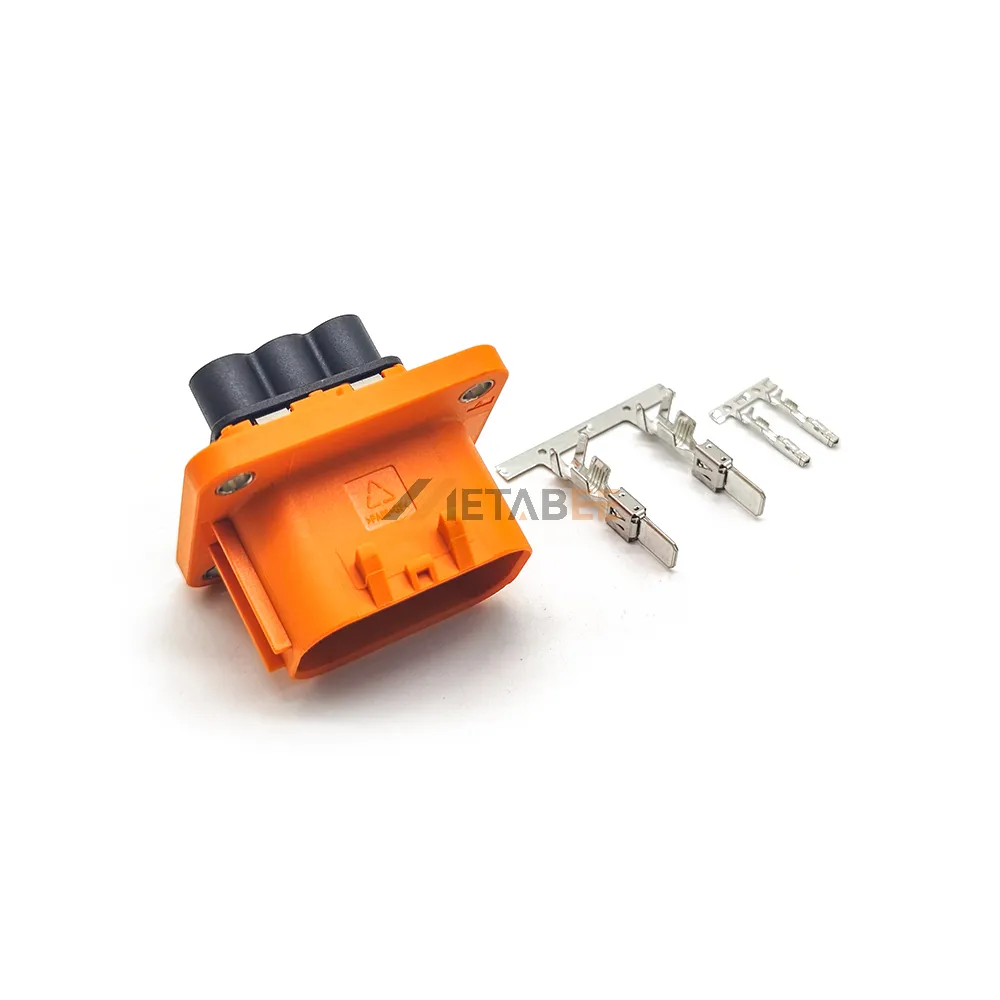

High Voltage HVIL Connector for EV, 2 Pin Socket, A Key, 6mm², 40A
Introduction
This High Voltage Connector for EV is a superior 2 Pin Socket designed for critical power distribution within electric vehicle architectures. Utilizing a Straight orientation and an A Key configuration, this connector ensures secure, accurate mating. Optimized for 6mm² shielded wire, it reliably handles 40A current at 800V DC while maintaining excellent EMI suppression. The robust design is engineered to meet the stringent safety and performance requirements of the automotive sector.
Constructed with a durable PA66-GF housing and featuring Tin-Plated Copper Alloy contacts, the socket provides high electrical integrity and longevity. Environmental resistance is guaranteed with an IP67 rating for protection against dust and water, complemented by a UL94V-0 flame retardancy rating. Its operational capacity spans from -40°C to 125°C, ensuring peak performance across extreme thermal conditions.
Key Features:
- EV-Optimized Socket: 2 Pin Socket for high-voltage battery and power lines.
- High-Current Capacity: Rated for 800V DC and 40A output.
- Wire Specification: Supports 6mm² shielded cable.
- Premium Construction: PA66-GF housing; Tin-Plated Copper Alloy contacts.
- Thermal Resilience: Operates reliably from -40°C to 125°C.
- Certified Protection: IP67 ingress and UL94V-0 flame rated.
- Polarized Mating: Features A Key for error-proof connection.
Main Specifications:
General Information:
| Part No.: | ST538000-A | |
| Product Series: | HVIL Connectors | |
| Brand: | Metabee | |
| Gender: | Socket | |
| Orientation: | Straight | |
| Connector Coding: | A Key | |
| Number of Positions: | 2 Pin | |
| Wire Gauge: | 6mm² | |
| Shielding: | Shielded | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | PA66-GF | |
| Shell Plating: | Not Applicable | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Tin-Plated |
Electrical Performance:
| Rated Voltage: | 800V DC | |
| Rated Current: | 40A | |
| Insulation Resistance: | > 200MΩ | |
| Withstanding Voltage: | 3000V AC | |
| Durability (Mating): | < 500 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +125°C |
Applications of this High Voltage HVIL Connector for EV, :
HVIL (High Voltage Interlock Loop) connectors are critical safety-centric components designed to ensure that a high-voltage system is automatically and safely de-energized before a connection is fully broken..
Here are some main applications:
- Battery Pack Module Interconnects in Electric Vehicles;
- High-Voltage Cable Harness Termination Points;
- Inverter / Motor Controller Interfaces;
- Electric / Hybrid Vehicle Accessories (HV Loads);
- Power Distribution Units / Junction Boxes in EVs;
- On-board Chargers / DC Fast Charger Interfaces.
