Dual Port Ultra High Speed HDMI 2.1 Female Connector for PCB, Thru Hole, 48 Gbps
Introduction:
The dual port ultra high speed HDMI 2.1 female connector is designed for high-bandwidth audio and video applications requiring reliable pcb integration. Featuring two type a receptacles with 19 pins per port, this connector supports data transmission speeds up to 48 gbps, making it suitable for HDMI 2.1 interfaces, high-resolution displays, gaming systems, multimedia equipment, and other advanced electronic devices.
Designed for right-angle pcb mounting, the connector uses a through-hole termination for secure mechanical attachment and stable electrical performance. It is rated for 0.5a current and 40v voltage, with a ul94v-0 flame-retardant housing and an operating temperature range of -55°c to +85°c, providing dependable performance across demanding operating conditions.
Key Features
- HDMI Version: HDMI 2.1 Ultra High Speed
- Port Configuration: Dual Port, Type A, 19 Pin
- Connector Gender: Female / Receptacle
- Mounting: Right Angle, PCB Through Hole
- Electrical Rating: 0.5A, 40V, up to 48 Gbps
- Operating Range: -55°C to +85°C; UL94V-0 flame retardant

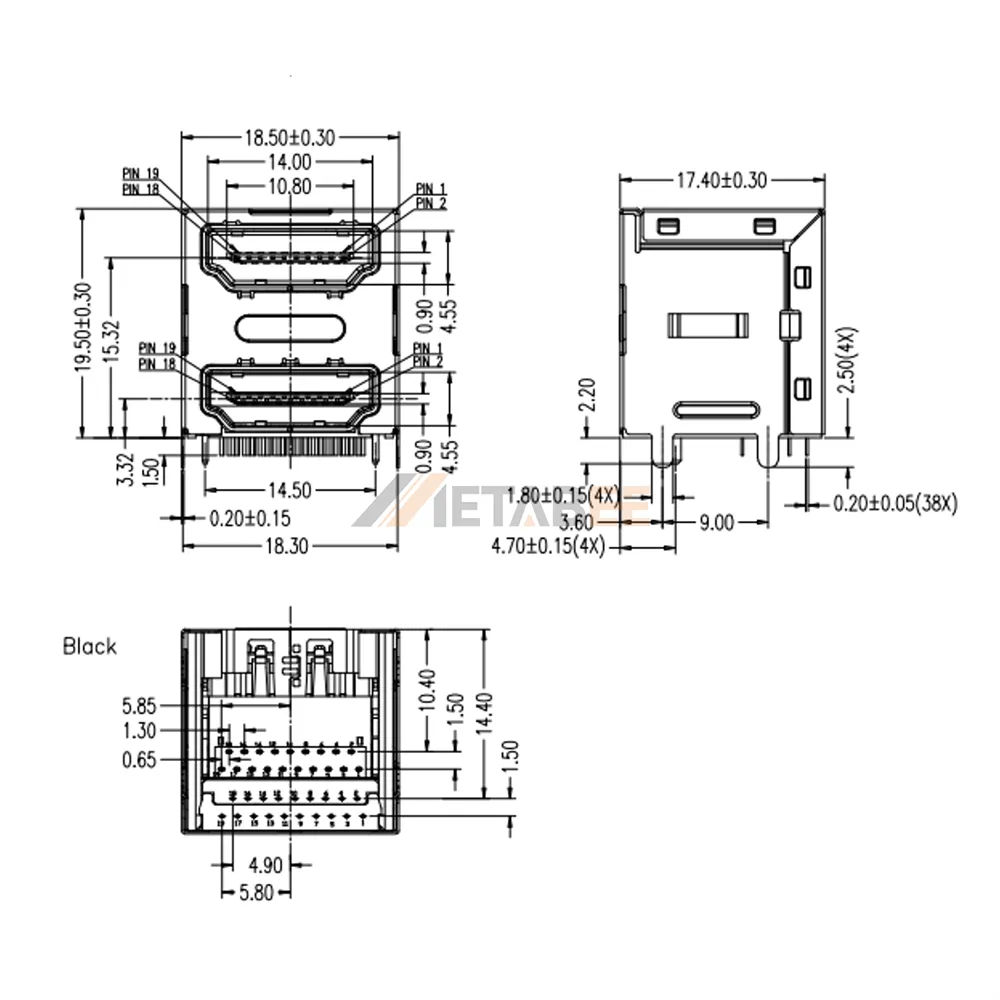

Main Specifications:
General Information:
| Product No.: | DPD-HDMI19S-HDMI19S-00-H-A-HF | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Through Hole | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this Dual Port Ultra High Speed HDMI 2.1 Female Connector:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
