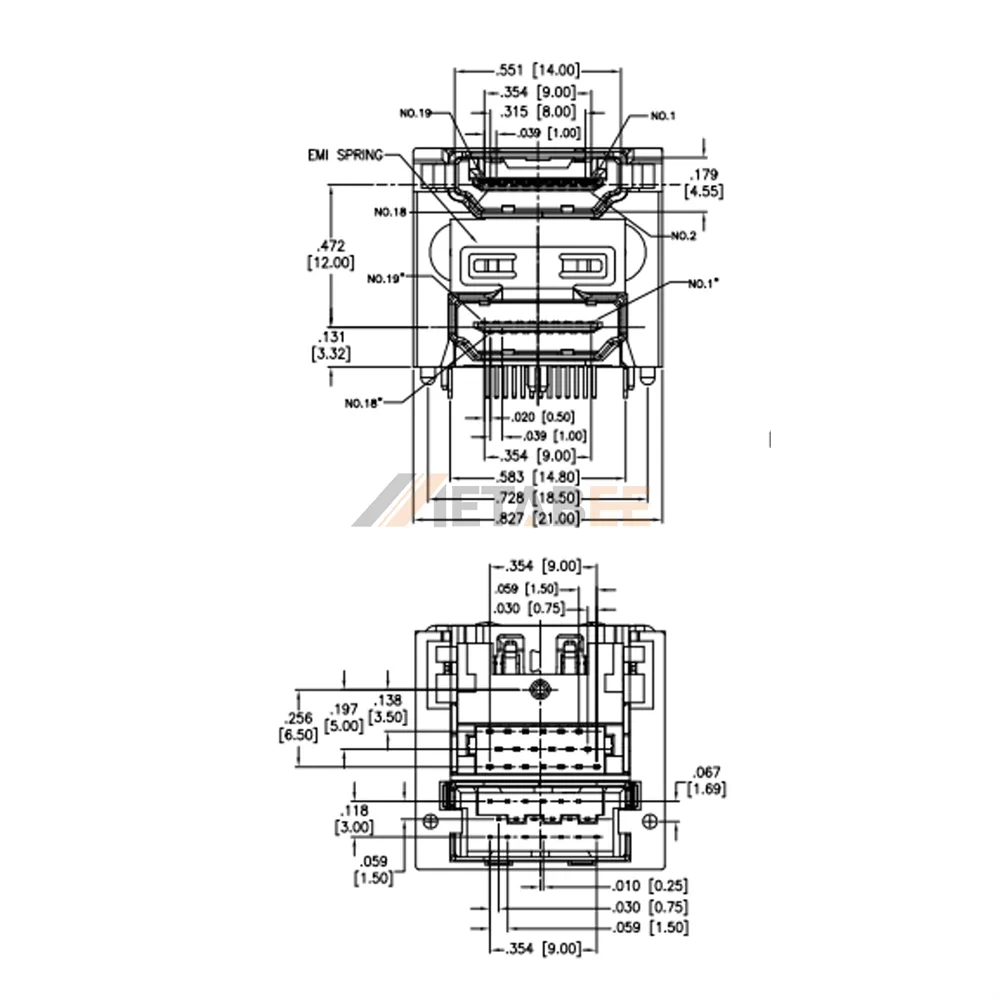

Dual Port HDMI Type A Receptacle, Thru Hole, PCB Mount
Introduction:
The Dual Port HDMI Type A Receptacle is a 19-pin HDMI connector designed for reliable PCB integration in electronic and multimedia equipment. Featuring two HDMI Type A receptacles in a compact dual-port configuration, it supports right-angle orientation and PCB thru-hole mounting for secure mechanical retention and stable electrical connections.
Rated for 0.5A current and 40V voltage, this HDMI connector is engineered for dependable performance in a wide range of electronic applications. The UL94V-0 flame-retardant housing provides enhanced fire resistance, while the -55°C to +85°C operating temperature range enables reliable operation across demanding environmental conditions.
Key Features
- Interface: HDMI Type A, 19-pin
- Port Configuration: Dual Port
- Connector Gender: Receptacle
- Mounting: PCB Thru-Hole, Right Angle
- Electrical Rating: 0.5A / 40V
- Performance: UL94V-0, -55°C to +85°C operating temperature
Main Specifications:
General Information:
| Product No.: | HDMI-D-RA-1B | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Through Hole | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this Dual Port HDMI Type A Receptacle:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
