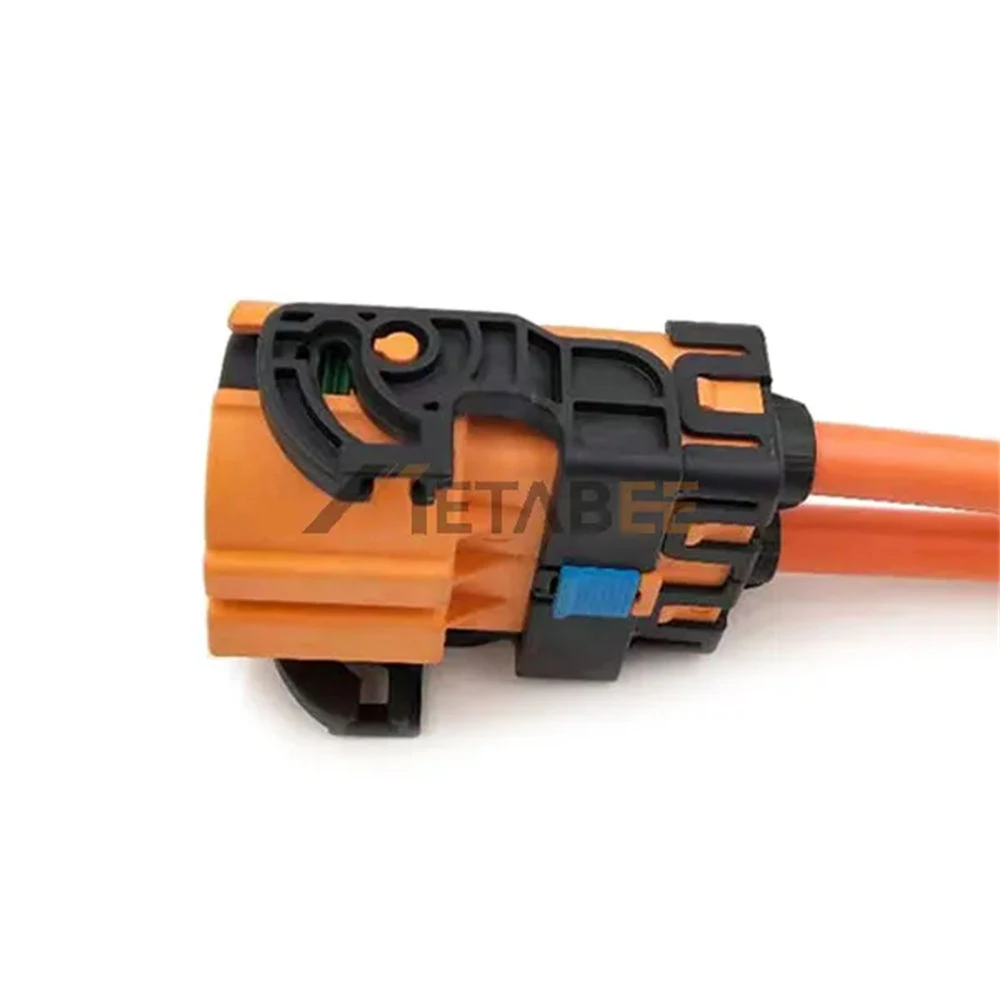

9mm HVIL High Voltage Interlock Loop 2 Pin Connector, Plug, A Key, 50mm², 250A
Introduction
The HVIL connector is a high-performance solution designed for electric vehicle and high-voltage power system applications. Engineered with an integrated High Voltage Interlock (HVIL) system, this connector ensures circuit safety and prevents accidental disconnection under load. Its straight plug design and A-keyed configuration provide secure mating accuracy and reliable signal integrity in demanding environments.
Constructed with a PA66-GF insulated housing and copper alloy contacts with silver plating, this connector offers superior conductivity, corrosion resistance, and thermal stability. Supporting a rated voltage of 1500V DC and current up to 250A, it guarantees optimal power delivery for heavy-duty applications. The IP67 waterproof protection, UL94V-0 flame retardant rating, and operating temperature from -40°C to +125°C make it ideal for harsh automotive and industrial conditions.
Key Features:
- 9mm terminal diameter, 50mm² wire gauge for high-current capacity
- Silver-plated copper alloy contacts for low contact resistance
- PA66-GF housing with IP67 sealing and UL94V-0 flame retardancy
- Built-in HVIL safety interlock system prevents live disconnection
- Rated 1500V DC, 250A for reliable high-voltage power transmission
Main Specifications:
General Information:
| Part No.: | ST515300-A-50 | |
| Product Series: | HVIL Connectors | |
| Brand: | Metabee | |
| Gender: | Plug | |
| Orientation: | Straight | |
| Connector Coding: | A Key | |
| Number of Positions: | 2 Pin | |
| Terminal Diameter: | 9mm | |
| Wire Gauge: | 50mm² | |
| Shielding: | Shielded | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | PA66-GF | |
| Shell Plating: | Not Applicable | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 1500V DC | |
| Rated Current: | 250A | |
| Insulation Resistance: | > 200MΩ | |
| Withstanding Voltage: | 3000V AC | |
| Durability (Mating): | < 500 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +125°C |
Applications of this 9mm HVIL High Voltage Interlock Loop 2 Pin Connector:
HVIL (High Voltage Interlock Loop) connectors are critical safety-centric components designed to ensure that a high-voltage system is automatically and safely de-energized before a connection is fully broken..
Here are some main applications:
- Battery Pack Module Interconnects in Electric Vehicles;
- High-Voltage Cable Harness Termination Points;
- Inverter / Motor Controller Interfaces;
- Electric / Hybrid Vehicle Accessories (HV Loads);
- Power Distribution Units / Junction Boxes in EVs;
- On-board Chargers / DC Fast Charger Interfaces.
