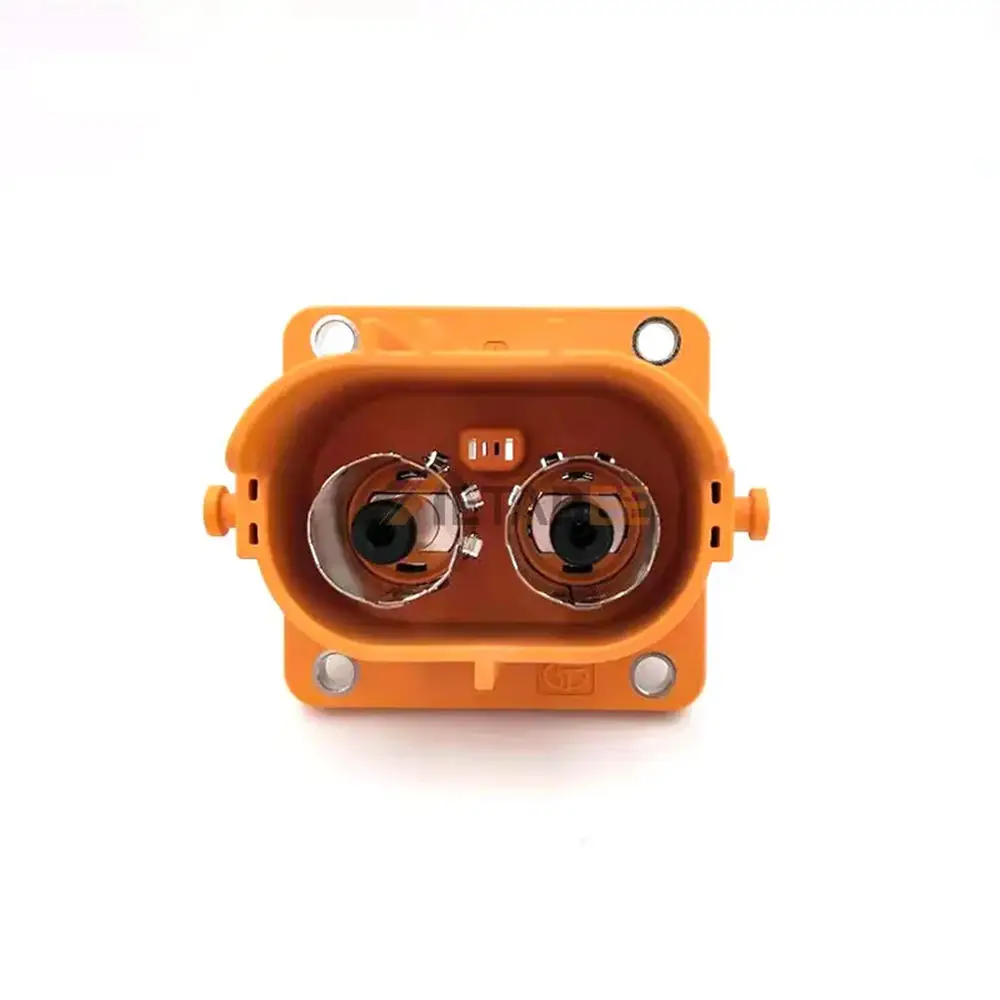

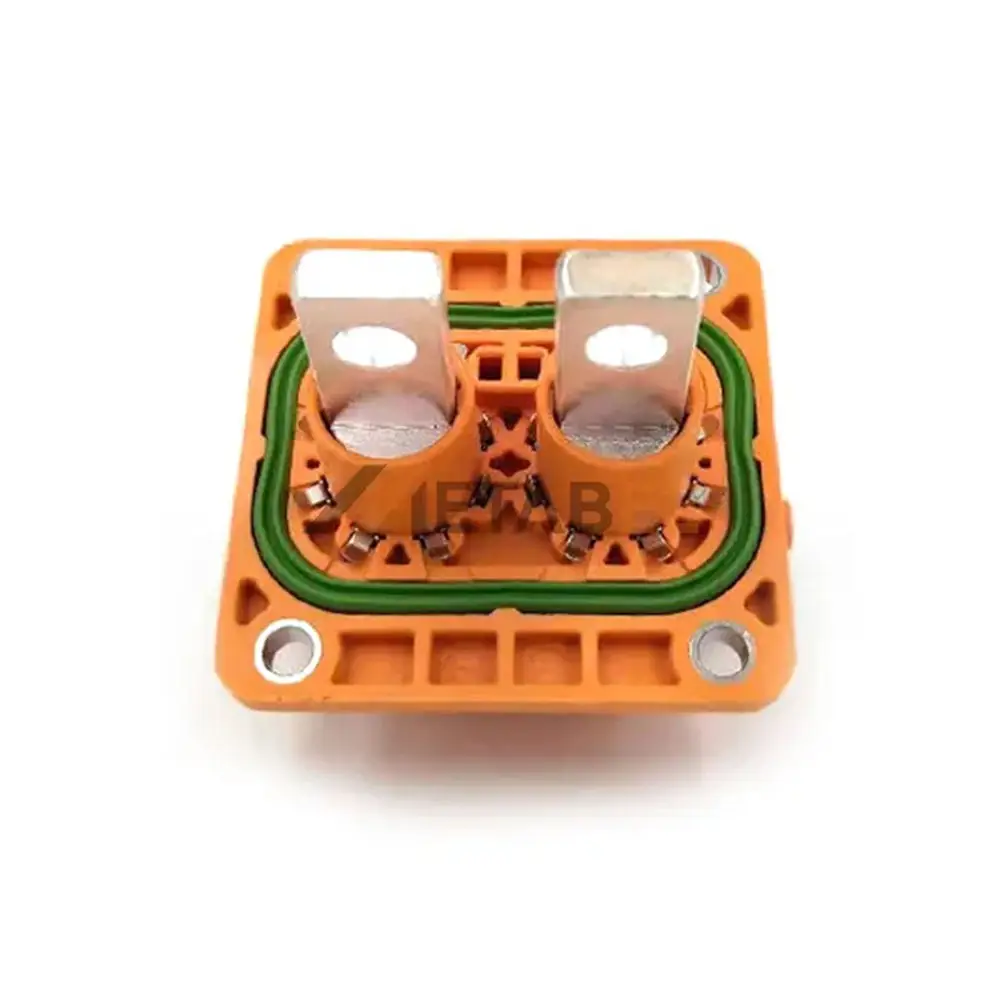

9mm High Voltage Interlock Loop Connector, 2 Pin Socket, A Key, 250A

Introduction

This 9mm High Voltage Interlock Loop (HVIL) Connector is a critical component designed for safe and reliable high-voltage connections in electric vehicles and industrial equipment. Engineered as a 2-pin socket with a straight orientation and an A Key configuration, it ensures proper mating and prevents incorrect connections within the high-voltage system. The connector features a robust PA66-GF housing, offering excellent mechanical strength and thermal stability. The heart of the connector is its 9mm diameter terminals, crafted from a high-conductivity copper alloy and finished with a silver plating to ensure minimal electrical loss and superior current carrying capacity. Its advanced interlock loop design is a key safety feature, enabling the system to detect disconnections and automatically de-energize the circuit before any access is possible.

Built to withstand demanding environments, this HVIL connector delivers outstanding performance and protection. It is rated for high-power applications, handling up to 1500V DC and 250A continuously. The connector achieves an IP67 rating, making it completely dust-tight and capable of withstanding temporary immersion in water, ensuring operational integrity in harsh conditions. Its materials comply with the UL94V-0 standard, providing high flame retardancy for enhanced safety. With a wide operating temperature range from -40°C to +125°C, this connector guarantees consistent performance in both extreme cold and high-heat scenarios, making it a dependable choice for the most rigorous automotive and industrial applications.

Key Features:

  • High-Current Capacity: Rated for 250A with silver-plated copper alloy terminals for optimal conductivity.
  • Enhanced Safety (HVIL): Integrated interlock loop ensures system de-energization upon disconnection.
  • Robust Environmental Protection: IP67 rated for complete protection against dust and water ingress.
  • High Voltage & Flame Retardant: Supports 1500V DC with a UL94V-0 flame-retardant housing.
  • Wide Operating Temperature Range: Reliable performance from -40°C to +125°C.

Main Specifications:

General Information:

Part No.: ST515320-A
Product Series: HVIL Connectors
Brand: Metabee
Gender: Socket
Orientation: Straight
Connector Coding:  A Key
Number of Positions:  2 Pin
Terminal Diameter:  9mm
Shielding:  Shielded
Other Feature: None

Materials and Plating:

Shell Material:  PA66-GF
Shell Plating:  Not Applicable
Contact Material:  Copper Alloy
Contact Plating:  Silver Plated

Electrical Performance:

Rated Voltage:  1500V DC
Rated Current:  250A
Insulation Resistance:  > 200MΩ
Withstanding Voltage: 3000V AC
Durability (Mating): < 500 Cycles

Environmental Performance:

IP Rating:  IP67
Flammability Rating:  UL94V-0
Operating Temperature:  -40°C to +125°C

Applications of this 9mm High Voltage Interlock Loop Connector:

HVIL (High Voltage Interlock Loop) connectors are critical safety-centric components designed to ensure that a high-voltage system is automatically and safely de-energized before a connection is fully broken..

Here are some main applications:

  • Battery Pack Module Interconnects in Electric Vehicles;
  • High-Voltage Cable Harness Termination Points;
  • Inverter / Motor Controller Interfaces;
  • Electric / Hybrid Vehicle Accessories (HV Loads);
  • Power Distribution Units / Junction Boxes in EVs;
  • On-board Chargers / DC Fast Charger Interfaces.

HVIL Connectors Application

Factory pricing and exceptional product quality. Get a free quote now!

HVIL(High Voltage Interlock ) Connectors
Metabee is a professional RF connector manufacturer from China. We can provide all kinds of connectors.
Product Series

HVIL Connectors

Product No.

ST515320-A

Product Name

9mm High Voltage Interlock Loop Connector, 2 Pin Socket, A Key, 250A

Brand

Metabee

Connector Gender

Socket

Orientation

Straight

Connector Coding

A Key

Number of Positions

2 Pin

Terminal Diameter

9mm

Shielding Performance

Shielded

Shell Material

PA66-GF

Shell Plating

Not Applicable

Contact Material

Copper Alloy

Contact Plating

Silver Plated

Insulation Resistance

> 200MΩ

Dielectric Withstanding Voltage

3000V AC

Rated Voltage

1500V DC

Rated Current

250A

Durability

< 500 Cycles

Flammability Rating

UL 94 V-0

IP Rating

IP67

Temperature Range

-40℃ to +125℃

Other Features

None
