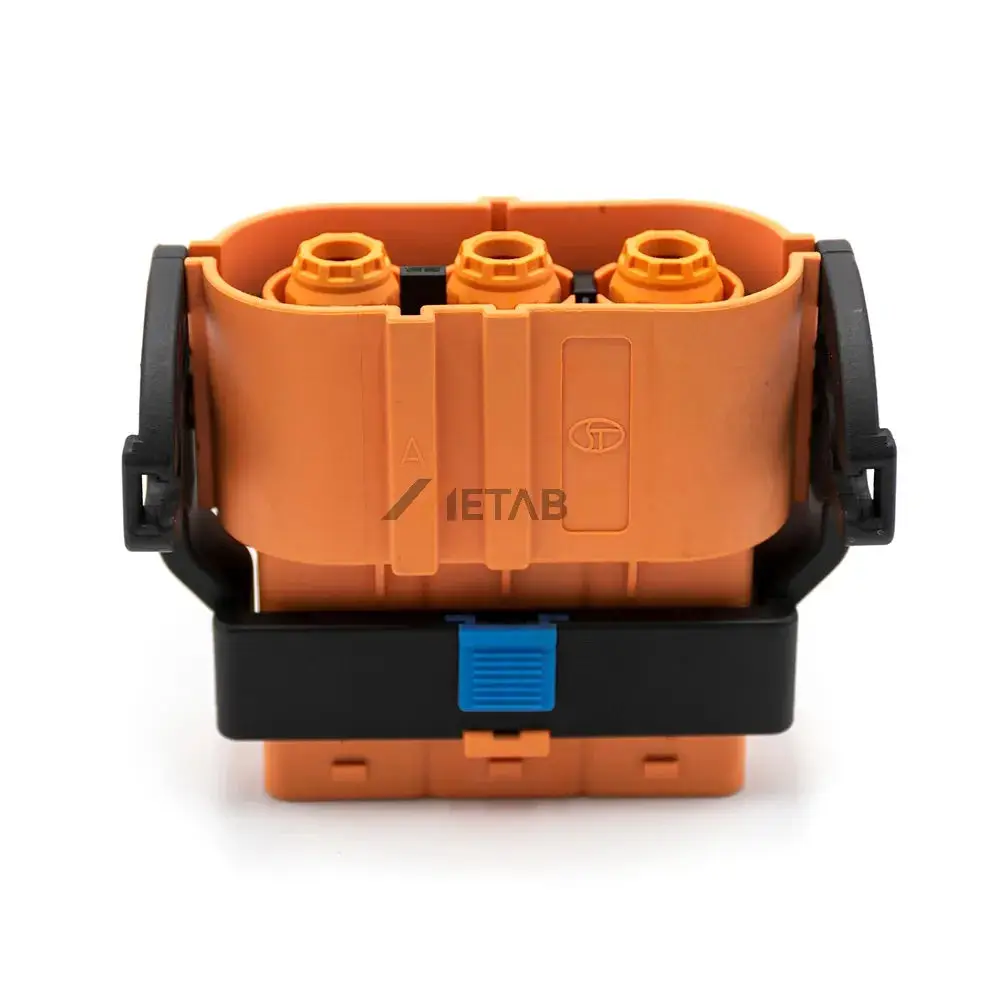

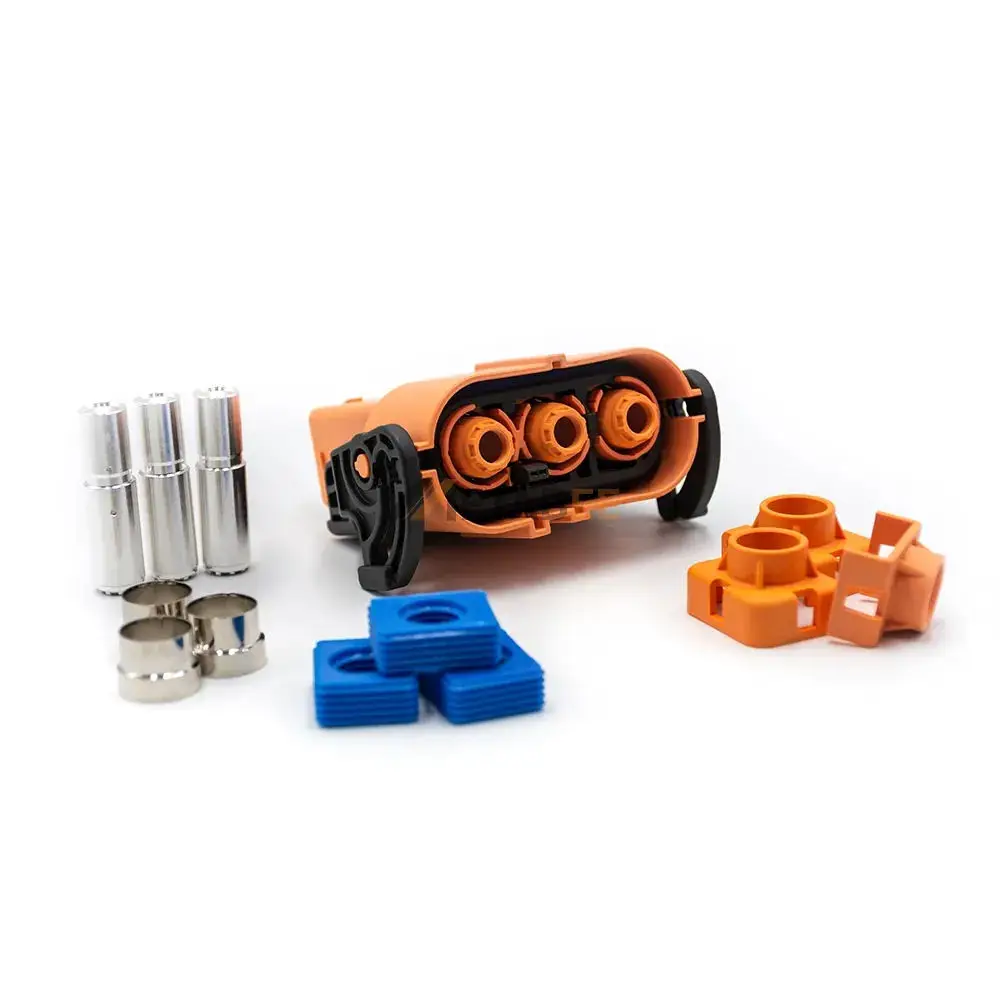

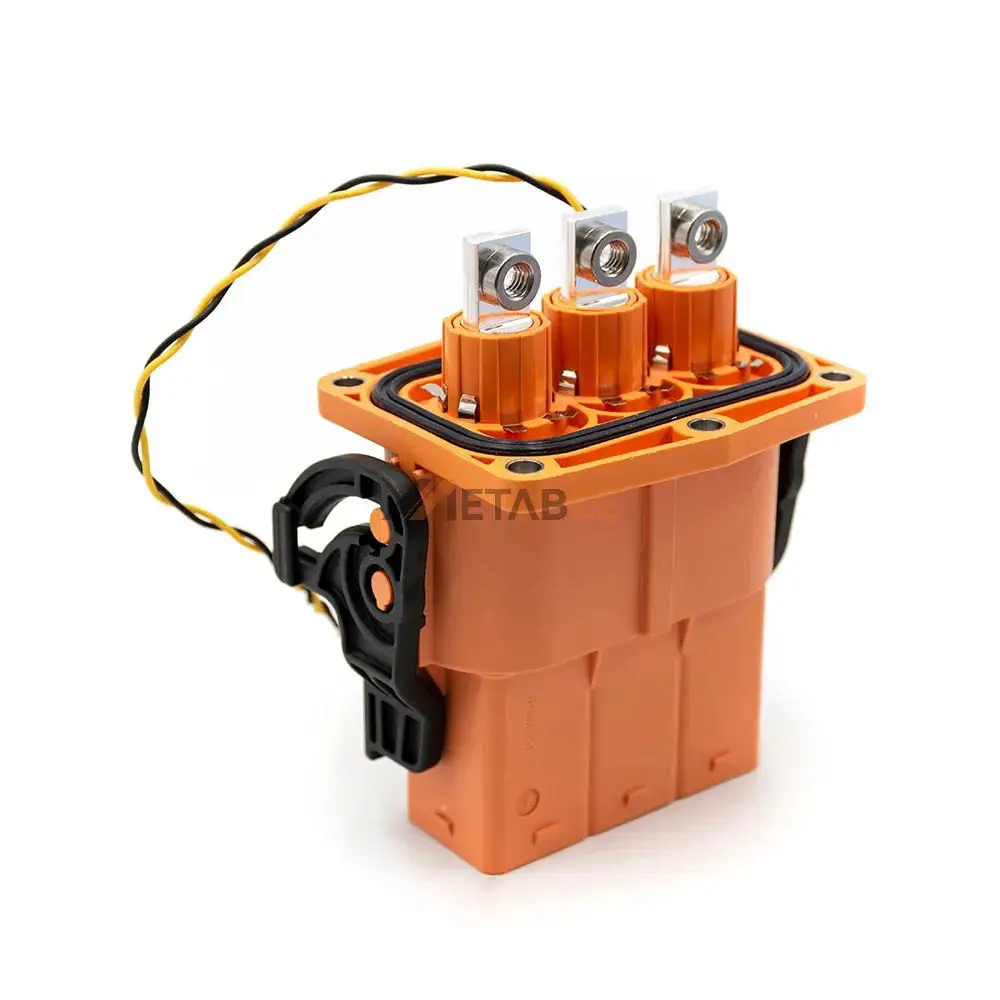

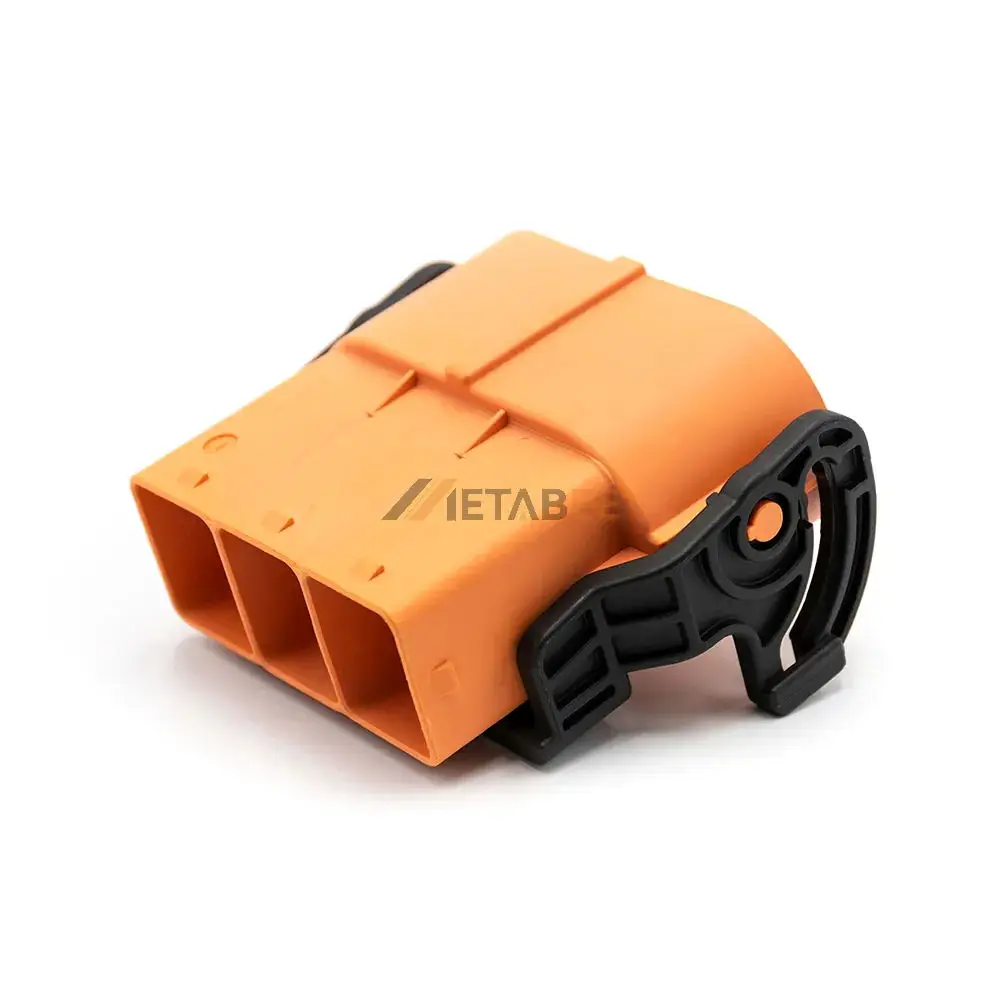

8mm HVIL High Voltage Interlock Loop Connector, 3 Pin Plug, A Key, 50mm², 250A
Introduction
Ensure the safety and integrity of your high-voltage systems with our 8mm HVIL High Voltage Interlock Loop Connector. This 3 Pin Plug is engineered to provide a critical safety loop, continuously monitoring the connection status within electric vehicle powertrains, battery packs, and charging systems. Its straight-direction design facilitates easy installation and efficient cable management in compact spaces. The connector features a keyed A Key interface, guaranteeing foolproof mating and preventing mismating with incompatible components. Constructed with a high-strength PA66-GF housing, it offers excellent resistance to impact, chemicals, and elevated temperatures.
This connector is built to deliver uncompromising performance under the most demanding conditions. It is rated for 1500V DC and a continuous current of 250A, supported by a robust 50mm² wire gauge with shielding for effective EMI protection. The silver-plated copper alloy contacts ensure maximum conductivity, minimal voltage drop, and long-term corrosion resistance. With an IP67 rating, it is completely protected against dust ingress and temporary immersion in water, while its UL94V-0 certified housing provides critical flame retardancy. Operating reliably across a wide temperature range from -40°C to +125°C, this connector is a durable and safe solution for automotive and industrial applications.
Key Features:
- 3-Pin HVIL Loop Design: Provides a secure safety interlock circuit for continuous connection monitoring.
- High-Power Capacity: Rated for 250A and 1500V DC, ideal for main power and control circuits.
- Robust Environmental Protection: IP67 rating ensures complete resistance to dust and water.
- Secure & Error-Proof Mating: A Key polarization prevents incorrect mating with non-compatible connectors.
- Wide Temperature Range & Flame Retardant: Reliable performance from -40°C to +125°C with a UL94V-0 housing.
Main Specifications:
General Information:
| Part No.: | ST525000-A-50 | |
| Product Series: | HVIL Connectors | |
| Brand: | Metabee | |
| Gender: | Plug | |
| Orientation: | Straight | |
| Connector Coding: | A Key | |
| Number of Positions: | 3 Pin | |
| Terminal Diameter: | 8mm | |
| Wire Gauge: | 50mm² | |
| Shielding: | Shielded | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | PA66-GF | |
| Shell Plating: | Not Applicable | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 1500V DC | |
| Rated Current: | 250A | |
| Insulation Resistance: | > 200MΩ | |
| Withstanding Voltage: | 3000V AC | |
| Durability (Mating): | < 500 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +125°C |
Applications of this 8mm HVIL High Voltage Interlock Loop Connector:
HVIL (High Voltage Interlock Loop) connectors are critical safety-centric components designed to ensure that a high-voltage system is automatically and safely de-energized before a connection is fully broken..
Here are some main applications:
- Battery Pack Module Interconnects in Electric Vehicles;
- High-Voltage Cable Harness Termination Points;
- Inverter / Motor Controller Interfaces;
- Electric / Hybrid Vehicle Accessories (HV Loads);
- Power Distribution Units / Junction Boxes in EVs;
- On-board Chargers / DC Fast Charger Interfaces.
