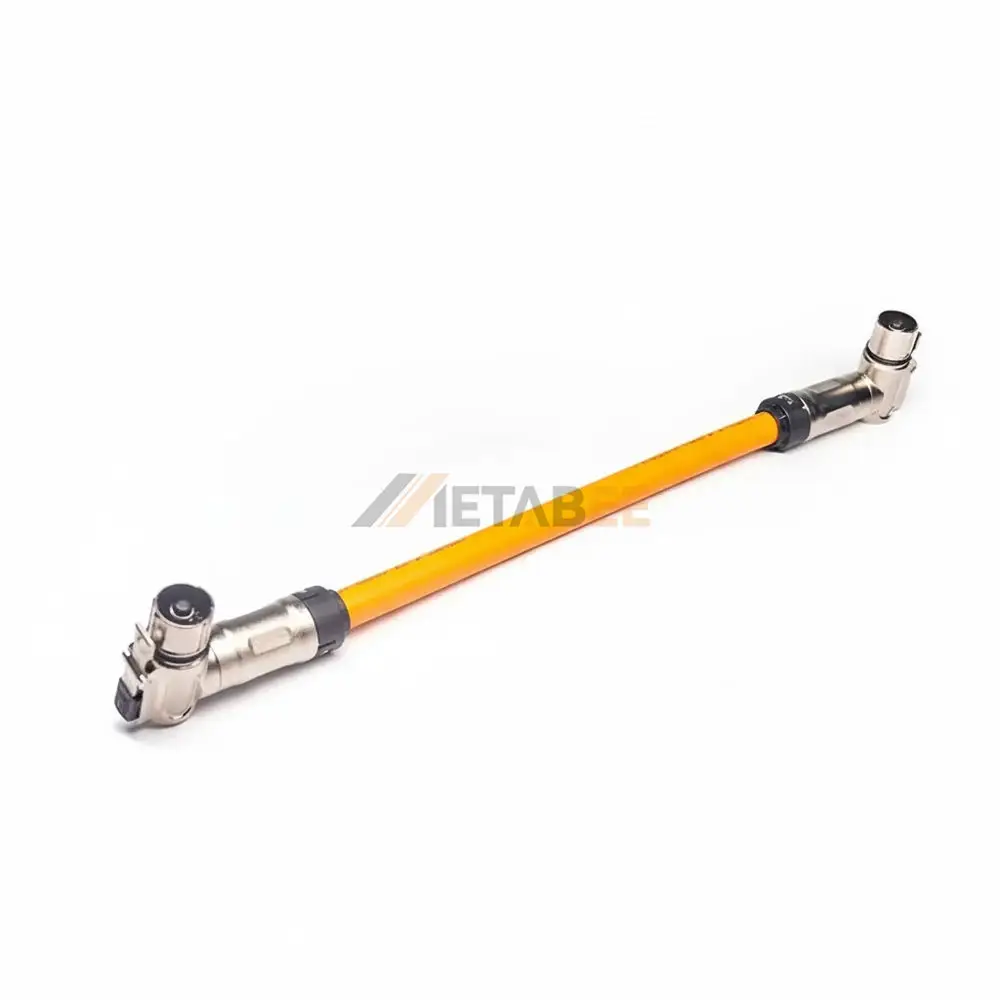

8mm High Voltage Interlock Loop HVIL Cable, 1 Pin Plug, A Key, 50mm², 200A, Right Angle
Introduction
The HVIL cable is a high-performance power connector designed for electric vehicle (EV) and high-voltage system applications. Engineered with a right-angle A-key plug configuration, this cable ensures secure and reliable interlocking, preventing accidental disconnections and maintaining electrical safety. Its 1-pin design with a 50mm² wire gauge delivers exceptional conductivity for high-current transmission up to 200A under a rated voltage of 1000V.
Constructed with a PA66+GF housing and nickel-plated copper alloy contacts, the cable provides outstanding durability, corrosion resistance, and heat stability in harsh environments. The 8mm terminal diameter ensures a stable electrical interface, while the 25cm cable length offers flexible integration within compact EV architectures. Designed to meet IP67 sealing and UL94V-0 flammability standards, this HVIL cable ensures safe operation even in extreme conditions from -40°C to +125°C.
Key Features:
- Rated voltage: 1000V, rated current: 200A
- 1 Pin Plug with Right Angle, A Key design
- Terminal diameter: 8mm; wire gauge: 50mm²
- Housing material: PA66+GF; contact: nickel-plated copper alloy
- IP67 waterproof and UL94V-0 flame-retardant rating
- Operating temperature: -40°C to +125°C
Main Specifications:
General Information:
| Part No.: | NI1-1-B080-1AYN-C10-L0.25 | |
| Product Series: | HVIL Cables | |
| Brand: | Metabee | |
| Gender: | Plug | |
| Orientation: | Right Angle | |
| Connector Coding: | A Key | |
| Number of Positions: | 1 Pin | |
| Shell Material: | PA66+GF | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Nickel-Plated | |
| Terminal Diameter: | 8mm | |
| Wire Gauge: | 50mm² | |
| Cable length: | 25cm | |
| Rated Voltage: | 1000 V | |
| Rated Current: | 200A | |
| IP Rating: | IP67 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +125°C | |
| Other Feature: | None |
Applications of this 8mm High Voltage Interlock Loop HVIL Cable:
HVIL (High Voltage Interlock Loop) cables and their associated systems are crucial safety mechanisms primarily used in high-voltage applications to prevent electric shock and damage from arcing.
Here are some main applications:
- Electric Vehicles (EVs) and Hybrid Electric Vehicles (HEVs);
- Inverter/motor drive interface;
- On-board charger (OBC) connection;
- Power distribution unit (PDU) / junction box systems;
- Stationary energy storage systems (ESS);
- Off-highway and heavy-duty electric equipment;
- DC fast-charging infrastructure;
- High-voltage thermal management systems.
Factory pricing and exceptional product quality. Get a free quote now!
