8mm High Voltage Interlock Loop HVIL 1 Pin Connector, Socket, A Key, 250A
Introduction

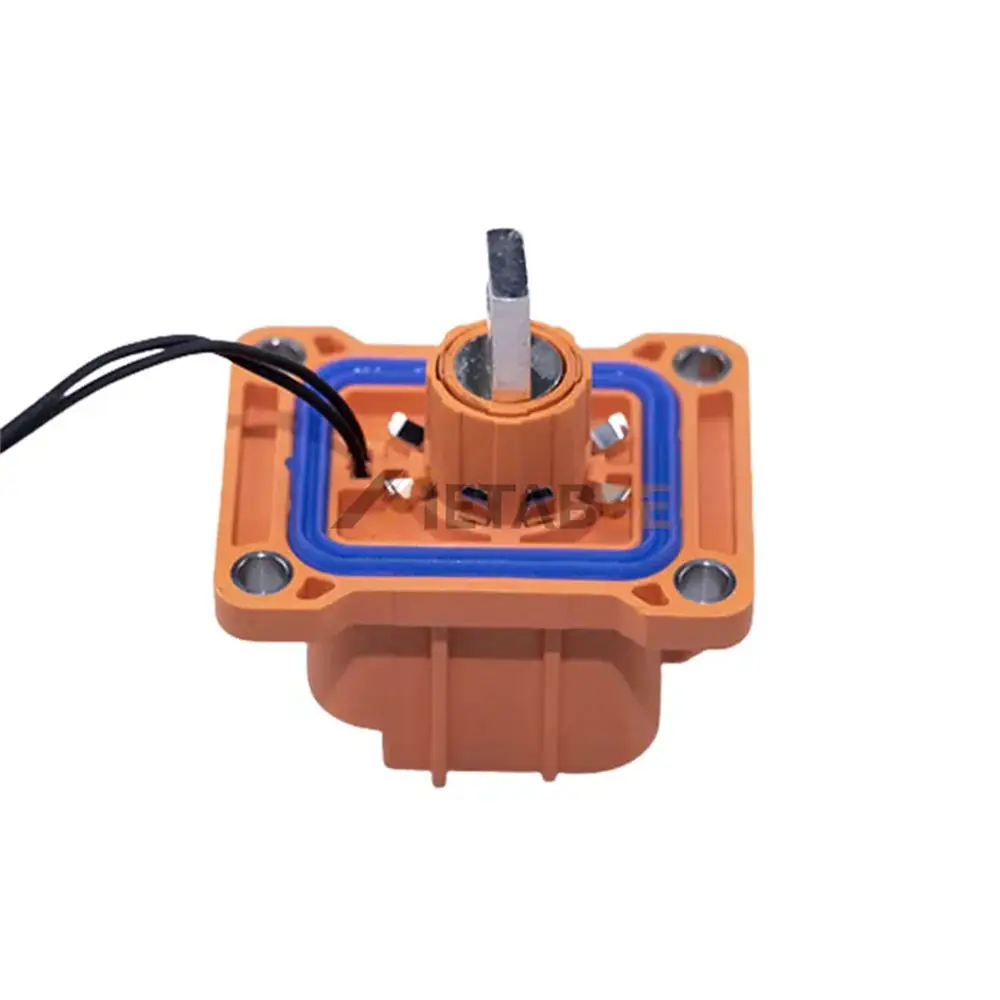

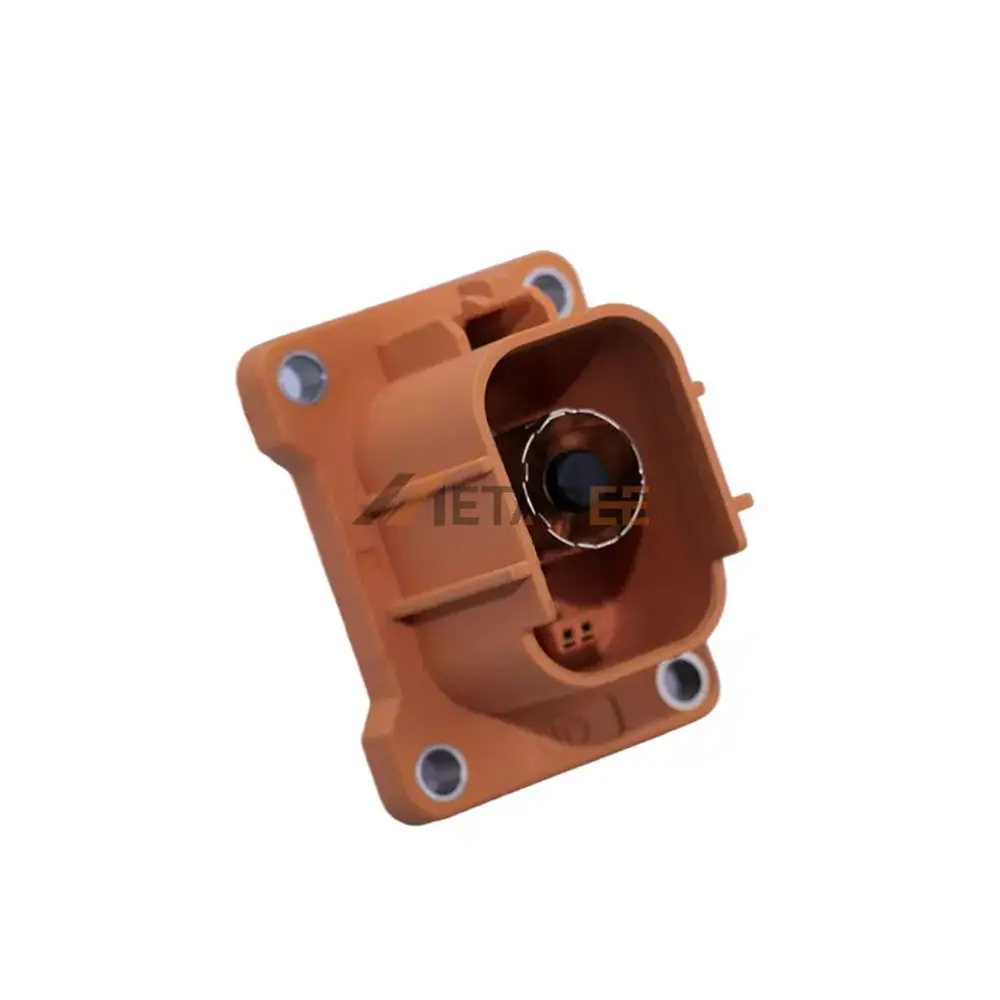

The 8mm HVIL Connector is engineered for high-voltage power distribution and safety interlock systems in electric and hybrid vehicles. Featuring a straight configuration and A-key design, this socket connector ensures precise mating and secure interlocking with its corresponding plug. Its 1-pin structure with an 8mm terminal diameter supports efficient high-current transmission while maintaining low contact resistance.
Constructed with a PA66-GF housing, the connector provides superior mechanical strength, thermal stability, and flame retardancy (UL94V-0). The copper alloy contacts are silver-plated to enhance electrical conductivity and corrosion resistance under demanding conditions. Designed for rated voltage up to 1500V DC and current up to 250A, it guarantees reliable power delivery in high-voltage environments. The shielded structure offers excellent electromagnetic interference (EMI) protection, ensuring system stability and safety.
This HVIL connector meets IP67 waterproof protection, providing complete sealing against dust and moisture, while operating efficiently in extreme temperatures from -40°C to +125°C. It is an ideal choice for EV battery packs, power control units, and energy storage systems requiring safe and stable high-voltage connections.
Key Features:
- Rated at 1500V DC / 250A for high-power transmission.
- Silver-plated copper alloy contacts ensure superior conductivity.
- PA66-GF housing with UL94V-0 flame retardancy and robust durability.
- IP67-rated for excellent waterproof and dustproof performance.
- Shielded A-key design enhances EMI protection and secure connection.
Main Specifications:
General Information:
| Part No.: | ST526000-A | |
| Product Series: | HVIL Connectors | |
| Brand: | Metabee | |
| Gender: | Socket | |
| Orientation: | Straight | |
| Connector Coding: | A Key | |
| Number of Positions: | 1 Pin | |
| Terminal Diameter: | 8mm | |
| Shielding: | Shielded | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | PA66-GF | |
| Shell Plating: | Not Applicable | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 1500V DC | |
| Rated Current: | 250A | |
| Insulation Resistance: | > 200MΩ | |
| Withstanding Voltage: | 3000V AC | |
| Durability (Mating): | < 500 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +125°C |
Applications of this 8mm High Voltage Interlock Loop HVIL 1 Pin Connector:
HVIL (High Voltage Interlock Loop) connectors are critical safety-centric components designed to ensure that a high-voltage system is automatically and safely de-energized before a connection is fully broken..
Here are some main applications:
- Battery Pack Module Interconnects in Electric Vehicles;
- High-Voltage Cable Harness Termination Points;
- Inverter / Motor Controller Interfaces;
- Electric / Hybrid Vehicle Accessories (HV Loads);
- Power Distribution Units / Junction Boxes in EVs;
- On-board Chargers / DC Fast Charger Interfaces.
