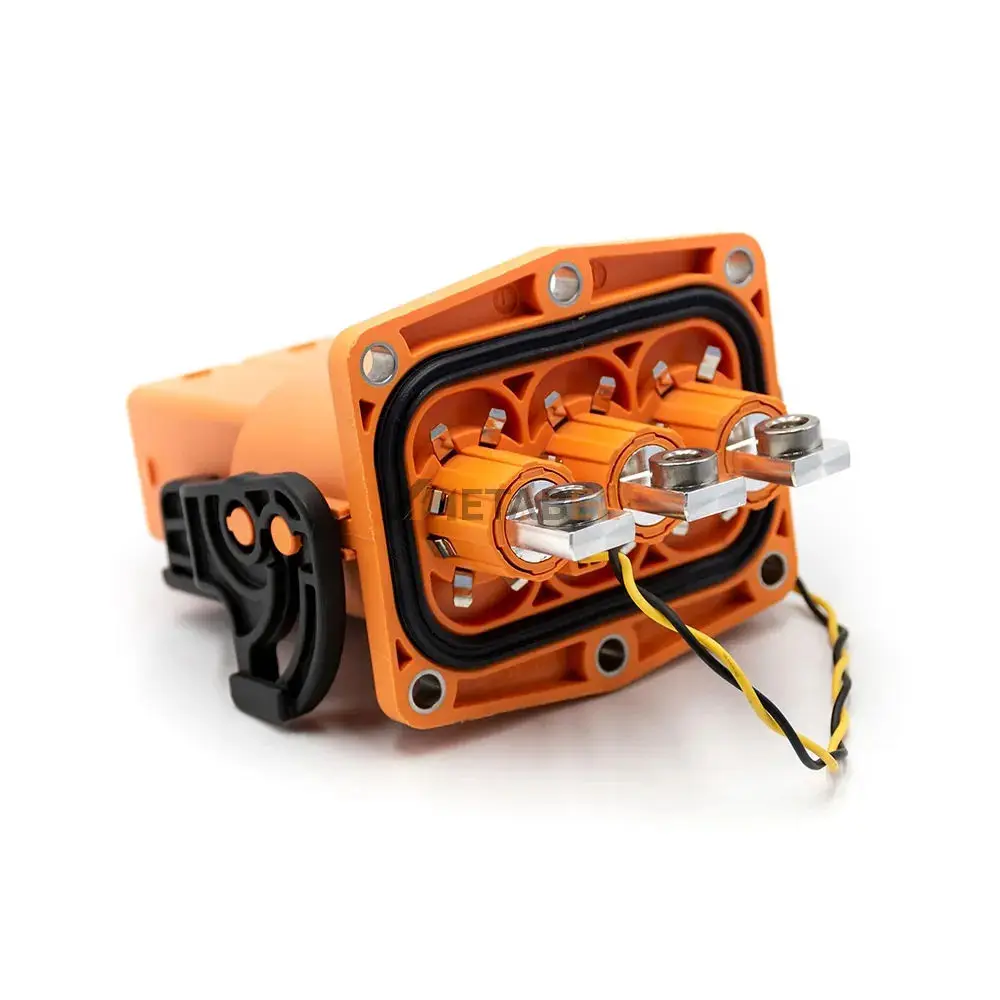

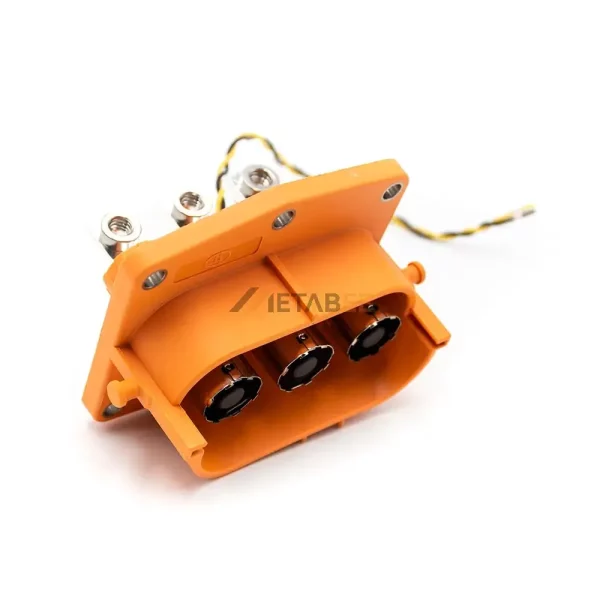

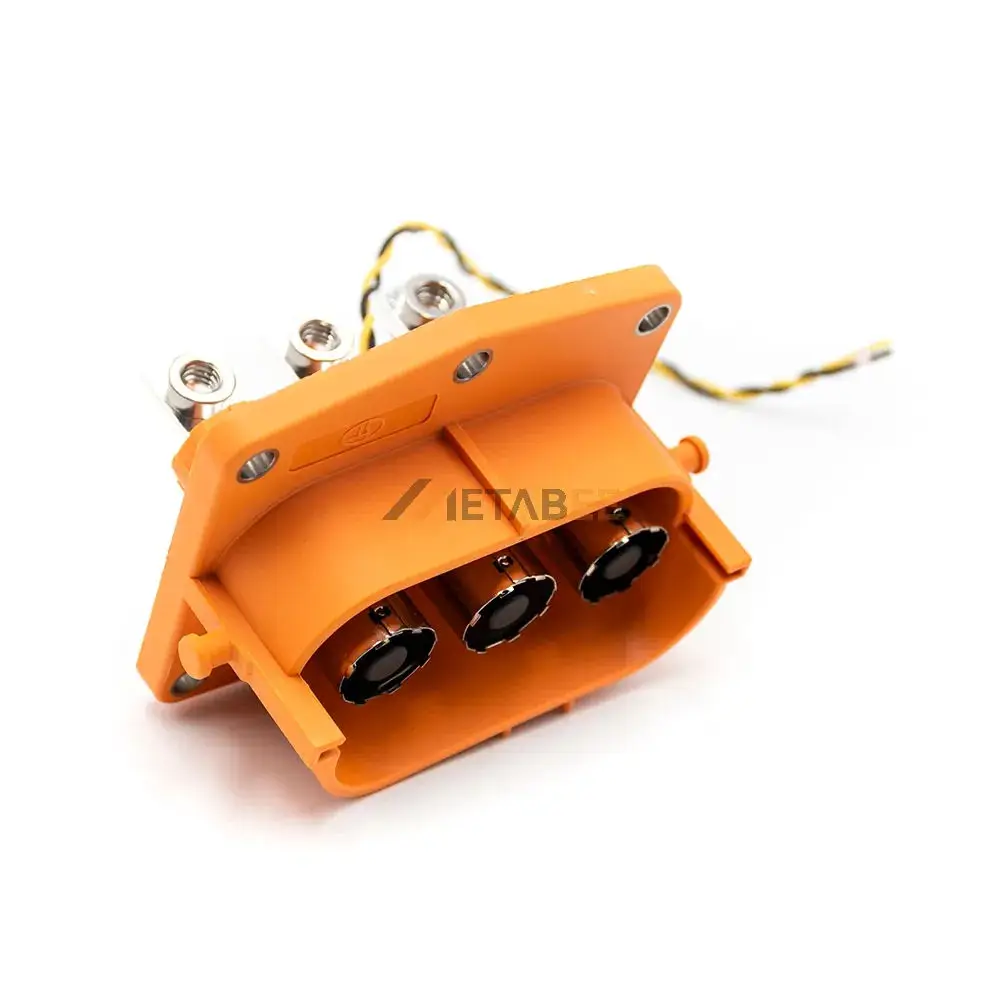

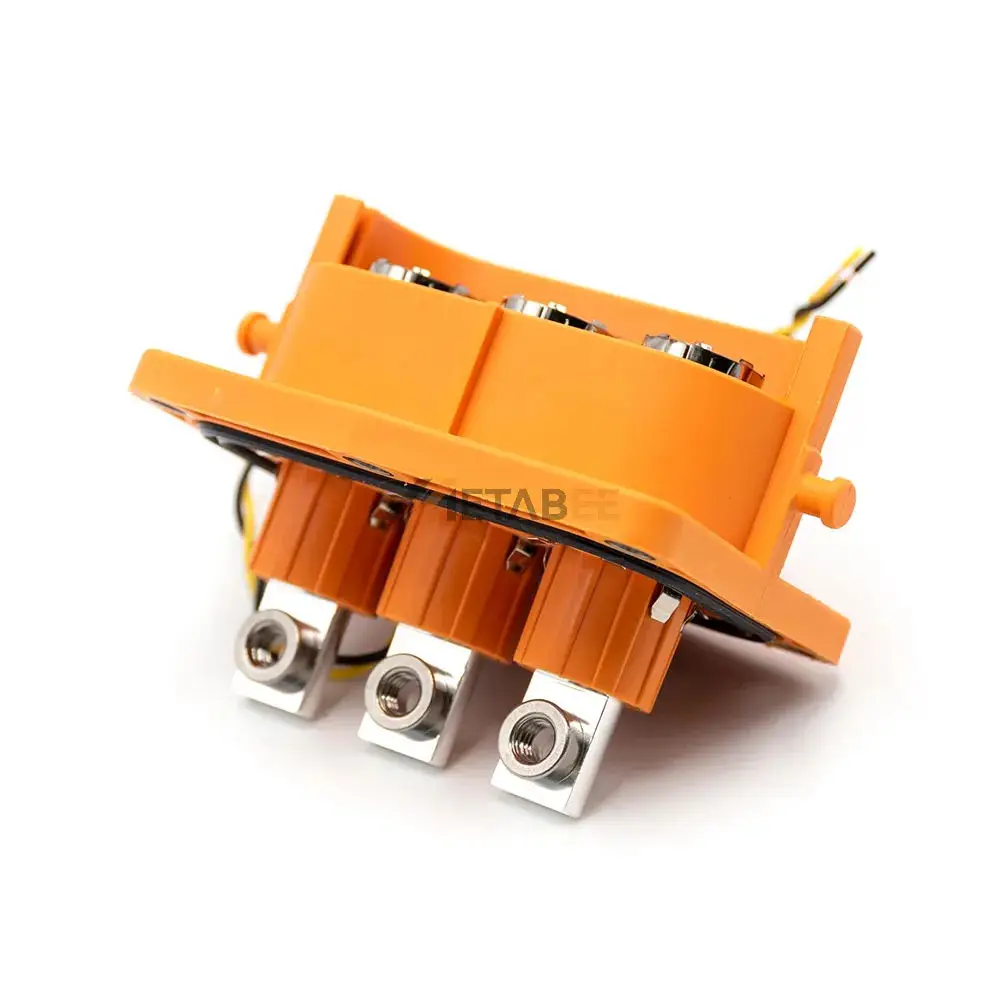

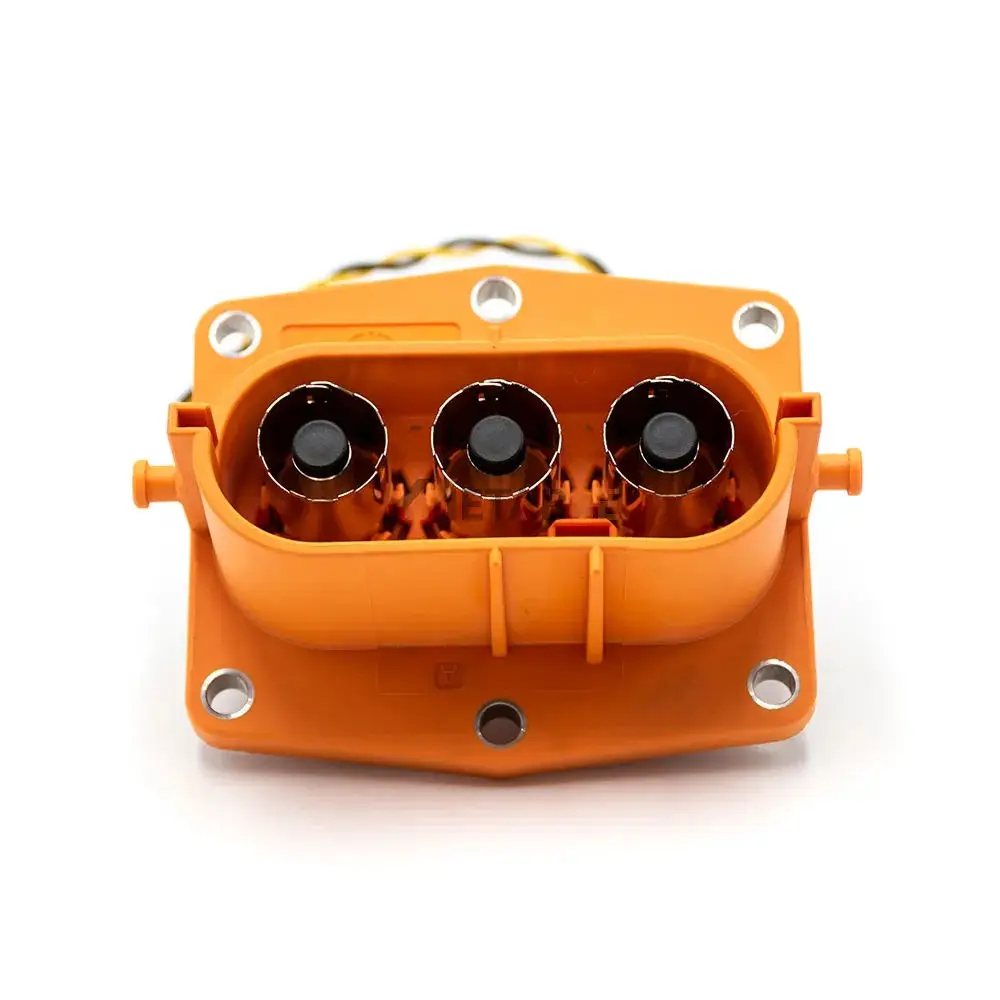

8mm High Voltage Interlock Loop 3 Pin Connector, Socket, A Key, 250A

Introduction

This 8mm High Voltage Interlock Loop (HVIL) 3-Pin Connector in a Socket configuration is engineered for superior performance and safety in high-voltage electric vehicle and energy storage applications. Designed as a straight connector with an A Key polarization system, it ensures a foolproof, mis-mating-proof connection, safeguarding your electrical systems. The connector boasts a robust construction, featuring a PA66-GF shell for excellent mechanical strength and heat resistance, and copper alloy contacts with a silver plating to ensure minimal electrical loss and high conductivity. Its 8mm shielded terminals and full connector shielding are critical for protecting signal integrity against electromagnetic interference (EMI).

Built to withstand demanding environments, this HVIL connector delivers exceptional reliability with an IP67 rating, making it completely dust-tight and capable of withstanding immersion in water. It operates flawlessly across a wide temperature range from -40°C to +125°C. The combination of a 1500V DC rated voltage and a high 250A current capacity makes it ideal for primary power distribution circuits. Furthermore, the housing material complies with the UL94V-0 standard, providing superior flame retardancy for enhanced system safety and compliance with industry regulations.

Key Features:

  • High Current & Voltage: Rated for 250A and 1500V DC, perfect for main power lines.
  • HVIL Safety Loop: Integrated interlock system ensures safe power-on/power-off sequencing.
  • Robust Environmental Sealing: IP67 protection against dust and water ingress.
  • Secure & Keyed Connection: A Key design prevents incorrect mating for operational safety.
  • Durable Construction: PA66-GF housing (UL94V-0) and silver-plated contacts for reliability.

Main Specifications:

General Information:

Part No.: ST520000-A
Product Series: HVIL Connectors
Brand: Metabee
Gender: Socket
Orientation: Straight
Connector Coding:  A Key
Number of Positions:  3 Pin
Terminal Diameter:  8mm
Shielding:  Shielded
Other Feature: None

Materials and Plating:

Shell Material:  PA66-GF
Shell Plating:  Not Applicable
Contact Material:  Copper Alloy
Contact Plating:  Silver Plated

Electrical Performance:

Rated Voltage:  1500V DC
Rated Current:  250A
Insulation Resistance:  > 200MΩ
Withstanding Voltage: 3000V AC
Durability (Mating): < 500 Cycles

Environmental Performance:

IP Rating:  IP67
Flammability Rating:  UL94V-0
Operating Temperature:  -40°C to +125°C

Applications of this 8mm High Voltage Interlock Loop 3 Pin Connector:

HVIL (High Voltage Interlock Loop) connectors are critical safety-centric components designed to ensure that a high-voltage system is automatically and safely de-energized before a connection is fully broken..

Here are some main applications:

  • Battery Pack Module Interconnects in Electric Vehicles;
  • High-Voltage Cable Harness Termination Points;
  • Inverter / Motor Controller Interfaces;
  • Electric / Hybrid Vehicle Accessories (HV Loads);
  • Power Distribution Units / Junction Boxes in EVs;
  • On-board Chargers / DC Fast Charger Interfaces.

HVIL Connectors Application

Factory pricing and exceptional product quality. Get a free quote now!

HVIL(High Voltage Interlock ) Connectors
Metabee is a professional RF connector manufacturer from China. We can provide all kinds of connectors.
Product Series

HVIL Connectors

Product No.

ST520000-A

Product Name

8mm High Voltage Interlock Loop 3 Pin Connector, Socket, A Key, 250A

Brand

Metabee

Connector Gender

Socket

Orientation

Straight

Connector Coding

A Key

Number of Positions

3 Pin

Terminal Diameter

8mm

Shielding Performance

Shielded

Shell Material

PA66-GF

Shell Plating

Not Applicable

Contact Material

Copper Alloy

Contact Plating

Silver Plated

Insulation Resistance

> 200MΩ

Dielectric Withstanding Voltage

3000V AC

Rated Voltage

1500V DC

Rated Current

250A

Durability

< 500 Cycles

Flammability Rating

UL 94 V-0

IP Rating

IP67

Temperature Range

-40℃ to +125℃

Other Features

None
