8mm Energy Storage Single-Ended Cable, Plug, 50m㎡, 200A
Introduction

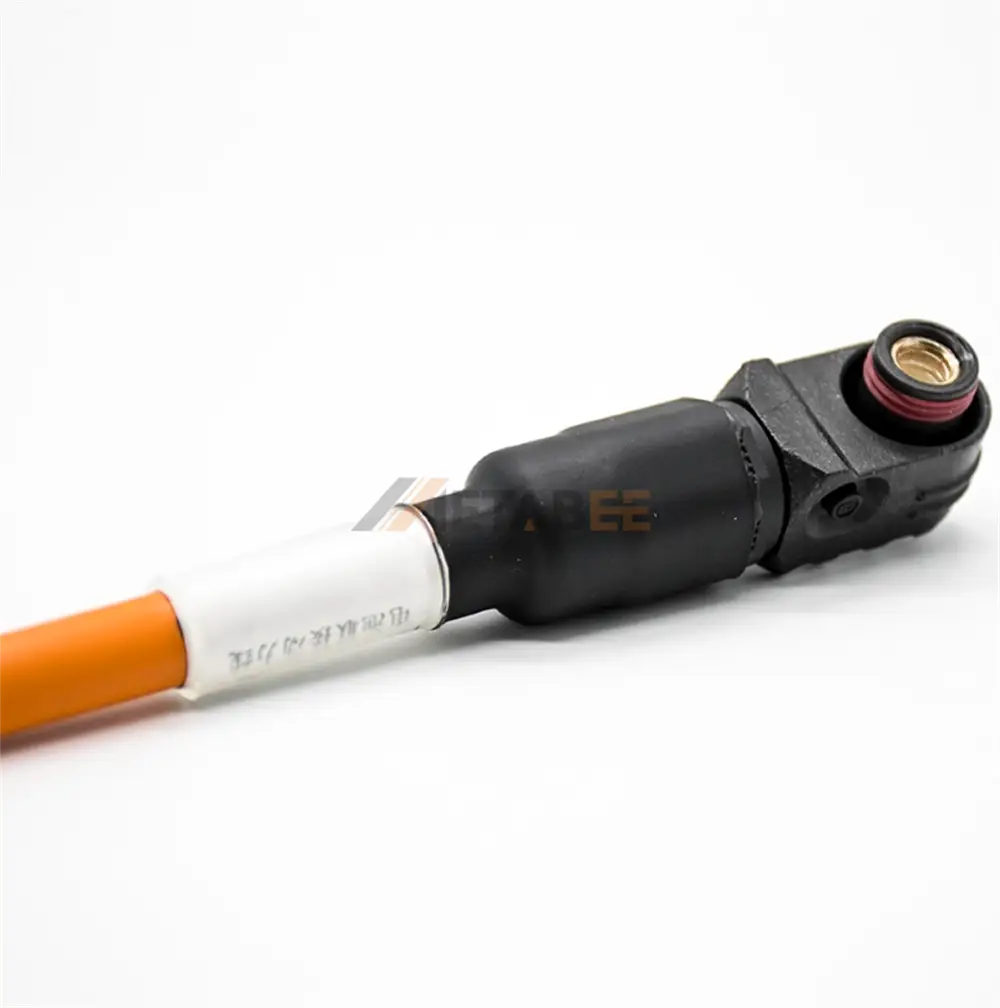

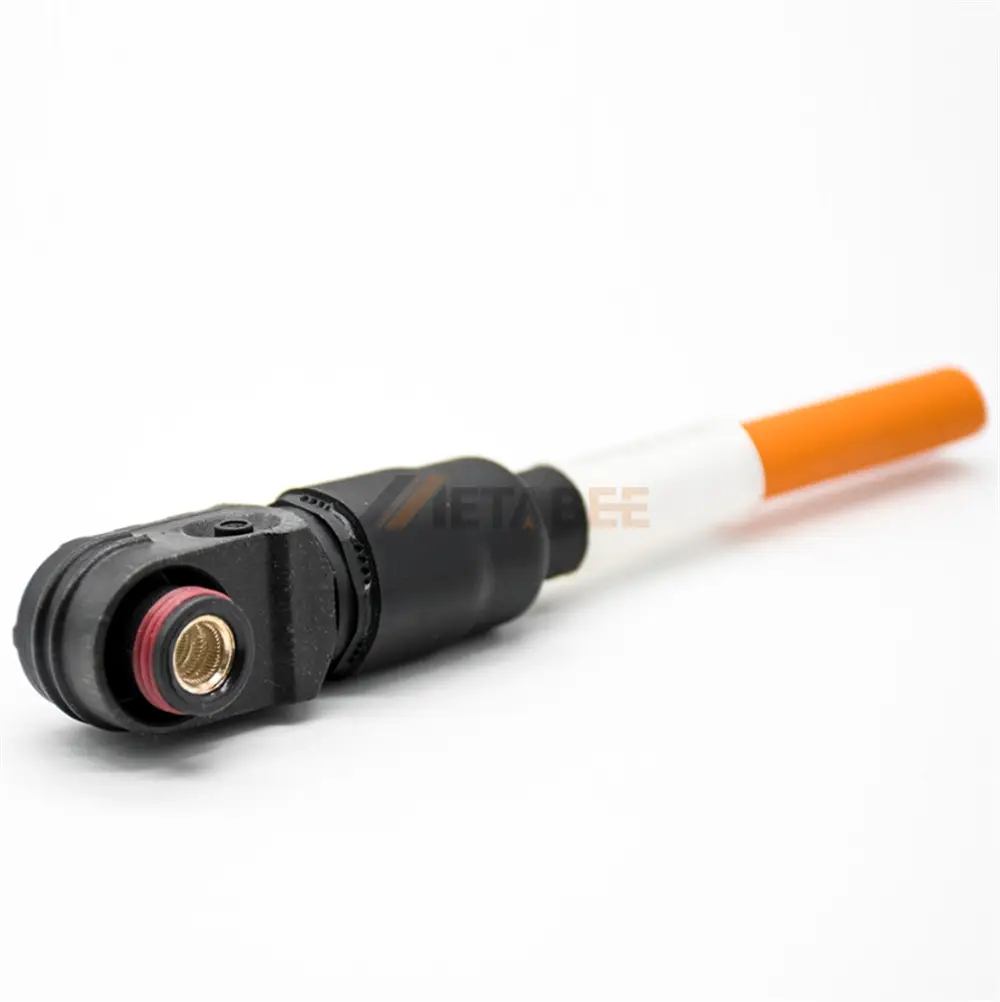

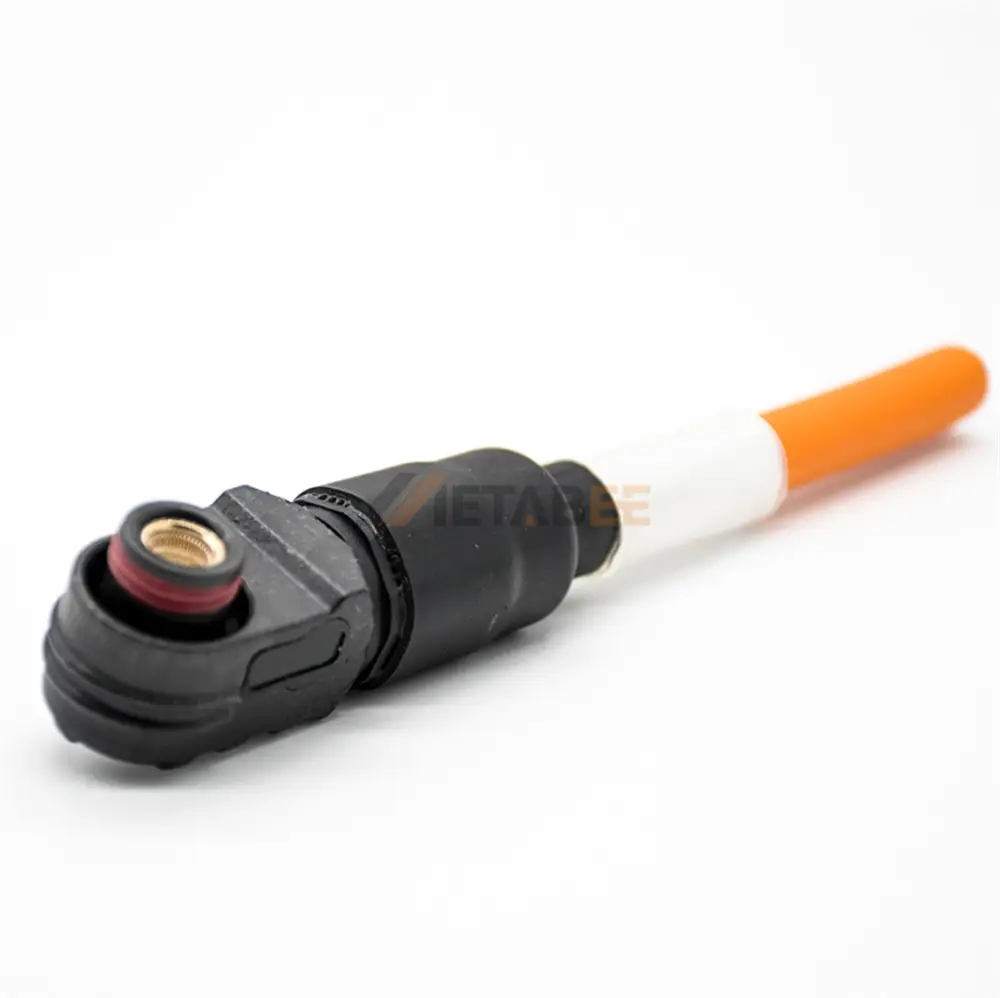

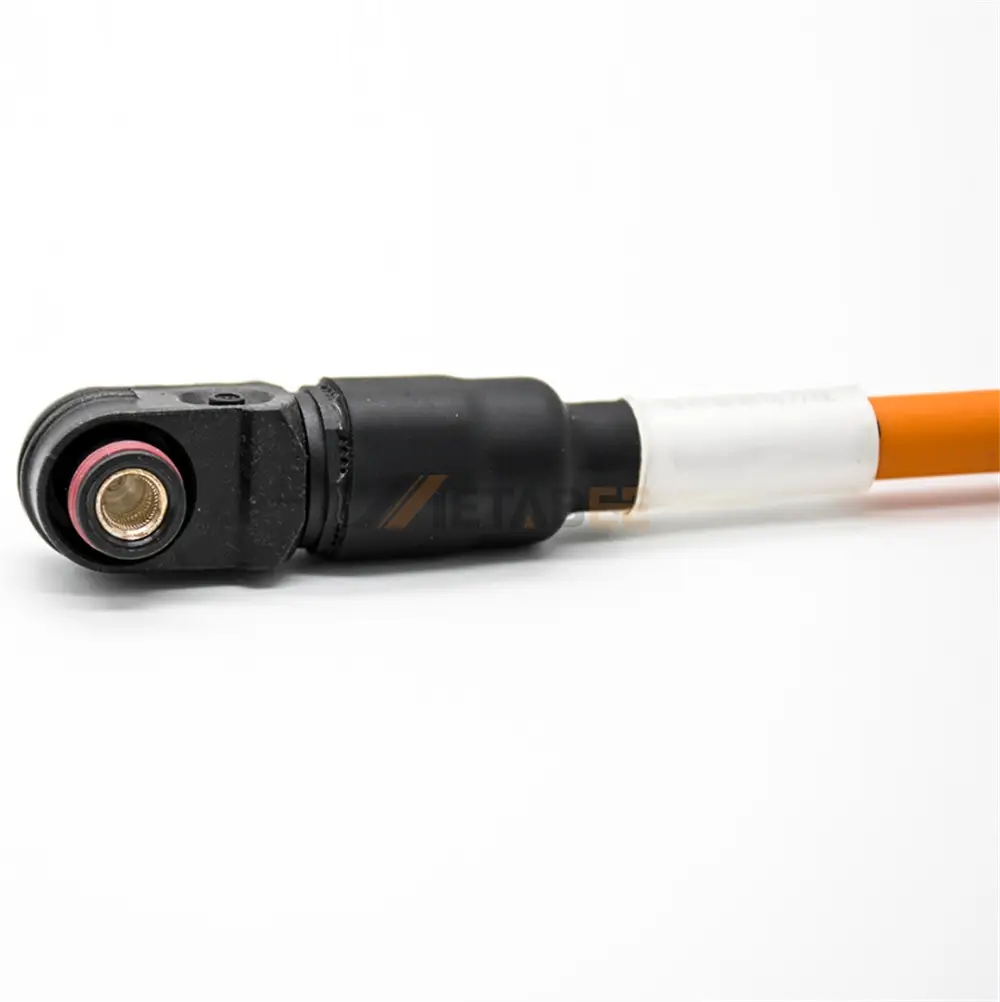

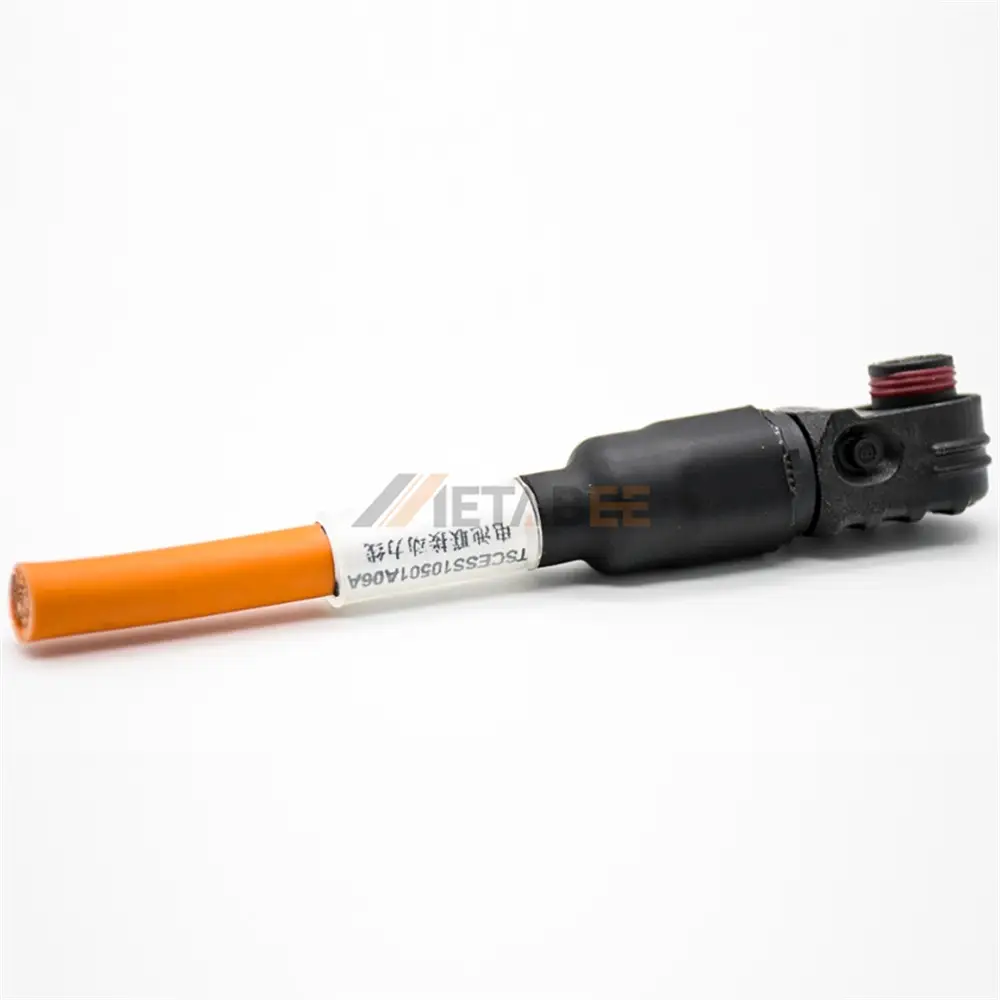

The energy storage single-ended cable is designed for high performance and reliability in demanding energy storage systems (ESS). This 30cm cable features a robust 50mm² wire gauge and an 8mm terminal, designed to efficiently handle high power loads with a rating of 200A and 1500V. Its right-angle plug connector with a 1-pin configuration ensures a secure and space-saving connection, ideal for compact cabinet layouts.
Constructed for durability and optimal conductivity, the connector combines a plastic housing with a silver-plated brass contact. This material selection provides excellent corrosion resistance and maximizes electrical performance. The assembly is built to withstand harsh environmental conditions, boasting an IP67 rating for dust and water immersion protection and a wide operating temperature range from -40°C to +125°C, ensuring stable operation in both extreme cold and heat.
Key Features:
- High-Capacity Performance: Rated for 200A and 1500V.
- Optimized Connector: Right-angle, single-ended plug for easy installation in tight spaces.
- Superior Conductivity: Silver-plated brass contact ensures minimal power loss.
- Robust Construction: Durable plastic housing and a thick 50mm² wire gauge.
- Excellent Environmental Protection: IP67 rated against dust and water.
- Wide Temperature Range: Operates reliably from -40°C to +125°C.
Main Specifications:
| Part No.: | YC-1P-8B-C50-R30 | |
| Product Series: | Energy Storage Cables | |
| Cable Type: | Single-Ended Cable | |
| Brand: | Metabee | |
| Gender: | Plug | |
| Orientation: | Right Angle | |
| Number of Positions: | 1 Pin | |
| Shell Material: | Plastic | |
| Contact Material: | Brass | |
| Contact Plating: | Silver Plated | |
| Terminal Diameter: | 8mm | |
| Wire Gauge: | 50mm² | |
| Cable length: | 30cm | |
| Rated Voltage: | 1500 V | |
| Rated Current: | 200A | |
| IP Rating: | IP67 | |
| Operating Temperature: | -40°C to +125°C | |
| Other Feature: | None |
Applications of this 8mm Energy Storage Single-Ended Cable:
Energy storage cables are specialized cables designed to handle the high current and voltage requirements in systems that store and manage electrical energy. They are crucial for connecting storage devices like batteries to the power grid or other electrical systems.
Here are some main applications:
- Grid-Scale Battery Energy Storage Systems (BESS);
- Transportation and Mobile Power;
- Residential Solar-Plus-Storage Systems;
- Electric Vehicle (EV) Charging Stations;
- Electric Vehicles (Internal Wiring);
- Industrial Vehicles and Machinery.
