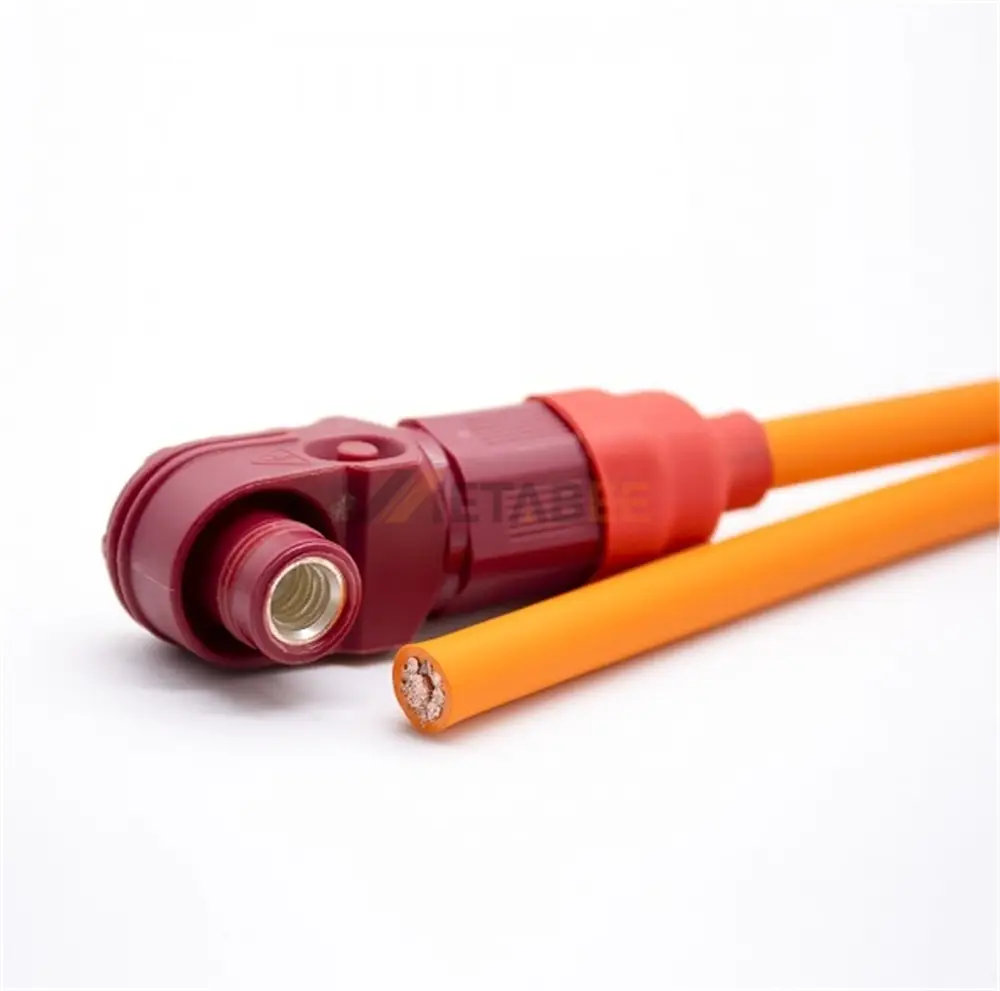

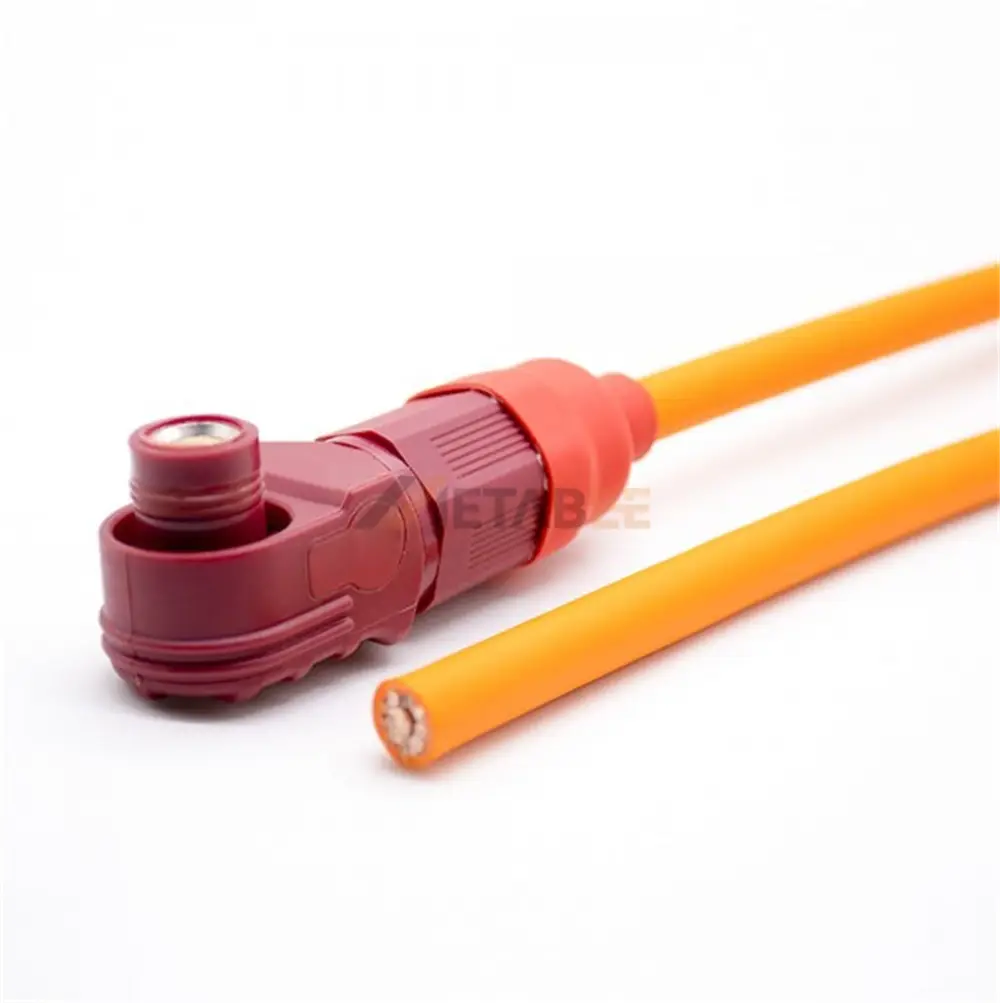

8mm Energy Storage Connector Cable, Plug, 25m㎡, 200A, Single-Ended
Introduction
The energy storage connector cable delivers high-performance power transmission for advanced ESS, EV, and industrial applications. This single-ended cable features a right-angle 1-pin plug engineered for space-constrained installations, ensuring secure connectivity with minimal bending stress. With a robust 25 mm² wire gauge and 30 cm length, it supports stable current flow and low power loss in demanding environments.
Built for reliability, the connector integrates an 8 mm silver-plated brass contact that ensures superior conductivity, reduced resistance, and enhanced corrosion protection. The durable plastic housing provides lightweight strength, while the IP67 rating safeguards the assembly against water, dust, and harsh outdoor exposure. Designed for extreme conditions, the cable operates flawlessly from −40 °C to 125 °C, supporting a 1500 V / 200 A rating for high-capacity energy systems.
This cable is an ideal solution for energy storage units, battery modules, photovoltaic systems, and high-current DC applications requiring safe, efficient, and long-lifespan connectors.
Key Features:
- 8 mm single-ended connector cable with right-angle 1-pin plug.
- High-capacity 25 mm² wire gauge supporting 200 A at 1500 V.
- Silver-plated brass contact for excellent conductivity and durability.
- Rugged plastic housing with IP67 waterproof/dustproof protection.
- Wide operating temperature range: −40 °C to 125 °C.
- Compact 30 cm design ideal for tight-space ESS and EV installations.
Main Specifications:
| Part No.: | YC-1P-8R-C25-R30 | |
| Product Series: | Energy Storage Cables | |
| Cable Type: | Single-Ended Cable | |
| Brand: | Metabee | |
| Gender: | Plug | |
| Orientation: | Right Angle | |
| Number of Positions: | 1 Pin | |
| Shell Material: | Plastic | |
| Contact Material: | Brass | |
| Contact Plating: | Silver Plated | |
| Terminal Diameter: | 8mm | |
| Wire Gauge: | 25mm² | |
| Cable length: | 30cm | |
| Rated Voltage: | 1500 V | |
| Rated Current: | 200A | |
| IP Rating: | IP67 | |
| Operating Temperature: | -40°C to +125°C | |
| Other Feature: | None |

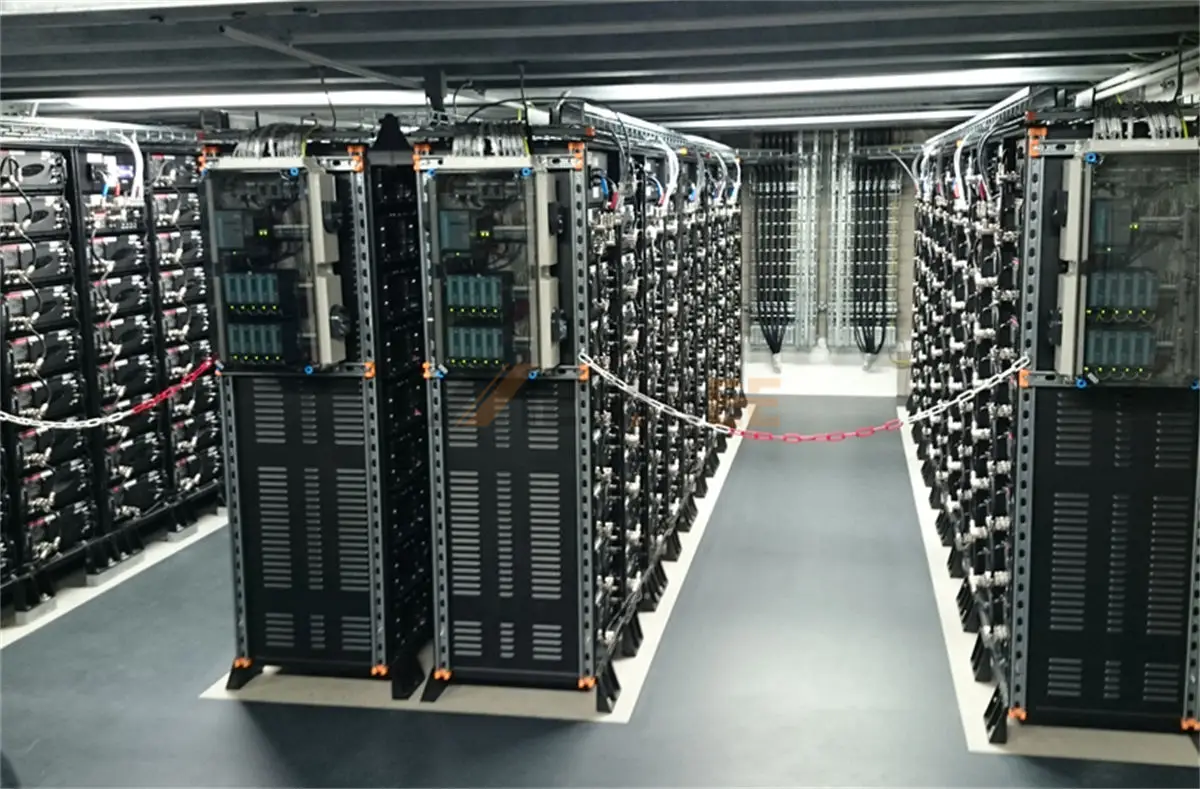

Applications of this 8mm Energy Storage Connector Cable:
Energy storage cables are specialized cables designed to handle the high current and voltage requirements in systems that store and manage electrical energy. They are crucial for connecting storage devices like batteries to the power grid or other electrical systems.
Here are some main applications:
- Grid-Scale Battery Energy Storage Systems (BESS);
- Transportation and Mobile Power;
- Residential Solar-Plus-Storage Systems;
- Electric Vehicle (EV) Charging Stations;
- Electric Vehicles (Internal Wiring);
- Industrial Vehicles and Machinery.
