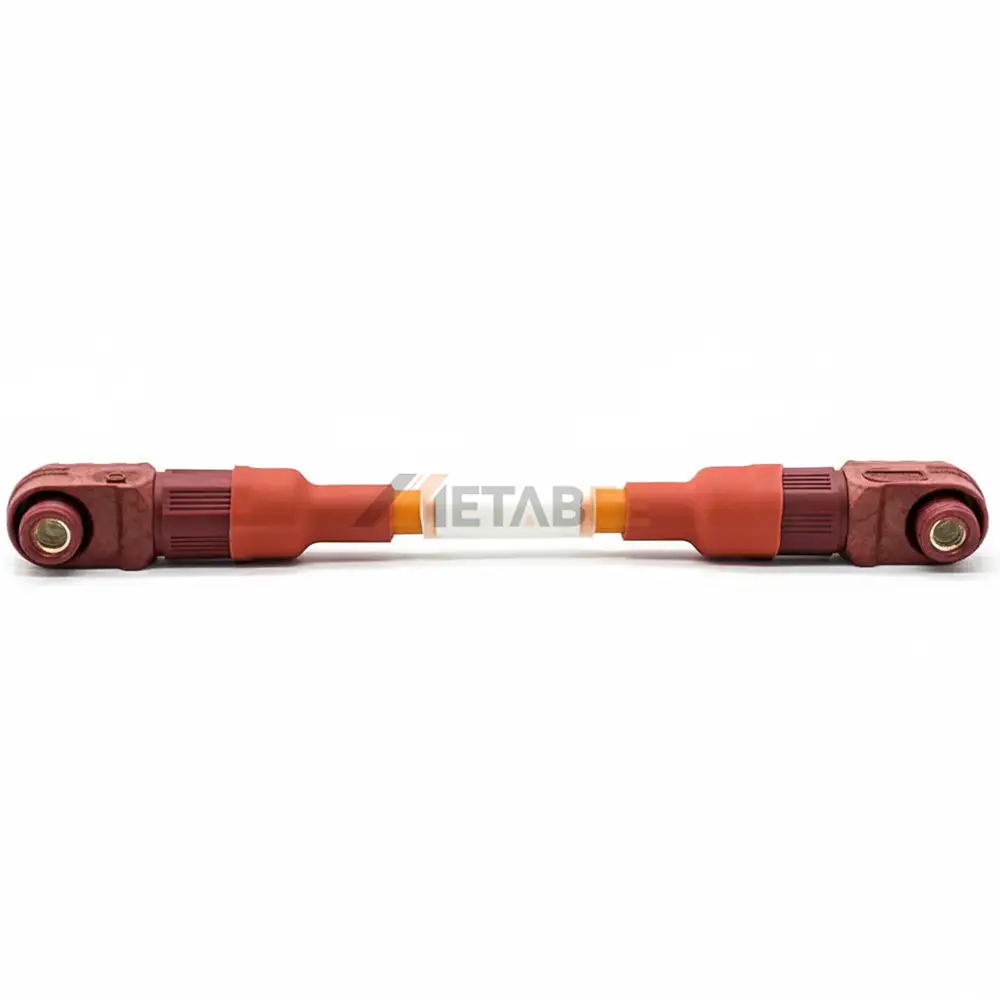

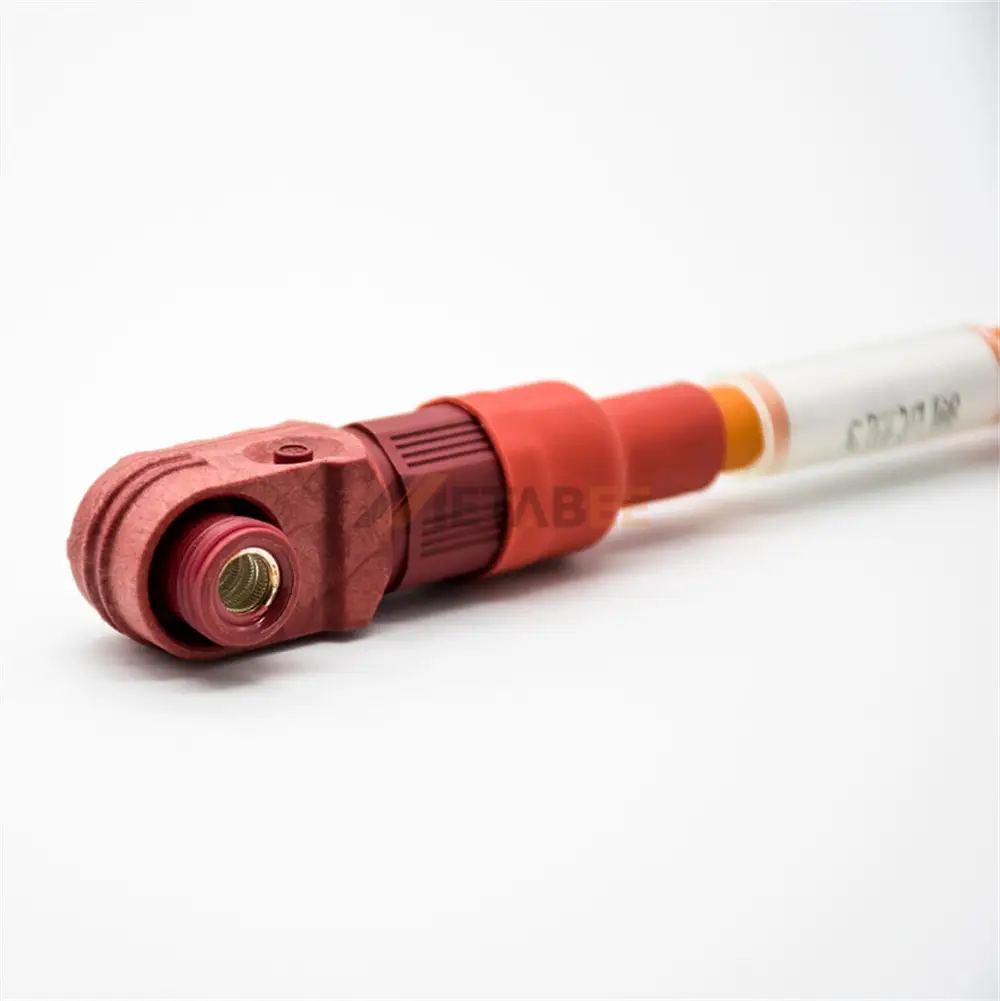

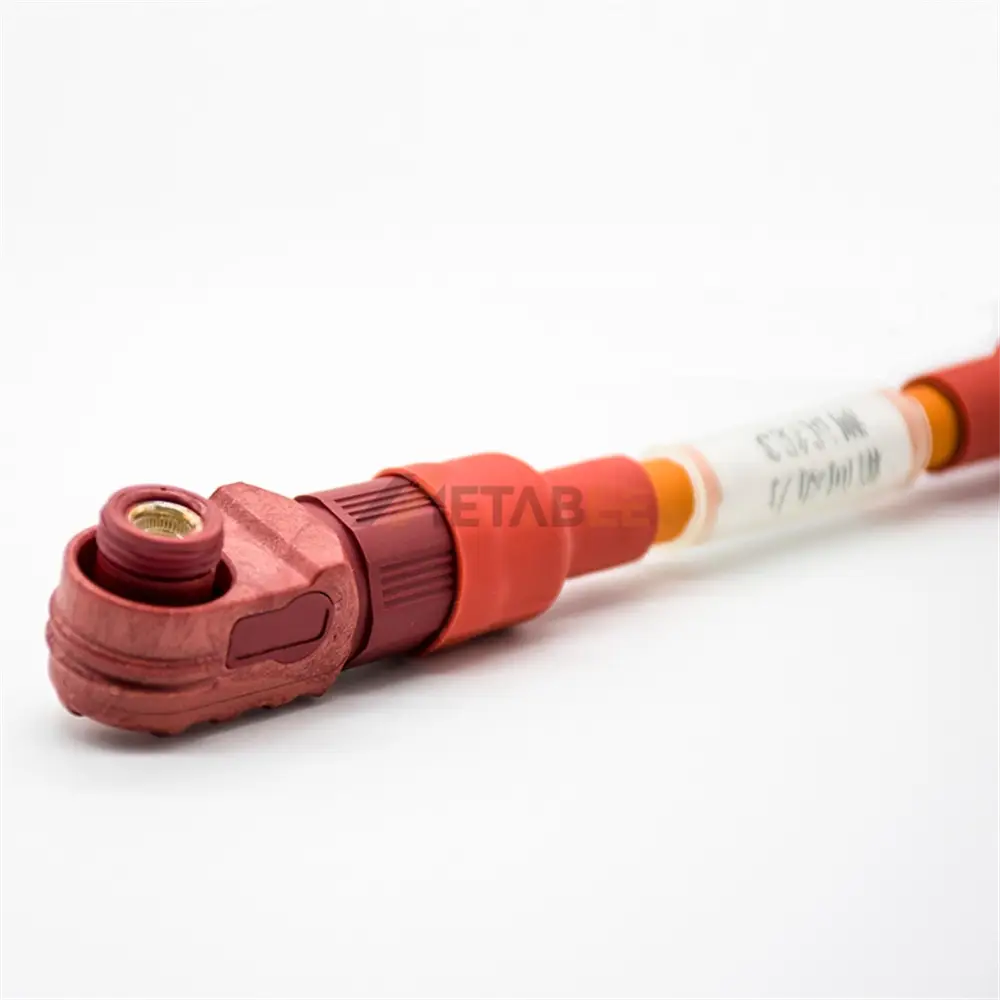

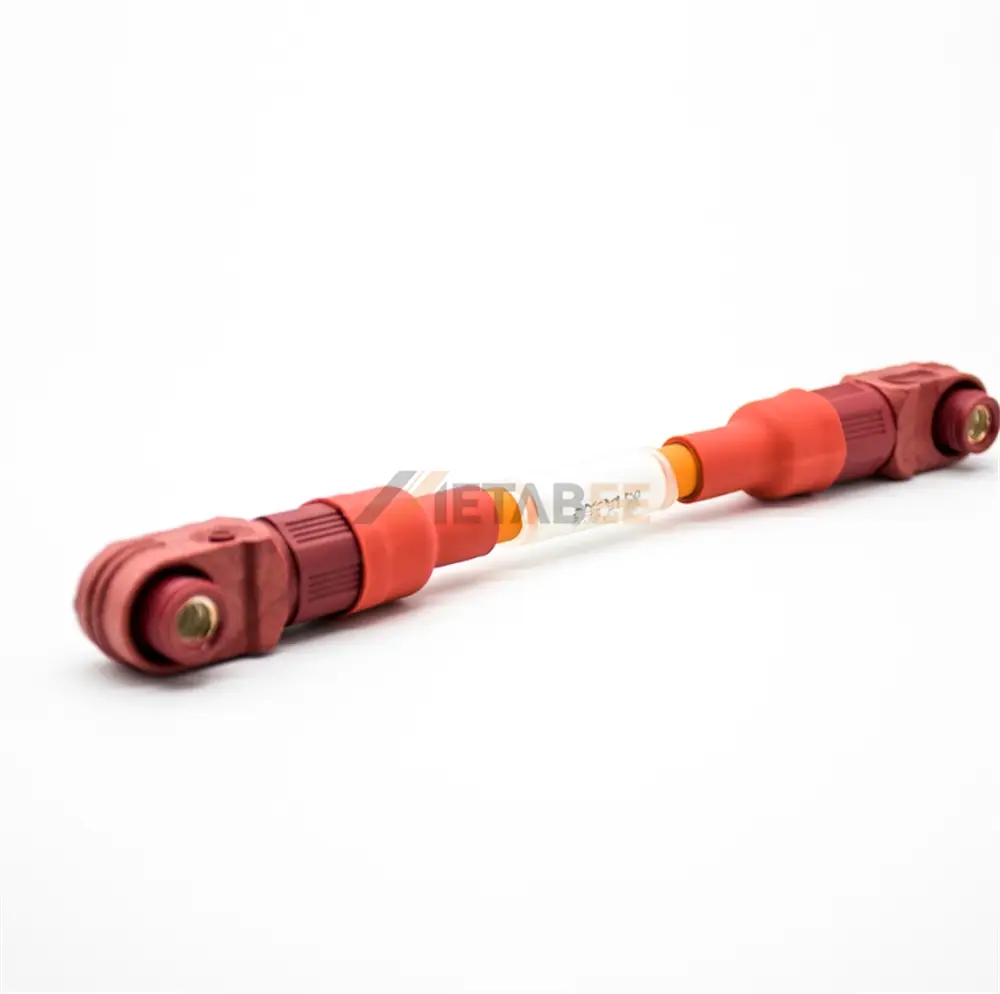

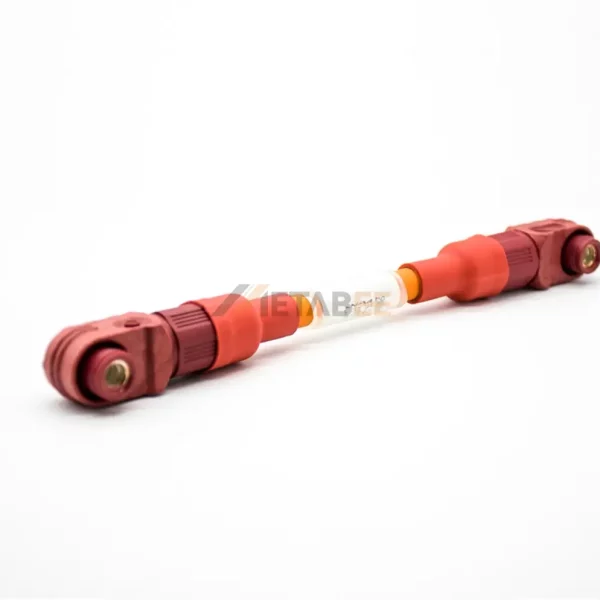

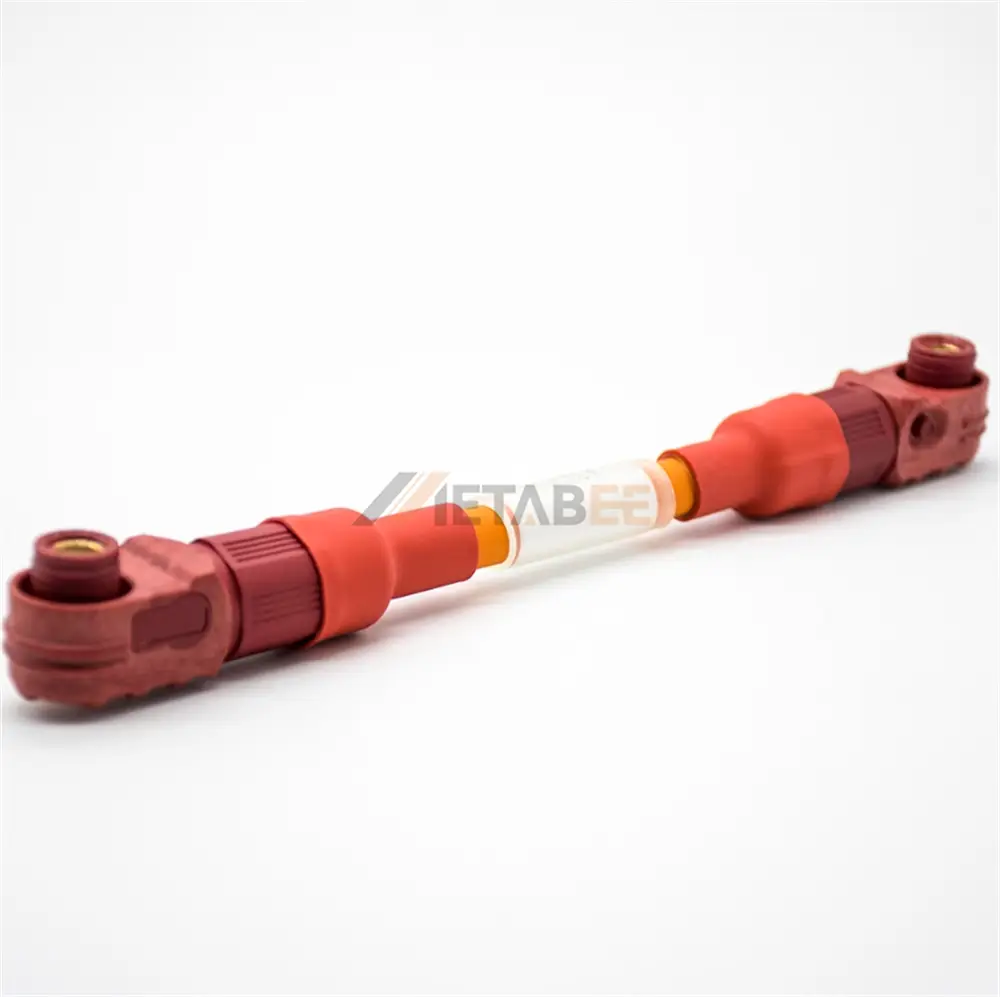

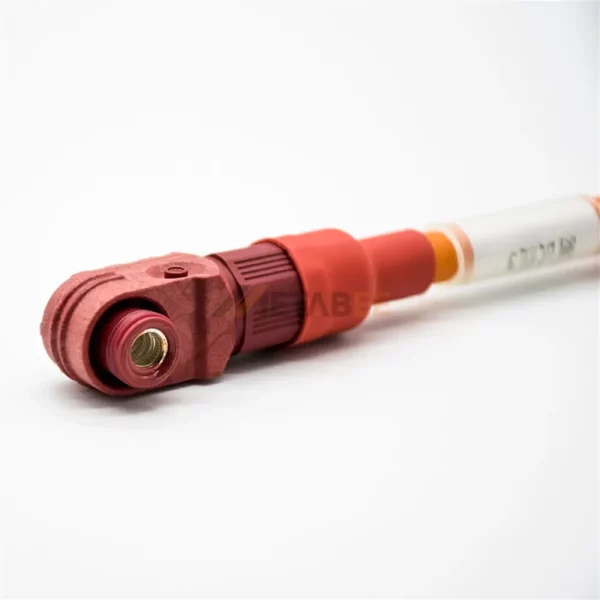

8mm Energy Storage Connector Cable, Plug to Plug, 50m㎡, 200A
Introduction
This high-performance double-ended energy storage cable is engineered for demanding battery, ESS, and high-current power distribution systems. Featuring dual right-angle 1-pin plug connectors, it ensures efficient cable routing in compact installations while maintaining secure, low-resistance connectivity. The cable utilizes robust 50mm² conductors and an 8mm terminal diameter to support a stable 200A-rated current and up to 1500V operating voltage.
Constructed with plastic housings, silver-plated brass contacts, and durable insulation, this cable delivers exceptional conductivity, oxidation resistance, and long-term reliability. The 30cm length makes it ideal for modular energy storage units, battery packs, and inverter connections. With an IP67 protection rating and a wide operating temperature range from –40°C to 125°C, it withstands harsh outdoor, automotive, and industrial environments.
Key Features:
- Double-ended right-angle plug-to-plug cable for efficient installation.
- 50mm² conductor supports 200A high-current applications.
- Silver-plated brass contacts ensure superior conductivity.
- Rated for 1500V systems with robust insulation performance.
- IP67 protection for dustproof and waterproof operation.
- Wide –40°C to 125°C temperature range for extreme environments.
Main Specifications:
| Part No.: | YC-1P-8R-C50-R30 | |
| Product Series: | Energy Storage Cables | |
| Cable Type: | Double-Ended Cable | |
| Brand: | Metabee | |
| Connector 1: | Energy Storage Connector | |
| Connector 1 – Number of Positions: | 1 Pin | |
| Connector 1 – Orientation: | Right Angle | |
| Connector 1 – Connector Gender: | Plug | |
| Connector 2: | Energy Storage Connector | |
| Connector 2- Number of Positions: | Plug | |
| Connector 2 – Orientation: | Right Angle | |
| Connector 2 – Connector Gender: | Plug | |
| Shell Material: | Plastic | |
| Contact Material: | Brass | |
| Contact Plating: | Silver Plated | |
| Terminal Diameter: | 8mm | |
| Wire Gauge: | 50mm² | |
| Cable length: | 30cm | |
| Rated Voltage: | 1500 V | |
| Rated Current: | 200A | |
| IP Rating: | IP67 | |
| Operating Temperature: | -40°C to +125°C | |
| Other Feature: | None |
Applications of this 8mm Energy Storage Connector Cable:
Energy storage cables are specialized cables designed to handle the high current and voltage requirements in systems that store and manage electrical energy. They are crucial for connecting storage devices like batteries to the power grid or other electrical systems.
Here are some main applications:
- Grid-Scale Battery Energy Storage Systems (BESS);
- Transportation and Mobile Power;
- Residential Solar-Plus-Storage Systems;
- Electric Vehicle (EV) Charging Stations;
- Electric Vehicles (Internal Wiring);
- Industrial Vehicles and Machinery.
