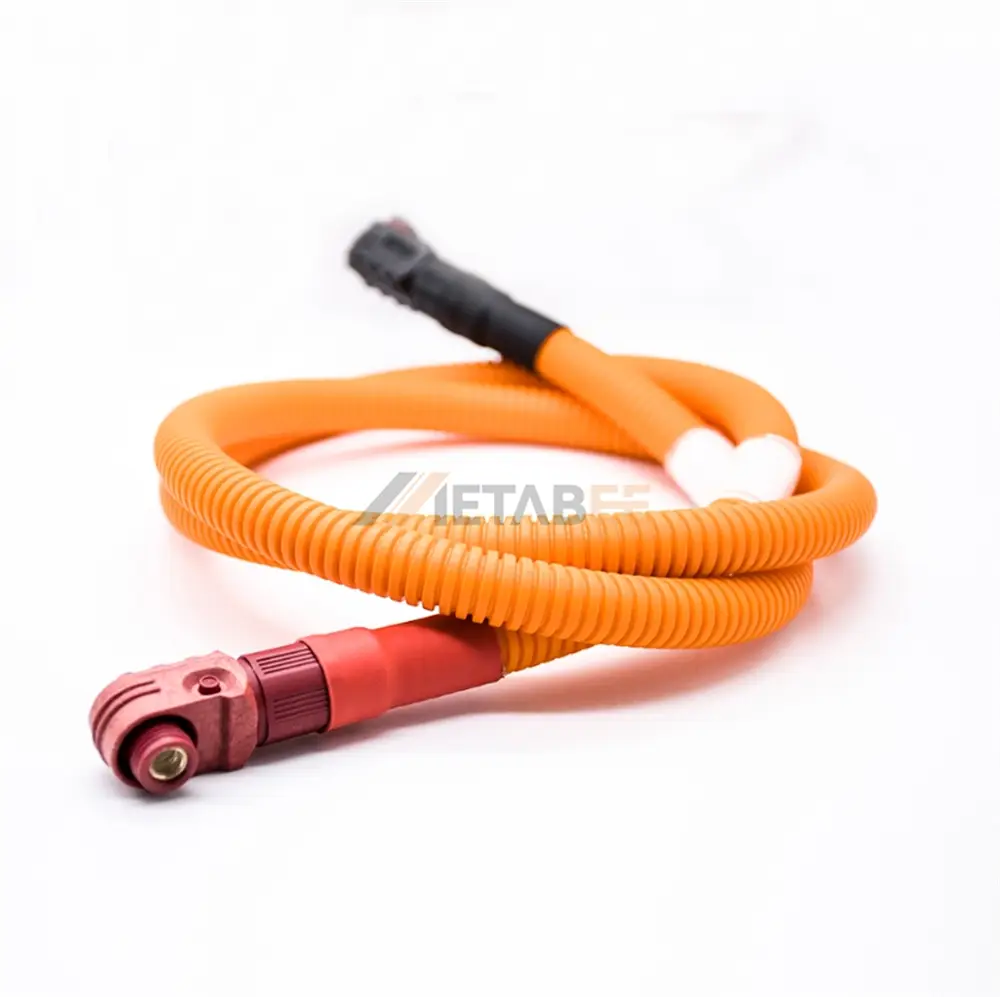

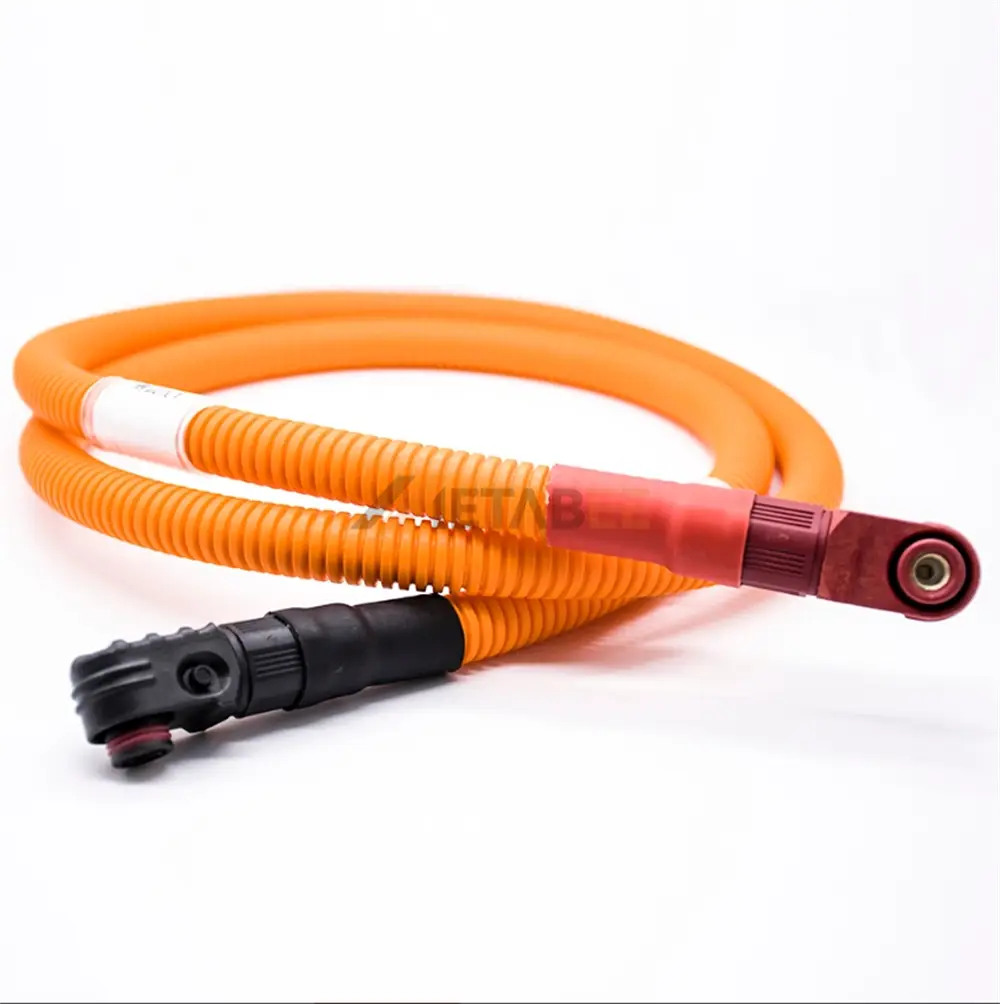

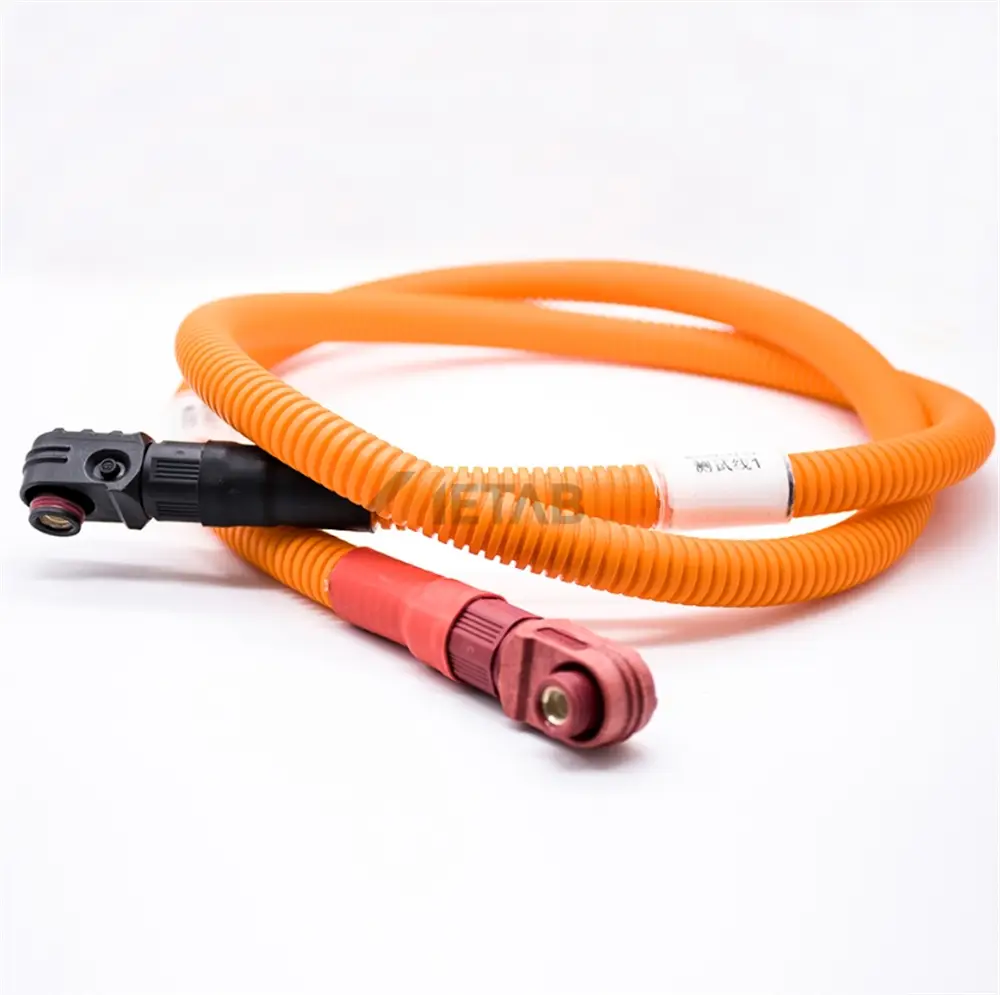

8mm Battery Storage Connector Cable, Plug to Plug, 50m㎡, 200A
Introduction
This high-performance energy storage cable is engineered for demanding Battery Energy Storage Systems (BESS) and high-voltage connectivity. Featuring a double-ended configuration with Right Angle Plugs on both ends, this 30cm cable allows for flexible, space-saving routing in tight battery cabinets. The 50mm² wire gauge is designed to maximize efficiency, ensuring stable power transmission for high-current applications.
Built for durability and safety, the connectors feature a robust plastic housing and Silver-Plated Brass contacts, which offer superior conductivity and oxidation resistance. The assembly is rated for 1500V and 200A, making it suitable for heavy-duty electrical loads. With an IP67 protection rating and a wide operating temperature range of -40°C to 125°C, this cable guarantees reliable performance in harsh environmental conditions.
Key Features:
- Optimized Design: Double-ended 1-Pin Right Angle Plugs for efficient space management.
- High Power Rating: Rated for 1500V voltage and 200A current.
- Premium Materials: Silver-plated brass contacts ensure low contact resistance.
- Wire Specifications: 50mm² cross-section with an 8mm terminal diameter; 30cm total length.
- Robust Protection: IP67 rated (waterproof/dustproof) for harsh environments.
- Wide Temp Range: Operates reliably from -40°C to 125°C.
Main Specifications:
| Part No.: | YC-1P-8R-C50-R50 | |
| Product Series: | Energy Storage Cables | |
| Cable Type: | Double-Ended Cable | |
| Brand: | Metabee | |
| Connector 1: | Energy Storage Connector | |
| Connector 1 – Number of Positions: | 1 Pin | |
| Connector 1 – Orientation: | Right Angle | |
| Connector 1 – Connector Gender: | Plug | |
| Connector 2: | Energy Storage Connector | |
| Connector 2- Number of Positions: | Plug | |
| Connector 2 – Orientation: | Right Angle | |
| Connector 2 – Connector Gender: | Plug | |
| Shell Material: | Plastic | |
| Contact Material: | Brass | |
| Contact Plating: | Silver Plated | |
| Terminal Diameter: | 8mm | |
| Wire Gauge: | 50mm² | |
| Cable length: | 50cm | |
| Rated Voltage: | 1500 V | |
| Rated Current: | 200A | |
| IP Rating: | IP67 | |
| Operating Temperature: | -40°C to +125°C | |
| Other Feature: | None |
Applications of this 8mm Battery Storage Connector Cable:
Energy storage cables are specialized cables designed to handle the high current and voltage requirements in systems that store and manage electrical energy. They are crucial for connecting storage devices like batteries to the power grid or other electrical systems.
Here are some main applications:
- Grid-Scale Battery Energy Storage Systems (BESS);
- Transportation and Mobile Power;
- Residential Solar-Plus-Storage Systems;
- Electric Vehicle (EV) Charging Stations;
- Electric Vehicles (Internal Wiring);
- Industrial Vehicles and Machinery.
