8mm Battery Storage Single-Ended Cable, Plug, 25m㎡, 120A
Introduction

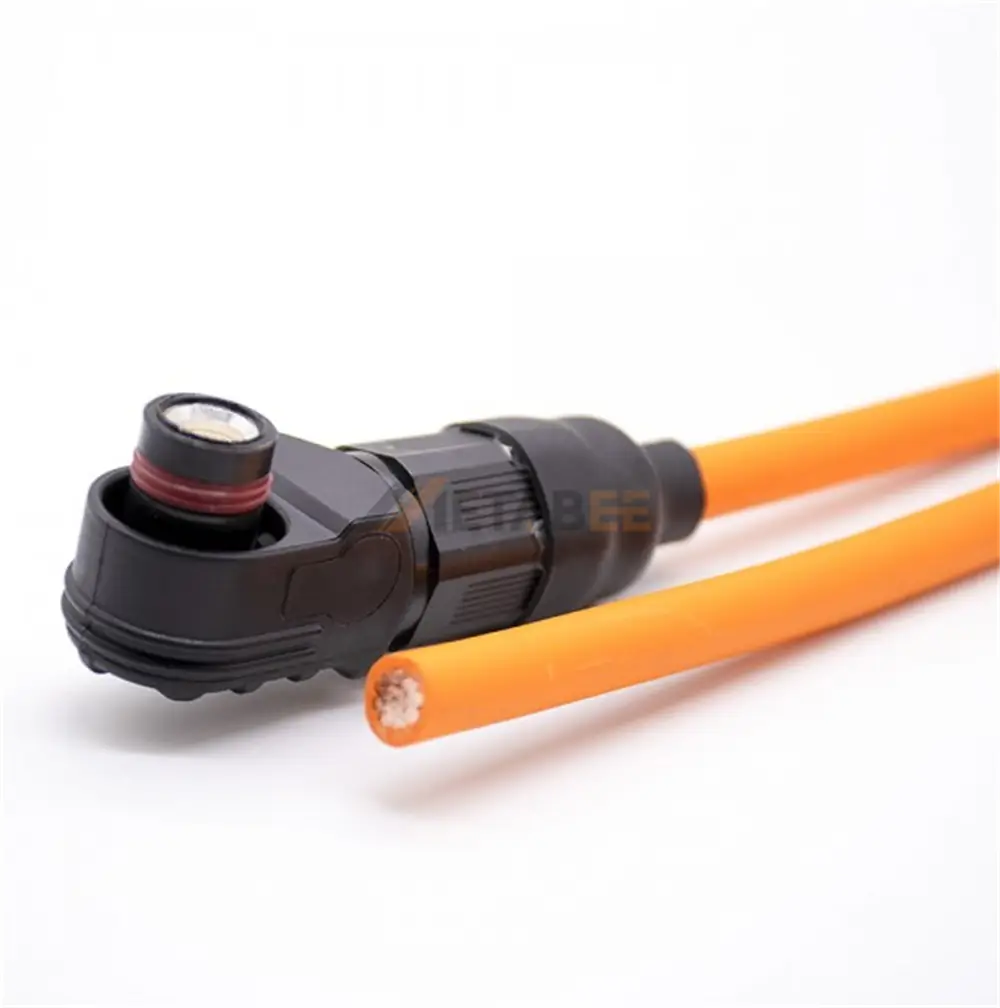

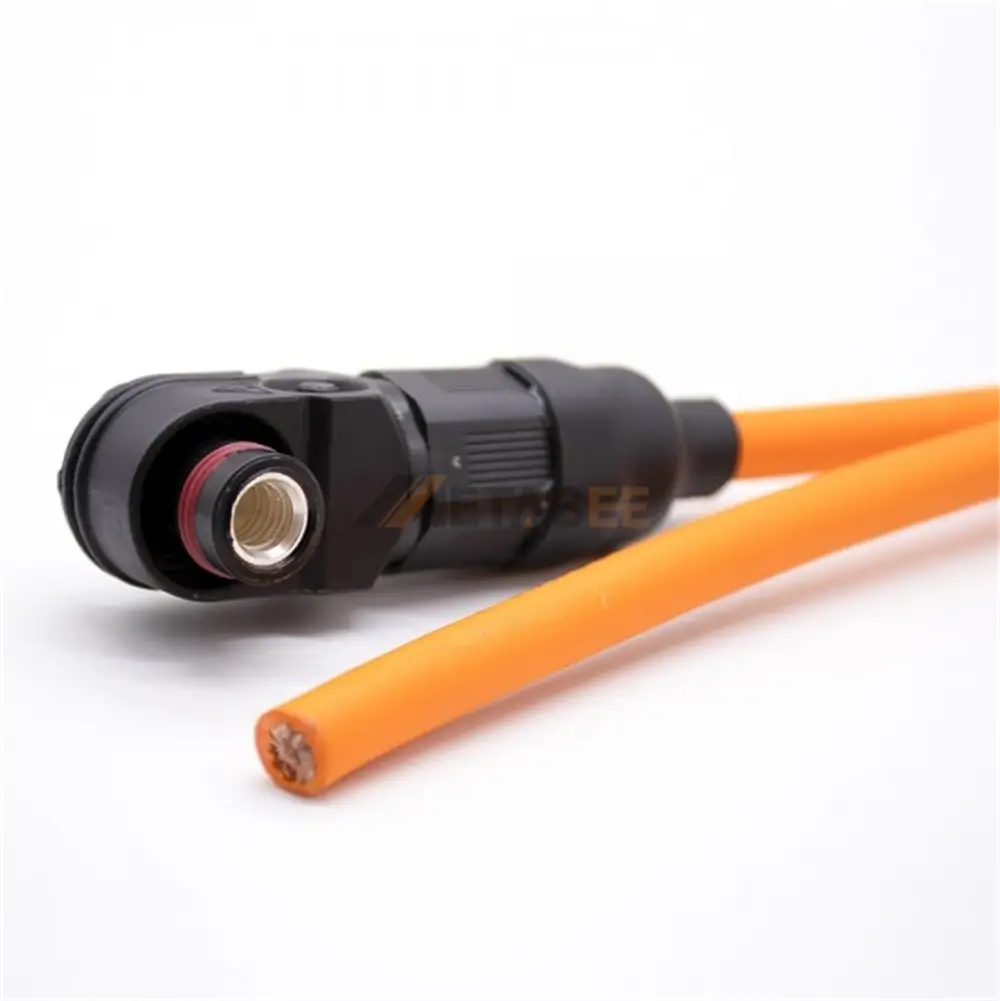

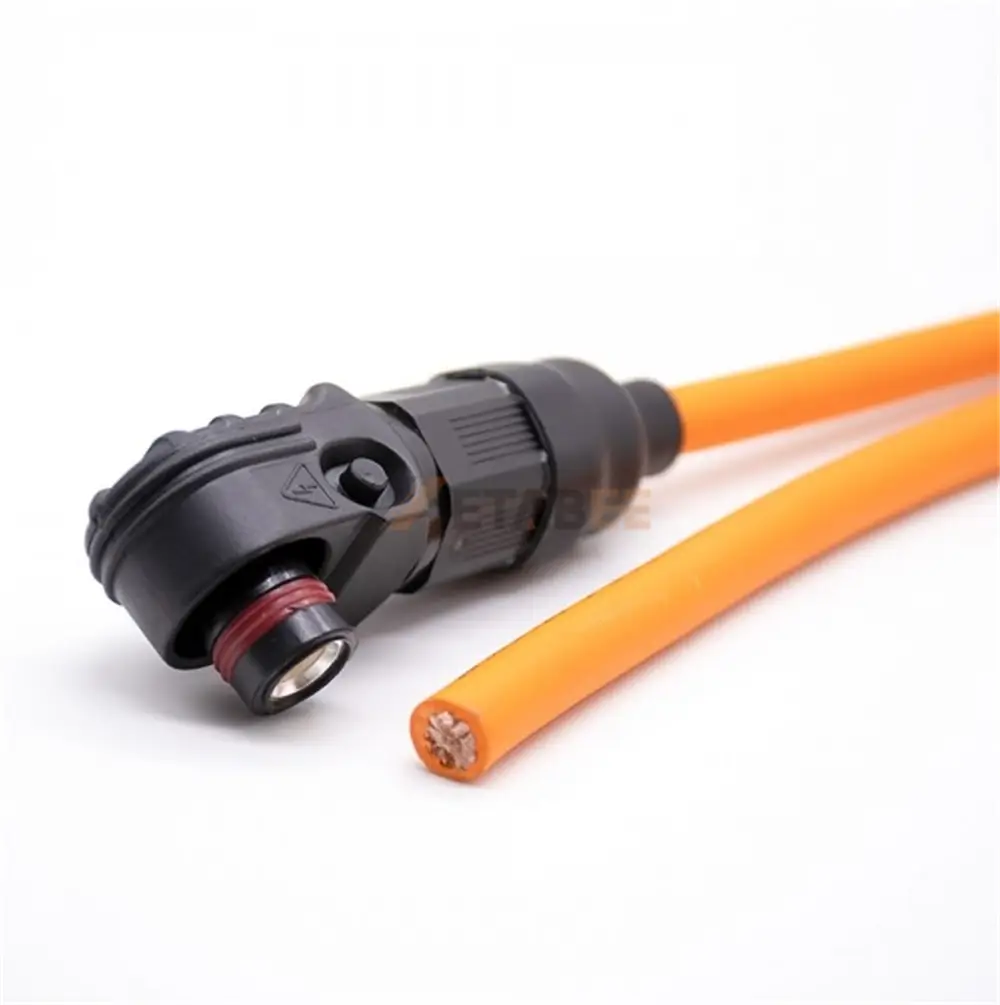

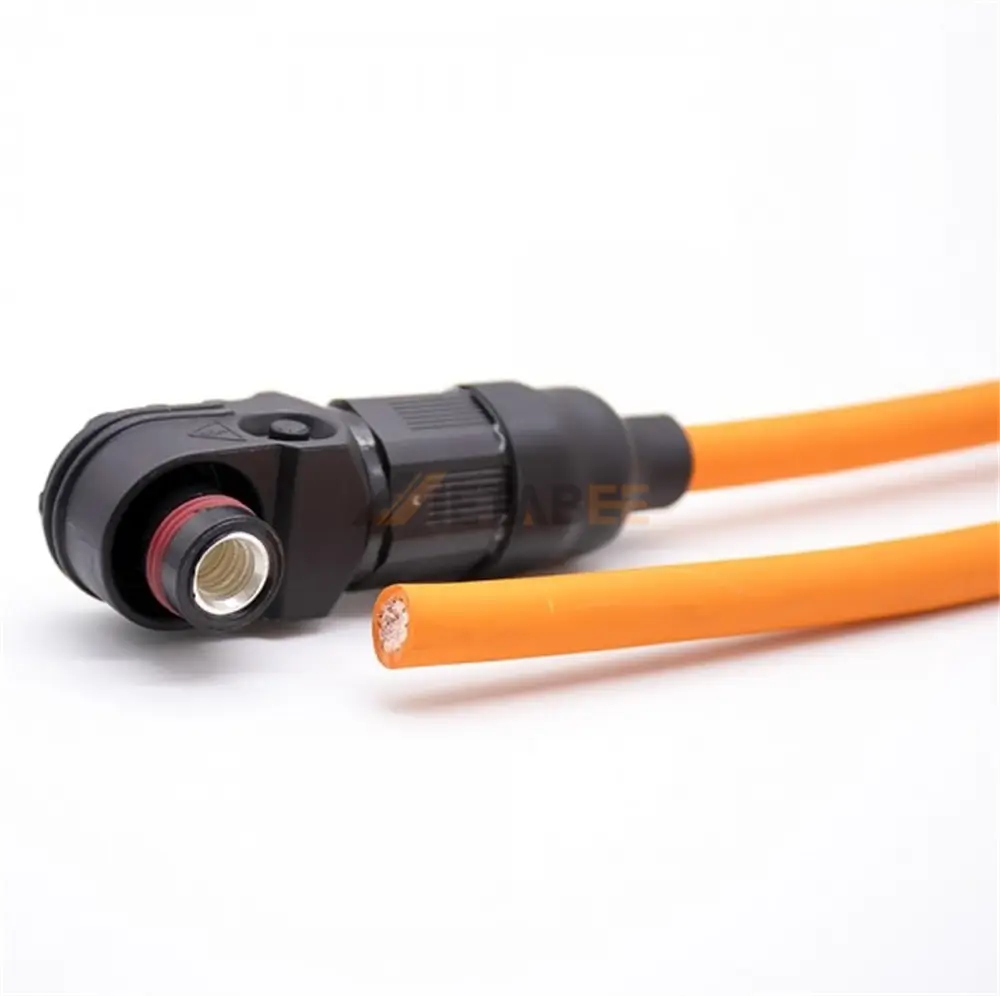

Optimize your battery energy storage systems (BESS) with this high-performance 8mm Battery Storage Single-Ended Cable. Designed for efficient high-voltage power transmission, this assembly features a 30cm cable with a robust 25mm² wire gauge, terminated by a secure right-angle plug. It is the ideal solution for internal connections between battery modules, inverters, and power distribution units where space efficiency and reliability are critical.
Engineered for demanding environments, the connector is constructed with a durable plastic housing and silver-plated brass contacts (10mm terminal diameter) to ensure low contact resistance and superior conductivity. With a rated voltage of 1500V and a current capacity of 120A, this cable assembly meets the rigorous safety and performance standards required for modern high-voltage energy storage applications, ensuring stable operation even in extreme weather conditions.
Key Features:
- High Power Rating: Supports up to 1500V DC and 120A continuous current.
- Premium Materials: Silver-plated brass contacts ensure maximum conductivity and durability.
- Robust Cable Spec: 25mm² wire gauge with a 30cm length for flexible routing.
- Compact Design: The right-angle, single-ended plug fits snugly into tight spatial requirements.
- IP67 Protection: Fully waterproof and dustproof housing for harsh environments.
- Extreme Temperature: Operates reliably from -40°C to 125°C.
Main Specifications:
| Part No.: | YC-1P-8B-C25-R30 | |
| Product Series: | Energy Storage Cables | |
| Cable Type: | Single-Ended Cable | |
| Brand: | Metabee | |
| Gender: | Plug | |
| Orientation: | Right Angle | |
| Number of Positions: | 1 Pin | |
| Shell Material: | Plastic | |
| Contact Material: | Brass | |
| Contact Plating: | Silver Plated | |
| Terminal Diameter: | 8mm | |
| Wire Gauge: | 25mm² | |
| Cable length: | 30cm | |
| Rated Voltage: | 1500 V | |
| Rated Current: | 120A | |
| IP Rating: | IP67 | |
| Operating Temperature: | -40°C to +125°C | |
| Other Feature: | None |
Applications of this 8mm Battery Storage Single-Ended Cable:
Energy storage cables are specialized cables designed to handle the high current and voltage requirements in systems that store and manage electrical energy. They are crucial for connecting storage devices like batteries to the power grid or other electrical systems.
Here are some main applications:
- Grid-Scale Battery Energy Storage Systems (BESS);
- Transportation and Mobile Power;
- Residential Solar-Plus-Storage Systems;
- Electric Vehicle (EV) Charging Stations;
- Electric Vehicles (Internal Wiring);
- Industrial Vehicles and Machinery.
