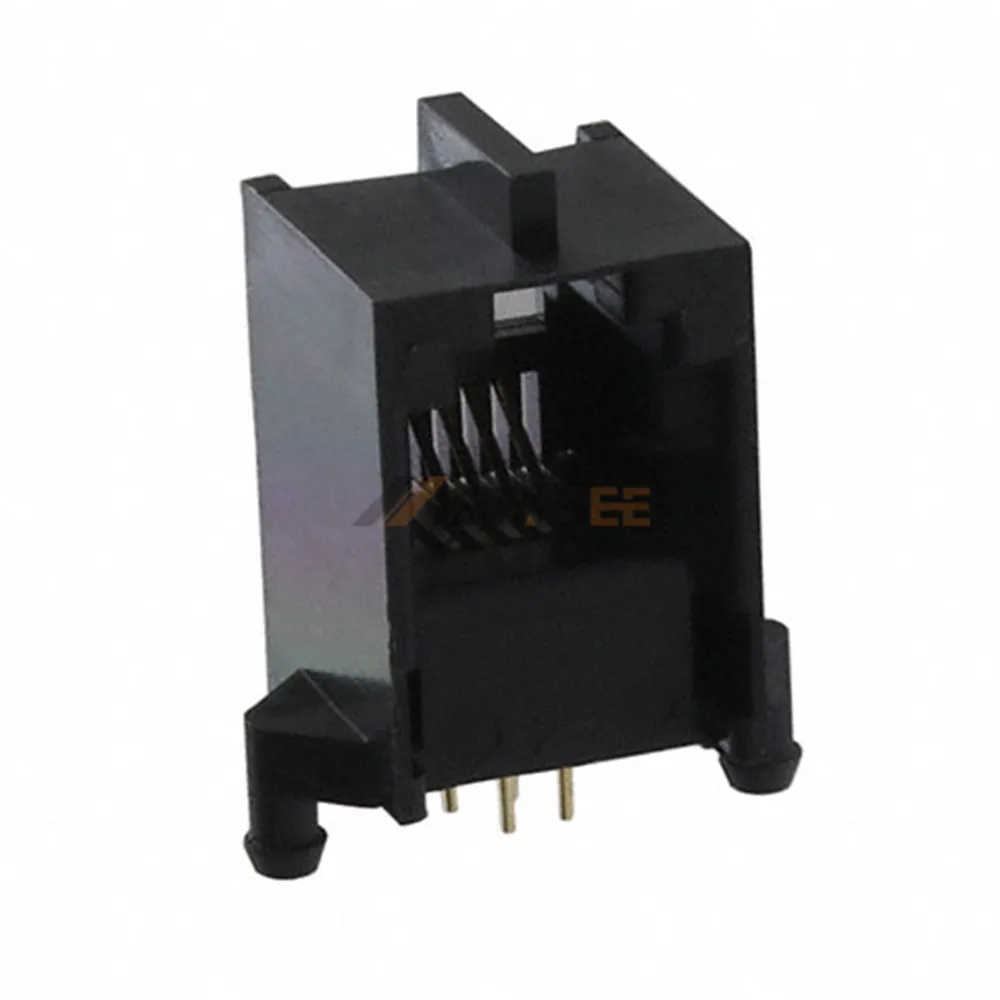

6P4C RJ11 4 Pins Socket Telephone Jack Connector, 1 Port, UTP, Through Hole, R/A, Tab-Up, No LED
Introduction:
This is a single port 6P4C RJ11 4 pins socket designed for stable right angle through hole mounting on printed circuit boards. It utilize a durable black PBT housing that maintains structural integrity while providing a minimum insulation resistance of 500 mohms. The Phosphor Bronze contacts feature a premium Gold finish to ensure superior conductivity and a standard 1.5A current rating. Utilizing a Tab-Up configuration, the unshielded jack effectively optimizes board space while handling dielectric voltages up to 1000 Vrms. Technicians utilize this reliable telephone connector for residential telecommunication equipment and networking hardware requiring secure 4-pin board-to-cable connectivity.
Key Features
- 6P4C RJ11 Interface: Supports standard modular connectivity for voice systems.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
- Tab-Up Design: Optimizes vertical space for specialized board layouts.
- Durable PBT Material: Performs reliably between -40°C and +85°C environments.
- High Current Support: Handles 1.5A for efficient signal and power delivery.
Main Specifications:
General Information:
| Product No.: | MTJ-647X1 | |
| Series: | MTJ | |
| Category: | Single Port RJ11 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 6P4C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 Vrms for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | 40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
