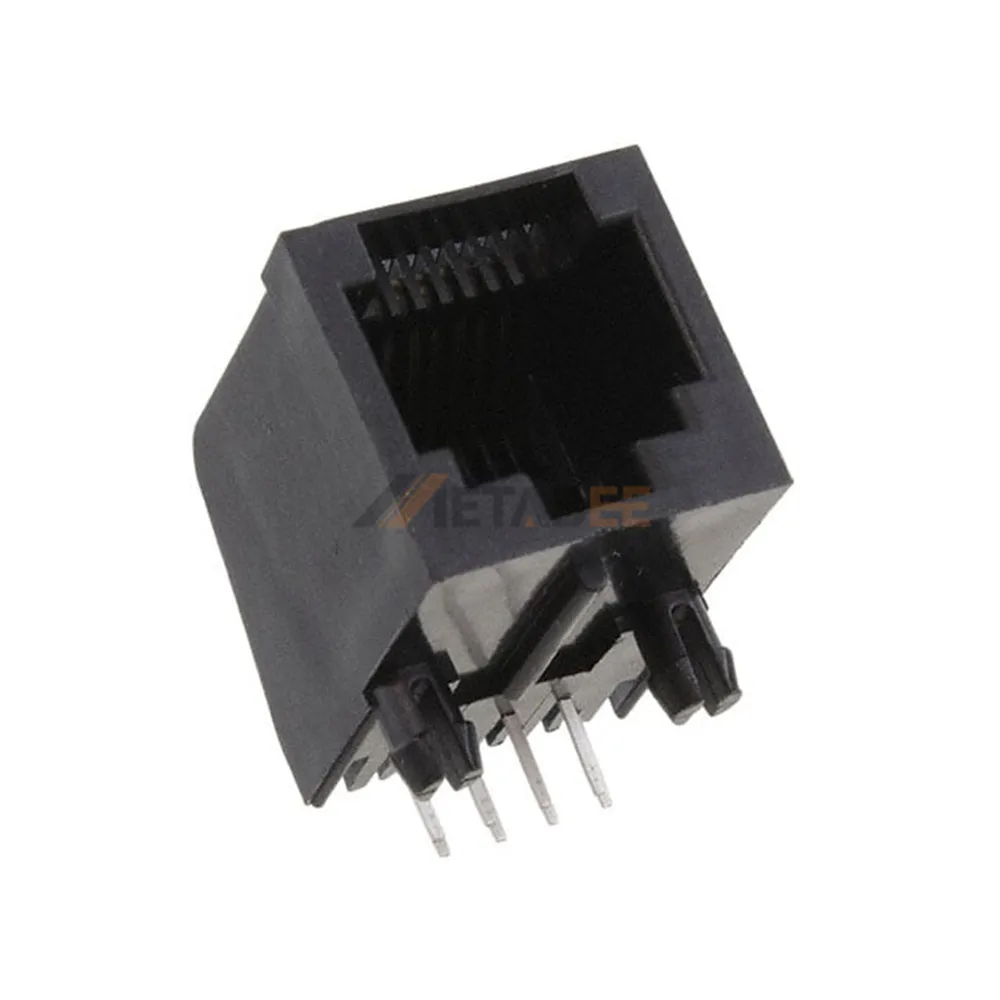

6P4C Low Profile RJ11 PCB Mount Socket, 1 Port, Unshielded, Right Angle, Tab-Down, No LED
Introduction:
This is a single port 6P4C low profile RJ11 PCB mount socket designed for stable through hole mounting on communication circuit boards. It features a durable black PBT housing that maintains high structural stability while providing a superior insulation resistance of 1000 mohms. The premium Phosphor Bronze contacts include a Gold finish to ensure superior conductivity and a standard 1.5A current rating. By utilizing a low profile right angle configuration with a Tab-Down design, the component effectively saves vertical space on the PCB. Technicians utilize this reliable unshielded interface for standard telephone systems and networking gear requiring compact board-to-cable links.
Key Features
- Low Profile Design: Optimizes vertical clearance for specialized compact board layouts.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
- 6P4C RJ11 Interface: Provides standard modular connectivity for voice networking systems.
- Durable PBT Material: Performs reliably within -40°C to +85°C environments.
- Through Hole Mounting: Ensures a secure mechanical attachment to the PCB.
Main Specifications:
General Information:
| Product No.: | MTJ-641X1 | |
| Series: | MTJ | |
| Category: | Single Port RJ11 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 6P4C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | 40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
