Introduction:

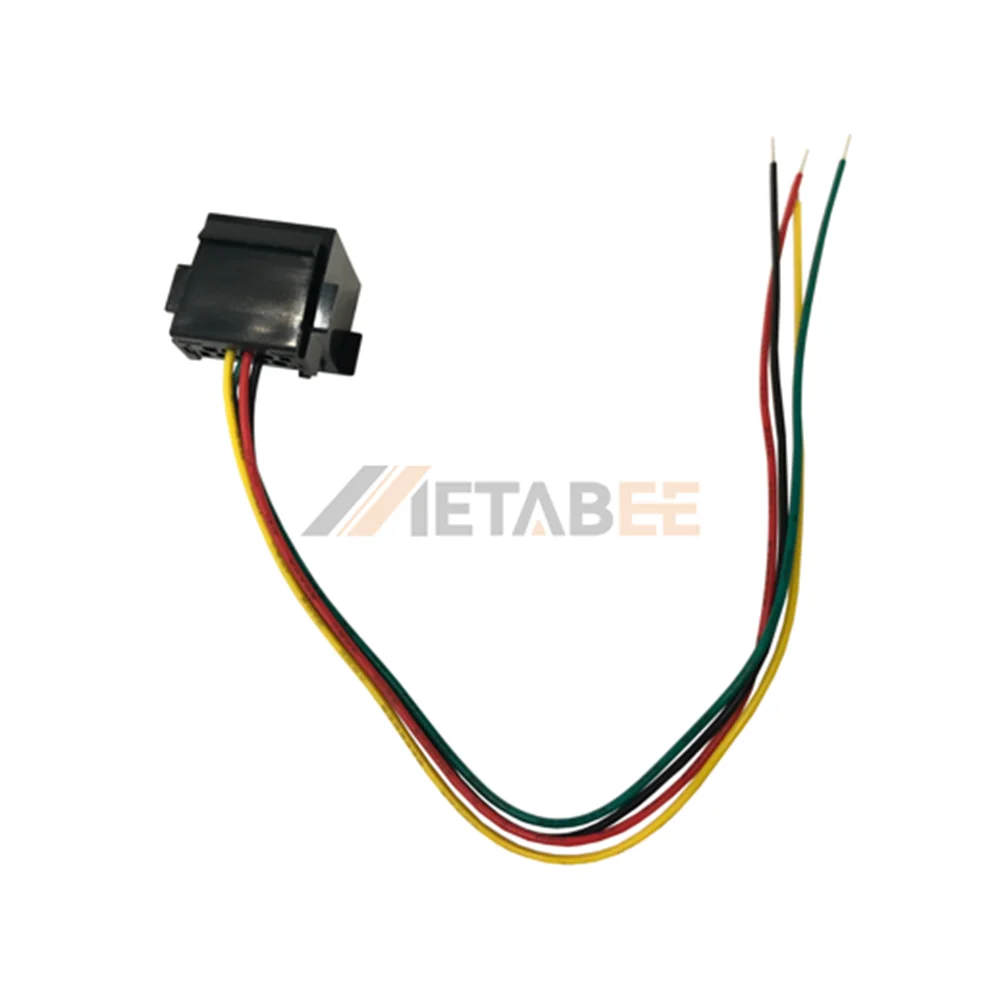

The RJ11 modular jack is a 6P4C voice and data interface designed for efficient panel mount installations. Reliable electrical performance is maintained within the 0C – 70C temperature range for standard commercial applications. Four integrated 26 AWG UL 1061 wire leads feature stripped and tinned ends to facilitate rapid circuit board connection. Durable black abs housing utilizes a snap in mounting mechanism for rapid assembly without tools. High-quality phosphor bronze contacts with gold over nickel plating strictly maintain electrical resistance below 30 miliohms. Excellent signal clarity depends on high insulation resistance exceeding 1000 Mohms. Typical uses for this component include telephone handsets, intercom systems, and office communication equipment.
Key Features
- 6P4C RJ11 Configuration: Supports standard four-wire voice and data links.
- Snap In Mounting: Facilitates rapid, secure tool-less panel installation.
- Integrated Wire Leads: Pre-stripped 26 AWG wires enable easy termination.
- Durable Gold Contacts: Phosphor bronze plating ensures strictly reliable conductivity.
- High Insulation Resistance: Maintains 1000 Mohms Min for flawless signals.
Main Specifications:
General Information:
| Product No.: | MTJP-648-K4-X-A1-1 | |
| Series: | MTJP | |
| Category: | Modular Jacks with Wire Leads | |
| Product Type: | Jack | |
| Connector Type: | RJ45 | |
| Number of Positions/Contacts: | 6P4C | |
| Number of Ports: | 1×1 Port | |
| Model: | 648K4 | |
| Mounting Type: | Snap In | |
| Lead Termination: | Stripped and Tinned Wire | |
| Wire: | 26 AWG, UL 1061 | |
| Wire lenth: | Customized | |
| Shielding: | No Shielded |
Electrical:
| Rated Voltage: | 125VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 1000 Mohms Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Housing Material: | ABS | |
| Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
