Introduction:

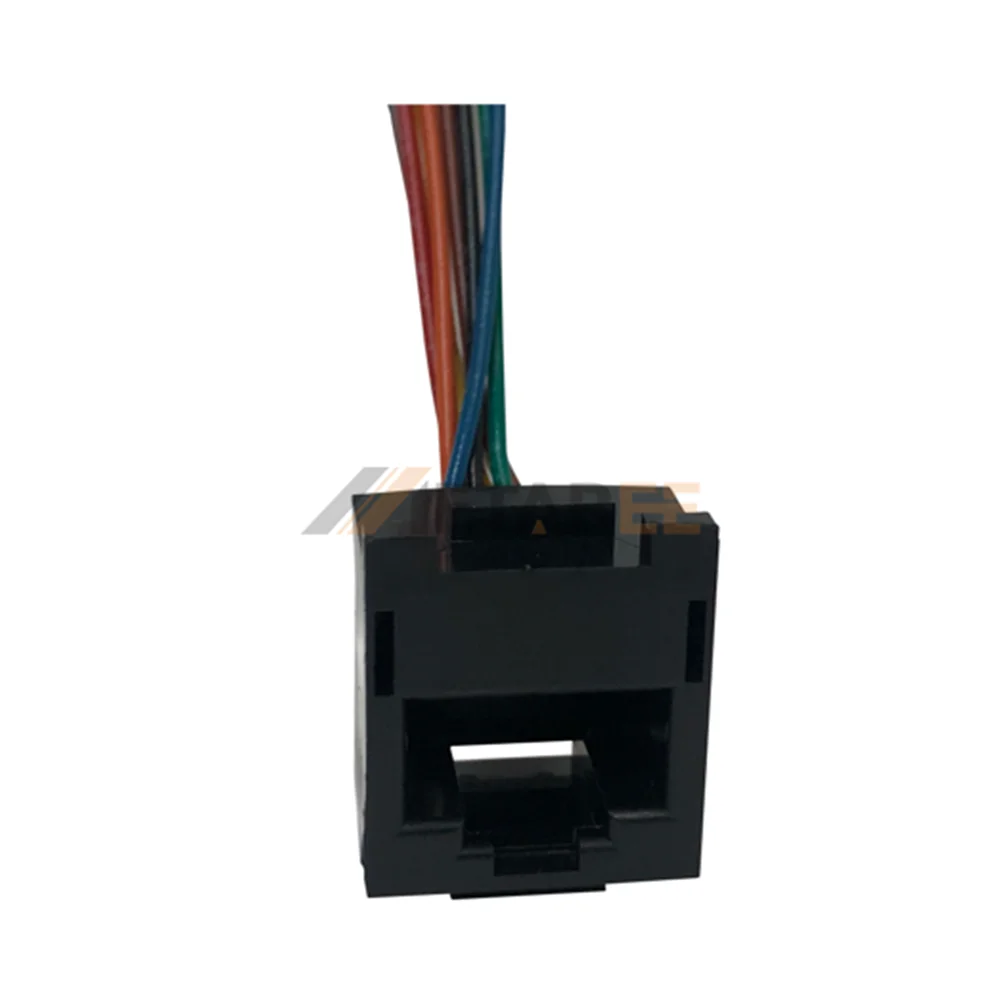

The 641 model is a 6P4C wired interface designed for standard voice and data communication systems. Four integrated 26 AWG UL 1061 PVC insulated wire leads feature stripped and tinned ends to facilitate rapid electrical integration. Reliable signal stability is maintained across an extreme industrial temperature range from -40C ~ +125C without performance loss. Durable black ABS housing utilizes built-in panel stops to ensure secure mechanical alignment during installation. High-quality phosphor bronze contacts with gold over nickel finish strictly maintain electrical resistance below 20 miliohms in this rj11 phone jack. Precise audio transmission depends on high insulation resistance exceeding 500 Mohms. Modern telecommunication handsets, security intercom units, and medical monitoring devices frequently utilize this reliable rj11 phone jack.
Key Features
- 6P4C RJ11 Configuration: Supports standard four-wire telephone and data interfaces.
- Integrated Wire Leads: Pre-tinned 26 AWG leads simplify system assembly.
- Extreme Temperature Range: Operates reliably from -40C up to +125C.
- Secure Panel Mounting: Black ABS housing includes built-in mechanical stops.
- Low Resistance Contacts: Gold-plated finish ensures integrity below 20 miliohms.
Main Specifications:
General Information:
| Product No.: | MTJP-641-X-A1-1 | |
| Series: | MTJP | |
| Category: | Modular Jacks with Wire Leads | |
| Product Type: | Jack | |
| Connector Type: | RJ11 | |
| Number of Positions/Contacts: | 6P4C | |
| Number of Ports: | 1×1 Port | |
| Model: | 641 | |
| Mounting Type: | Panel Stops | |
| Lead Termination: | Stripped and Tinned Wire | |
| Wire: | 26 AWG, UL 1061, PVC Insulated | |
| Wire lenth: | Customized | |
| Shielding: | No Shielded |
Electrical:
| Rated Voltage: | 150VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500 Mohms Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Housing Material: | ABS | |
| Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated |
Environmental:
| Operating Temperature: | -40°C ~ +125°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
