Introduction:
Standard communication systems rely on the 623P4 model for high-quality 6P4C wired network interfacing. Resilient black PBT housing ensures absolute structural integrity across an extreme industrial temperature range from -40C up to +125C. Four pre-stripped and tinned 26 AWG UL 1061 wire leads integrate into the component to simplify rapid electrical termination. Stable panel mount installation is achieved through the built-in mechanical stops designed for secure retention. Copper alloy contacts with gold over nickel finish strictly maintain electrical resistance below 20 miliohms to prevent signal loss. Typical uses for this rj11 telephone jack include telecommunication handsets, security intercom systems, and specialized industrial controllers.
Key Features
- 6P4C RJ11 Configuration: Supports standard four-wire telephone and data interfaces.
- Integrated Wired Leads: Pre-tinned 26 AWG wires simplify system assembly.
- Extreme Temperature Range: Operates reliably from -40C up to +125C.
- Robust PBT Housing: Durable black material ensures long-term structural integrity.
- Low Resistance Contacts: Gold finish guarantees integrity below 20 miliohms.
Main Specifications:
General Information:
| Product No.: | MTJP-623-P4-X-A1-1 | |
| Series: | MTJP | |
| Category: | Modular Jacks with Wire Leads | |
| Product Type: | Jack | |
| Connector Type: | RJ11 | |
| Number of Positions/Contacts: | 6P4C | |
| Number of Ports: | 1×1 Port | |
| Model: | 623P4 | |
| Mounting Type: | Panel Stops | |
| Lead Termination: | Stripped and Tinned Wire | |
| Wire: | 26 AWG, UL 1061 | |
| Wire lenth: | Customized | |
| Shielding: | No Shielded |
Electrical:
| Rated Voltage: | 150VAC | |
| Rated Current: | 1 Amp | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500 Mohms Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Housing Material: | PBT | |
| Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated |
Environmental:
| Operating Temperature: | -40°C ~ +125°C | |
| Flammability Rating: | UL 94 V-0 |

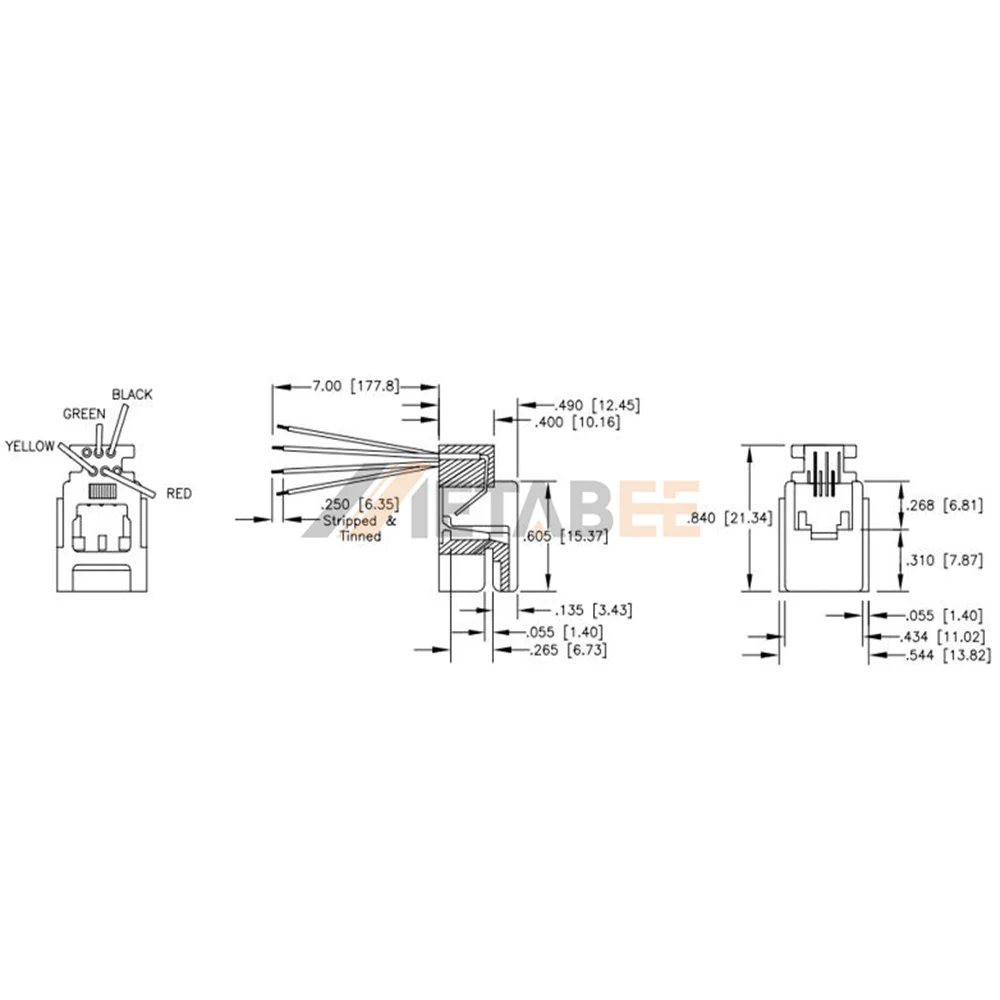

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
