Introduction:

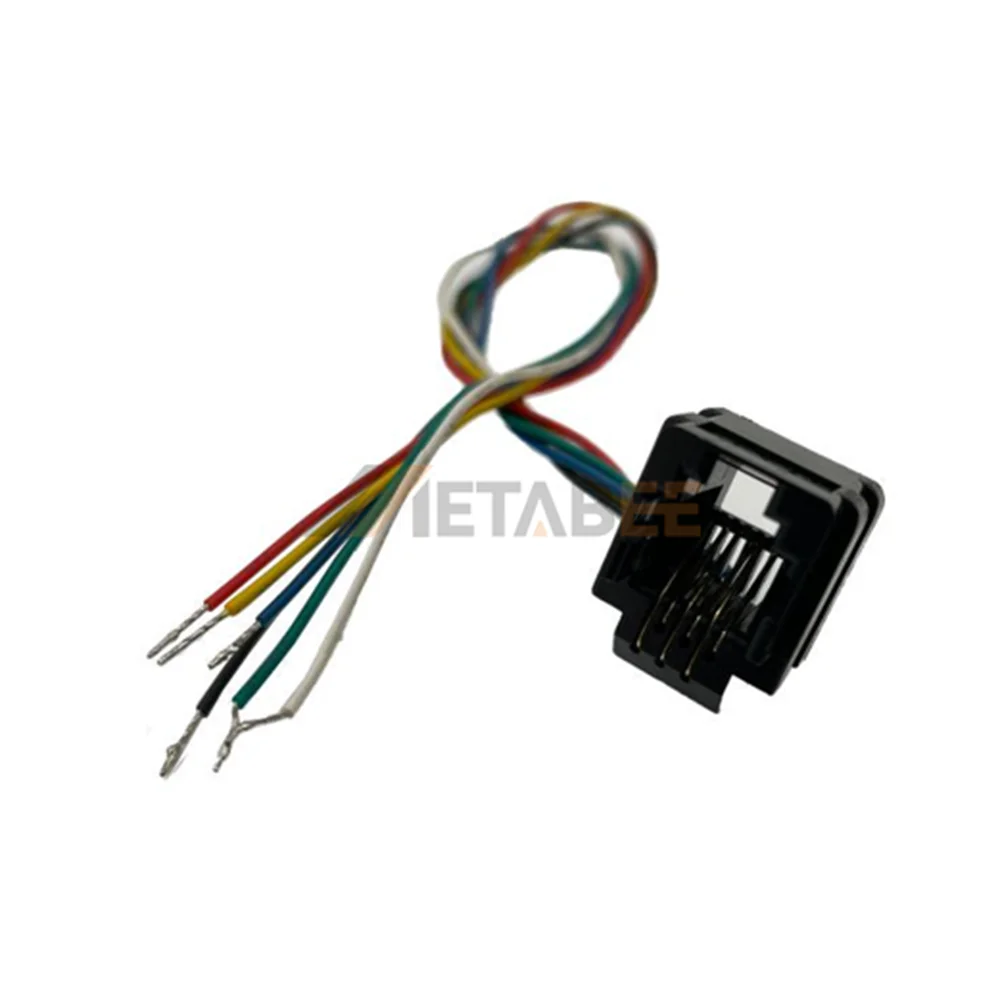

Multi-wire telecommunication and data systems rely on this 6P6C RJ11 female socket for stable signal transmission. Successful operation is sustained across an extreme industrial temperature range from -40C up to +125C without performance loss. Six integrated 26 AWG UL 1061 wire leads feature stripped and tinned ends to facilitate rapid electrical termination. Durable black ABS housing utilizes built-in panel stops to ensure a secure mechanical bond during right-angle installation. High-quality gold over nickel plating on phosphor bronze contacts strictly maintains electrical resistance below 20 miliohms. Flawless voice and data clarity are guaranteed throughout the service life of the component. Security intercoms, professional telecom handsets, and industrial controllers frequently incorporate these reliable modular jacks.
Key Features
- 6P6C RJ11 Configuration: Supports standard six-wire voice and data interfaces.
- Integrated Wire Leads: Pre-tinned 26 AWG leads simplify system assembly.
- Extreme Temperature Range: Operates reliably from -40C up to +125C.
- Secure Panel Mounting: Black ABS housing includes built-in mechanical stops.
- Low Resistance Contacts: Gold-plated finish ensures integrity below 20 miliohms.
Main Specifications:
General Information:
| Product No.: | MTJP-623-K6-X-A1-1 | |
| Series: | MTJP | |
| Category: | Modular Jacks with Wire Leads | |
| Product Type: | Jack | |
| Connector Type: | RJ11 | |
| Number of Positions/Contacts: | 6P6C | |
| Number of Ports: | 1×1 Port | |
| Model: | 623K4 | |
| Mounting Type: | Panel Stops | |
| Lead Termination: | Stripped and Tinned Wire | |
| Wire: | 26 AWG, UL 1061 | |
| Wire lenth: | Customized | |
| Shielding: | No Shielded |
Electrical:
| Rated Voltage: | 125VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000 Mohms Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Housing Material: | ABS | |
| Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated |
Environmental:
| Operating Temperature: | -40°C ~ +125°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
