Introduction:

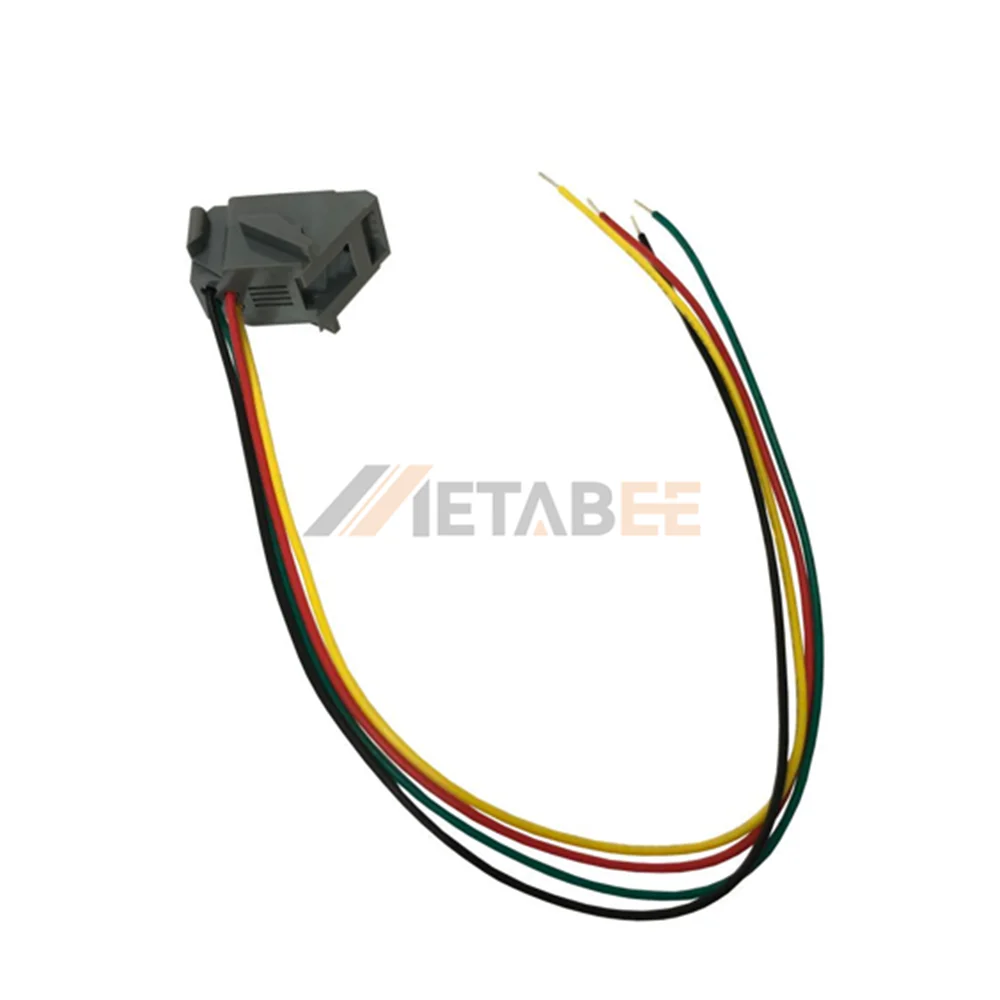

Integrated voice and data links are the primary purpose of this product, which serves as a 616W series RJ9 telephone jack. Every component incorporates 26 AWG stranded UL 1061 wire leads that are pre-stripped and tinned to facilitate rapid system assembly. Mechanical stability depends on the grey ABS housing featuring built-in panel stops for secure right-angle mounting. Reliable operation is maintained throughout the standard commercial 0C ~ 70C temperature range. Phosphor bronze contacts with gold over nickel finish strictly maintain electrical resistance below 20 miliohms to ensure signal integrity. Telecommunication handsets, office intercom systems, and medical monitoring equipment frequently utilize this 4p4c rj9 female connector.
Key Features
- RJ9 4P4C Configuration: Facilitates standard four-wire telephone handset interfaces.
- Integrated Stranded Leads: Pre-tinned 26 AWG wires simplify electrical assembly.
- Secure Panel Mounting: Grey ABS housing includes built-in panel stops.
- Low Contact Resistance: Gold-plated contacts maintain strictly under 20 miliohms.
- Standard Temperature Range: Operates flawlessly across commercial 0C to 70C.
Main Specifications:
General Information:
| Product No.: | MTJP-616W-X-A1-2 | |
| Series: | MTJP | |
| Category: | Modular Jacks with Wire Leads | |
| Product Type: | Jack | |
| Connector Type: | RJ9 | |
| Number of Positions/Contacts: | 4P4C | |
| Number of Ports: | 1×1 Port | |
| Model: | 616W | |
| Mounting Type: | Panel Stops | |
| Lead Termination: | Stripped and Tinned Wire | |
| Wire: | 26 AWG, Stranded, UL 1061 | |
| Wire lenth: | Customized | |
| Shielding: | No Shielded |
Electrical:
| Rated Voltage: | 125VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000 Mohms Min | |
| Dielectric withstanding voltage: | 1000 VAC or 1500 VDC RMS for 1 minute |
Materials and Plating:
| Housing Material: | ABS | |
| Color: | Gray | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
