Introduction:

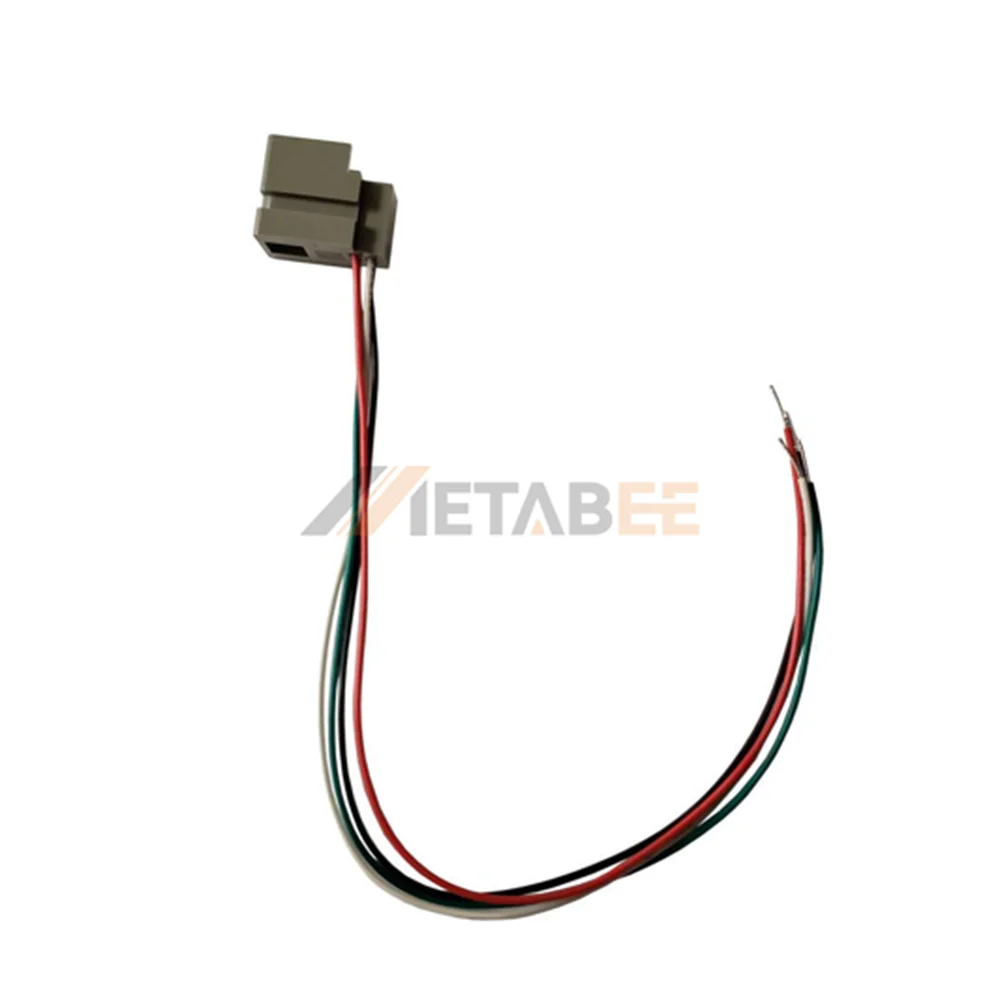

This product is a 4P4C telephone handset modular jack designed for stable audio and data communication in telecommunication systems. Integrated 26 AWG UL 1061 stripped and tinned wire leads facilitate a quick and reliable connection to circuit boards. Mechanical stability depends on the grey ABS housing which includes built-in panel stops for secure mounting. High-quality phosphor bronze contacts with gold plating maintain electrical resistance strictly below 30 miliohms. Successful operation is sustained throughout the commercial 0C ~ 70C temperature range without signal loss. Equipment manufacturers frequently utilize this component in office intercoms, telephone handsets, and medical monitoring devices.
Key Features
- RJ9 4P4C Configuration: Supports standard telephone handset and intercom interfaces.
- Integrated Wire Leads: Stripped 26 AWG wires facilitate rapid system assembly.
- Secure Panel Mounting: Built-in panel stops ensure stable mechanical alignment.
- Durable Gold Contacts: Phosphor bronze plating ensures strictly reliable conductivity.
- Standard Temperature Range: Operates flawlessly across commercial 0C to 70C.
Main Specifications:
General Information:
| Product No.: | MTJP-616M-X-A1-2 | |
| Series: | MTJP | |
| Category: | Modular Jacks with Wire Leads | |
| Product Type: | Jack | |
| Connector Type: | RJ9 | |
| Number of Positions/Contacts: | 4P4C | |
| Number of Ports: | 1×1 Port | |
| Model: | 616M | |
| Mounting Type: | Panel Stops | |
| Lead Termination: | Stripped and Tinned Wire | |
| Wire: | 26 AWG, UL 1061, PVC Coated | |
| Wire lenth: | Customized | |
| Shielding: | No Shielded |
Electrical:
| Rated Voltage: | 125VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 1000 Mohms Min | |
| Dielectric withstanding voltage: | 1000 VAC or 1500 VDC RMS for 1 minute |
Materials and Plating:
| Housing Material: | ABS | |
| Color: | Gray | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
