Introduction:

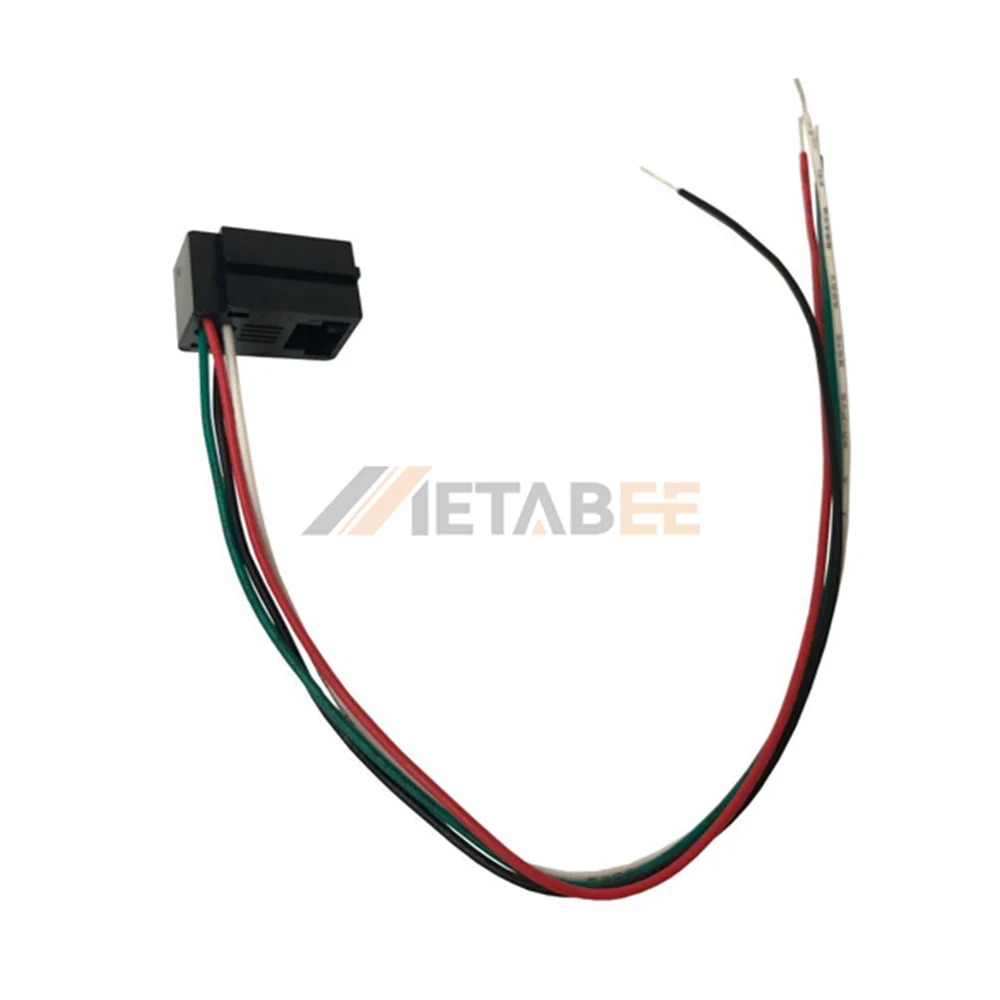

The 616E model is an RJ9 female wired lead connector designed for telecommunication and intercom systems. Every modular jack integrates 26 AWG stripped and tinned wires to facilitate rapid circuit board connection. Durable black ABS housing includes panel stops for secure mechanical alignment during installation. High-quality phosphor bronze contacts with gold over nickel finish maintain electrical resistance below 30 miliohms. Reliable performance remains consistent across the commercial 0C ~ 70C temperature range without signal loss. Specialized sockets like these are widely utilized in telephone handsets, office communication hubs, and medical monitoring devices.
Key Features
- 4P4C RJ9 Configuration: Facilitates standard four-wire telephone handset connections.
- Integrated Wired Leads: Stripped 26 AWG wires simplify system integration.
- Secure Panel Mounting: Black ABS housing features built-in panel stops.
- Durable Gold Contacts: Phosphor bronze plating ensures low resistance connectivity.
- Standard Commercial Range: Operates reliably from 0C up to 70C.
Main Specifications:
General Information:
| Product No.: | MTJP-616E-X-A1-1 | |
| Series: | MTJP | |
| Category: | Modular Jacks with Wire Leads | |
| Product Type: | Jack | |
| Connector Type: | RJ9 | |
| Number of Positions/Contacts: | 4P4C | |
| Number of Ports: | 1×1 Port | |
| Model: | 616E | |
| Mounting Type: | Panel Stops | |
| Lead Termination: | Stripped and Tinned Wire | |
| Wire: | 26 AWG | |
| Wire lenth: | Customized | |
| Shielding: | No Shielded |
Electrical:
| Rated Voltage: | 125VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 1000 Mohms Min | |
| Dielectric withstanding voltage: | 1000 VAC or 1500 VDC RMS for 1 minute |
Materials and Plating:
| Housing Material: | ABS | |
| Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
