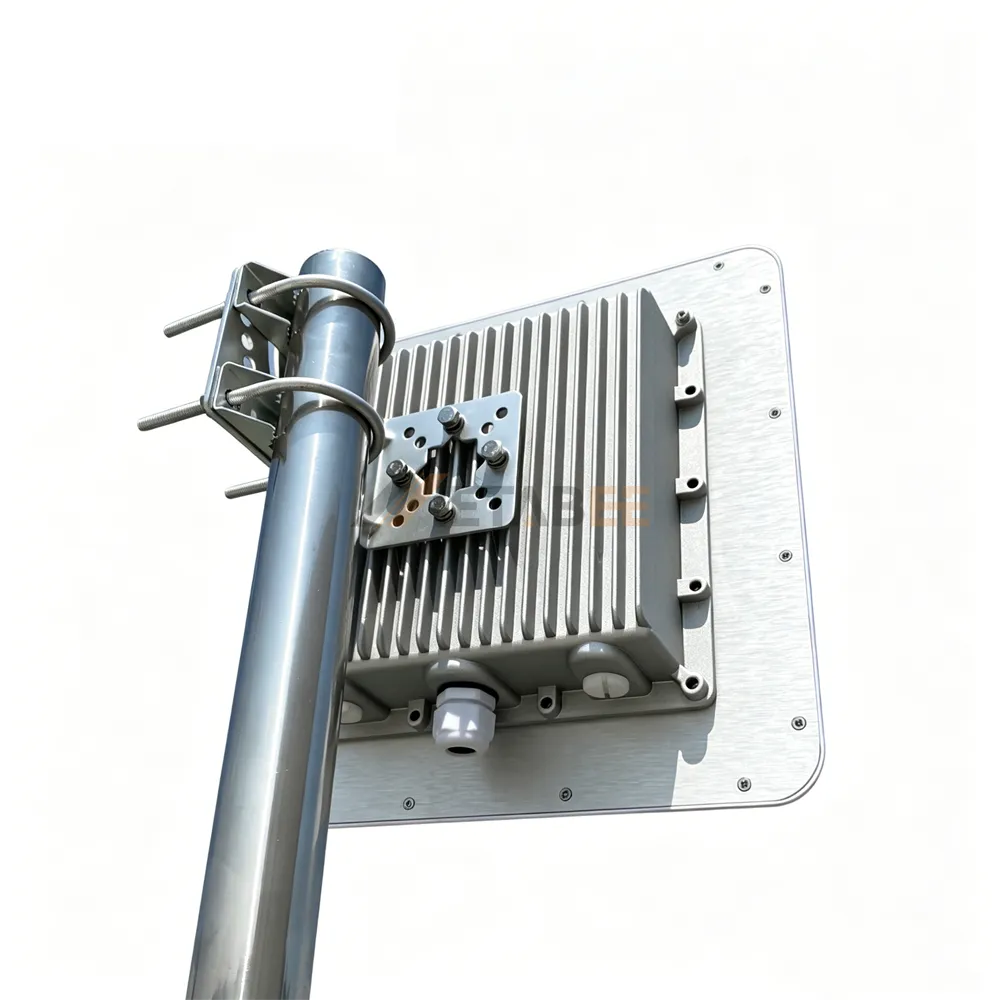

5G WiFi Directional Panel Antenna, N Female Connector, 22dBi, IP66
Introduction:
Elevate your wireless infrastructure with this high-gain 5G WiFi Directional Panel Antenna. Operating within the 5150–5850 MHz range, this 22dBi antenna is engineered for high-capacity, long-distance data transmission. Its precision-focused vertical polarization ensures minimal interference and maximum signal throughput, making it ideal for dense urban deployments or point-to-point bridging.
Constructed for resilience, the antenna features a robust ABS radome with an IP66 rating, maintaining peak performance in extreme temperatures from -40°C to 85°C. With a wind survivability of 36.9 m/s and integrated DC grounding for lightning protection, it ensures hardware longevity and reliable uptime in harsh outdoor environments. The N-Female connector provides a secure, industrial-standard interface for professional-grade installations.
Key Features
- High-Gain Performance: 22dBi gain for long-range, stable 5G WiFi coverage.
- Optimized Bandwidth: Tuned for 5150–5850 MHz spectrum efficiency.
- Industrial Durability: IP66-rated, weather-resistant ABS housing.
- Extreme Resilience: Withstands winds up to 36.9 m/s and wide temperature variations.
- Safety First: Built-in DC Grounding for robust lightning protection.
- Pro-Grade Connection: Features a high-reliability N-Female connector.
General Information:
| Product No.: | YC-KS50049 | |
| Connector Series: | Panel Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Female | |
| Connector Orientation: | Straight | |
| Radome Material: | ABS | |
| Dimensions: | – | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 5150~5850 MHz | |
| Gain: | 22dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Directional | |
| Polarization: | Vertical+Horizontal | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP66 | |
| Wind Survivability: | 36.9 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this 5G WiFi Directional Panel Antenna:
Panel antennas are a type of directional antenna designed with a flat-panel structure that focuses RF energy into a specific coverage area. It is widely used in wireless communication systems.
Here are some key applications:
- WiFi access points
- 4G/5G communication systems
- GPS/GNSS equipment
- RFID systems
- Wireless surveillance
- Industrial automation
- Smart transportation
- Point-to-point bridges
- IoT gateways
- Marine communication systems
