2.4 GHz WiFi Flat Panel Antenna, 12dBi, 2400~2500 MHz, SMA Female, IP66
Introduction:

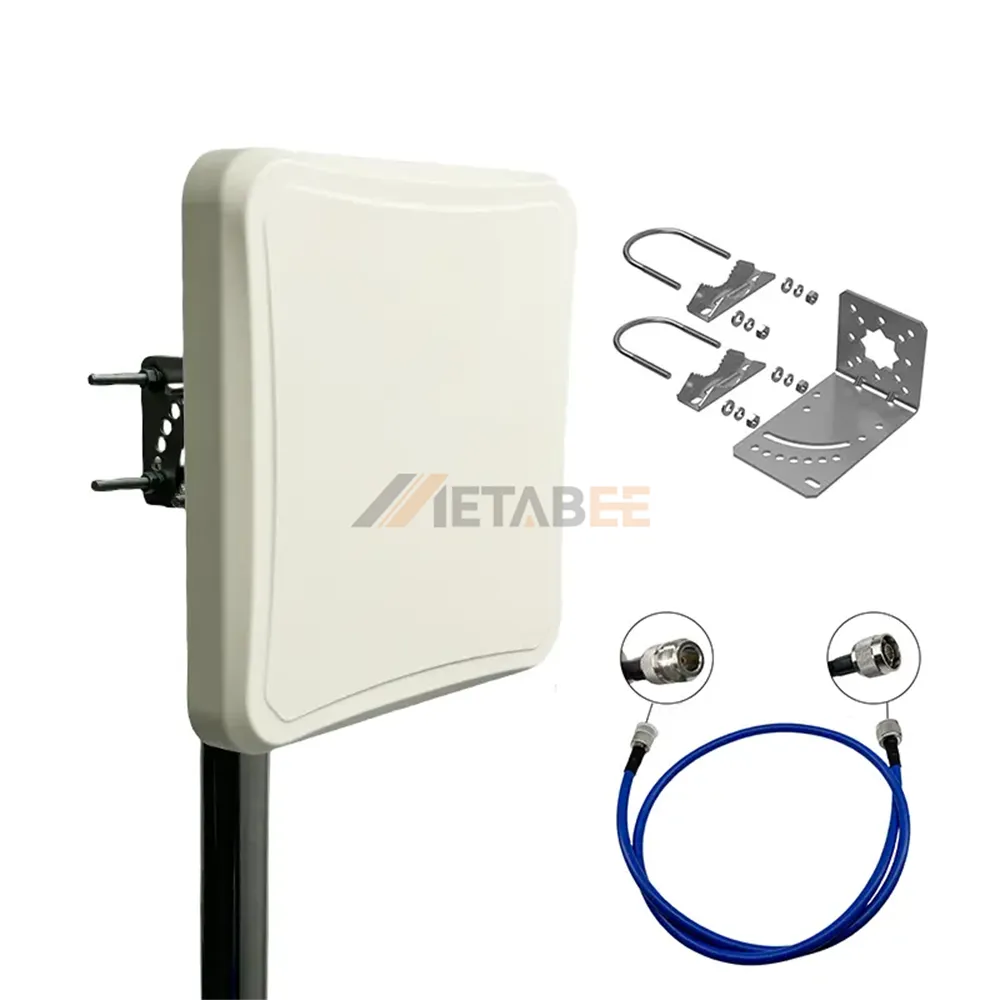

The 5G/4G dual-band cellular panel antenna is designed for high-performance wireless communication across 2300–2700 MHz and 3400–3600 MHz frequency bands. With 14 dBi high-gain and dual-polarization technology, it delivers enhanced signal strength, stable connectivity, and improved network coverage for LTE and 5G applications.

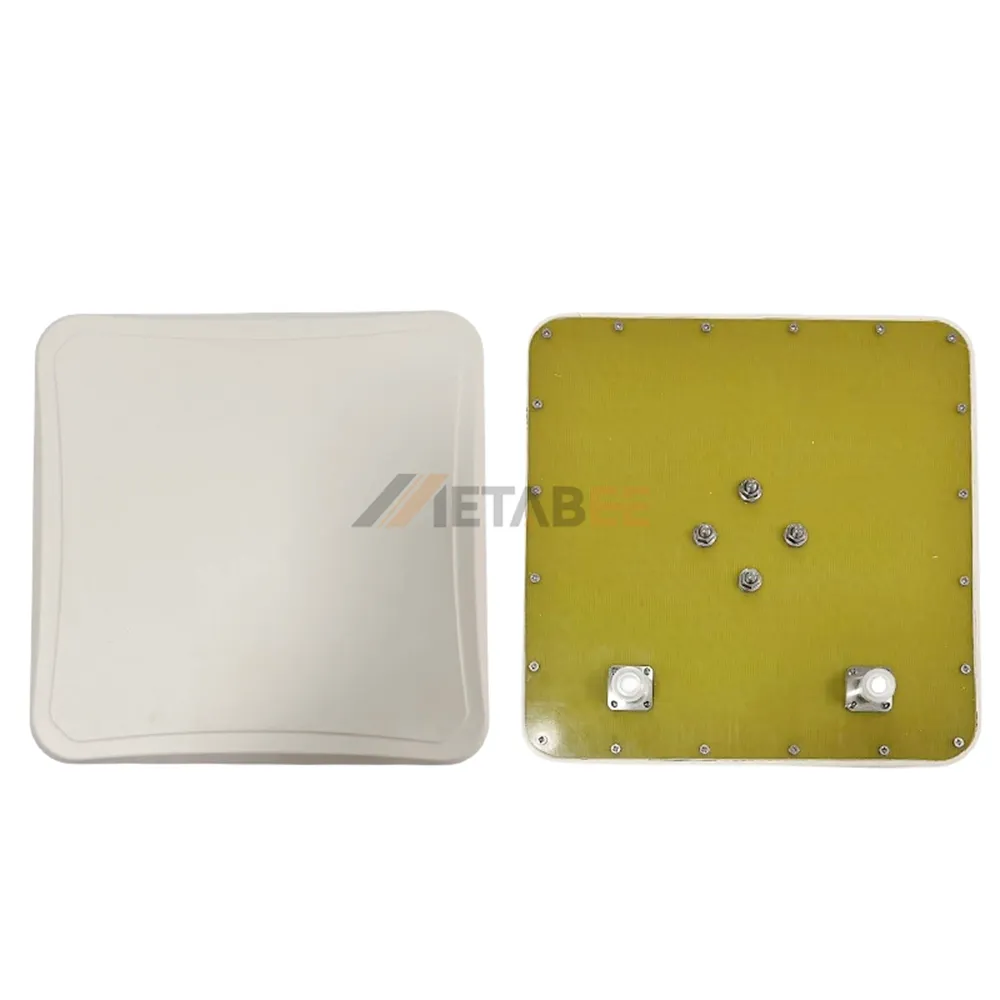

Built with a rugged ABS radome and IP66 waterproof rating, this antenna withstands demanding outdoor environments. The low VSWR ≤1.8 minimizes signal loss, while the N Female connector enables secure integration with cellular routers, base stations, and industrial wireless systems.
Supporting up to 50W input power, 50 Ohm impedance, DC grounding lightning protection, and an operating temperature range of -40 °C to 85 °C, this antenna is ideal for outdoor 5G infrastructure, IoT, smart city, and wireless broadband deployments.
Key Features
- Dual-band 5G/4G frequency support
- 14dBi high-gain directional coverage
- Vertical + Horizontal polarization
- IP66-rated weatherproof ABS housing
- N Female connector interface
- DC grounding lightning protection
General Information:
| Product No.: | YC-KS50051 | |
| Connector Series: | Panel Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Female | |
| Connector Orientation: | Straight | |
| Radome Material: | ABS | |
| Dimensions: | 190*190*25mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 3400–3600/2300–2700 MHz | |
| Gain: | 14dBi | |
| VSWR: | ≤1.8 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP66 | |
| Wind Survivability: | 36.9 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this 5G/4G Dual-Band Cellular Panel Antenna:
Panel antennas are a type of directional antenna designed with a flat-panel structure that focuses RF energy into a specific coverage area. It is widely used in wireless communication systems.
Here are some key applications:
- WiFi access points
- 4G/5G communication systems
- GPS/GNSS equipment
- RFID systems
- Wireless surveillance
- Industrial automation
- Smart transportation
- Point-to-point bridges
- IoT gateways
- Marine communication systems
