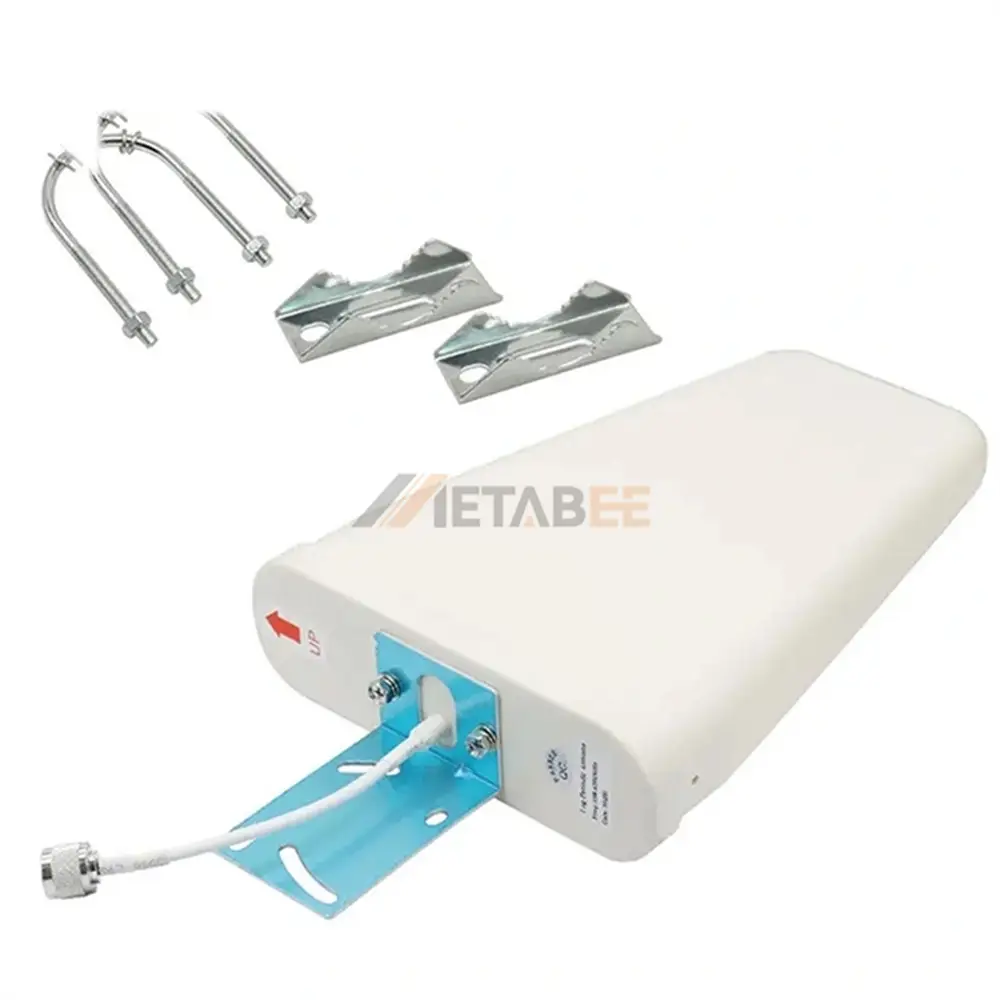

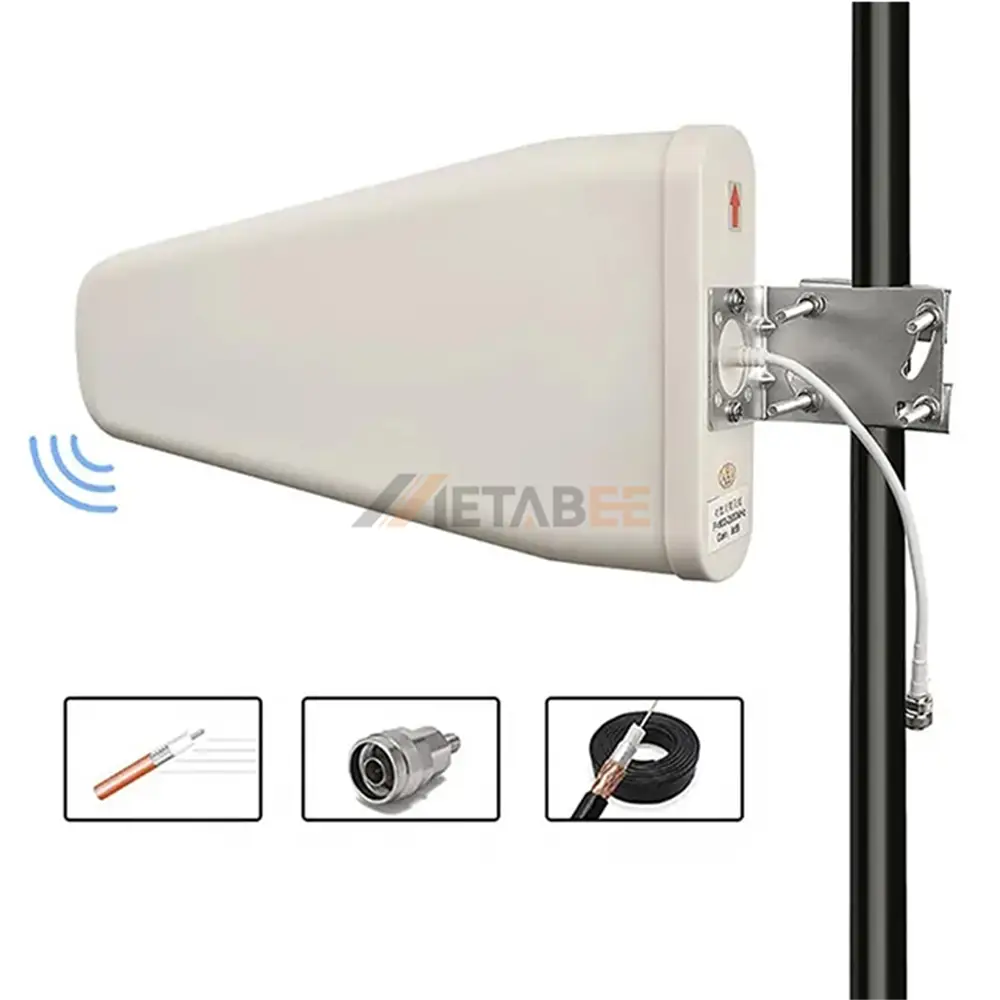

4G Panel Antenna with LMR195 Cable, 698-2700MHz, N-Female, IP66
Introduction:
Designed for high-performance 4G connectivity, this panel antenna covers 698–2700 MHz with a 16–17 dBi gain and ≤1.92 VSWR. Vertical polarization, 50W max power, and 50 Ohm impedance ensure stable signal transmission. Built with an ABS radome and IP66 rating, it withstands harsh environments from -40°C to 85°C, 36.9 m/s wind survivability, and includes DC grounding for lightning protection.
Key Features
- 698–2700 MHz wideband coverage
- ≤1.92 VSWR for low signal loss
- IP66 weatherproof ABS housing
- DC grounding lightning protection
- N-Female connector with LMR195 cable
- 50W max input power, 50 Ohm impedance
General Information:
| Product No.: | YC-KS50025 | |
| Connector Series: | Panel Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Female | |
| Connector Orientation: | Straight | |
| Radome Material: | ABS | |
| Dimensions: | 140×120×40mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 698~2700 MHz | |
| Gain: | 8.5/9/10dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP66 | |
| Wind Survivability: | 36.9 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this 4G Panel Antenna with LMR195 Cable:
Panel antennas are a type of directional antenna designed with a flat-panel structure that focuses RF energy into a specific coverage area. It is widely used in wireless communication systems.
Here are some key applications:
- WiFi access points
- 4G/5G communication systems
- GPS/GNSS equipment
- RFID systems
- Wireless surveillance
- Industrial automation
- Smart transportation
- Point-to-point bridges
- IoT gateways
- Marine communication systems
