5G Outdoor Base Station Panel Antenna, 3300-3800 MHz, 7dBi, N Female, IP66
Introduction:
The 5G outdoor base station panel antenna is engineered for high-performance wireless communication across the 3300-3800 MHz frequency range, making it ideal for 5G base stations, wireless broadband systems, and outdoor network deployments. With a stable 7dBi gain and dual-polarized Vertical + Horizontal design, this antenna enhances signal coverage, improves data throughput, and supports reliable long-distance transmission in demanding RF environments.
Designed for harsh outdoor conditions, the antenna features a rugged ABS radome with IP66-rated weather protection, ensuring dependable operation against dust, rain, and extreme temperatures from -40°C to 85°C. The N Female connector provides secure and low-loss connectivity, while DC grounding lightning protection enhances operational safety for telecom and industrial installations.
Built with a 50 Ohm impedance, ≤1.92 VSWR, and 50W maximum power handling, this panel antenna delivers optimized signal efficiency and stable network performance. Its durable structure and wind survivability up to 36.9 m/s make it suitable for outdoor towers, rooftop installations, smart city infrastructure, and private 5G networks.
Key Features
- 3300-3800 MHz frequency range for 5G applications
- 7dBi gain for stable wireless coverage
- Vertical + Horizontal dual polarization
- IP66 waterproof outdoor enclosure
- N Female connector with 50 Ohm impedance
- DC grounding lightning protection for enhanced safety
General Information:
| Product No.: | YC-KS50084 | |
| Connector Series: | Panel Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Female | |
| Connector Orientation: | Straight | |
| Radome Material: | ABS | |

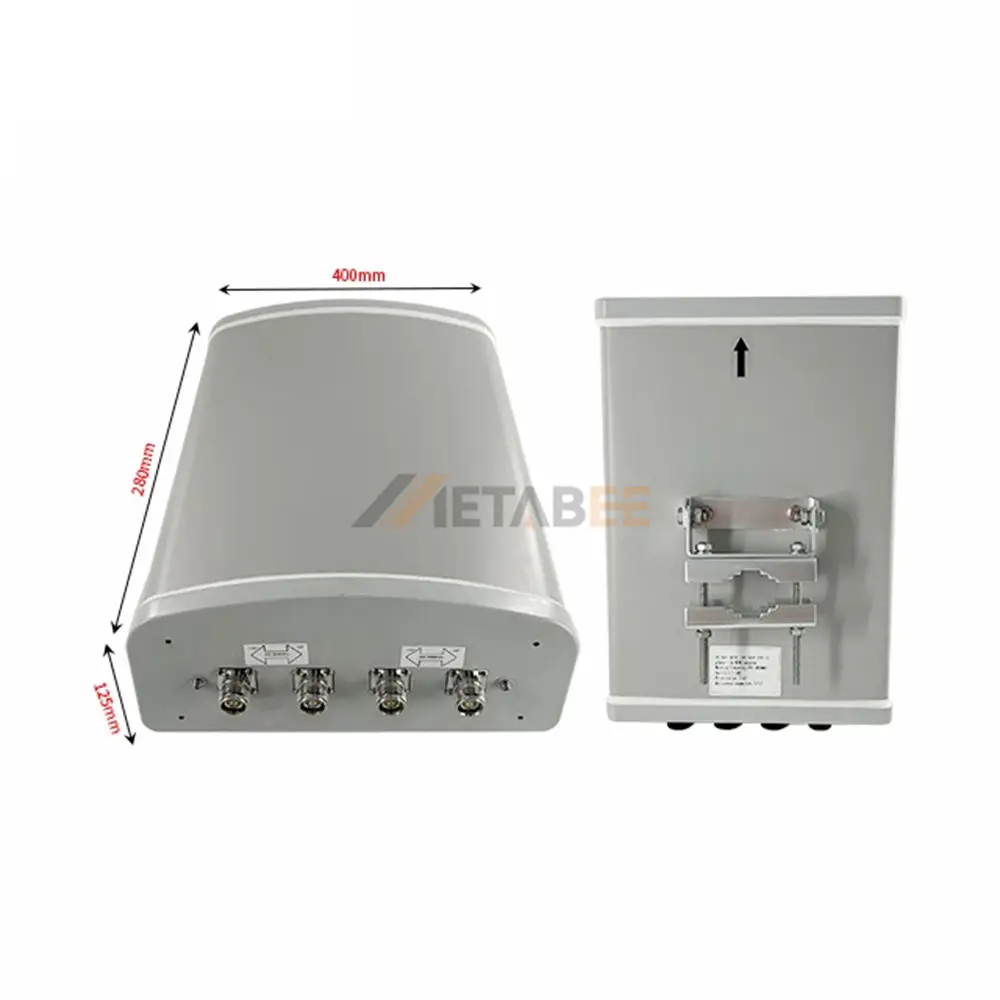

| Dimensions: | 400*280*125mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 3300-3800MHz | |
| Gain: | 7dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Directional | |
| Polarization: | Vertical + Horizontal | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP66 | |
| Wind Survivability: | 36.9 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this 5G Outdoor Base Station Panel Antenna:
Panel antennas are a type of directional antenna designed with a flat-panel structure that focuses RF energy into a specific coverage area. It is widely used in wireless communication systems.
Here are some key applications:
- WiFi access points
- 4G/5G communication systems
- GPS/GNSS equipment
- RFID systems
- Wireless surveillance
- Industrial automation
- Smart transportation
- Point-to-point bridges
- IoT gateways
- Marine communication systems
