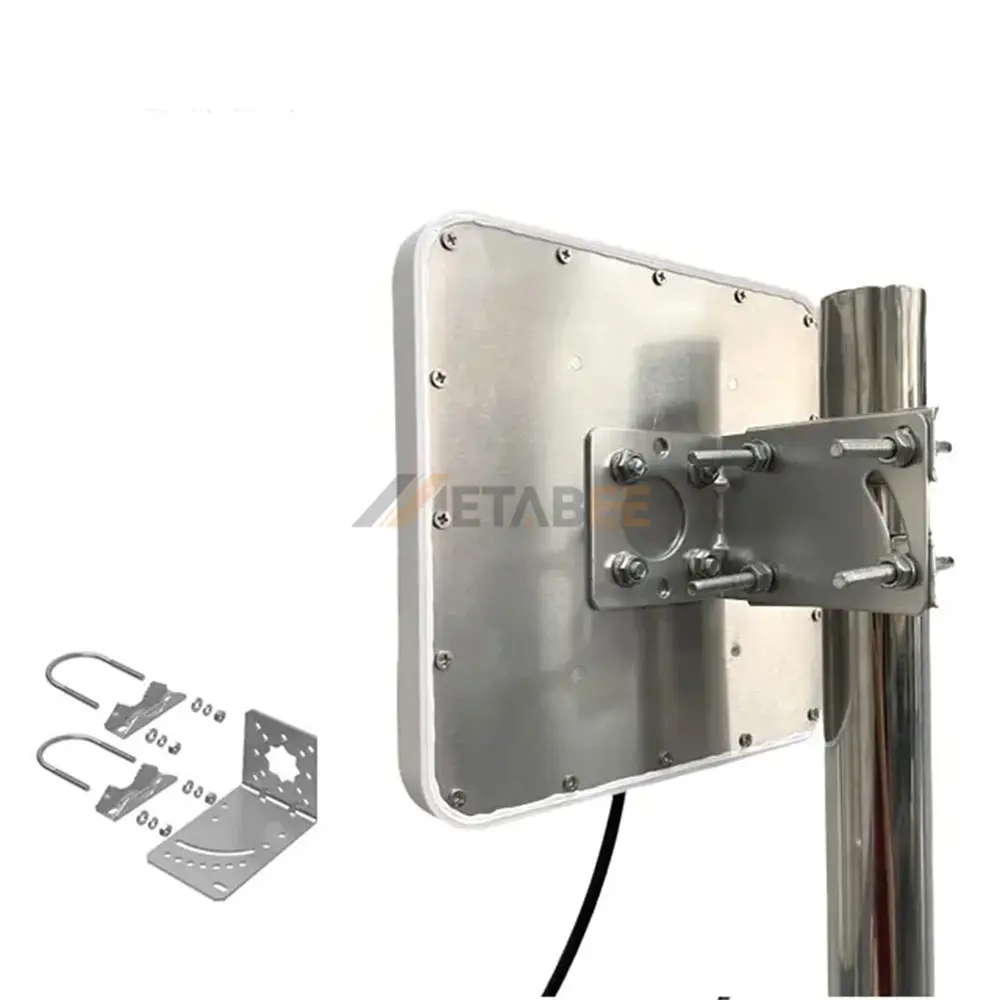

2.4 GHz Outdoor Panel Antenna, 16~17dBi, N-Type Male/Female Connector, IP66
Introduction:
The 4G external panel antenna is engineered for high-performance wireless communication in the 2400~2500 MHz frequency range. With 16~17dBi high gain and vertical polarization, it delivers extended signal coverage, improved transmission stability, and enhanced network performance for outdoor LTE and wireless applications.
Constructed with a durable ABS radome and IP66 waterproof protection, this antenna is designed to withstand demanding outdoor environments. Its low VSWR ≤1.92 reduces signal reflection and improves efficiency, while the SMA Male connector ensures reliable integration with routers, repeaters, and communication systems.
Supporting up to 50W input power, 50 Ohm impedance, DC grounding lightning protection, and operating temperatures from -40 °C to 85 °C, this antenna is ideal for industrial networking, broadband communication, and outdoor wireless deployments.
Key Features
- 2400~2500 MHz frequency coverage
- 16~17dBi high-gain performance
- Vertical polarization design
- IP66-rated weatherproof housing
- SMA Male connector interface
- DC grounding lightning protection
General Information:
| Product No.: | YC-KS50062 | |
| Connector Series: | Panel Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Male | |
| Connector Orientation: | Straight | |
| Radome Material: | ABS | |
| Dimensions: | 190x190x25mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 2400~2500 MHz | |
| Gain: | 16~17dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP66 | |
| Wind Survivability: | 36.9 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this 2.4 GHz Outdoor Panel Antenna:
Panel antennas are a type of directional antenna designed with a flat-panel structure that focuses RF energy into a specific coverage area. It is widely used in wireless communication systems.
Here are some key applications:
- WiFi access points
- 4G/5G communication systems
- GPS/GNSS equipment
- RFID systems
- Wireless surveillance
- Industrial automation
- Smart transportation
- Point-to-point bridges
- IoT gateways
- Marine communication systems
