2.4GHz Directional Wireless Panel Antenna, 10dBi, N Male with LMR200 Cable, IP66
Introduction:
Engineered for long-range 2.4 GHz networks, this directional panel antenna delivers stable 10dBi gain across the 2400–2500 MHz band. Its vertical polarization and low VSWR (≤1.92) minimize signal loss, making it ideal for WiFi bridges, surveillance backhauls, and industrial IoT links. The rugged ABS radome and IP66 rating withstand heavy rain and dust, while the built-in N Male connector with LMR200 pigtail simplifies installation. Supporting extreme temperatures from -40°C to 85°C and wind survival up to 36.9 m/s, this antenna performs reliably in outdoor environments. DC grounding provides built-in lightning protection for safer tower or pole mounting.
Key Features
- 10dBi Gain – Boosts 2.4 GHz signal strength for extended point-to-point links.
- IP66 Enclosure – Fully protected against dust, rain, and direct water jets.
- N Male with LMR200 Cable – Low-loss integrated pigtail for easy outdoor radio connection.
- Wide Temp Range (-40°C to 85°C) – Reliable operation in extreme climates.
- DC Grounding (Lightning Protection) – Dissipates static discharge for enhanced safety.
- Low VSWR (≤1.92) – Maximizes power transfer and reduces reflected signal.
General Information:
| Product No.: | YC-KS50073 | |
| Connector Series: | Panel Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Male | |
| Connector Orientation: | Straight | |
| Radome Material: | ABS | |

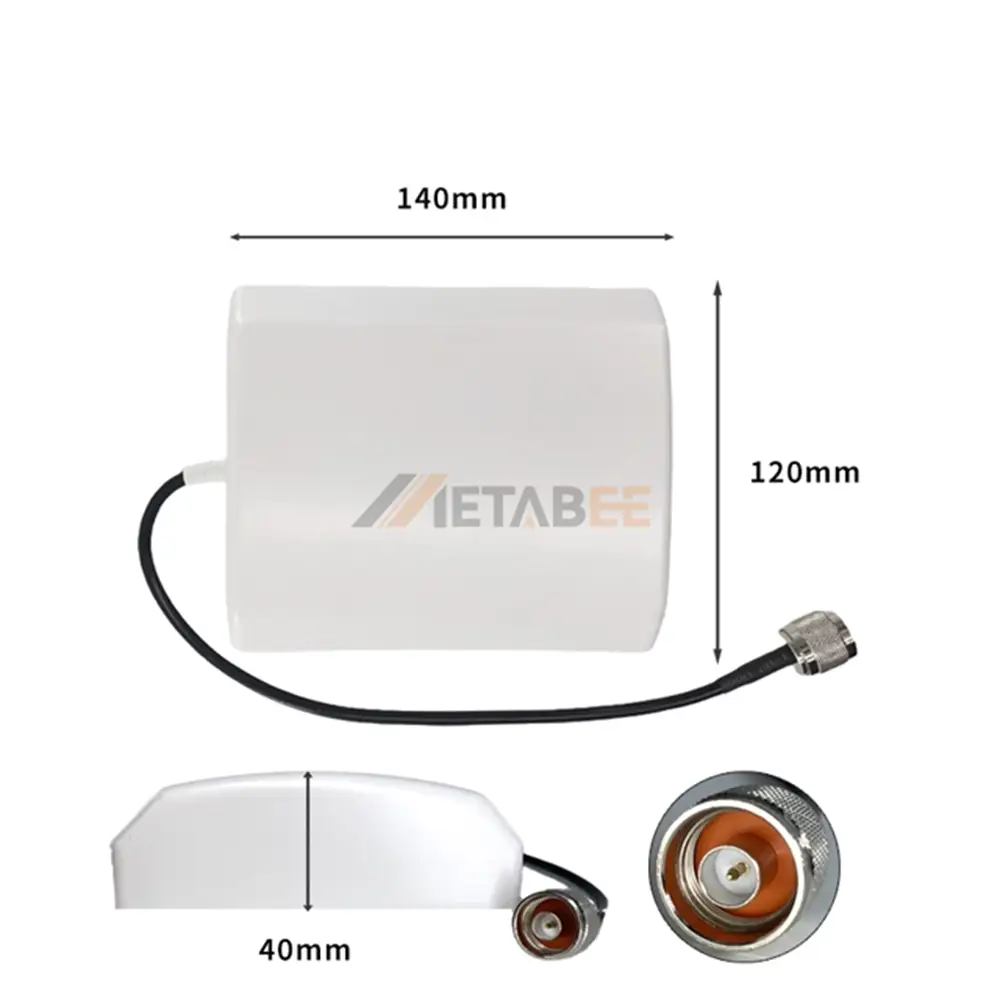

| Dimensions: | 140×120×40mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 2400~2500 MHz | |
| Gain: | 10dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP66 | |
| Wind Survivability: | 36.9 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this 2.4GHz Directional Wireless Panel Antenna:
Panel antennas are a type of directional antenna designed with a flat-panel structure that focuses RF energy into a specific coverage area. It is widely used in wireless communication systems.
Here are some key applications:
- WiFi access points
- 4G/5G communication systems
- GPS/GNSS equipment
- RFID systems
- Wireless surveillance
- Industrial automation
- Smart transportation
- Point-to-point bridges
- IoT gateways
- Marine communication systems
