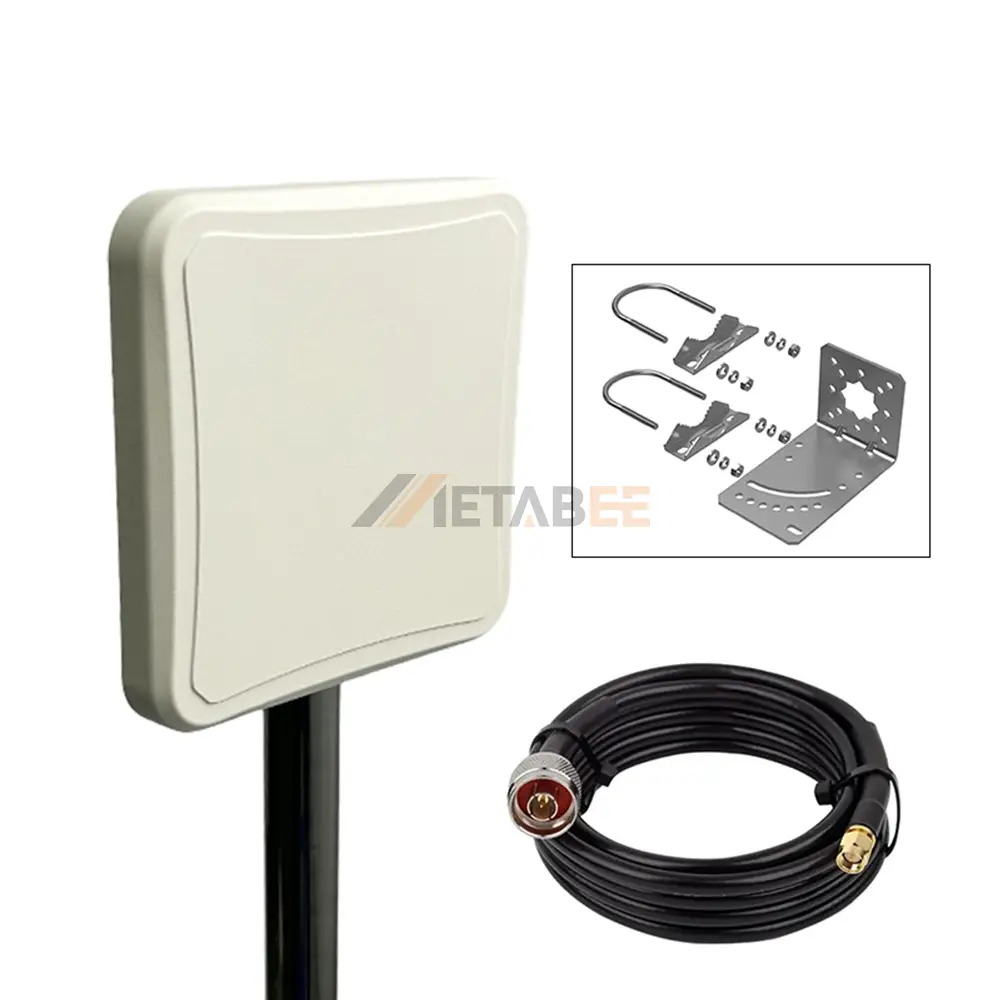

2.4/5.8 GHz Dual Band External WiFI Panel Antenna, 12dBi, N Female, IP65
Introduction:
Enhance your wireless network with this versatile dual-band panel antenna, optimized for both 2.4 GHz and 5.8 GHz frequencies. Delivering a powerful 12dBi gain, this unit ensures reliable signal propagation and improved coverage for high-density environments. Engineered with a stable VSWR (≤1.92) and 50W power handling, it provides a consistent, high-performance link for demanding industrial or commercial WiFi applications.
Built to endure challenging outdoor conditions, the antenna features a rugged ABS radome with an IP66 rating, offering superior resistance to dust and heavy moisture. It is designed to operate flawlessly in temperatures ranging from -40°C to +85°C and can withstand wind gusts up to 36.9 m/s. The unit includes a high-quality N-Female connector with an integrated RG58U cable, while built-in DC grounding provides essential lightning protection for your critical infrastructure.
Key Features
- Dual-Band Versatility: Seamlessly supports both 2.4 GHz and 5.8 GHz spectrums.
- High-Gain Performance: 12dBi output ensures extended range and signal clarity.
- Industrial Durability: IP66-rated ABS housing protects against harsh weather.

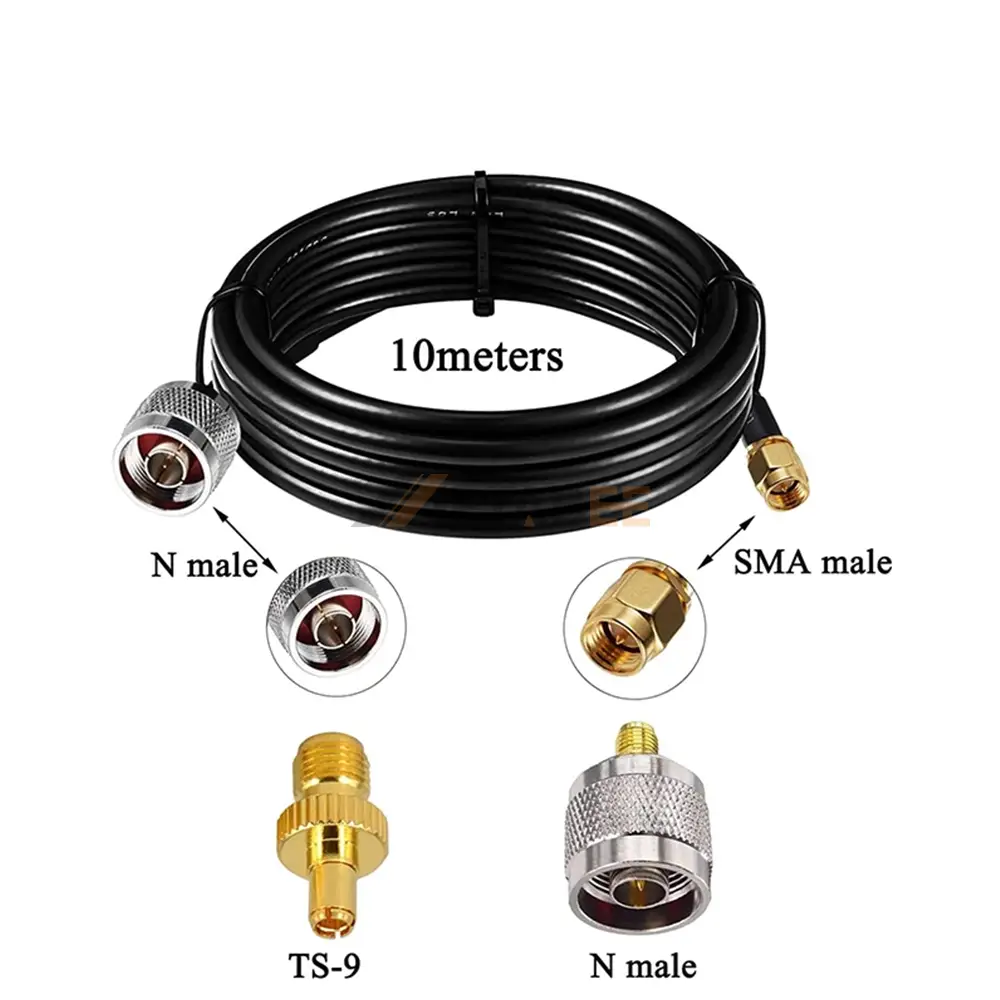

- Robust Connectivity: Features a reliable N-Female interface with RG58U cabling.
- Environmental Tolerance: Rated for -40°C to +85°C and 36.9 m/s wind survivability.
- Integrated Safety: Built-in DC grounding provides essential lightning surge protection.
General Information:
| Product No.: | YC-KS50056 | |
| Connector Series: | Panel Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Female | |
| Connector Orientation: | Straight | |
| Radome Material: | ABS | |
| Dimensions: | 190*190*25mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 2.4~2.5/5.15~5.8 GHz | |
| Gain: | 12 dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP66 | |
| Wind Survivability: | 36.9 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this 2.4/5.8 GHz Dual Band External WiFI Panel Antenna:
Panel antennas are a type of directional antenna designed with a flat-panel structure that focuses RF energy into a specific coverage area. It is widely used in wireless communication systems.
Here are some key applications:
- WiFi access points
- 4G/5G communication systems
- GPS/GNSS equipment
- RFID systems
- Wireless surveillance
- Industrial automation
- Smart transportation
- Point-to-point bridges
- IoT gateways
- Marine communication systems
