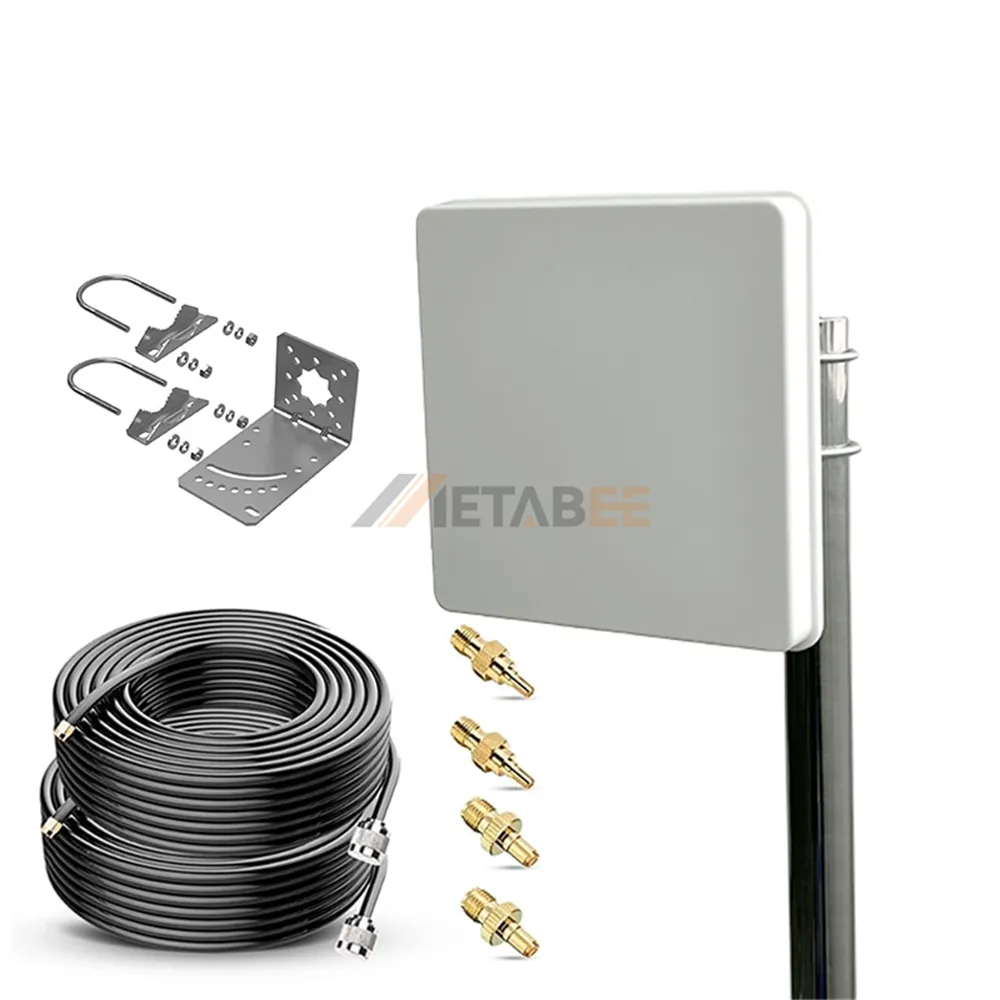

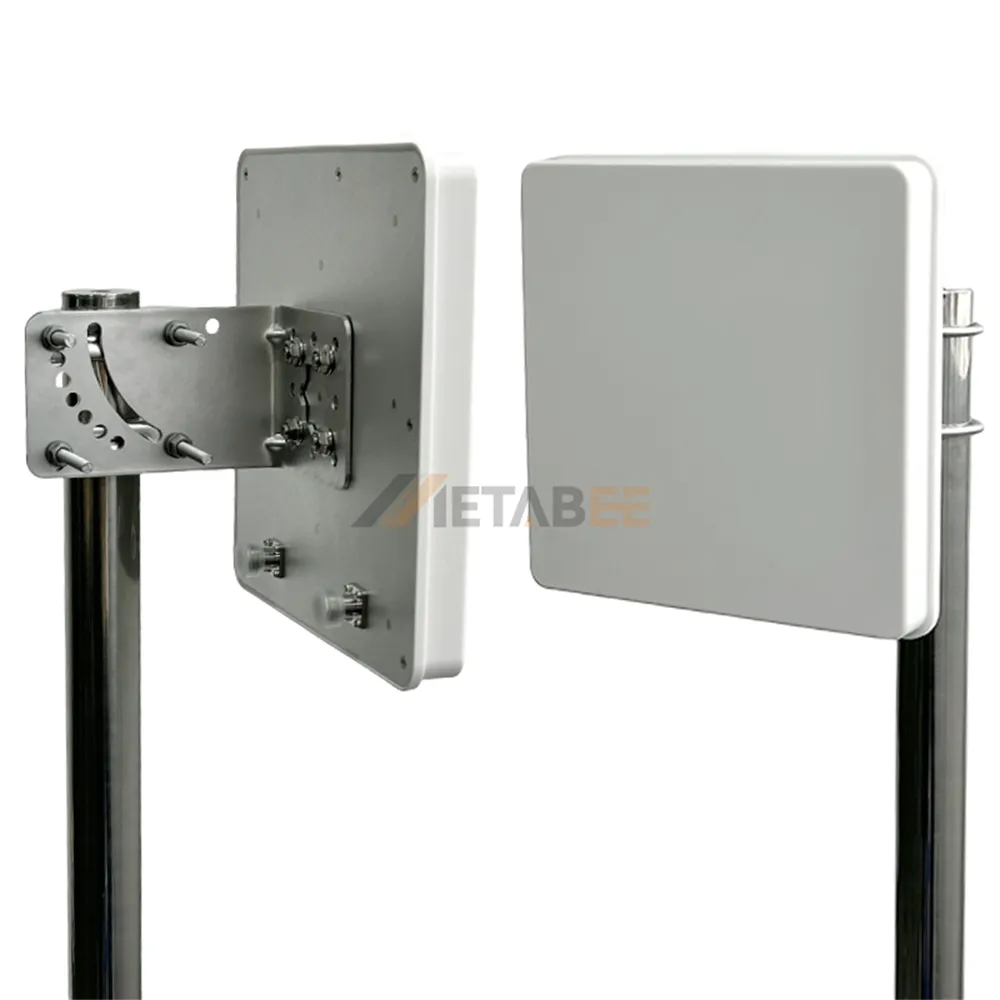

2.4/5.8GHz Dual Band WiFi Panel Antenna, 18dBi, 2xN-Female Connector, IP66
Introduction:
Maximize your network performance with this high-gain 2.4/5.8GHz Dual-Band WiFi Panel Antenna. Engineered for demanding environments, this 18dBi antenna provides robust, stable connectivity for long-range wireless applications. Its dual-polarization (Vertical + Horizontal) design ensures optimal signal distribution and throughput in complex RF scenarios.
Built for durability, the unit features a rugged ABS radome and an IP66 rating, ensuring reliable operation in temperatures from -40°C to 85°C. With integrated DC grounding for lightning protection and a high wind tolerance of 36.9 m/s, it delivers industrial-grade stability. The dual N-Female connectors facilitate easy installation for high-power, enterprise-level infrastructure.
Key Features
- Dual-Band Versatility: Operates across 2.4/5.8GHz for maximum compatibility.
- High Gain Performance: 18dBi gain for extended range and superior signal strength.
- Dual Polarization: Vertical + Horizontal radiation for enhanced data reliability.
- Industrial Durability: IP66-rated ABS construction handles extreme weather.
- High Power Capacity: Supports up to 50W input with 50 Ohm impedance.
- Safety Integrated: Features DC Grounding for effective lightning protection.
General Information:
| Product No.: | YC-KS50031 | |
| Connector Series: | Panel Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Female | |
| Connector Orientation: | Straight | |
| Radome Material: | ABS | |
| Dimensions: | 225*225*50mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 2400–2483.5/5150–5850 MHz | |
| Gain: | 18dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Directional | |
| Polarization: | Vertical+Horizontal | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP66 | |
| Wind Survivability: | 36.9 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this 2.4/5.8GHz Dual Band WiFi Panel Antenna:
Panel antennas are a type of directional antenna designed with a flat-panel structure that focuses RF energy into a specific coverage area. It is widely used in wireless communication systems.
Here are some key applications:
- WiFi access points
- 4G/5G communication systems
- GPS/GNSS equipment
- RFID systems
- Wireless surveillance
- Industrial automation
- Smart transportation
- Point-to-point bridges
- IoT gateways
- Marine communication systems
