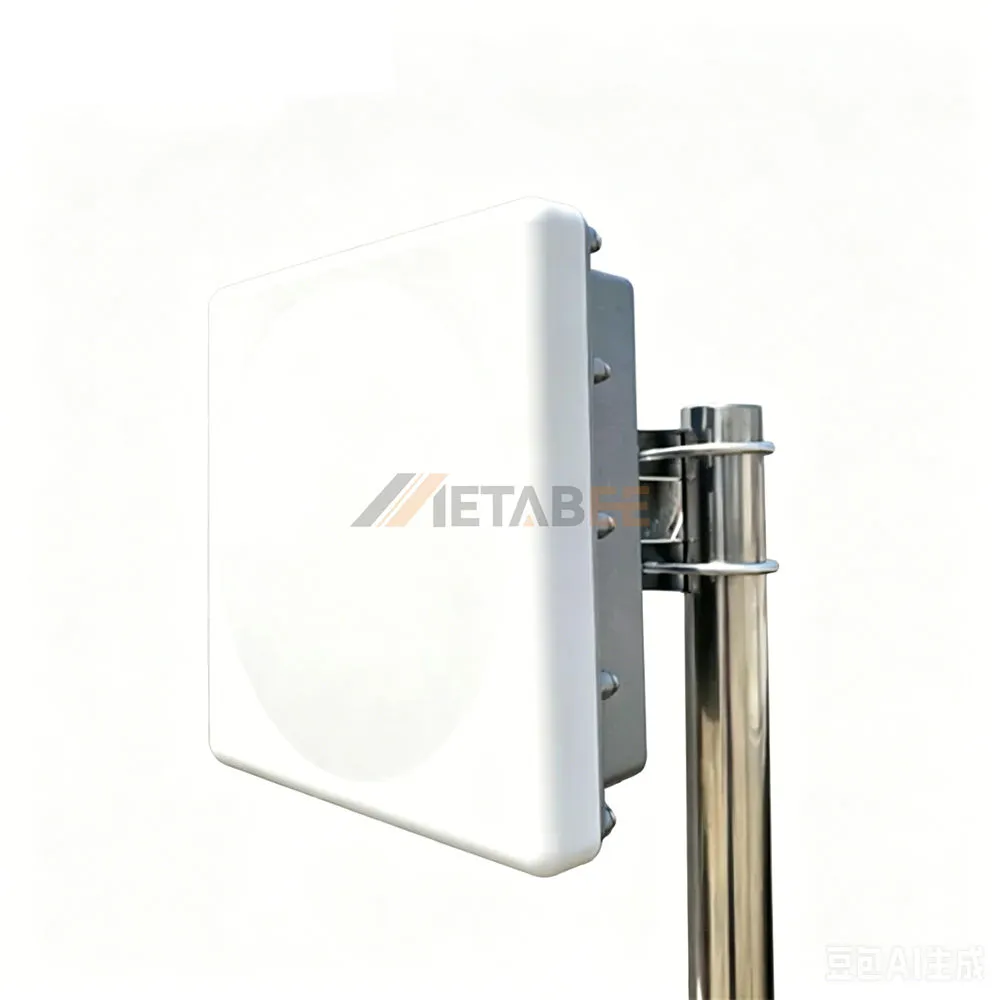

2.4 GHz WiFi Panel Antenna with RG178 Cable, 12dBi, SMA/N-Type, IP66
Introduction:
Designed for long-range 2.4 GHz WiFi and IoT applications, this 12dBi panel antenna delivers focused vertical polarization with high gain to extend network coverage. The dual-polarization (Vertical+Horizontal) design minimizes signal fading and multipath interference. Featuring a low-loss RG178 cable and interchangeable SMA/N-Type connectors, it ensures flexible installation in routers, boosters, and base stations. The ABS radome and IP66 rating provide complete weatherproofing, while DC grounding protects against lightning surges. With a wide temperature range from -40°C to 85°C and 36.9 m/s wind survival, it performs reliably in harsh outdoor environments.
Key Features
- 12 dBi Gain & 2.4 GHz – Extends WiFi range for outdoor bridges and APs.
- Dual Polarization – Vertical + Horizontal for a stable, interference-resistant signal.
- IP66 Weatherproof – ABS radome protects against dust, rain, and UV.
- Dual Connector Options – SMA and N-Type with RG178 cable for flexible setup.
- DC Grounding – Built-in lightning protection for tower or rooftop use.
- Wide Temperature – Operates from -40°C to 85°C; survives 36.9 m/s winds.
General Information:
| Product No.: | YC-KS50061 | |
| Connector Series: | Panel Antennas | |
| Brand: | Metabee | |
| Connector Type: | Customized | |
| Connector Orientation: | Straight | |
| Radome Material: | ABS | |
| Dimensions: | 225x225x25mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 2.4 GHz | |
| Gain: | 12dBi | |
| VSWR: | <1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP66 | |
| Wind Survivability: | 36.9 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this 2.4 GHz WiFi Panel Antenna with RG178 Cable:
Panel antennas are a type of directional antenna designed with a flat-panel structure that focuses RF energy into a specific coverage area. It is widely used in wireless communication systems.
Here are some key applications:
- WiFi access points
- 4G/5G communication systems
- GPS/GNSS equipment
- RFID systems
- Wireless surveillance
- Industrial automation
- Smart transportation
- Point-to-point bridges
- IoT gateways
- Marine communication systems
