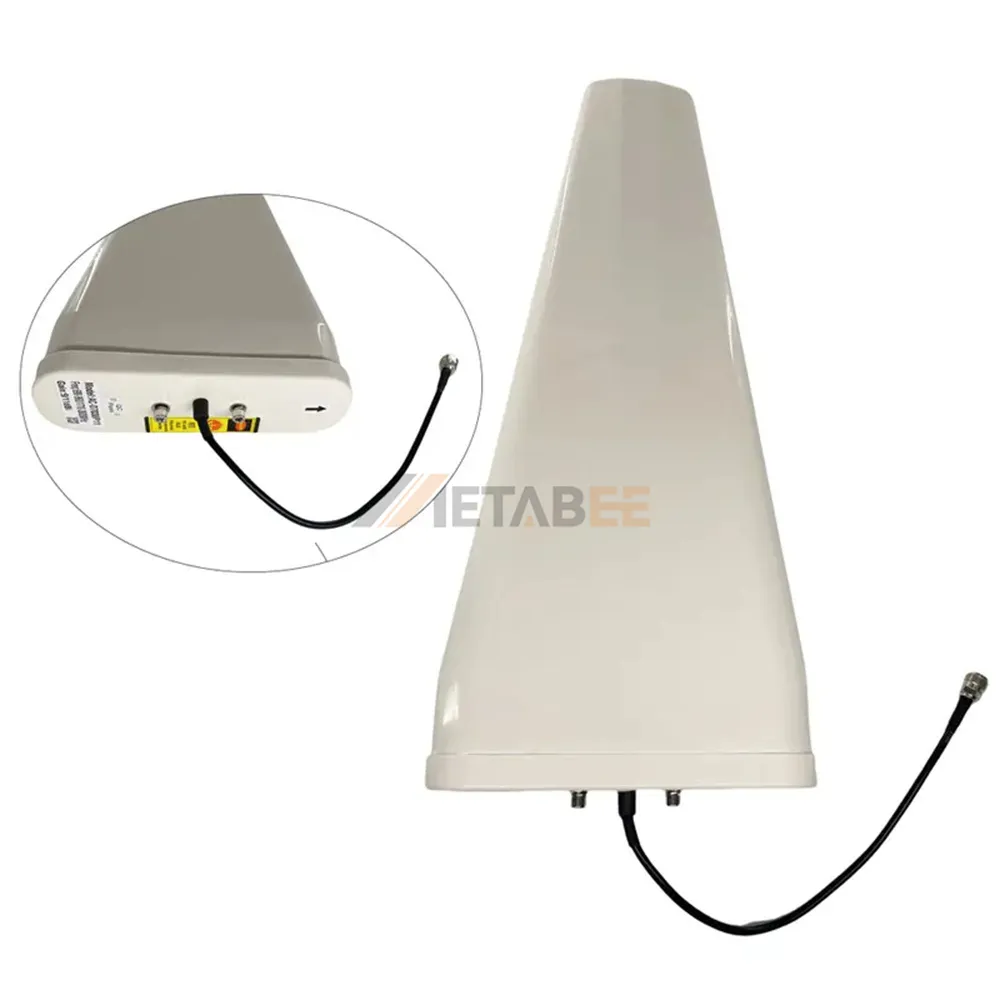

700/800 MHz Dual Low Band Cellular Panel Antenna, 11dBi, N Female with RG58U Cable
Introduction:
Optimize your cellular infrastructure with this high-performance 700/800 MHz Dual Low-Band Panel Antenna. Engineered for reliability, this 11dBi antenna offers superior signal penetration and coverage for critical communications. Its dual-polarization (Vertical + Horizontal) configuration ensures consistent signal quality and stable data transmission, even in challenging RF environments.
Built for harsh outdoor conditions, the antenna features a rugged ABS radome and an IP66 rating, sustaining performance from -40°C to 85°C. With integrated DC grounding for lightning protection and a wind survivability rating of 36.9 m/s, it is designed for long-term field deployment. It comes equipped with a high-quality N-Female connector and an integrated RG58U cable for seamless installation.
Key Features
- 703–803 MHz / 800–830 MHz coverage
- 11dBi high-gain cellular performance
- Vertical polarization design
- IP66 weatherproof ABS radome
- N Female connector with RG58U cable
- DC grounding lightning protection
General Information:
| Product No.: | YC-KS50071 | |
| Connector Series: | Panel Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Female | |
| Connector Orientation: | Straight | |
| Radome Material: | ABS | |
| Dimensions: | – | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 703-803/800-830 MHz | |
| Gain: | 11dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP66 | |
| Wind Survivability: | 36.9 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this 700/800 MHz Dual Low Band Cellular Panel Antenna :
Panel antennas are a type of directional antenna designed with a flat-panel structure that focuses RF energy into a specific coverage area. It is widely used in wireless communication systems.
Here are some key applications:
- WiFi access points
- 4G/5G communication systems
- GPS/GNSS equipment
- RFID systems
- Wireless surveillance
- Industrial automation
- Smart transportation
- Point-to-point bridges
- IoT gateways
- Marine communication systems
