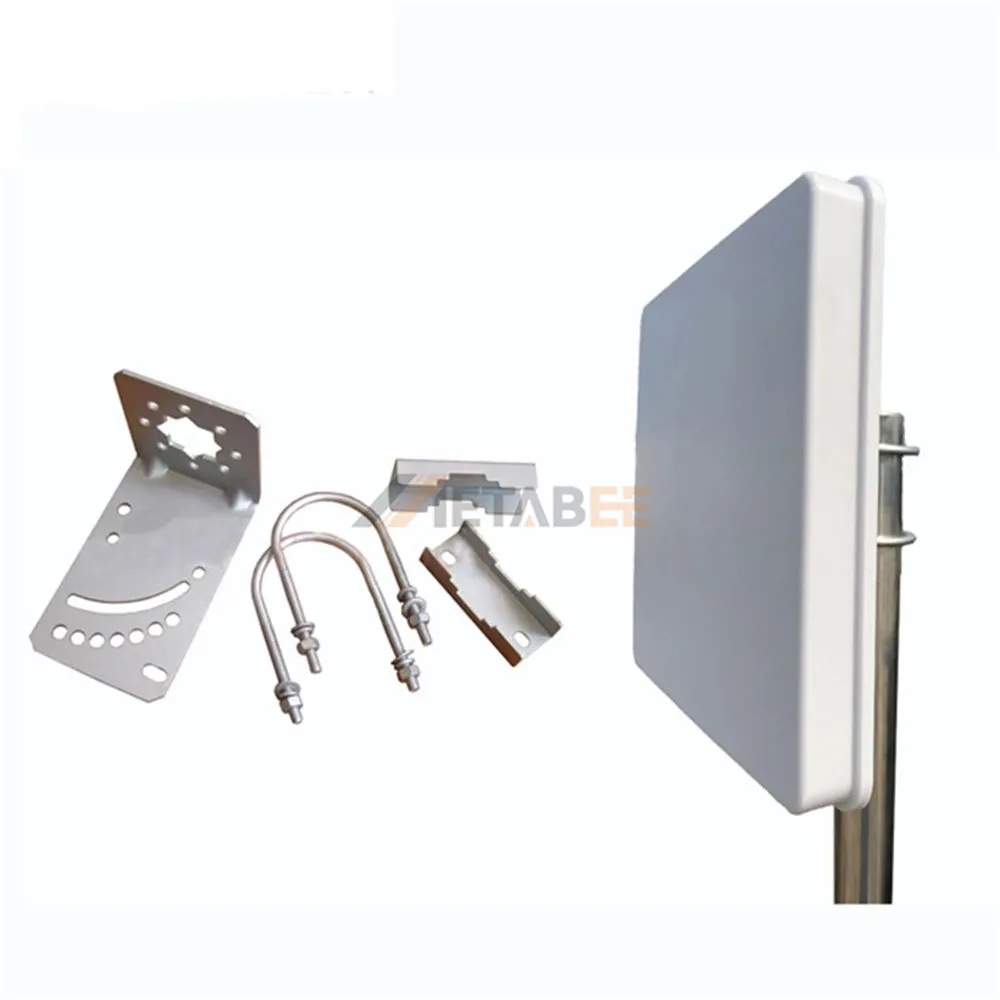

868MHz LoRa Panel Antenna, 12dBI, Dual Polarization, IP66
Introduction:
Optimized for long-range IoT deployments, this high-performance 868MHz LoRa Panel Antenna delivers a robust 12dBi gain to significantly extend network coverage. Featuring an advanced dual-polarization design (Vertical + Horizontal), it maximizes signal penetration and mitigates multipath interference, ensuring ultra-reliable data transmission for smart agriculture, metering, and industrial tracking applications.
Engineered to endure the harshest deployments, the antenna is housed in a rugged, IP66-rated ABS radome that ensures complete protection against dust and heavy rain. With a wide operational temperature range of -40°C to 85°C, integrated DC Grounding lightning protection, and a wind survivability rating of 36.9 m/s, this directional antenna guarantees uninterrupted uptime in extreme outdoor environments.
Key Features
- Dedicated 868MHz LoRa: Tailored for optimal performance in European ISM band IoT networks.
- 12dBi High Gain: Significantly boosts signal propagation distance and directional clarity.
- Dual Polarization: Combined vertical and horizontal polarization reduces signal fading.
- Low VSWR (≤1.92): Maximizes RF power efficiency with a standard 50 Ohm impedance.
- IP66 Waterproof Build: Heavy-duty ABS radome defends components from severe weather.
- Industrial Resilience: Features 36.9 m/s wind resistance and built-in DC Grounding protection.
General Information:
| Product No.: | YC-KS50058 | |
| Connector Series: | Panel Antennas | |
| Brand: | Metabee | |
| Connector Type: | Customized | |
| Connector Orientation: | Straight | |
| Radome Material: | ABS | |
| Dimensions: | 220x220x30mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 868MHz | |
| Gain: | 12dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Directional | |
| Polarization: | Vertical+Horizontal | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP66 | |
| Wind Survivability: | 36.9 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this 868MHz LoRa Panel Antenna:
Panel antennas are a type of directional antenna designed with a flat-panel structure that focuses RF energy into a specific coverage area. It is widely used in wireless communication systems.
Here are some key applications:
- WiFi access points
- 4G/5G communication systems
- GPS/GNSS equipment
- RFID systems
- Wireless surveillance
- Industrial automation
- Smart transportation
- Point-to-point bridges
- IoT gateways
- Marine communication systems
