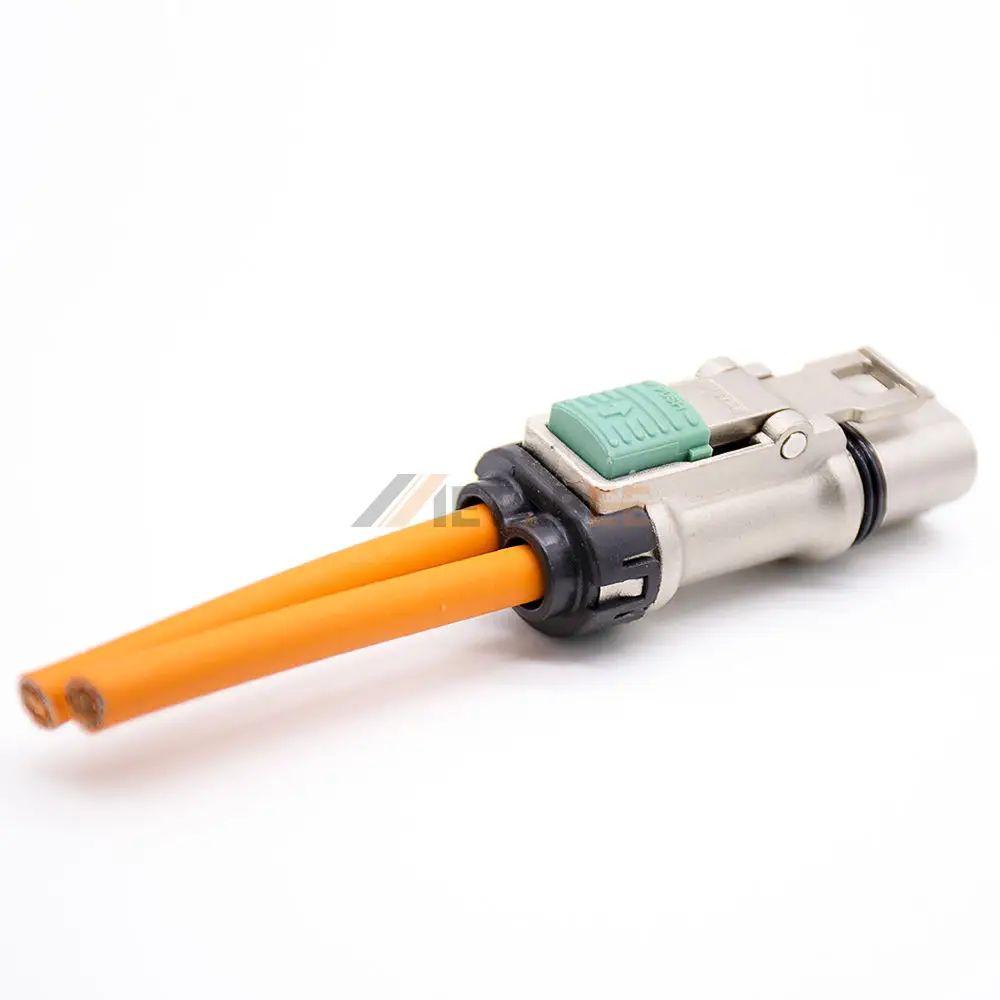

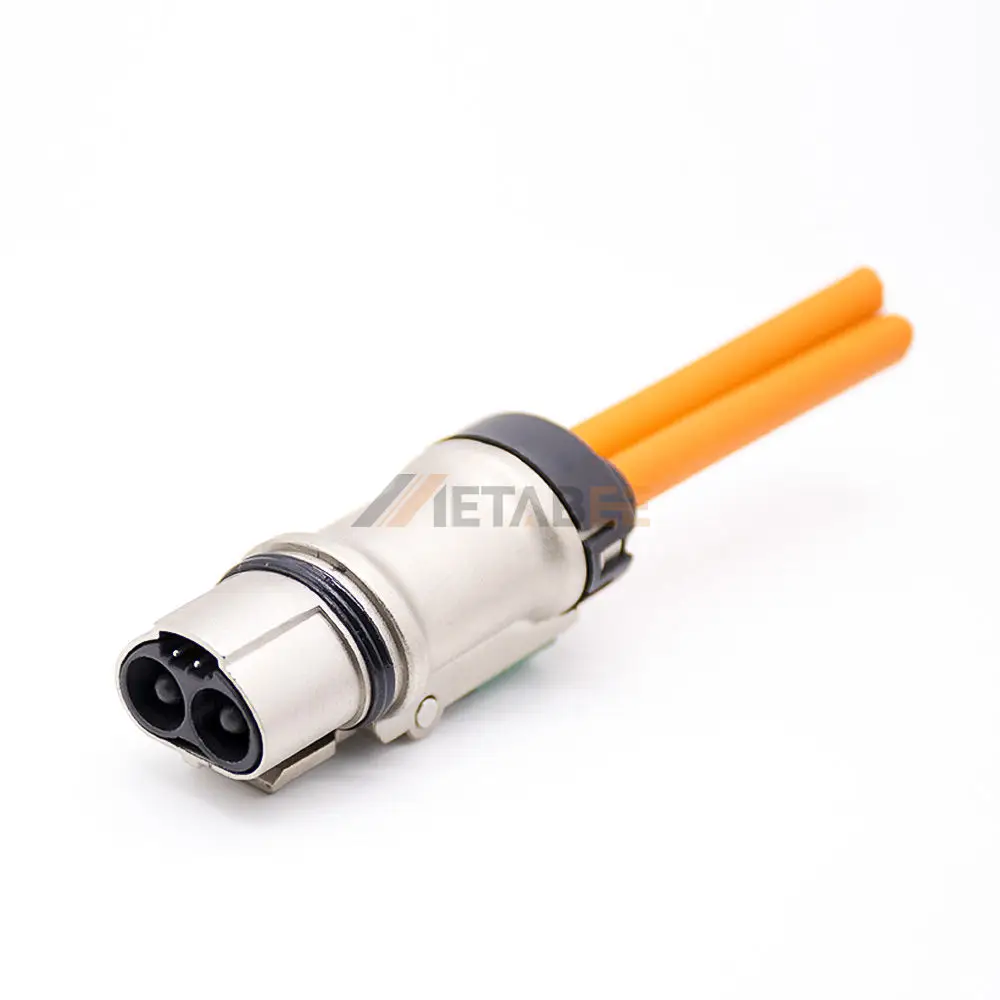

3.6mm High-Quality Automotive High Voltage HV Cable, 2 Pin Plug, A Key, 6mm², 35A
Introduction
The 3.6mm high-quality automotive high voltage HV cable is designed for demanding electric and hybrid vehicle applications requiring safe, stable, and high-current transmission. This 2 Pin Plug with A Key configuration ensures secure mating and reliable interlock performance, minimizing the risk of disconnection under vibration or extreme conditions. Its straight connector design supports versatile integration in compact spaces, making it ideal for battery packs, inverters, and charging modules.
Built with a durable PA66+GF housing and nickel-plated copper alloy contacts, this cable provides superior conductivity, corrosion resistance, and mechanical strength. Rated at 1000V and 35A, it delivers consistent performance across a wide operating temperature range from -40°C to 125°C. The IP67-rated sealing and UL94V-0 flame-retardant rating ensure outstanding protection against water, dust, and fire hazards, enhancing system safety and longevity.
Key Features:
- 3.6mm terminal diameter with 2-pin plug, A Key alignment.
- Rated for 1000V and 35A continuous operation.
- PA66+GF housing and nickel-plated copper alloy contacts.
- IP67 waterproof and dustproof protection.
- Flame-retardant grade UL94V-0 for enhanced safety.
- Wide temperature range: -40°C to +125°C.
Main Specifications:
General Information:
| Part No.: | NI1-1-S036-2AYN-C05-L0.1 | |
| Product Series: | HVIL Cables | |
| Brand: | Metabee | |
| Gender: | Plug | |
| Orientation: | Straight | |
| Connector Coding: | A Key | |
| Number of Positions: | 2 Pin | |
| Shell Material: | Zinc Alloy | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Nickel-Plated | |
| Terminal Diameter: | 3.6mm | |
| Wire Gauge: | 6mm² | |
| Cable length: | 10cm | |
| Rated Voltage: | 1000 V | |
| Rated Current: | 35A | |
| IP Rating: | IP67 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +125°C | |
| Other Feature: | None |
Applications of this 3.6mm High-Quality Automotive High Voltage HV Cable:
HVIL (High Voltage Interlock Loop) cables and their associated systems are crucial safety mechanisms primarily used in high-voltage applications to prevent electric shock and damage from arcing.
Here are some main applications:
- Electric Vehicles (EVs) and Hybrid Electric Vehicles (HEVs);
- Inverter/motor drive interface;
- On-board charger (OBC) connection;
- Power distribution unit (PDU) / junction box systems;
- Stationary energy storage systems (ESS);
- Off-highway and heavy-duty electric equipment;
- DC fast-charging infrastructure;
- High-voltage thermal management systems.
