2.8mm High Voltage Interlock Loop 2 Pin Cable, Socket, A Key, 4mm², 23A
Introduction

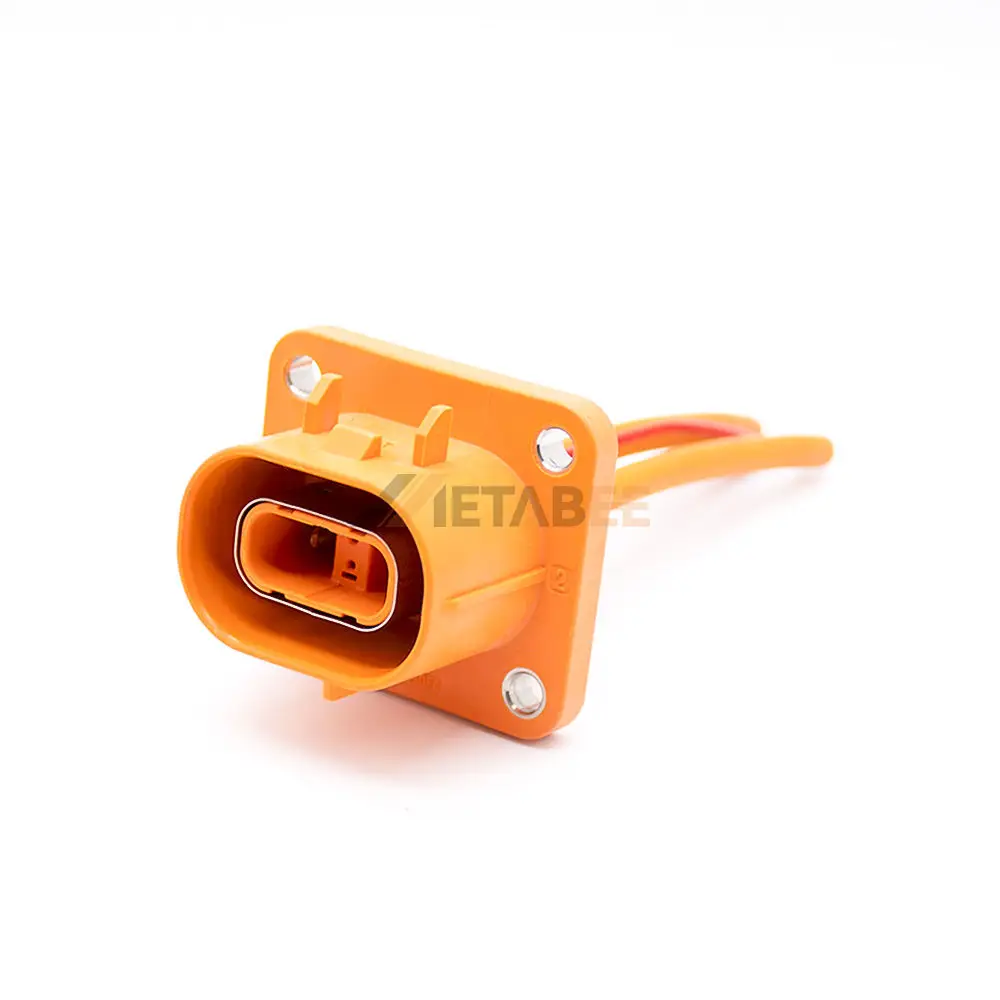

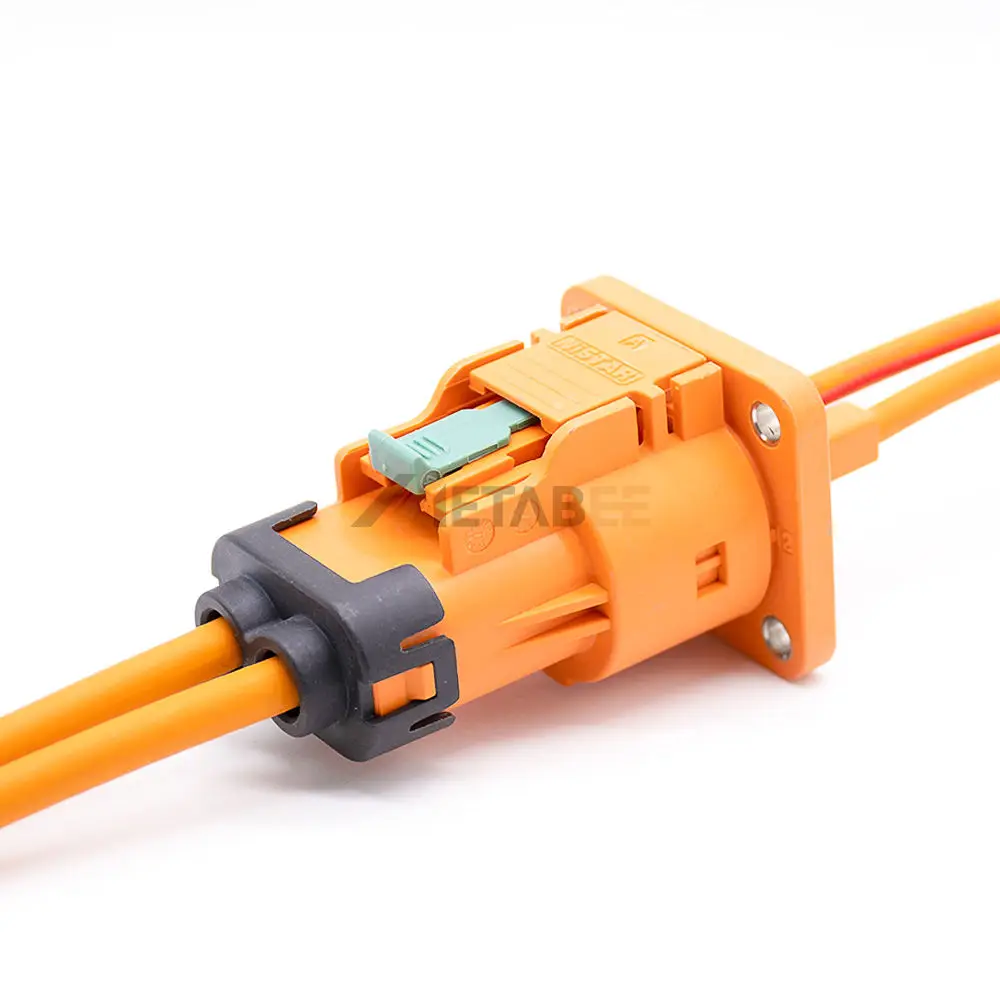

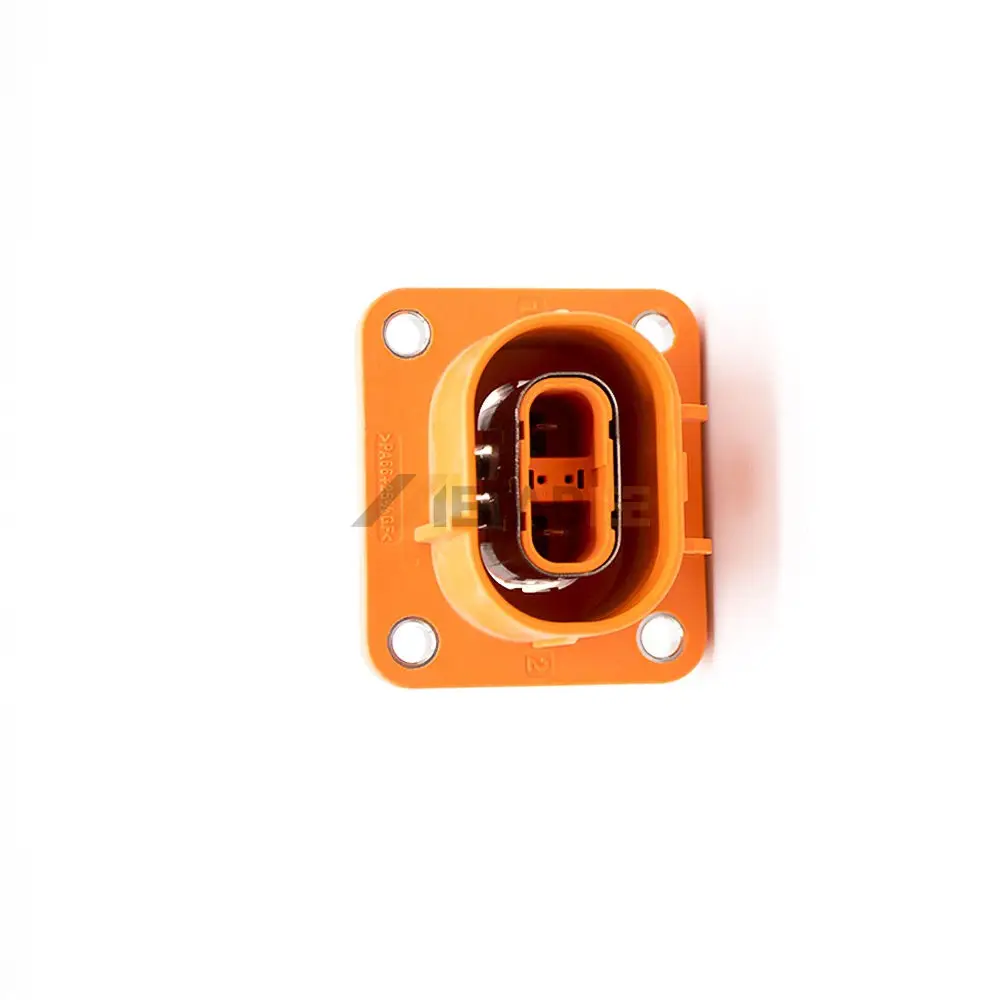

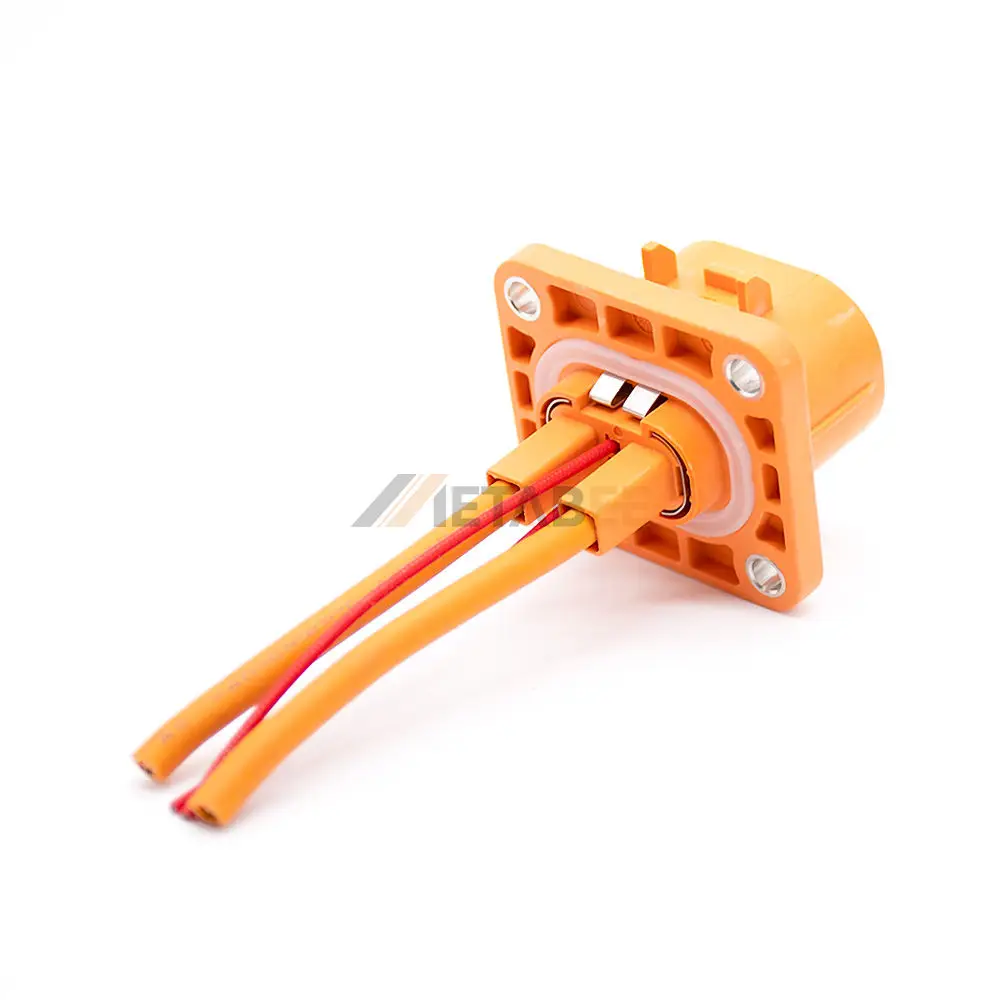

The 2.8mm HVIL cable, Socket, A Key, 4mm², 23A is a high-performance interlock cable engineered for secure power transmission and system integrity in electric and hybrid vehicles. Designed with a straight socket connector, it ensures stable connections and reliable signal continuity in demanding high-voltage environments up to 1000V.
Built with a PA66+GF housing for superior mechanical strength and heat resistance, this HVIL cable provides excellent insulation and durability. The copper alloy contacts with nickel plating offer outstanding conductivity and corrosion resistance, ensuring consistent performance even under harsh conditions. Rated for 23A current, the cable is ideal for compact HV applications requiring stable electrical integrity.
With an IP67 protection rating, UL94V-0 flame retardancy, and an operating temperature range from -40°C to +125°C, this cable is designed to meet automotive-grade reliability standards. It ensures safety, performance, and durability in EV battery systems, charging units, and high-voltage distribution assemblies.
Key Features:
- Rated voltage: 1000V; rated current: 23A
- 2.8mm terminal diameter with 2-pin straight socket design
- Durable PA66+GF housing with copper alloy contacts
- Nickel-plated terminals for superior corrosion resistance
- IP67 waterproof and UL94V-0 flame-retardant protection
- Wide operating temperature range: -40°C to +125°C
Main Specifications:
General Information:
| Part No.: | NI1-1-S140-1AYN-C15-L0.5 | |
| Product Series: | HVIL Cables | |
| Brand: | Metabee | |
| Gender: | Socket | |
| Orientation: | Straight | |
| Connector Coding: | A Key | |
| Number of Positions: | 2 Pin | |
| Shell Material: | PA66+GF | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Nickel-Plated | |
| Terminal Diameter: | 2.8mm | |
| Wire Gauge: | 4mm² | |
| Cable length: | 10cm | |
| Rated Voltage: | 1000 V | |
| Rated Current: | 23A | |
| IP Rating: | IP67 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +125°C | |
| Other Feature: | None |
Applications of this 2.8mm High Voltage Interlock Loop 2 Pin Cable:
HVIL (High Voltage Interlock Loop) cables and their associated systems are crucial safety mechanisms primarily used in high-voltage applications to prevent electric shock and damage from arcing.
Here are some main applications:
- Electric Vehicles (EVs) and Hybrid Electric Vehicles (HEVs);
- Inverter/motor drive interface;
- On-board charger (OBC) connection;
- Power distribution unit (PDU) / junction box systems;
- Stationary energy storage systems (ESS);
- Off-highway and heavy-duty electric equipment;
- DC fast-charging infrastructure;
- High-voltage thermal management systems.
