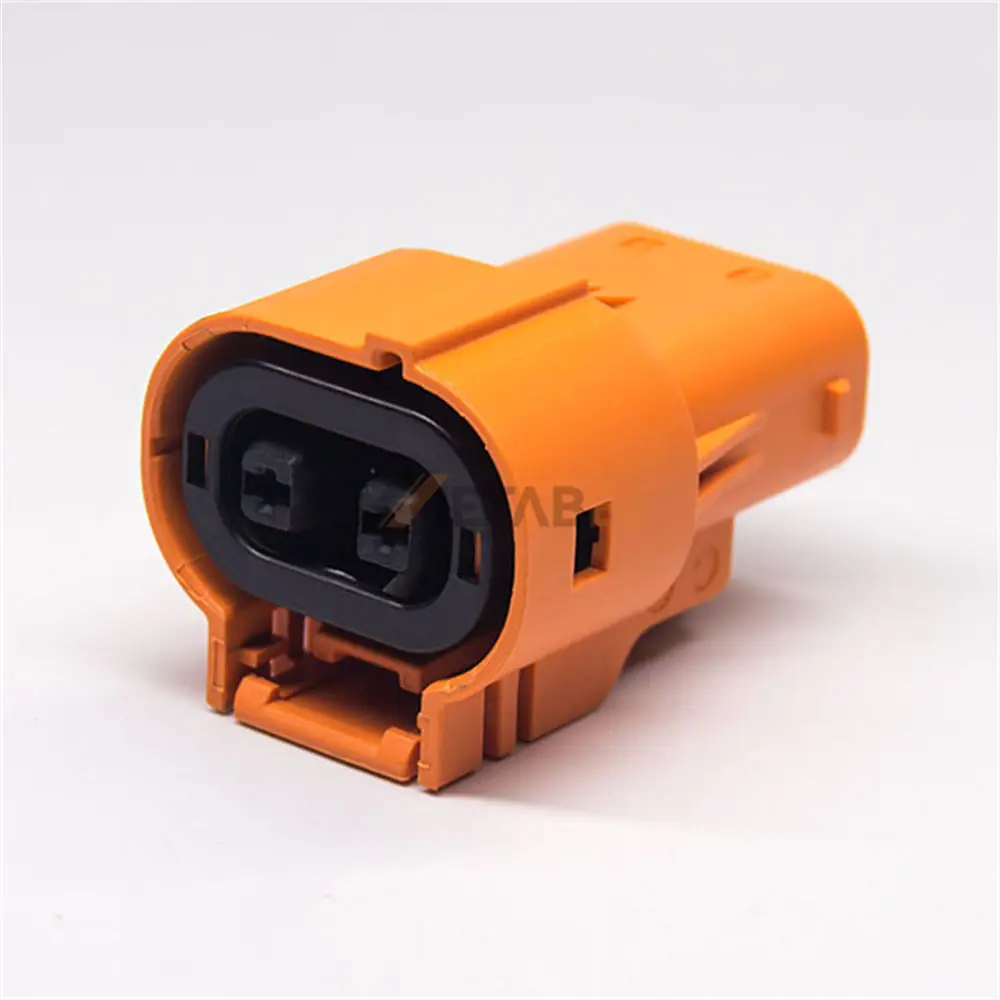

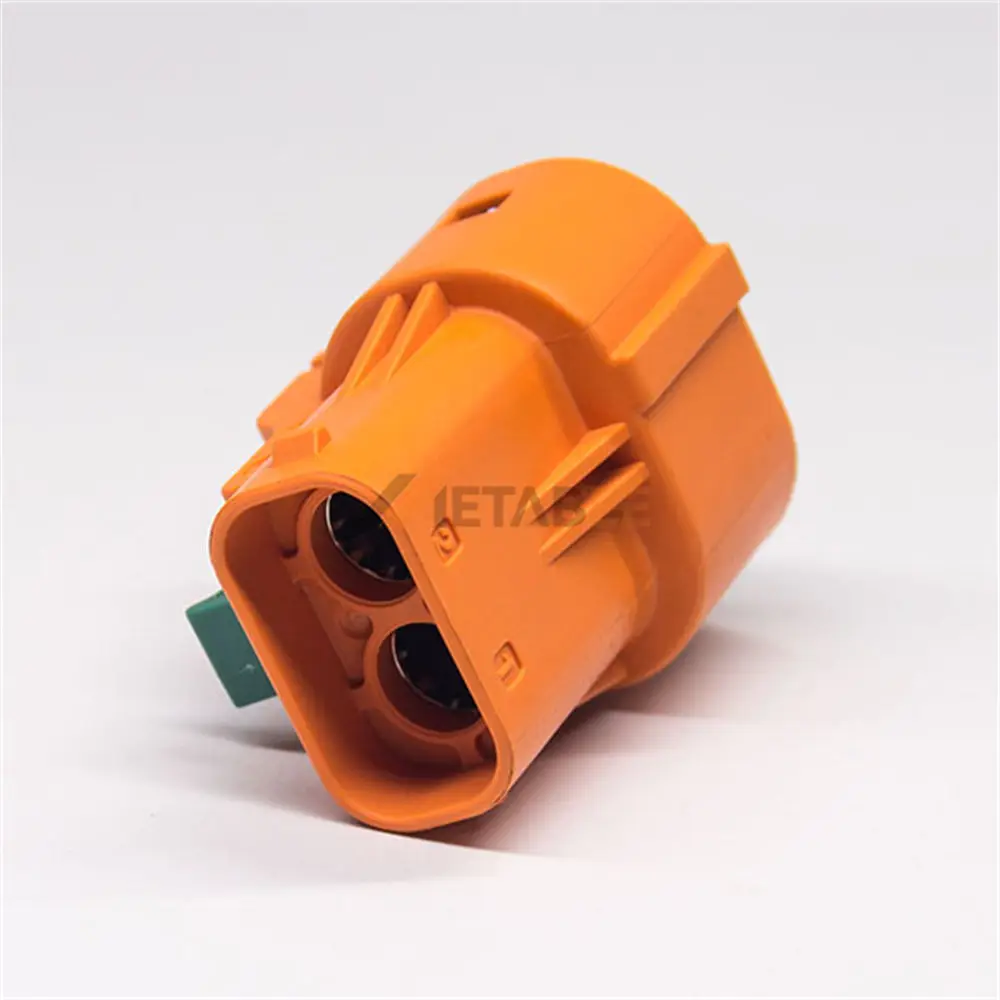

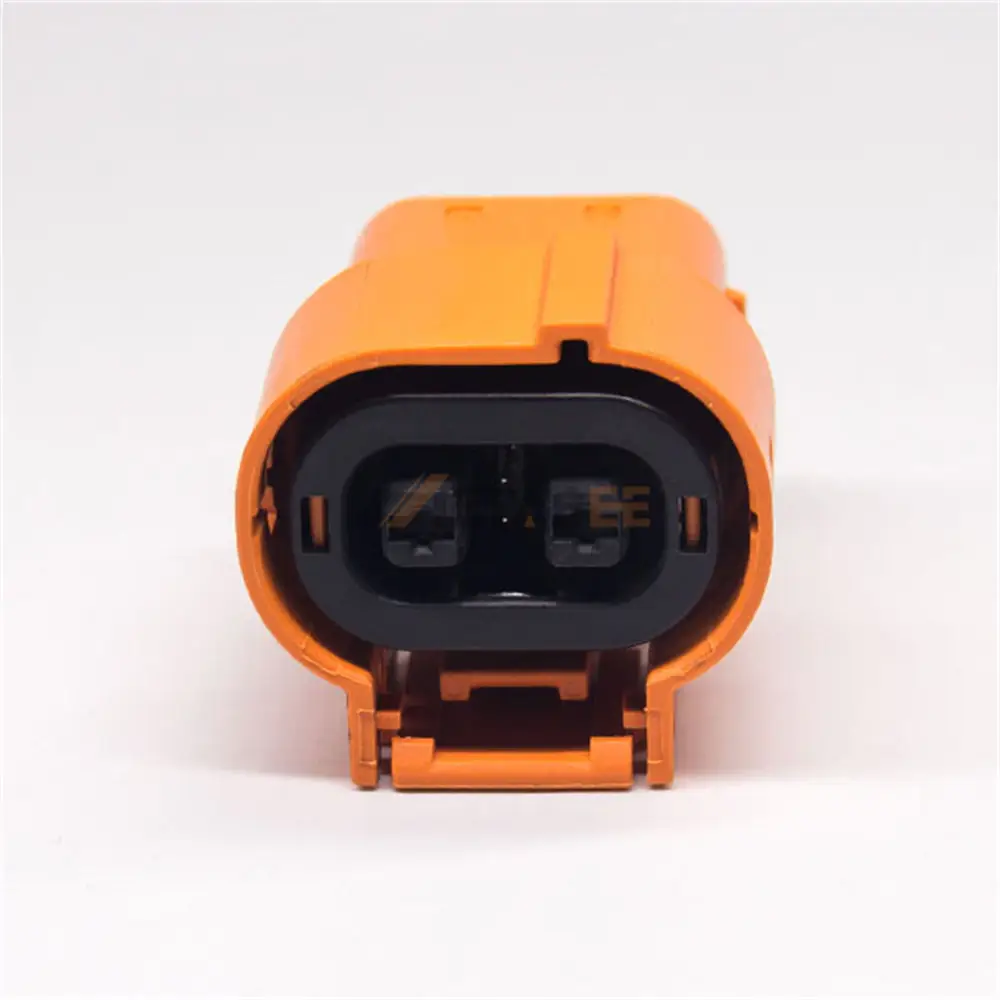

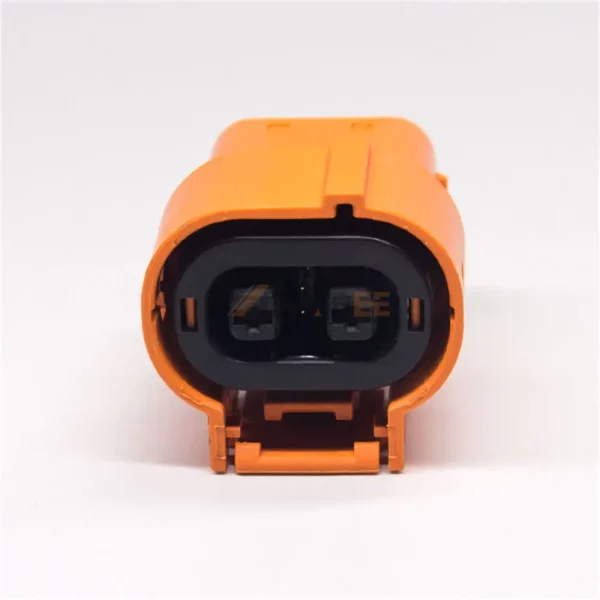

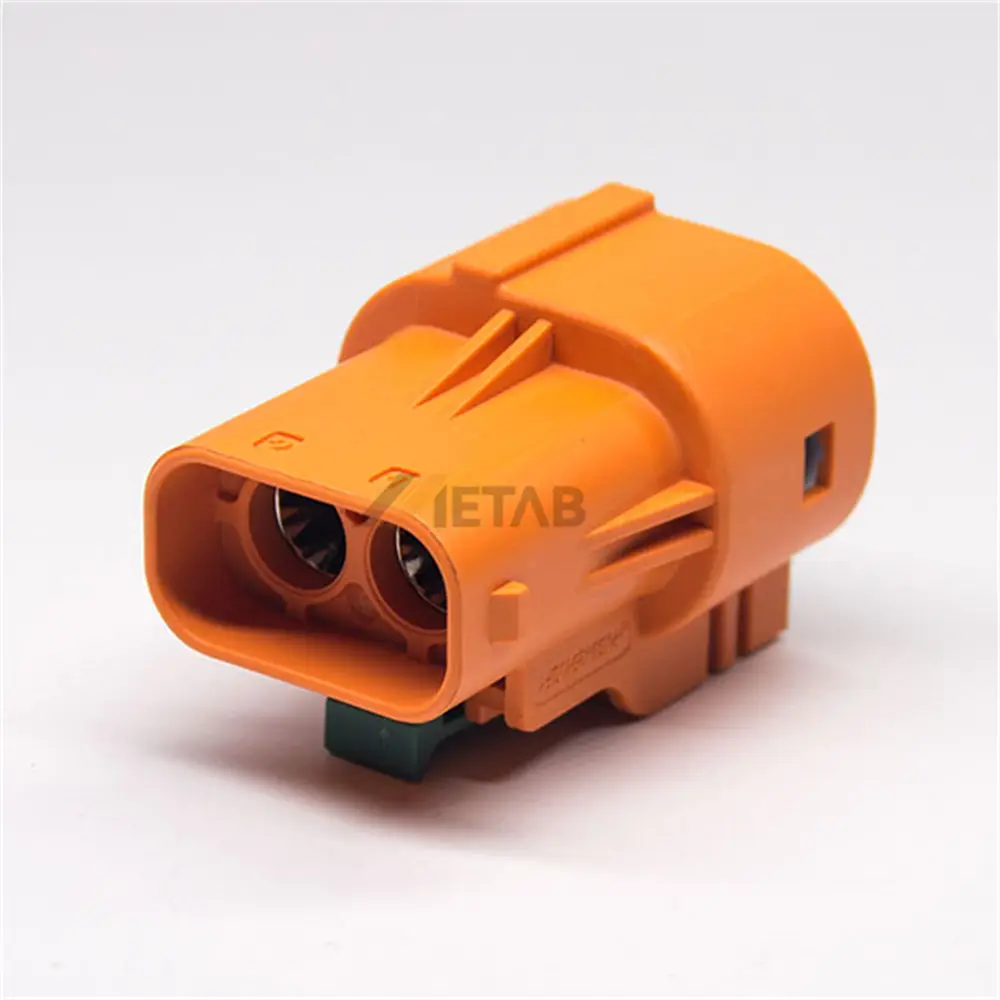

2.8mm High-Quality EV High Voltage Interlock Loop Cable, 2 Pin Plug, A Key, 4mm², 23A
Introduction
Introduce your high-voltage systems with confidence using our 2.8mm HVIL cable. This 2-pin straight plug, featuring a secure A-key configuration, is engineered for reliable performance in demanding electric vehicle applications. Constructed with a robust PA66+GF connector housing and a copper alloy nickel-plated contact, it ensures excellent electrical conductivity and long-term durability. The 4mm² wire gauge and 10cm length provide a precise and sturdy connection for critical safety circuits.
Built to meet the rigorous demands of the automotive industry, this HVIL cable is rated for 1000V and 23A. It boasts an IP67 rating for superior protection against dust and water ingress, ensuring operational integrity in challenging environments. The connector is UL94V-0 certified for flame retardancy and can withstand a wide operating temperature range from -40°C to +125°C, guaranteeing safety and reliability in extreme conditions.
Key Features:
- EV-Specific Design: 2-pin straight plug with A Key for secure HVIL connections.
- Robust Construction: PA66+GF housing and nickel-plated copper alloy contacts.
- High Performance: Rated for 1000V/23A with a 4mm² wire gauge.
- Superior Sealing: IP67 rated for dust and water resistance.
- Enhanced Safety: UL94V-0 flame retardant certification.
- Extreme Temperature Ready: Stable performance from -40°C to +125°C.
Main Specifications:
General Information:
| Part No.: | NI2-1-S280- 2AYA-C04-L0.1 | |
| Product Series: | HVIL Cables | |
| Brand: | Metabee | |
| Gender: | Plug | |
| Orientation: | Straight | |
| Connector Coding: | A Key | |
| Number of Positions: | 2 Pin | |
| Shell Material: | PA66+GF | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Nickel-Plated | |
| Terminal Diameter: | 2.8mm | |
| Wire Gauge: | 4mm² | |
| Cable length: | 10cm | |
| Rated Voltage: | 1000 V | |
| Rated Current: | 23A | |
| IP Rating: | IP67 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +125°C | |
| Other Feature: | None |
Applications of this 2.8mm High-Quality EV High Voltage Interlock Loop Cable:
HVIL (High Voltage Interlock Loop) cables and their associated systems are crucial safety mechanisms primarily used in high-voltage applications to prevent electric shock and damage from arcing.
Here are some main applications:
- Electric Vehicles (EVs) and Hybrid Electric Vehicles (HEVs);
- Inverter/motor drive interface;
- On-board charger (OBC) connection;
- Power distribution unit (PDU) / junction box systems;
- Stationary energy storage systems (ESS);
- Off-highway and heavy-duty electric equipment;
- DC fast-charging infrastructure;
- High-voltage thermal management systems.
