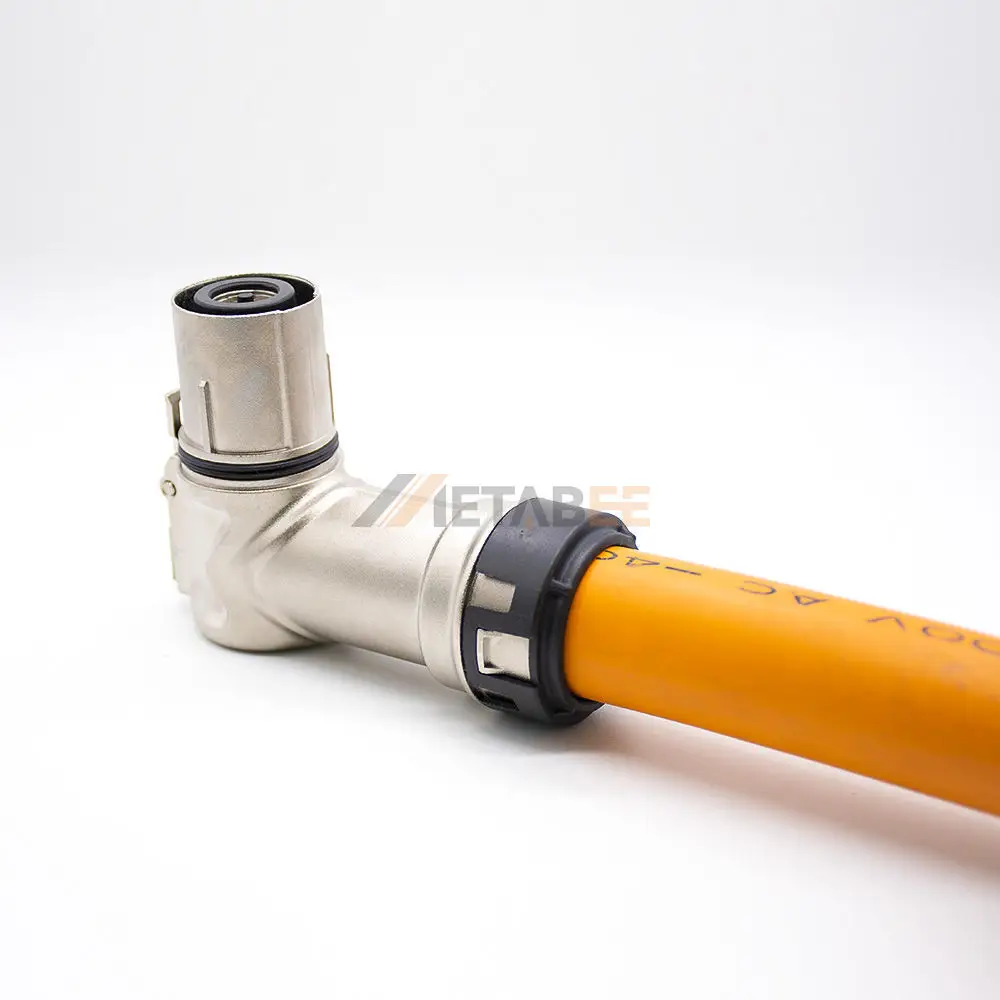

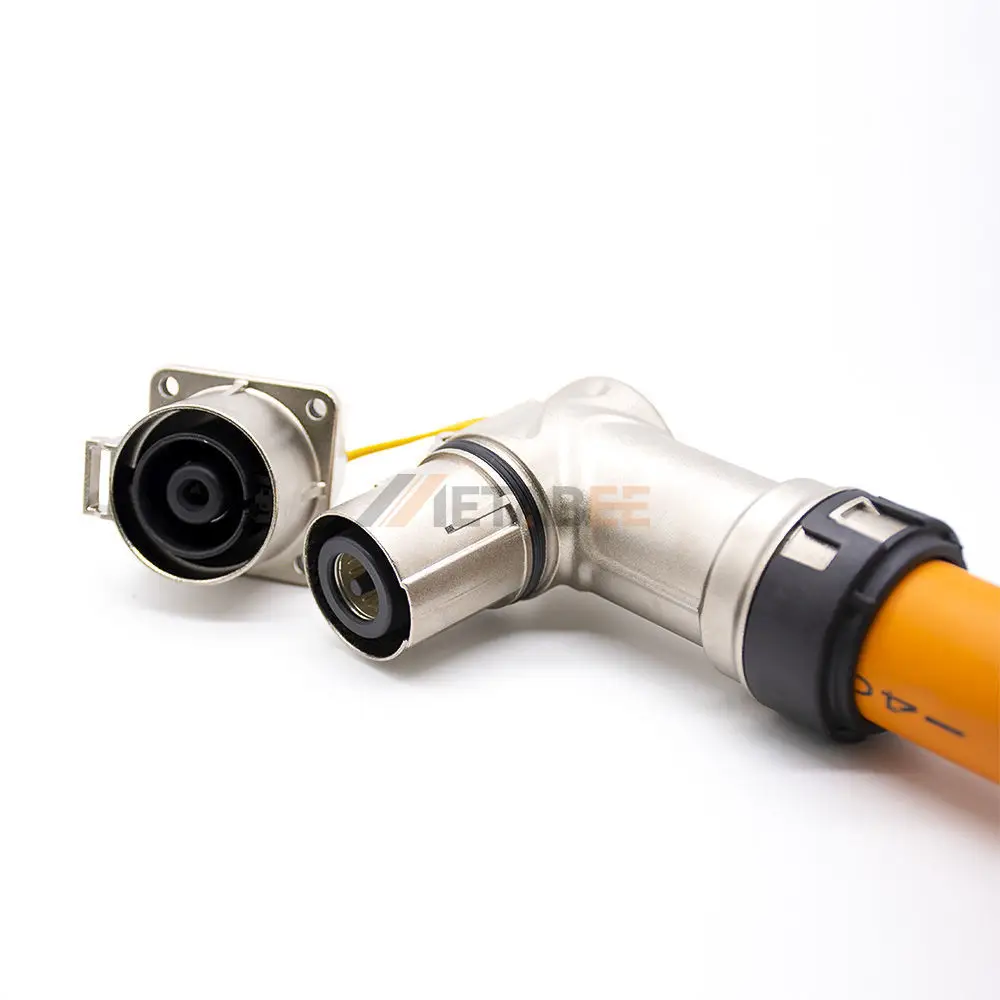

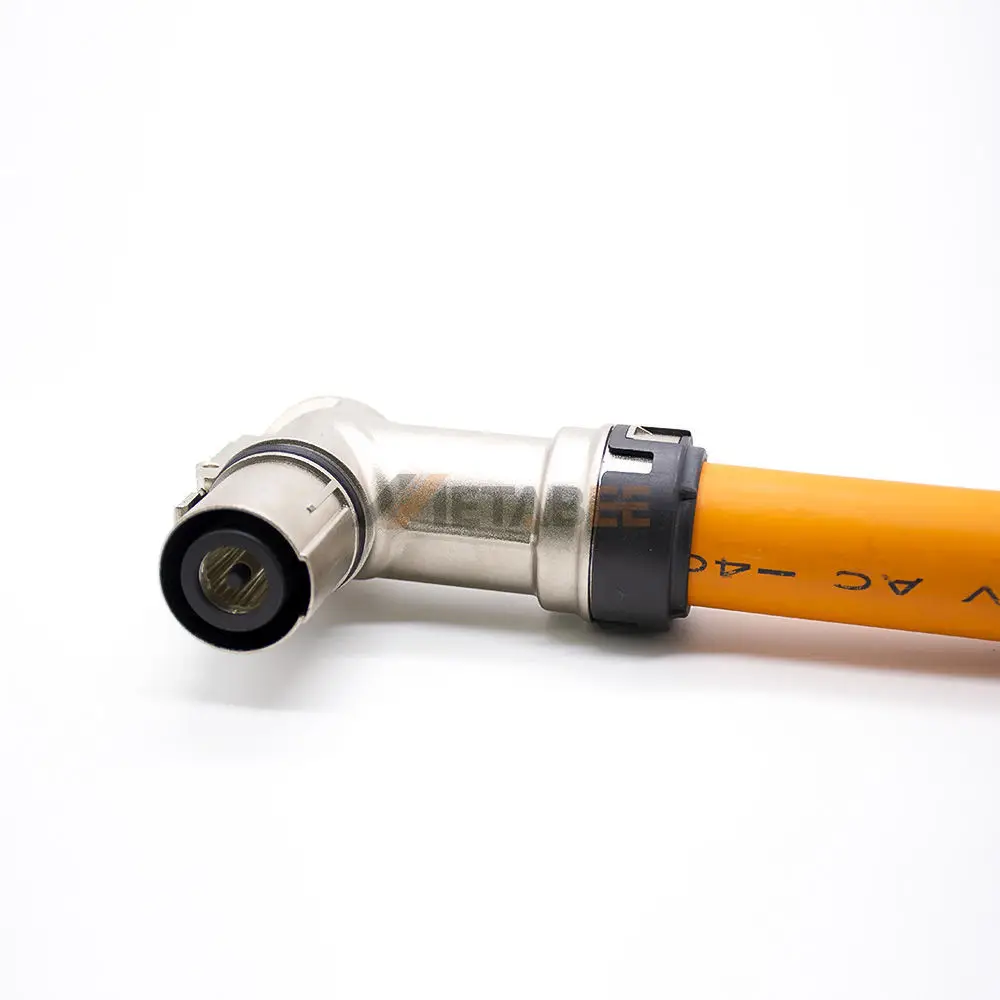

12mm Right Angle High Voltage Interlock Loop HVIL Cable, 1 Pin Plug, A Key, 95mm², 300A
Introduction
This 12mm HVIL cable is engineered for superior performance and safety in high-voltage electrical systems. Featuring a 1-pin plug configuration with an A Key orientation, it ensures foolproof mating and prevents incorrect connections. The right-angle design is ideal for applications with limited space, allowing for optimized routing and reduced stress on the cable. Constructed with a robust zinc alloy shell and a copper alloy contact that is nickel-plated, this cable offers excellent durability, corrosion resistance, and reliable electrical conductivity.
Built to meet rigorous industrial standards, this HVIL cable boasts an impressive rating of 1000V and 300A, making it suitable for demanding high-power applications. It ensures operational integrity in challenging environments with an IP67 rating for complete protection against dust and water immersion. Furthermore, the assembly complies with the UL94V-0 flammability standard, significantly reducing fire risks. Its wide operating temperature range of -40°C to +125°C guarantees consistent performance from extreme cold to high heat.
Key Features:
- High Power & Voltage Rating: Handles 1000V and a continuous 300A current.
- Integrated HVIL Safety: Essential High Voltage Interlock Loop for enhanced system and personnel protection.
- Right Angle Plug: Space-saving right-angle connector design for compact installations.
- Extreme Durability: Wide operating temperature range of -40°C to 125°C.
- Superior Protection: IP67 dust/waterproof rating and UL94V-0 flame-retardant shell.
- Robust Materials: Zinc Alloy housing and Nickel-Plated Copper Alloy contacts for reliability.
Main Specifications:
General Information:
| Part No.: | NI1-1-B120-1AYN-C12-L0.5 | |
| Product Series: | HVIL Cables | |
| Brand: | Metabee | |
| Gender: | Plug | |
| Orientation: | Right Angle | |
| Connector Coding: | A Key | |
| Number of Positions: | 1 Pin | |
| Shell Material: | Zinc Alloy | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Nickel-Plated | |
| Terminal Diameter: | 12mm | |
| Wire Gauge: | 95mm² | |
| Cable length: | 50cm | |
| Rated Voltage: | 1000 V | |
| Rated Current: | 300A | |
| IP Rating: | IP67 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +125°C | |
| Other Feature: | None |
Applications of this 12mm Right Angle High Voltage Interlock Loop HVIL Cable:
HVIL (High Voltage Interlock Loop) cables and their associated systems are crucial safety mechanisms primarily used in high-voltage applications to prevent electric shock and damage from arcing.
Here are some main applications:
- Electric Vehicles (EVs) and Hybrid Electric Vehicles (HEVs);
- Inverter/motor drive interface;
- On-board charger (OBC) connection;
- Power distribution unit (PDU) / junction box systems;
- Stationary energy storage systems (ESS);
- Off-highway and heavy-duty electric equipment;
- DC fast-charging infrastructure;
- High-voltage thermal management systems.
