Introduction:

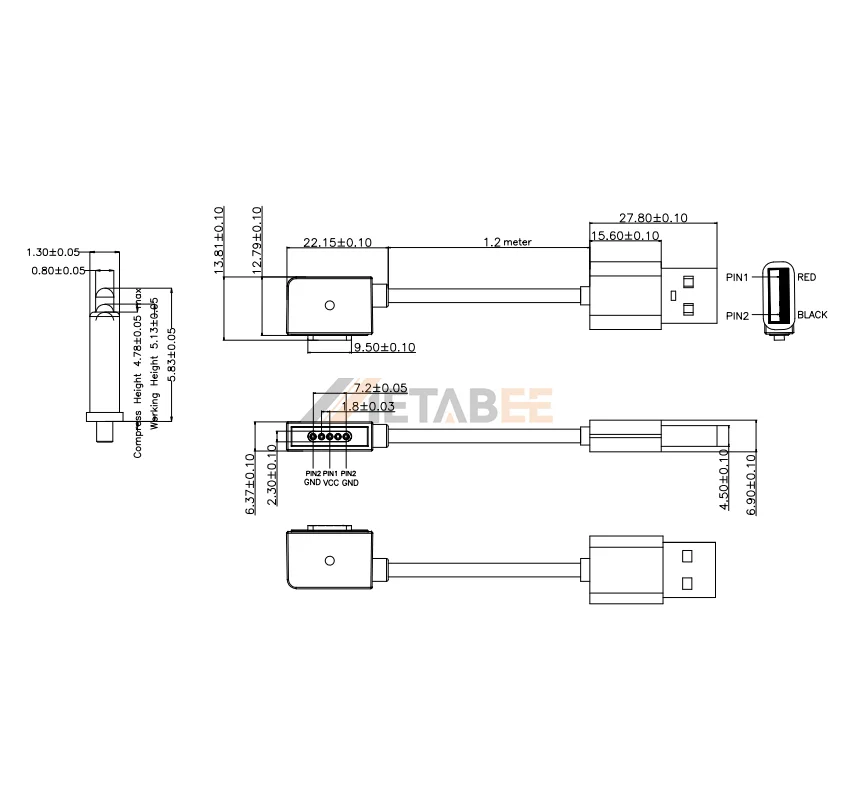

This 5 pins magnetic pogo pin cable is a 1.2-meter charging assembly designed for specialized electronic interfaces requiring a 1.8mm pitch. It features a rectangular magnetic head that enables automatic self-alignment, allowing for quick and secure connectivity without manual orientation. The right angle terminal is constructed with gold-plated brass contacts to maintain a maximum resistance of 30 mohms. Supporting a 2A current at 5V DC, the 20AWG PVC cable provides a stable power link for handheld devices and industrial hardware. This cable assembly functions as a durable charging solution for compact portable electronics that undergo up to 5,000 mechanical cycles.
Key Features
- Magnetic Connection: Rectangular magnetic head enables automatic self-aligning connectivity.
- Precision Pitch: 1.8mm pitch ensures stable contact for modular devices.
- Right Angle Design: 90-degree orientation optimizes space in tight layouts.
- Reliable Power: Supports 2A current delivery via 1200mm PVC cable.
- Gold Plated Contacts: 3u” Gold plating prevents oxidation over 5,000 cycles.
Main Specifications:
General Information:
| Product No.: | CA-RA4-PH1-181279-M | |
| Product Type: | Magnetic Cable Assemblies | |
| Connector 1: | USB Type-A Male | |
| Connector 2: | Male Pogo Pin Connector | |
| Pin Count: | 5 | |
| Connector 2-Shape: | Rectangular | |
| Connector 2-Orientation: | Right Angle | |
| Contact Material: | Brass | |
| Contact Plating: | 3u” Gold plated over nickel | |
| Cable Type: | Round Cable | |
| Wire Gauge: | 20AWG | |
| Cable Length: | 1200mm | |
| Jacket Material & Color: | PVC 55P, Black |
Electrical:
| Rated Current: | 2A Max | |
| Rated Voltage: | 5V DC | |
| Contact Resistance: | 30 mohms max | |
| Insulation Resistance: | 100 Mohms min | |
| Dielectric Withstanding Voltage: | 100 VRMS |
Mechanical:
| Contact Force: | N/A | |
| Working Stroke: | N/A | |
| Full Stroke: | N/A | |
| Durability: | 5,000 cycles |
Environmental:
| Operating Temperature: | -20°C to +80°C | |
| Flammability Rating: | UL 94 V-0 |
Applications:
Pogo pin magnetic cable assemblies combine magnetic alignment with spring-loaded contacts to provide fast, reliable connections for power and signal transmission. Their self-aligning design supports easy mating, repeated connection cycles, and stable electrical performance in compact electronic devices.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
