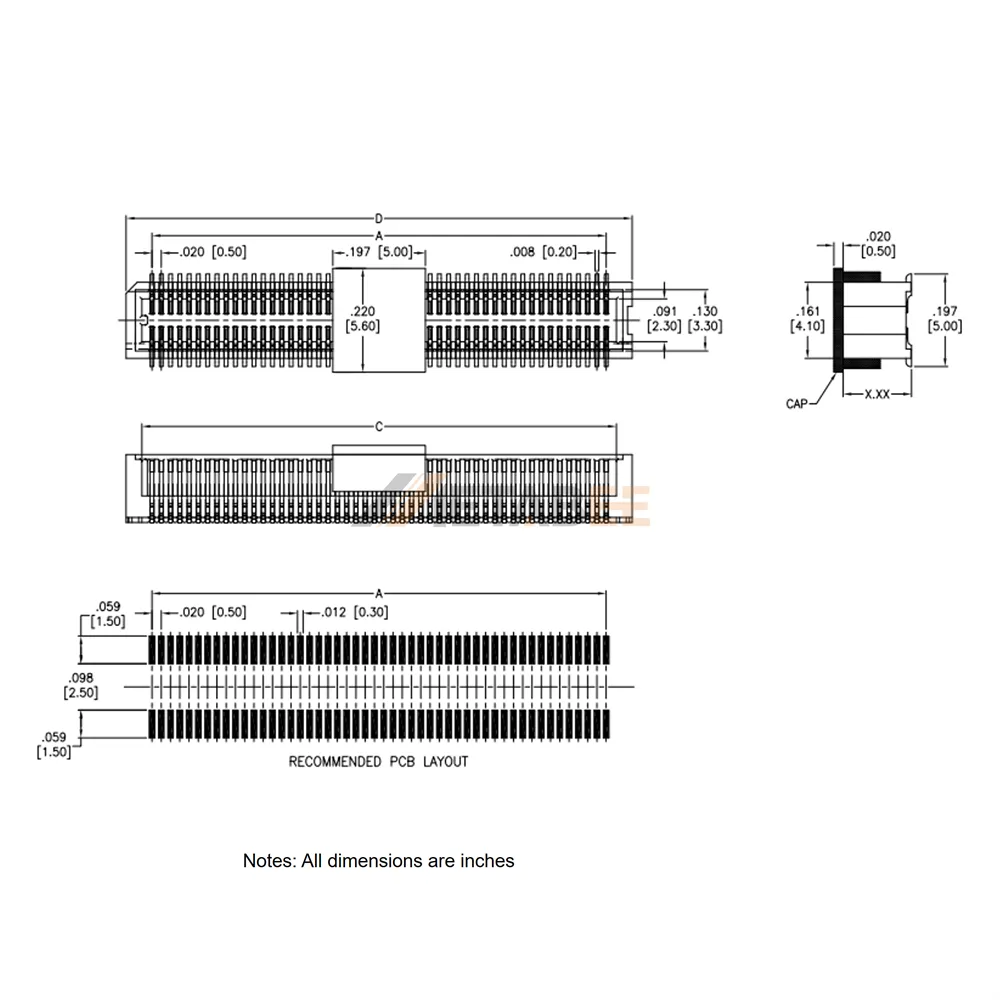

0.5mm Pitch Vertical Board to Board Connector, Socket, SMT
Introduction:
The 0.5mm Pitch Vertical Board to Board Connector Socket is a compact SMT solution designed for high-density PCB applications. Built with a dual-row female configuration and available in 20 to 100 positions, it delivers a secure and stable interconnect for space-limited electronic assemblies. The vertical mounting orientation supports efficient board stacking and optimized system integration.
Engineered with copper alloy contacts and gold flash plating, this connector provides dependable conductivity, low contact resistance, and improved durability. Its hi-temp thermoplastic insulator offers strong thermal resistance and mechanical reliability, making it suitable for automated surface-mount assembly and demanding production environments.
With an operating temperature range of -40°C to +85°C and UL 94 V-0 flammability rating, this board to board socket is built for consistent performance in industrial, communication, consumer, and other compact electronic devices requiring reliable signal transmission and long-term stability.
Key Features
- 0.5mm pitch for high-density PCB designs
- Vertical SMT board to board socket
- Female, dual-row connector structure
- 20 to 100 positions available
- Copper alloy contacts with gold flash plating
- Hi-temp thermoplastic, UL 94 V-0 rated
Main Specifications:
General Information:
| Product No.: | YC-BB5-SL-XXX-G-XXX-NP-PP-T/R | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.5mm (0.0197″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 20-100 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.5mm Pitch Vertical Board to Board Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
