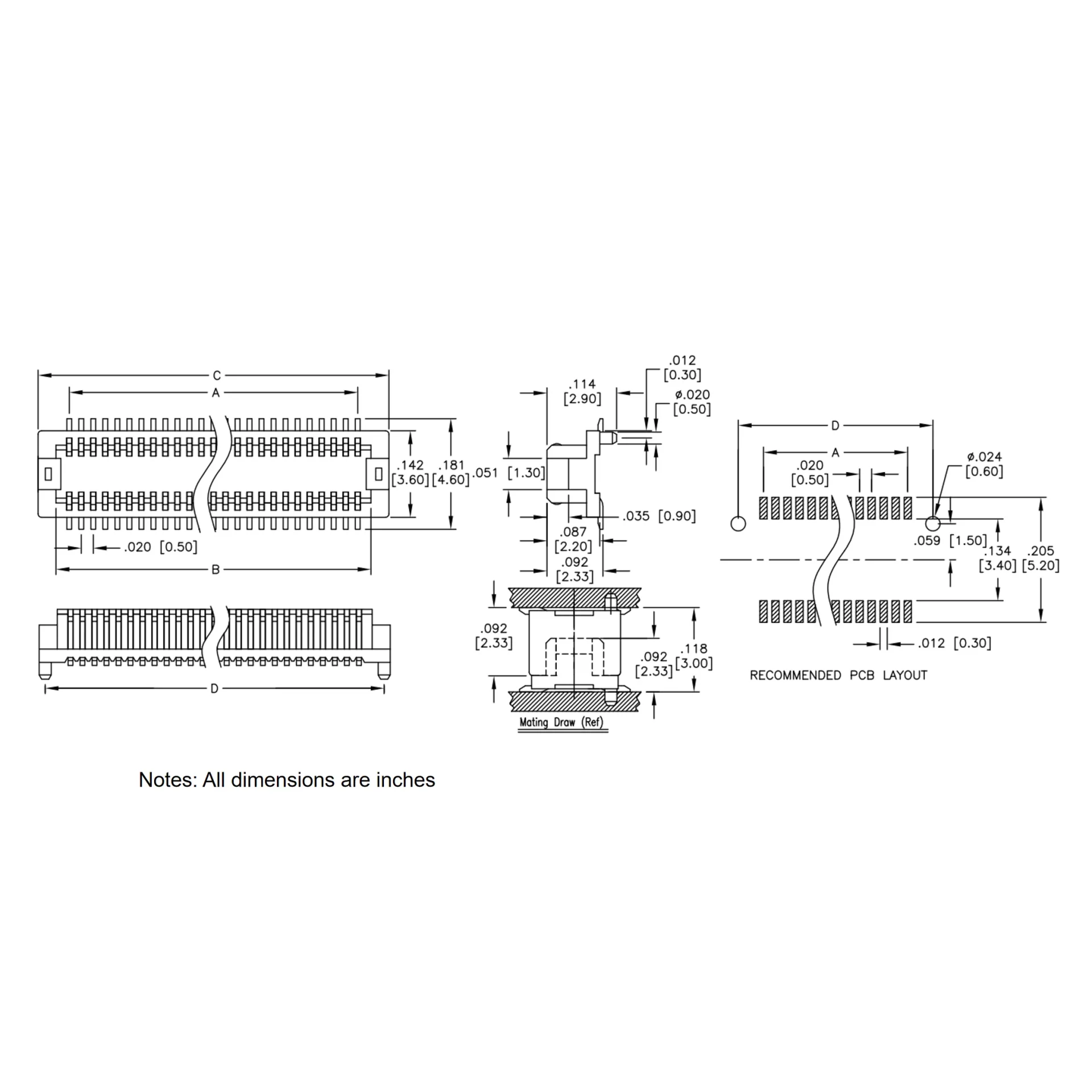

0.5mm Pitch SMT Board to Board Vertical Connector, Receptable
Introduction:
Elevate your electronic designs with our high-precision 0.5mm pitch SMT vertical board-to-board female connector. Engineered for compact, high-density applications, this receptacle ensures seamless data and power transmission between PCBs. Its robust vertical orientation and surface-mount design optimize space, making it an ideal solution for modern, space-constrained hardware architectures.
Constructed for durability and performance, the connector features a high-temperature thermoplastic insulator and a copper alloy contact base with gold-flash plating for enhanced conductivity and corrosion resistance. Built to withstand demanding environments, it maintains reliable connectivity within an operating temperature range of -40℃ to +85℃ and adheres to strict safety standards with a UL 94 V-0 flammability rating.
Key Features
- Ultra-Compact Pitch: 0.5mm centerline for high-density board layouts.
- Versatile Connectivity: Available in configurations from 10 to 80 positions.
- Durable Construction: High-temp thermoplastic insulator with gold-plated copper alloy.
- Space-Saving Design: Vertical mounting orientation optimized for surface-mount assembly.
- Thermal Resilience: Stable operation from -40℃ to +85℃.
- Safety Certified: Rated UL 94 V-0 for superior flame retardancy.
Main Specifications:
General Information:
| Product No.: | YC-BB5-S3-XX-G | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.5mm (0.0197″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-80 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.5mm Pitch SMT Board to Board Vertical Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
