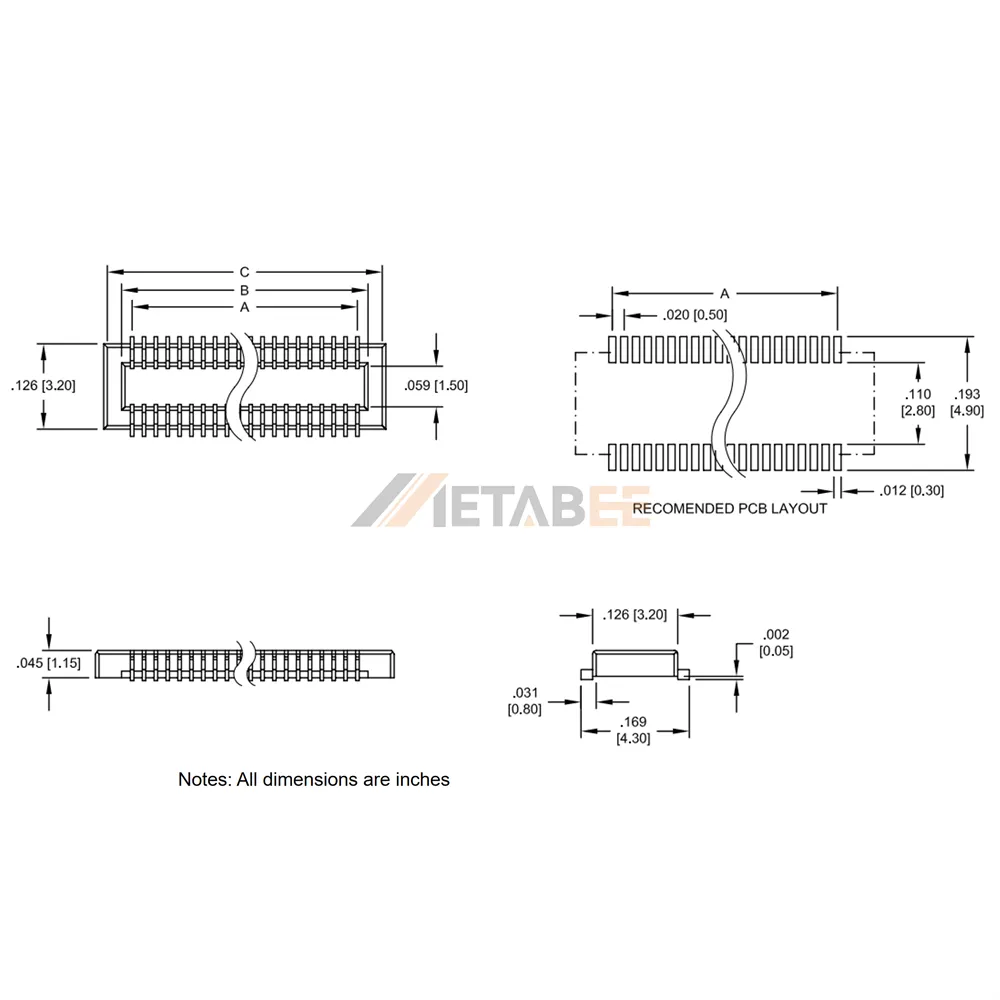

0.5mm Pitch SMT Board to Board Receptable, Vertical
Introduction:
This vertical SMT receptacle provides a high-reliability interconnect solution for dense PCB assemblies. Engineered with a 0.5mm centerline pitch and a dual-row contact arrangement, this female connector supports 20 to 90 positions, offering scalable design flexibility for compact electronic systems. The surface-mount termination ensures efficient automated assembly, while the vertical orientation facilitates straightforward board stacking and mezzanine configurations.
Constructed from a copper alloy base with a gold flash plating over the contact area, the receptacle ensures low contact resistance and robust corrosion protection. The high-temperature thermoplastic insulator withstands reflow soldering processes without deformation, and the component operates reliably across a -40°C to +85°C temperature range. Compliance with UL 94 V-0 flammability rating guarantees inherent fire resistance for safety-critical applications.
Key Features
- 0.5mm pitch with dual-row, 20–90 position options
- Vertical SMT mounting for space-efficient board stacking
- Gold-flashed copper alloy contacts for signal integrity
- Hi-temp thermoplastic insulator for reflow compatibility
- Wide operating range: -40°C to +85°C
- UL 94 V-0 flammability-rated housing
Main Specifications:
General Information:
| Product No.: | YC-BB5-S-XX-1 | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.5mm (0.0197″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 20-90 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.5mm Pitch SMT Board to Board Receptable:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
